Bike Info
Worldwide Shipping: Yes
Delivery across the globe!
Warranty: Lifetime
Limited warranty website average: 3.12 years
Released: 2025
The bike was released 1 years ago
Bike Type: Road
The style of riding intended for this bike
Bike Spec
Weight: 9.1 kg
The website average for Road bikes is 8.56 kg. This bike is 0.53 kg over the average. Total bike weight may vary depending on frame size.
Groupset
Shimano GRX820
Wheelset
Merida Expert CC
Brake Type: Disc Brake
Welcome to the future!
Frameset Material
Carbon Fiber
Max Tire Size: 35 mm
This is the max tire size you can use
UCI Approved: Unknown
You can't use for official races
Sizing & Geometry
Frame Sizes
XXS XS S M L XLThis frame comes in 6 sizes, this is 0.44 more sizes than the website average.

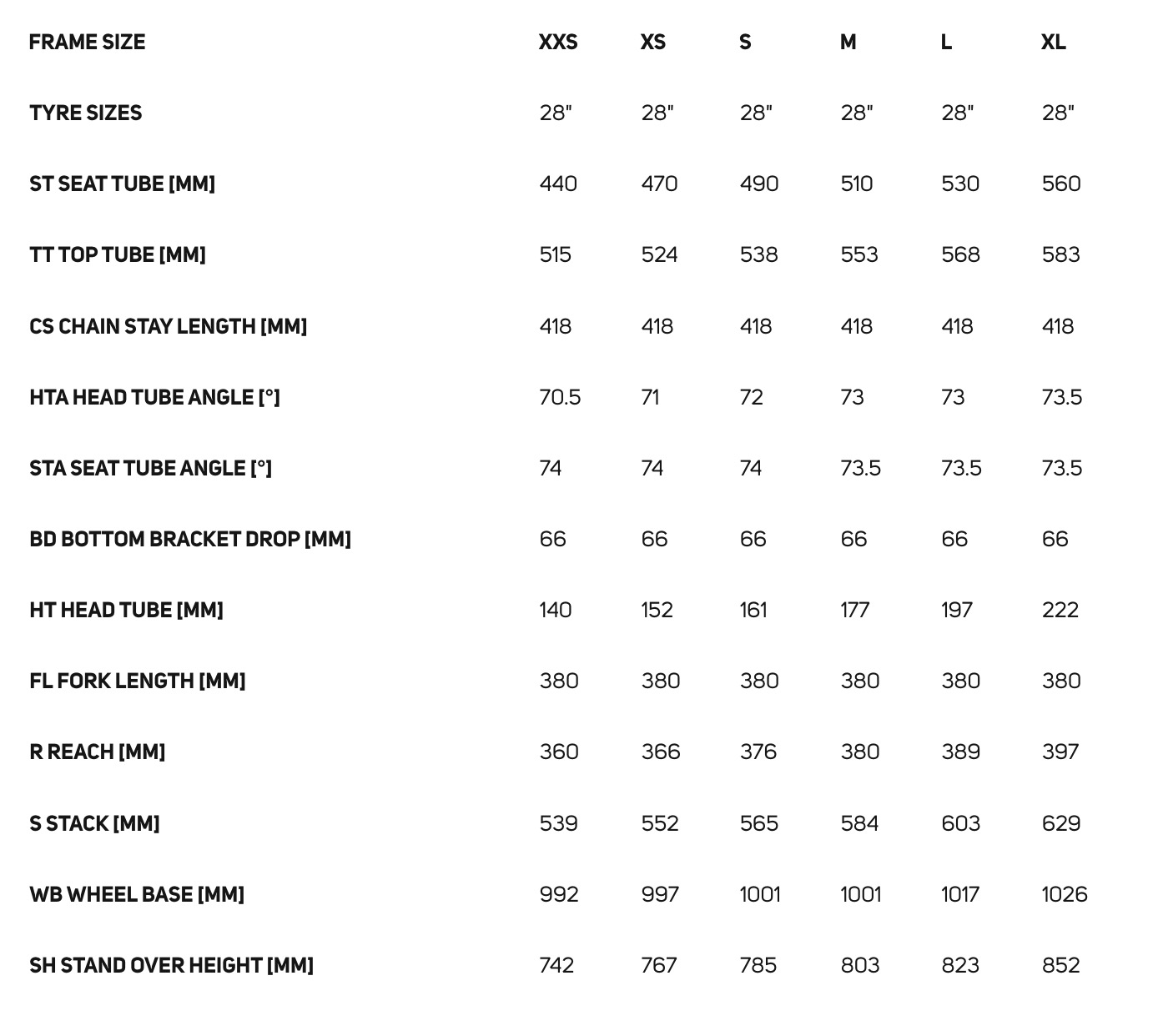

Sizing & Geometry
Frame measurements and sizing vary by bike size. Measurements are shown for each available frame size.
Swipe across to view all sizes.
| Geometry | XXS | XS | S | M | L | XL |
|---|---|---|---|---|---|---|
| Sizing | ||||||
| Wheel size | 700c | 700c | 700c | 700c | 700c | 700c |
| Frame geometry | ||||||
| Stack (mm) | 539 | 552 | 565 | 584 | 603 | 629 |
| Reach (mm) | 360 | 366 | 376 | 380 | 389 | 397 |
| Effective top tube (mm) | 517 | 529 | 543 | 559 | 577 | 597 |
| Seat tube (mm) | 450 | 470 | 490 | 510 | 530 | 560 |
| Head tube (mm) | 115 | 128 | 142 | 162 | 182 | 210 |
| Standover (mm) | 719 | 738 | 756 | 775 | 794 | 821 |
| Handling | ||||||
| Head angle (°) | 70.50 | 71 | 71.50 | 72 | 72.50 | 73 |
| Seat angle (°) | 74.50 | 74 | 74 | 73.50 | 73.50 | 73.50 |
| Chainstay (mm) | 418 | 418 | 418 | 418 | 418 | 418 |
| Wheelbase (mm) | 993 | 1,000 | 1,009 | 1,016 | 1,029 | 1,044 |
| Fork offset (mm) | 49 | 49 | 49 | 49 | 49 | 49 |
Frame Details
Frame Weight
This frame weighs 822g
Frame Material
Carbon Fiber
Forks
SCULTURA ENDURANCE CF3 II, material: carbon, 700x35C max./ 700x32C (with fender) max. wheelsize, 100x12/ 142x12mm axle standard, BB86 bottom bracket standard
Fork Material
The forks are made from Carbon Fiber
Cables: Semi Routed
Routed through the frame, not the bars
Axel Type: Thru-axle
How the wheels are secured to the frame
Brake Type: Disc Brake
Welcome to the future!
Brake Mount:
How the calipers are mounted
Integrated bar and stem: No
You can use any bar and stem
Drivechain Details
Groupset name
Shimano GRX820
Electric Groupset: No
This bike doesn't have electric gears
Shifters
Shimano GRX820
Front Derailleur
Shimano GRX820
Rear Derailleur
Shimano GRX820
Cassette
Shimano GRX HG710, 11-36 teeth, 12 speed
Cranks
Shimano GRX820, 48-31 teeth, 165 mm-XXS, 170 mm-XS, 172.5 mm-S/M/L, 175 mm (XL),
Power Meter: No
This bike doesn't have a power meter
Bottom Bracket
Shimano SM-BB72-41B, Pressfit 86.5
Chain
Shimano M6100-12
Wheel & Tire Details
Wheelset Name
MERIDA EXPERT CC, 23mm inner width, 19mm height, material: aluminium, Tubeless ready (tubeless tape and valves not included)
Front Wheel Depth
19mm
Rear Wheel Depth
19mm
Tires
Continental Terra Speed ProTection, 700x35C, fold
Tire Type
Unknown
Max Tire Size: 35 mm
This is the max tire size you can use
Brakes
Brake Type: Disc Brake
Welcome to the future!
Brake Mount:
How these disc brakes are mounted
Brakes
Shimano GRX820, Hydraulic disc
Brake Rotors
Shimano RT64 160mm
Other Components
Saddle
MERIDA COMP SL, 28% recycled material, V-mount, incl. MERIDA minitool
Seatpost
MERIDA EXPERT CC 27.2mm diameter 15mm setback Carbon
Handlebars
MERIDA EXPERT GRII, material: aluminium, 380mm (XXS-XS) 400mm (S-M), 420mm (L-XL)
Bar Tape
MERIDA ROAD Expert
