Bike Info
Worldwide Shipping: Yes
Delivery across the globe!
Warranty: Lifetime
Limited warranty website average: 3.12 years
Released: 2025
The bike was released 1 years ago
Bike Type: Road
The style of riding intended for this bike
Bike Spec
Weight: 9.3 kg
The website average for Road bikes is 8.56 kg. This bike is 0.73 kg over the average. Total bike weight may vary depending on frame size.
Groupset
Shimano 105
Wheelset
Merida Expert SLII
Brake Type: Disc Brake
Welcome to the future!
Frameset Material
Carbon Fiber
Max Tire Size: 35 mm
This is the max tire size you can use
UCI Approved: Yes
You can use for official races
Sizing & Geometry
Frame Sizes
XXS XS S M L XLThis frame comes in 6 sizes, this is 0.44 more sizes than the website average.

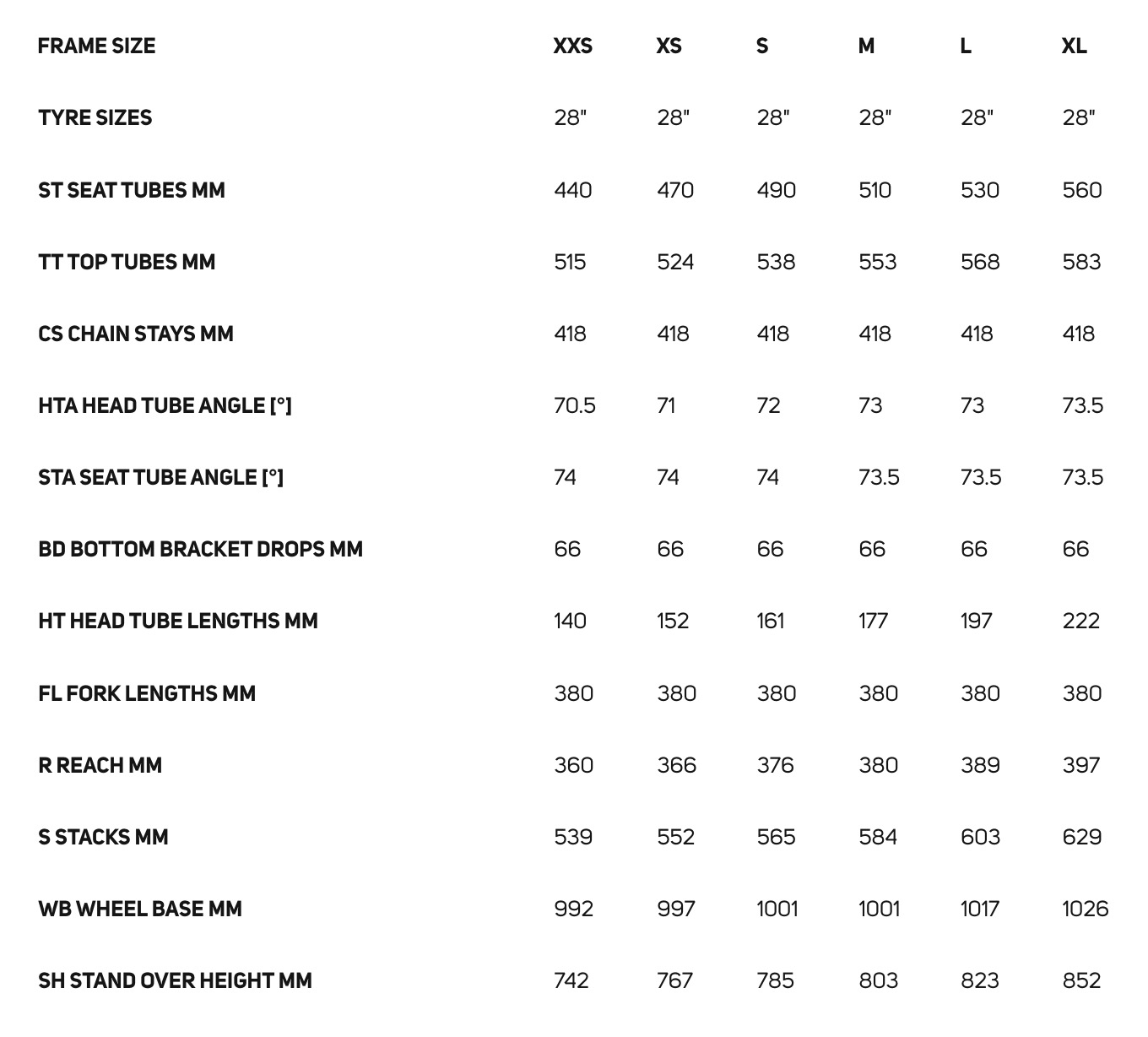

Sizing & Geometry
Frame measurements and sizing vary by bike size. Measurements are shown for each available frame size.
Swipe across to view all sizes.
| Geometry | XXS | XS | S | M | L | XL |
|---|---|---|---|---|---|---|
| Sizing | ||||||
| Rider height | 155–164 cm | 163–172 cm | 170–178 cm | 177–186 cm | 185–193 cm | 192–200 cm |
| Wheel size | 700c | 700c | 700c | 700c | 700c | 700c |
| Frame geometry | ||||||
| Stack (mm) | 539 | 552 | 565 | 584 | 603 | 629 |
| Reach (mm) | 360 | 366 | 376 | 380 | 389 | 397 |
| Effective top tube (mm) | 512 | 524 | 541 | 556 | 573 | 593 |
| Seat tube (mm) | 440 | 470 | 490 | 510 | 530 | 560 |
| Head tube (mm) | 137 | 152 | 165 | 185 | 205 | 233 |
| Standover (mm) | 720 | 746 | 764 | 782 | 801 | 827 |
| Handling | ||||||
| Head angle (°) | 70.50 | 71 | 71.50 | 72 | 72.50 | 72.50 |
| Seat angle (°) | 74.50 | 74 | 74 | 73.50 | 73.50 | 73 |
| Chainstay (mm) | 418 | 418 | 418 | 418 | 418 | 418 |
| Wheelbase (mm) | 993 | 997 | 1,009 | 1,017 | 1,029 | 1,044 |
| Fork offset (mm) | 48.1 | 48.1 | 48.1 | 48.1 | 48.1 | 48.1 |
Frame Details
Frame Weight
This frame weighs 1124g
Frame Material
Carbon Fiber
Forks
SCULTURA ENDURANCE CF3 II, material: carbon, 700x35C max./ 700x32C (with fender) max. wheelsize, 100x12/ 142x12mm axle standard, BB86 bottom bracket standard
Fork Material
The forks are made from Carbon Fiber
Cables: Internally Routed
Routed through bars, stem and frame
Axel Type: Thru-axle
How the wheels are secured to the frame
Brake Type: Disc Brake
Welcome to the future!
Brake Mount: Flat Mount
How the calipers are mounted
Integrated bar and stem: No
You can use any bar and stem
Drivechain Details
Groupset name
Shimano 105
Electric Groupset: No
This bike doesn't have electric gears
Shifters
Shimano 105 disc
Front Derailleur
Shimano 105 (FD-R7100, braze-on)
Rear Derailleur
Shimano 105, GS
Cassette
Shimano CS-R7101-12
Cranks
Shimano 105 FC-R7100
Power Meter: No
This bike doesn't have a power meter
Bottom Bracket
Shimano SM-BB72-41B, Pressfit 86.5
Chain
Shimano CN-M6100-12 (Deore/105-tier 12-speed cross-compatible HG chain)
Wheel & Tire Details
Wheelset Name
MERIDA EXPERT SLII, 23mm inner width, 25mm height, material: aluminium, Tubeless ready (tubeless tape and valves not included)
Front Wheel Depth
25mm
Rear Wheel Depth
25mm
Tires
Front: Maxxis RE-FUSE, 700x32C, fold, Rear: Maxxis RE-FUSE, 700x32C, fold
Tire Type
Clincher
Max Tire Size: 35 mm
This is the max tire size you can use
Brakes
Brake Type: Disc Brake
Welcome to the future!
Brake Mount: Flat Mount
How these disc brakes are mounted
Brakes
Shimano 105, Hydraulic disc
Brake Rotors
Shimano RT54 Centerlock rotors | 160 mm front and 160 mm rear rotors
Other Components
Saddle
MERIDA COMP SL, 28% recycled material, V-mount, incl. MERIDA minitool
Seatpost
MERIDA EXPERT CC 27.2mm diameter 15mm setback Carbon
Handlebars
MERIDA EXPERT SLII, material: aluminium, 380mm (XXS-XS) 400mm (S-M), 420mm (L-XL)
Bar Tape
MERIDA ROAD Expert
