Bike Info
Worldwide Shipping: Yes
Delivery across the globe!
Warranty: Lifetime
Limited warranty website average: 3.12 years
Released: 2025
The bike was released 1 years ago
Bike Type: Road
The style of riding intended for this bike
Bike Spec
Weight: 9 kg
The website average for Road bikes is 8.56 kg. This bike is 0.43 kg over the average. Total bike weight may vary depending on frame size.
Groupset
Shimano 105
Wheelset
Brake Type: Disc Brake
Welcome to the future!
Frameset Material
Carbon Fiber
Max Tire Size: 30 mm
This is the max tire size you can use
UCI Approved: Unknown
You can't use for official races

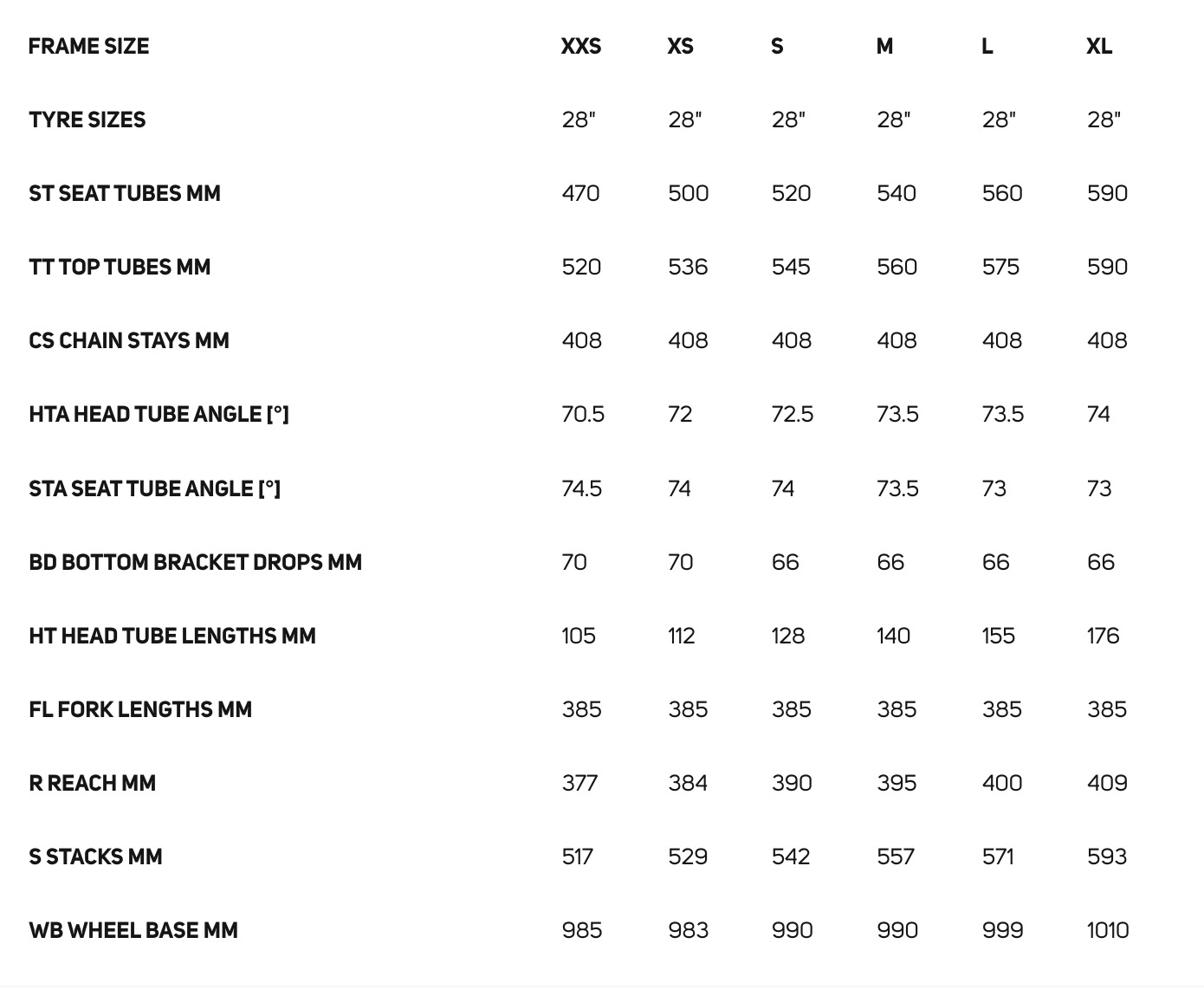

Sizing & Geometry
Frame Sizes
3XS XXS XS S M L XL XXLThis frame comes in 8 sizes, this is 2.44 more sizes than the website average.
Frame Details
Frame Weight
This frame weighs 1185g
Frame Material
Carbon Fiber
Forks
REACTO CF3 IV DISC
Fork Material
The forks are made from Carbon Fiber
Cables: Semi Routed
Routed through the frame, not the bars
Axel Type: Thru-axle
How the wheels are secured to the frame
Brake Type: Disc Brake
Welcome to the future!
Brake Mount: Flat Mount
How the calipers are mounted
Integrated bar and stem: No
You can use any bar and stem
Drivechain Details
Groupset name
Shimano 105
Electric Groupset: No
This bike doesn't have electric gears
Shifters
Shimano 105 disc
Front Derailleur
Shimano 105 (FD-R7100), braze-on mounting.
Rear Derailleur
Shimano 105
Cassette
Shimano 105 CS-R7101-12, 11-34T
Cranks
Shimano 105 R7100 Hollowtech II
Power Meter: No
This bike doesn't have a power meter
Bottom Bracket
BB86,5 bottom bracket standard
Chain
Shimano M6100-12 (Hyperglide+ 12-speed chain).
Wheel & Tire Details
Wheelset Name
MERIDA EXPERT CW
Front Wheel Depth
30mm
Rear Wheel Depth
30mm
Tires
Continental Ultra Sport III
Tire Type
Clincher
Max Tire Size: 30 mm
This is the max tire size you can use
Brakes
Brake Type: Disc Brake
Welcome to the future!
Brake Mount: Flat Mount
How these disc brakes are mounted
Brakes
Shimano 105 Hydraulic disc
Brake Rotors
Shimano RT54 centerlock rotors | 160 mm front and 160 mm rear
Other Components
Saddle
MERIDA EXPERT SL
Seatpost
MERIDA TEAM CW
Handlebars
MERIDA EXPERT CW
Bar Tape
MERIDA ROAD Expert
