Bike Info
Worldwide Shipping: Yes
Delivery across the globe!
Warranty: Lifetime
Limited warranty website average: 3.12 years
Released: 2025
The bike was released 1 years ago
Bike Type: Road
The style of riding intended for this bike
Bike Spec
Weight: 9 kg
The website average for Road bikes is 8.56 kg. This bike is 0.43 kg over the average. Total bike weight may vary depending on frame size.
Groupset
Shimano 105
Wheelset
MERIDA EXPERT CW
Brake Type: Disc Brake
Welcome to the future!
Frameset Material
Carbon Fiber
Max Tire Size: 30 mm
This is the max tire size you can use
UCI Approved: Yes
You can use for official races
Sizing & Geometry
Frame Sizes
3XS XXS XS S M L XLThis frame comes in 7 sizes, this is 1.44 more sizes than the website average.

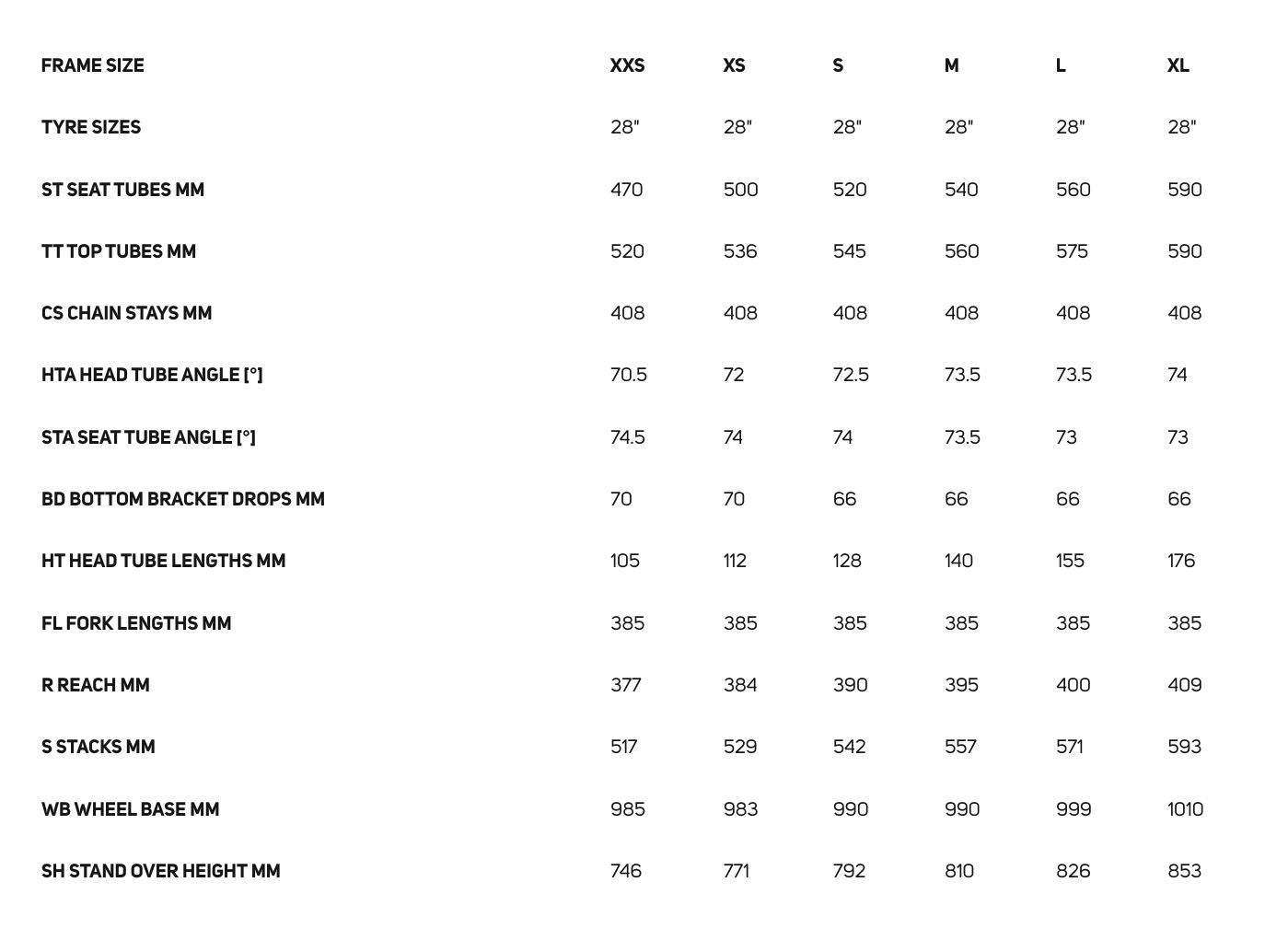

Sizing & Geometry
Frame measurements and sizing vary by bike size. Measurements are shown for each available frame size.
Swipe across to view all sizes.
| Geometry | 3XS | XXS | XS | S | M | L | XL |
|---|---|---|---|---|---|---|---|
| Sizing | |||||||
| Wheel size | 700c | 700c | 700c | 700c | 700c | 700c | 700c |
| Frame geometry | |||||||
| Stack (mm) | 512 | 517 | 529 | 542 | 557 | 571 | 593 |
| Reach (mm) | 373 | 377 | 384 | 390 | 395 | 400 | 409 |
| Effective top tube (mm) | 520 | 525 | 535 | 545 | 560 | 575 | 590 |
| Seat tube (mm) | 470 | 500 | 520 | 540 | 560 | 590 | 610 |
| Head tube (mm) | 101 | 106 | 118 | 132 | 140 | 153 | 175 |
| Standover (mm) | 742 | 766 | 785 | 804 | 823 | 849 | 868 |
| Handling | |||||||
| Head angle (°) | 71 | 71.50 | 72.50 | 73 | 73.50 | 73.50 | 74 |
| Seat angle (°) | 74.50 | 74.50 | 74 | 74.50 | 73.50 | 73 | 73 |
| Chainstay (mm) | 408 | 408 | 408 | 408 | 408 | 408 | 408 |
| Wheelbase (mm) | 978 | 981 | 981 | 987 | 990 | 1,001 | 1,012 |
| Fork offset (mm) | 45 | 45 | 45 | 45 | 45 | 45 | 45 |
Frame Details
Frame Weight
This frame weighs 1146g
Frame Material
Carbon Fiber
Forks
REACTO CF3 IV, material: carbon, 700x30C max. wheelsize, 100x12/ 142x12mm axle standard, BB86,5 bottom bracket standard
Fork Material
The forks are made from Carbon Fiber
Cables: Internally Routed
Routed through bars, stem and frame
Axel Type: Thru-axle
How the wheels are secured to the frame
Brake Type: Disc Brake
Welcome to the future!
Brake Mount: Flat Mount
How the calipers are mounted
Integrated bar and stem: No
You can use any bar and stem
Drivechain Details
Groupset name
Shimano 105
Electric Groupset: No
This bike doesn't have electric gears
Shifters
Shimano 105 disc
Front Derailleur
Shimano 105 R7100, braze-on.
Rear Derailleur
Shimano 105, GS
Cassette
Shimano 105 R7101-12.
Cranks
Shimano 105 R7100 (160mm – 172.5mm)
Power Meter: No
This bike doesn't have a power meter
Bottom Bracket
Shimano SM-BB72-41B, Pressfit 86.5
Chain
Shimano M6100-12 (12-speed hyperglide chain shared with the Deore/SLX mountain bike tier for robust durability).
Wheel & Tire Details
Wheelset Name
MERIDA EXPERT CW, 19mm inner width, 30mm height, material: aluminium, Tubeless ready (tubeless tape and valves not included)
Front Wheel Depth
30mm
Rear Wheel Depth
30mm
Tires
Front: Continental Ultra Sport III, 700x28C, fold, Rear: Continental Ultra Sport III, 700x28C, fold
Tire Type
Clincher
Max Tire Size: 30 mm
This is the max tire size you can use
Brakes
Brake Type: Disc Brake
Welcome to the future!
Brake Mount: Flat Mount
How these disc brakes are mounted
Brakes
Shimano 105, Hydraulic disc
Brake Rotors
160 mm front and 160 mm rear
Other Components
Saddle
MERIDA EXPERT SL, 6% recycled and 23% nature material, V-mount, incl. MERIDA minitool
Seatpost
MERIDA TEAM CW Aero shape 15mm setback Carbon
Handlebars
MERIDA EXPERT CW, material: aluminium, 380mm (3XS-XXS-XS-S), 400mm (M-L-XL)
Bar Tape
MERIDA ROAD Expert
