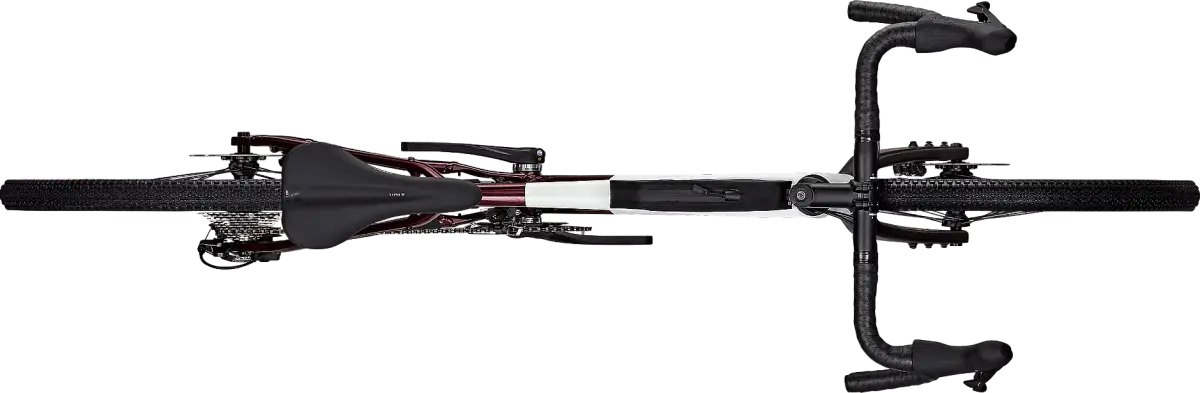

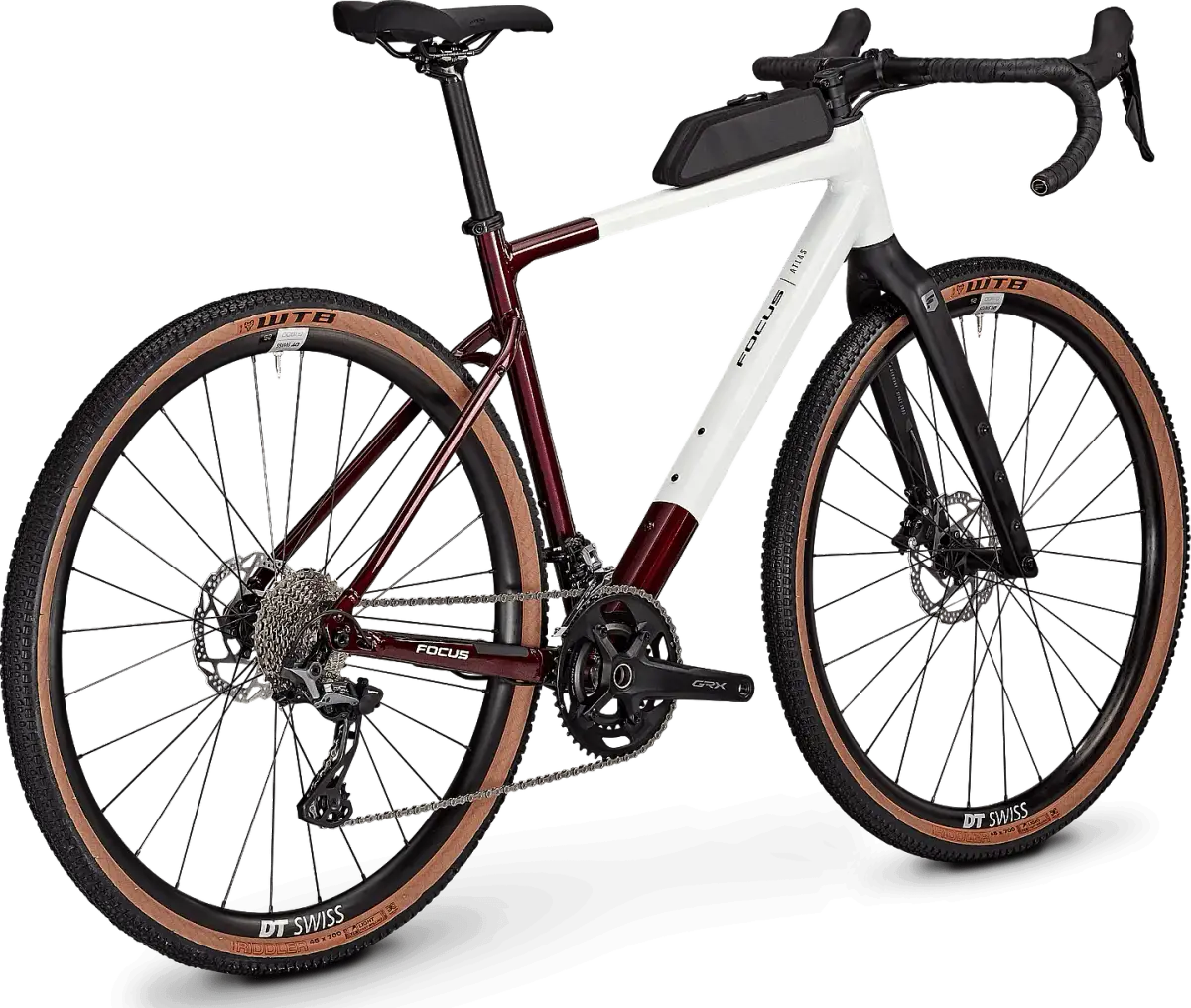

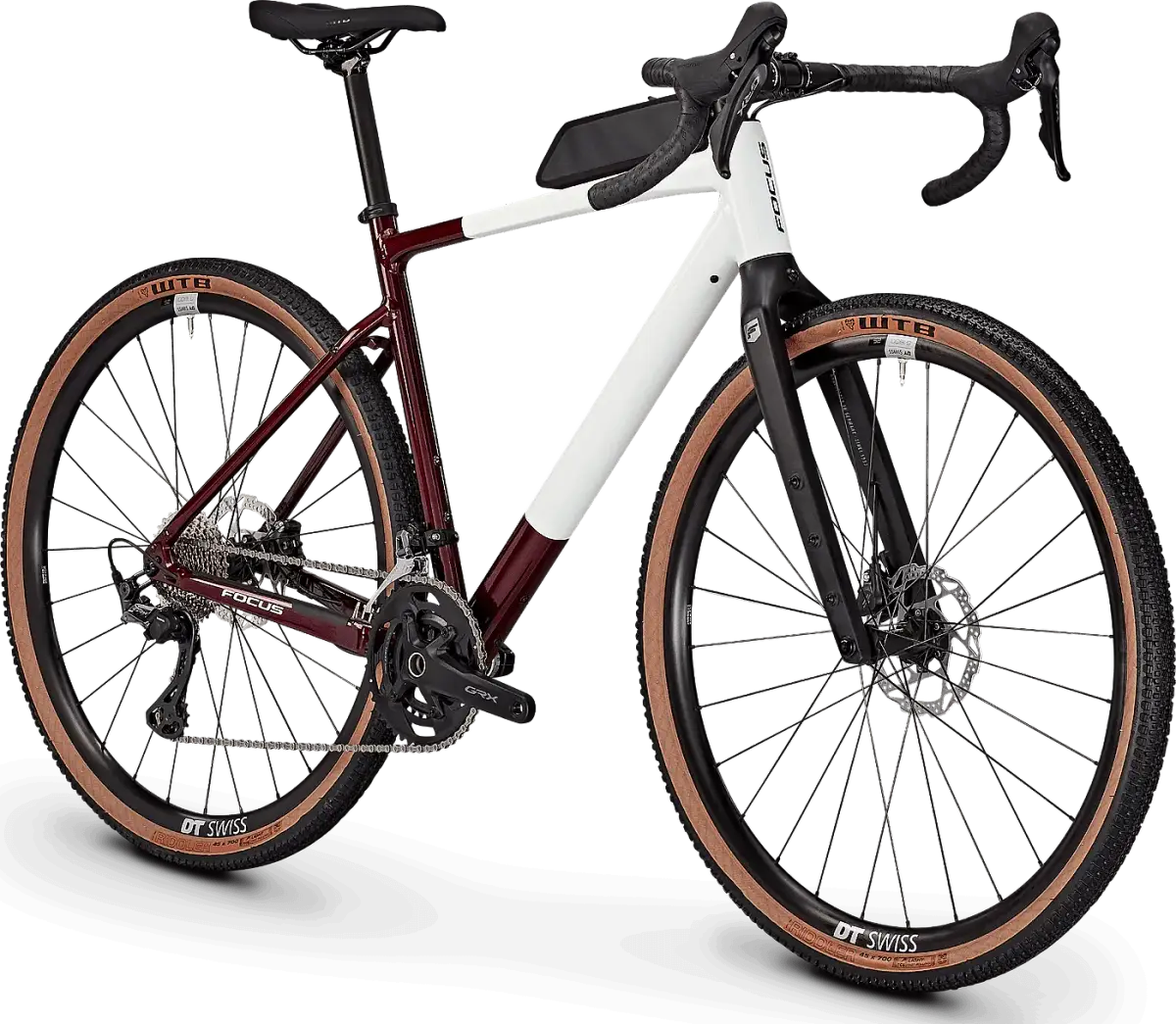

The FocusFocus ATLAS 6.8, a Gravel bike released in 2024, priced at £2399. It weighs approximately 10.8kg, balancing performance and efficiency. It features a frame made of Aluminium and a fork constructed from Carbon Fiber. The bike is equipped with a GRX 800, GRX 600 groupset (Electric Shifting: No). It uses Disc Brake braking for confident stopping power. Rolling on a DT Swiss G1800, 25 mm height wheelset, it features a BSA bottom bracket for drivetrain efficiency. It uses Semi Routed cable routing for a cleaner look and improved aerodynamics. It supports tires up to 47 mm, offering flexibility for comfort or off-road use. This bike is not UCI compliant and cannot be used in official races. It comes with a limited 2-year warranty. Curious how it stacks up against similar bikes? Compare below...
The website average for Gravel bikes is 9.25 kg. This bike is 1.54 kg over the average. Total bike weight may vary depending on frame size.
Groupset
GRX 800, GRX 600
Wheelset
DT Swiss G1800
Brake Type: Disc Brake
Welcome to the future!
Frameset Material
Aluminium
Max Tire Size: 47 mm
This is the max tire size you can use
UCI Approved: No
You can't use for official races
Sizing & Geometry
Frame Sizes
XSSMLXL
This frame comes in 5 sizes, this is 0.55 less sizes than the website average.
Handebar Sizes Available
4244
Crank Arm Sizes Available
170172.5175
Frame Details
Frame Weight
Unknown
Frame Material
Aluminium
Forks
Carbon Fiber, disc, 110x12 mm thru axle, flat mount 160/160 mm, internal brake cable routing, multiple mounting points
Fork Material
The forks are made from Carbon Fiber
Cables: Semi Routed
Routed through the frame, not the bars
Axel Type: Thru-axle
How the wheels are secured to the frame
Brake Type: Disc Brake
Welcome to the future!
Brake Mount: Flat Mount
How the calipers are mounted
Integrated bar and stem: No
You can use any bar and stem
Drivechain Details
Groupset name
GRX 800, GRX 600
Electric Groupset: No
This bike doesn't have electric gears
Shifters
Shimano GRX ST-RX600, 11-speed
Front Derailleur
Shimano GRX FD-RX810
Rear Derailleur
Shimano GRX RD-RX810, 11-speed
Cassette
Shimano 105 R7000, 11-speed
Cranks
Shimano GRX FC-RX600, 11-speed
Power Meter: No
This bike doesn't have a power meter
Bottom Bracket
BSA
Chain
Shimano CN-HG601, 11-speed
Wheel & Tire Details
Wheelset Name
DT Swiss G1800, 25 mm height
Front Wheel Depth
25mm
Rear Wheel Depth
22mm
Tires
WTB Riddler, 700 x 45C | WTB Riddler, 700 x 45C
Tire Type
Unknown
Max Tire Size: 47 mm
This is the max tire size you can use
Brakes
Brake Type: Disc Brake
Welcome to the future!
Brake Mount: Flat Mount
How these disc brakes are mounted
Brakes
Shimano GRX BL-RX400
Brake Rotors
Unknown
Other Components
Saddle
WTB SL8
Seatpost
Aluminium, 27.2 mm, 0 mm set-back
Handlebars
FOCUS alloy, 31,8 mm, drop: 116 mm, reach: 74 mm, flare: 10°
Bar Tape
FOCUS Bartape SL
Manufactures Description
Comfort and control on any terrain
Whether bad weather, demanding surface, steep climbs or long distances – the robust and comfortable gravel bike offers full control thanks to an adapted frame geometry, wide handlebars with flare and disc brakes. The clean cockpit with integrated cable routing from the bar directly into the head tube avoids hustle when installing a handlebar bag. To climb every mountain even with equipment, the gravel groupse ... Read More
Comfort and control on any terrain
Whether bad weather, demanding surface, steep climbs or long distances – the robust and comfortable gravel bike offers full control thanks to an adapted frame geometry, wide handlebars with flare and disc brakes. The clean cockpit with integrated cable routing from the bar directly into the head tube avoids hustle when installing a handlebar bag. To climb every mountain even with equipment, the gravel groupset comes with a pleasant transmission ratio for everyone.
Huge tyre clearance
The ATLAS 6.8 comes with 700c tyres and can take tyre widths up to 47 mm, but is also 650b-ready with tyre clearance up to 53 mm. Therefore, you have plenty of opportunities to specificate your ATLAS 6.8 appropriately for your next adventure. Furthermore, the Road Boost technology provides high stability due to better spoke tension and bigger tyre clearance while still having short chainstays. No matter the objective, the ATLAS 6.8 fully supports your ride – even to the end of the world.
Various options to mount equipment
Five bottle cages can be mounted: On the seat tube, above the down tube, underneath the down tube and on each side of the fork. The position of the bottle cage above the down tube is adjustable to fit a frame bag. Additionally, it is possible to equip the ATLAS 6.8 with various features thanks to many mounting options on the aluminium frame and carbon fork. The mounting points on the fork are approved for 3 kg each side and can also be used for carrying any other equipment. Every ATLAS 6.8 comes with a top tube bag. It can store all your necessities that you need during the ride.
