Bike Info
Worldwide Shipping: Yes
Delivery across the globe!
Warranty: 6 Years
Limited warranty website average: 3.12 years
Released: 2023
The bike was released 3 years ago
Bike Type: Road
The style of riding intended for this bike
Bike Spec
Weight: 8.94 kg
The website average for Road bikes is 8.56 kg. This bike is 0.37 kg over the average. Total bike weight may vary depending on frame size.
Groupset
Shimano 105
Wheelset
Brake Type: Disc Brake
Welcome to the future!
Frameset Material
Carbon Fiber

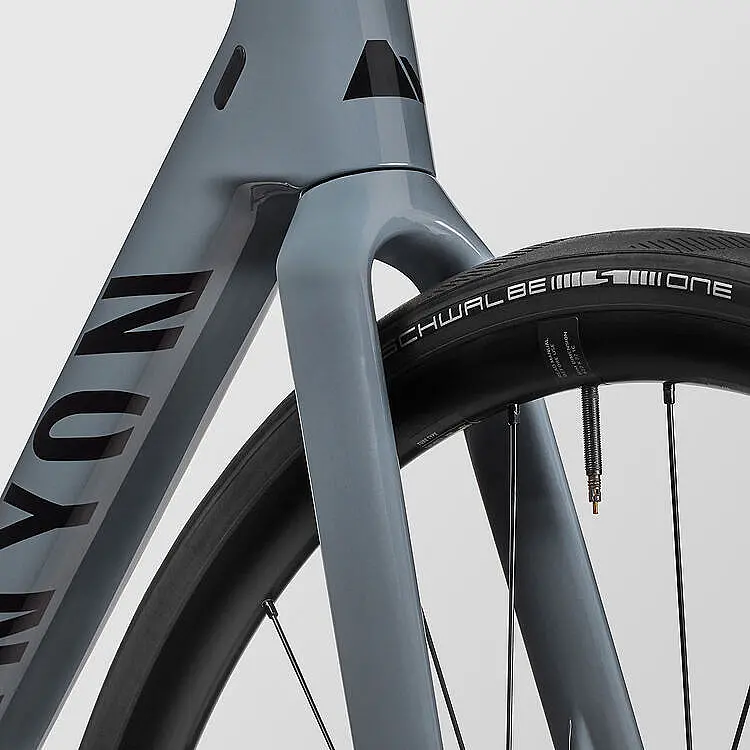

Max Tire Size: 35 mm
This is the max tire size you can use
UCI Approved: Yes
You can use for official races

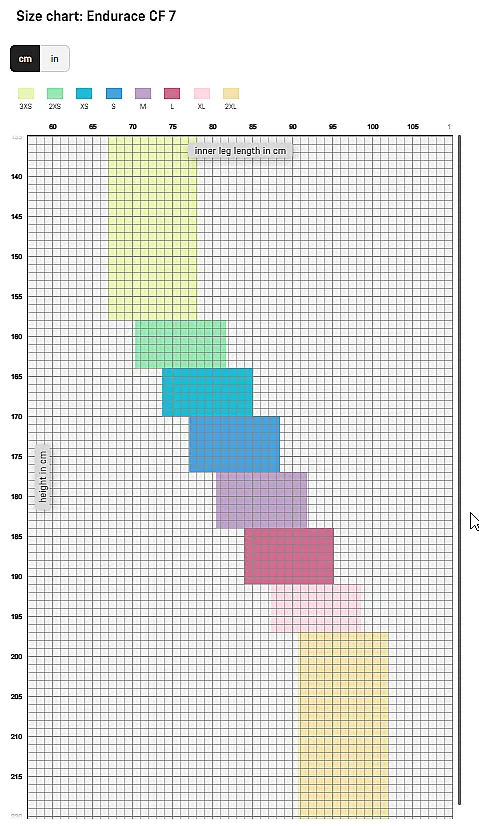

Sizing & Geometry
Frame Sizes
3XS 2XS XS S M L XL XXLThis frame comes in 8 sizes, this is 2.44 more sizes than the website average.
Sizing & Geometry
Frame measurements and sizing vary by bike size. Measurements are shown for each available frame size.
Swipe across to view all sizes.
| Geometry | 3XS | 2XS | XS | S | M | L | XL | 2XL |
|---|---|---|---|---|---|---|---|---|
| Sizing | ||||||||
| Rider height | Up to 158 cm | 158–164 cm | 164–170 cm | 170–177 cm | 177–184 cm | 184–191 cm | 191–197 cm | 197+ cm |
| Wheel size | — | — | — | 650b | — | — | — | — |
| Frame geometry | ||||||||
| Stack (mm) | 510 | 529 | 548 | 568 | 590 | 611 | 637 | 656 |
| Reach (mm) | 350 | 354 | 370 | 375 | 378 | 387 | 405 | 414 |
| Effective top tube (mm) | 491 | 511 | 522 | 533 | 543 | 558 | 584 | 599 |
| Seat tube (mm) | 402 | 432 | 462 | 492 | 522 | 552 | 582 | 612 |
| Head tube (mm) | 122 | 139 | 128 | 145 | 164 | 186 | 213 | 232 |
| Standover (mm) | 708 | 733 | 762 | 788 | 814 | 838 | 866 | 887 |
| Handling | ||||||||
| Head angle (°) | 70.50 | 71.50 | 71 | 72 | 73 | 73 | 73.25 | 73.25 |
| Seat angle (°) | 73.50 | 73.50 | 73.50 | 73.50 | 73.50 | 73.50 | 73.50 | 73.50 |
| Chainstay (mm) | 405 | 405 | 415 | 415 | 415 | 415 | 415 | 415 |
| Wheelbase (mm) | 957 | 958 | 989 | 991 | 990 | 1,006 | 1,029 | 1,044 |

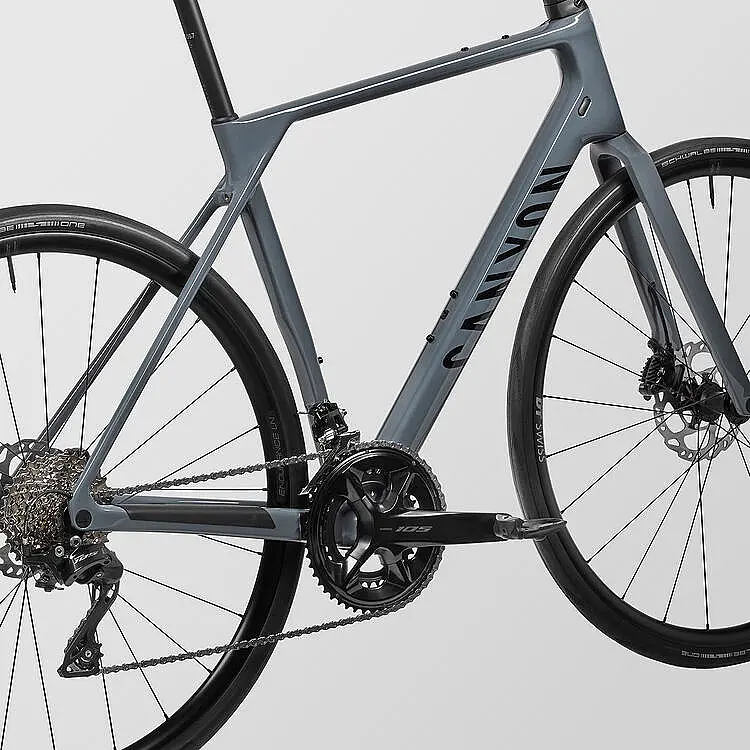

Frame Details
Frame Weight
This frame weighs 1080g
Frame Material
Carbon Fiber
Forks
Canyon FK0110 CF Disc
Fork Material
The forks are made from Carbon Fiber
Cables: Semi Routed
Routed through the frame, not the bars
Axel Type: Thru-axle
How the wheels are secured to the frame
Brake Type: Disc Brake
Welcome to the future!
Brake Mount: Flat Mount
How the calipers are mounted
Integrated bar and stem: No
You can use any bar and stem
Drivechain Details
Groupset name
Shimano 105
Electric Groupset: No
This bike doesn't have electric gears
Shifters
Shimano 105 R7120 2s
Front Derailleur
Shimano 105 R7000 (Braze-on configuration).
Rear Derailleur
Shimano 105 R7100 12s
Cassette
Shimano 105 R7000.
Cranks
Shimano 105 R7000 Hollowtech II
Power Meter: No
This bike doesn't have a power meter
Bottom Bracket
Token Ninja Lite BB4124
Chain
Shimano CN-HG601 11-speed chain featuring SIL-TEC low-friction surface treatment.
Wheel & Tire Details
Wheelset Name
DT Swiss Endurance LN
Front Wheel Depth
22mm
Rear Wheel Depth
22mm
Tires
Schwalbe One, 30mm
Tire Type
Clincher
Max Tire Size: 35 mm
This is the max tire size you can use
Brakes
Brake Type: Disc Brake
Welcome to the future!
Brake Mount: Flat Mount
How these disc brakes are mounted
Brakes
Shimano 105
Brake Rotors
160 mm front / 160 mm rear utilizing the Shimano Center Lock attachment interface. (Note: Extremely small frame layouts like the 3XS sometimes substitute a 140 mm rear rotor layout natively)
Other Components
Saddle
Selle Italia Model X
Seatpost
Canyon SP0057 VCLS

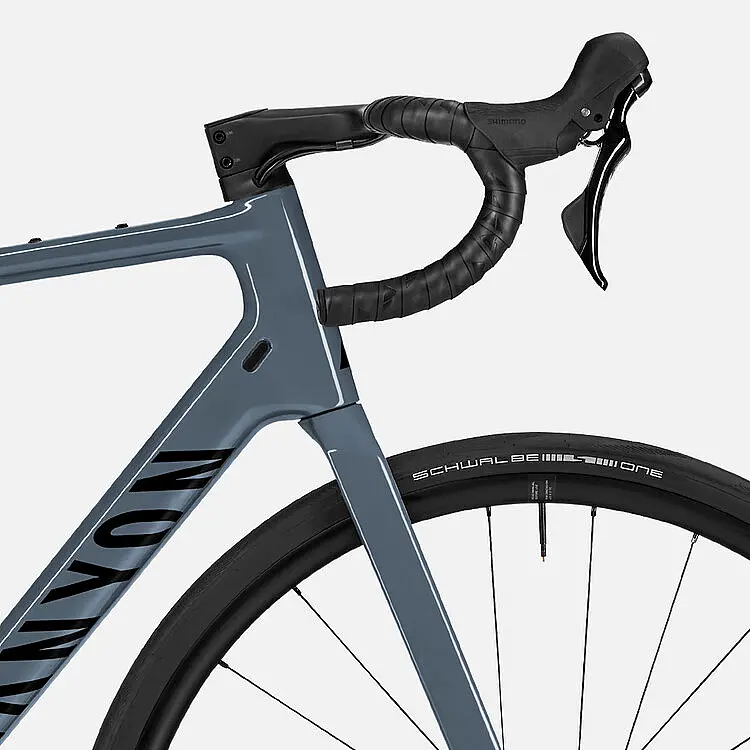

Handlebars
Canyon CP0030 Aerocockpit
Bar Tape
Canyon Ergospeed Gel
