Bike Info
Worldwide Shipping: Yes
Delivery across the globe!
Warranty: 3 Years
Limited warranty website average: 3.12 years
Released: 2025
The bike was released 1 years ago
Bike Type: Gravel
The style of riding intended for this bike
Bike Spec
Weight: 12.6 kg
The website average for Gravel bikes is 9.44 kg. This bike is 3.15 kg over the average. Total bike weight may vary depending on frame size.
Groupset
CUBE GR 2.5 Disc, Dynamo Front Hub
Wheelset
Cube GR 2.5 Disc
Brake Type: Disc Brake
Welcome to the future!
Frameset Material
Aluminium
Max Tire Size: 40 mm
This is the max tire size you can use
UCI Approved: No
You can't use for official races
Sizing & Geometry
Frame Sizes
XS S M L XLThis frame comes in 5 sizes, this is 0.56 less sizes than the website average.

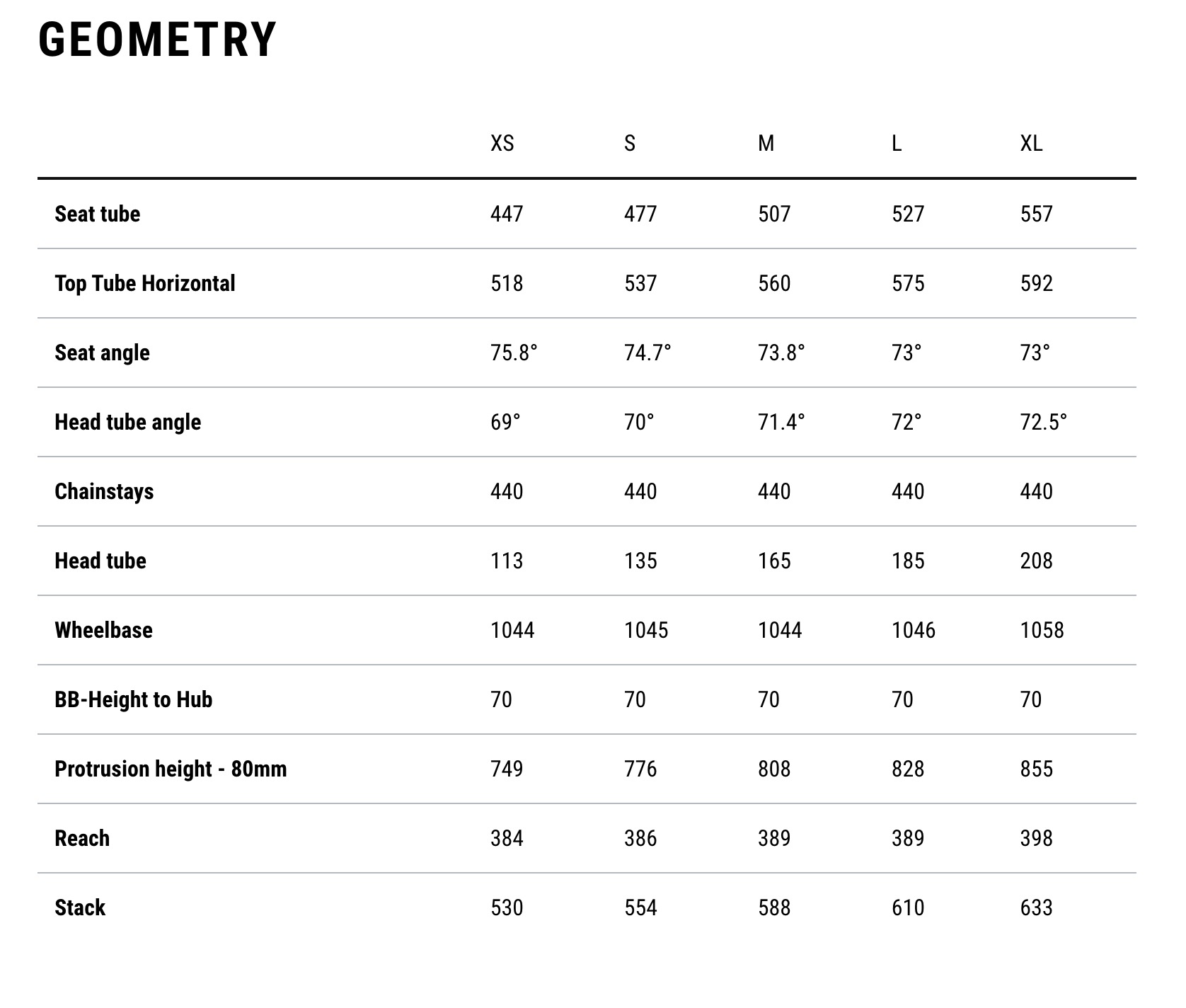

Sizing & Geometry
Frame measurements and sizing vary by bike size. Measurements are shown for each available frame size.
Swipe across to view all sizes.
| Geometry | XS | S | M | L | XL |
|---|---|---|---|---|---|
| Sizing | |||||
| Rider height | 152–160 cm | 160–168 cm | 168–175 cm | 175–183 cm | 183–191 cm |
| Frame geometry | |||||
| Stack (mm) | 530 | 554 | 588 | 610 | 633 |
| Reach (mm) | 384 | 386 | 389 | 389 | 398 |
| Effective top tube (mm) | 518 | 537 | 560 | 575 | 592 |
| Seat tube (mm) | 447 | 477 | 507 | 527 | 557 |
| Head tube (mm) | 113 | 135 | 165 | 185 | 208 |
| Standover (mm) | 749 | 776 | 808 | 828 | 855 |
| Handling | |||||
| Head angle (°) | 69 | 70 | 71.40 | 72 | 72.50 |
| Seat angle (°) | 75.80 | 74.70 | 73.80 | 73 | 73 |
| Chainstay (mm) | 440 | 440 | 440 | 440 | 440 |
| Wheelbase (mm) | 1,044 | 1,045 | 1,044 | 1,046 | 1,058 |
Frame Details
Frame Weight
Unknown
Frame Material
Aluminium
Forks
Cube Nuroad C:62 Full Carbon
Fork Material
The forks are made from Carbon Fiber
Cables: Internally Routed
Routed through bars, stem and frame
Axel Type: Thru-axle
How the wheels are secured to the frame
Brake Type: Disc Brake
Welcome to the future!
Brake Mount: Flat Mount
How the calipers are mounted
Integrated bar and stem: No
You can use any bar and stem
Drivechain Details
Groupset name
CUBE GR 2.5 Disc, Dynamo Front Hub
Electric Groupset: No
This bike doesn't have electric gears
Shifters
Shimano Cues ST-U6030
Front Derailleur
None
Rear Derailleur
Shimano BB-RS500PB, Pressfit
Cassette
Shimano Cues CS-LG400, 11-50T
Cranks
Shimano Cues FC-U6030-1
Power Meter: No
This bike doesn't have a power meter
Bottom Bracket
Disc Brake
Chain
KMC xGlide
Wheel & Tire Details
Wheelset Name
Cube GR 2.5 Disc
Front Wheel Depth
Unknown
Rear Wheel Depth
Unknown
Tires
Schwalbe G-One Comp, ActiveLine, K-Guard, 40-622
Tire Type
Clincher
Max Tire Size: 40 mm
This is the max tire size you can use
Brakes
Brake Type: Disc Brake
Welcome to the future!
Brake Mount: Flat Mount
How these disc brakes are mounted
Brakes
Shimano Cues BR-U6030, Hydr. Disc Brake, Flat Mount (180/160)
Brake Rotors
180 mm front rotor and 160 mm rear rotor (Review-measured by Cycling UK and verified against Flat Mount 180/180 frame configurations)
Other Components
Saddle
Natural Fit Venec Lite
Seatpost
CUBE Performance Post, 27.2mm
Handlebars
CUBE Gravel Race Bar
Bar Tape
ACID Bartape CX
