Summary

The Canyon Canyon Aeroad CFR AXS, a Road bike released in 2025, priced at £9749. It weighs approximately 7.15kg, balancing performance and efficiency. It features a frame made of Carbon Fiber and a fork constructed from Carbon Fiber. The bike is equipped with a SRAM RED AXS FD, Weight: 0.32 lbs groupset (Electric Shifting: Yes). It uses Disc Brake braking for confident stopping power. Rolling on a DT Swiss ARC 1100 Dicut db | DT Swiss ARC 1100 Dicut db, Axle dimension: 12x100 mm, Rotor mount: Center Lock, Rim height: 50 mm, Inner width: 20 mm, Rim material: Carbon, Weight: 1.56 lbs | DT Swiss ARC 1100, Axle dimension: 12x142 mm, Rotor mount: Center Lock, Rim height: 50 mm, Inner width: 20 mm, Rim material: Carbon, Weight: 1.88 lbs wheelset, it features a Ceramicspeed Coated BB (SRAM), Bottom bracket standard: PF 86,5, Weight: 0.17 lbs bottom bracket for drivetrain efficiency. It uses Internally Routed cable routing for a cleaner look and improved aerodynamics. It supports tires up to 31 mm, offering flexibility for comfort or off-road use. This bike is UCI compliant, meaning it can be used in officially sanctioned races. It comes with a limited 2-year warranty. Curious how it stacks up against similar bikes? Compare below...

Canyon Aeroad CFR Tensor - 2025

Price: £9,749.00 (same price)

Canyon Aeroad CFR Di2 - 2025

Price: £7,899.00 (-£1,850.00)

Canyon Grail CFR XPLR

Canyon Grail CFR XPLR - 2025

Price: £7,899.00 (-£1,850.00)

Canyon Inflite CFR

Canyon Inflite CFR - 2025

Price: £6,999.00 (-£2,750.00)

Canyon Aeroad CFR Tensor - 2025

Price: £9,749.00 (same price)

full_2024_3090_endurace-cfr-flash_R072-2_P04_P5

Canyon Endurace CFR Flash - 2023

Price: £8,999.00 (-£750.00)

Canyon Aeroad CFR Di2 - 2025

Price: £7,899.00 (-£1,850.00)

Canyon Grail CFR XPLR

Canyon Grail CFR XPLR - 2025

Price: £7,899.00 (-£1,850.00)

Canyon Aeroad CFR Tensor - 2025

Price: £9,749.00 (same price)

bladersdi2

Look 795 BladeRS Dura Ace Di2 - 2024

Price: £9,790.00 (+£41.00)

6000_INasxKEs1Tb11QlF

Focus IZALCO MAX 9.0 - 2024

Price: £9,696.00 (-£53.00)

795-Blade-RS-Iconic-Platinum-Bike

Look 795 BladeRS Dura Ace Di2 / R50D - 2024

Price: £9,690.00 (-£59.00)

Quick Compare Canyon Aeroad CFR AXS to:

Bike Info

Worldwide Shipping: Yes

Delivery across the globe!

Icon 1

Warranty: 2 Years

Limited warranty website average: 3.12 years

Icon 1

Released: 2025

The bike was released this year

Icon 1

Bike Type: Road

The style of riding intended for this bike

Bike Spec

Weight Icon

Weight: 7.15 kg

The website average for Road bikes is 8.57 kg. This bike is 1.43 kg under the average. Total bike weight may vary depending on frame size.

Icon 1

Groupset

SRAM RED AXS FD, Weight: 0.32 lbs

Icon 1

Wheelset

DT Swiss ARC 1100 Dicut db | DT Swiss ARC 1100 Dicut db, Axle dimension: 12x100 mm, Rotor mount: Center Lock, Rim height: 50 mm, Inner width: 20 mm, Rim material: Carbon, Weight: 1.56 lbs | DT Swiss ARC 1100, Axle dimension: 12x142 mm, Rotor mount: Center Lock, Rim height: 50 mm, Inner width: 20 mm, Rim material: Carbon, Weight: 1.88 lbs

Disc Brake

Brake Type: Disc Brake

Welcome to the future!

Icon 1

Frameset Material

Carbon Fiber

Icon 1

Max Tire Size: 31 mm

This is the max tire size you can use

Icon 1

UCI Approved: Yes

You can use for official races

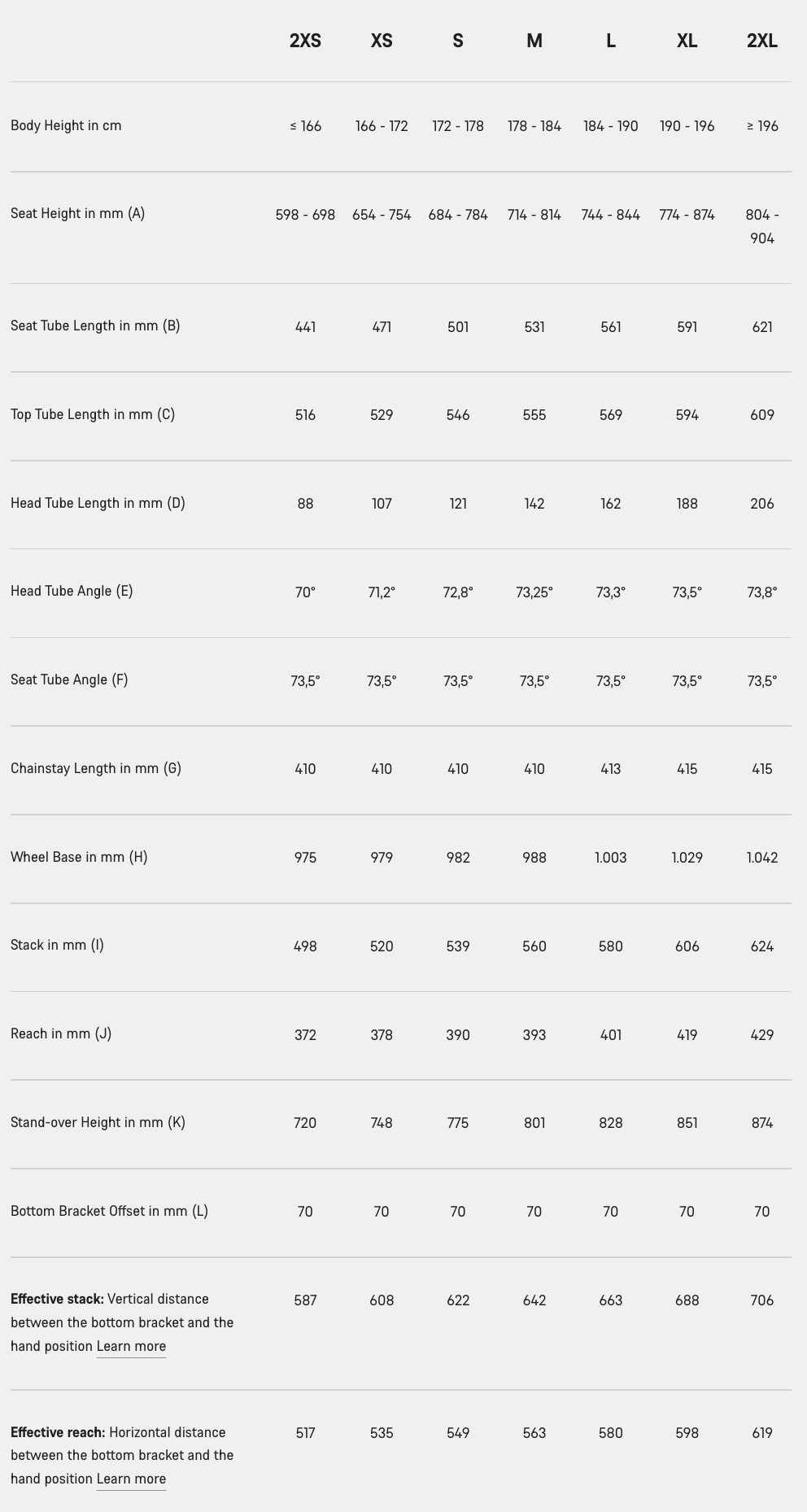

Sizing & Geometry

Frame Sizes

XXS XS S M L XL XXL

This frame comes in 7 sizes, this is 1.45 more sizes than the website average.

Handebar Sizes Available

Unknown

Crank Arm Sizes Available

Unknown

Frame Details

Icon 1

Frame Weight

This frame weighs 995g

Icon 1

Frame Material

Carbon Fiber

Icon 1

Forks

Canyon Aeroad CFR, Fourth-generation Aeroad frame uniting peloton-leading aerodynamics with an improved carbon layup for added robustness., Axle dimension: 12x142 mm, Front derailleur hanger: removable, Tyre clearance: 32 mm, Material: Carbon (CFR), Weight: 2.19 lbs

Icon 1

Fork Material

The forks are made from Carbon Fiber

Icon 1

Cables: Internally Routed

Routed through bars, stem and frame

Icon 1

Axel Type: Thru-axle

How the wheels are secured to the frame

Disc Brake

Brake Type: Disc Brake

Welcome to the future!

Icon 1

Brake Mount: Flat Mount

How the calipers are mounted

Yes

Integrated bar and stem: Yes

The bar and stem are integrated

Drivechain Details

Icon 1

Groupset name

SRAM RED AXS FD, Weight: 0.32 lbs

Icon 1

Electric Groupset: Yes

This bike has electric gears

Icon 1

Shifters

SRAM RED AXS HRD, Number of pistons: 2, Weight: 0.80 lbs | SRAM RED eTap AXS HRD, Number of pistons: 2, Weight: 0.80 lbs

Icon 1

Front Derailleur

SRAM RED AXS FD, Weight: 0.32 lbs

Icon 1

Rear Derailleur

SRAM RED AXS RD 12s, Weight: 0.58 lbs

Icon 1

Cassette

SRAM RED XG-1290, Number of sprockets: 12, Range: 10-28

Icon 1

Cranks

SRAM RED AXS Powermeter crankset, Number of chainrings: 2

Icon 1

Power Meter: Yes

This bike comes with a power meter

Icon 1

Bottom Bracket

Ceramicspeed Coated BB (SRAM), Bottom bracket standard: PF 86,5, Weight: 0.17 lbs

Icon 1

Chain

SRAM RED E1 12s/13s

Icon 1

Battery

SRAM Powerpack

Wheel & Tire Details

Icon 1

Wheelset Name

DT Swiss ARC 1100 Dicut db | DT Swiss ARC 1100 Dicut db, Axle dimension: 12x100 mm, Rotor mount: Center Lock, Rim height: 50 mm, Inner width: 20 mm, Rim material: Carbon, Weight: 1.56 lbs | DT Swiss ARC 1100, Axle dimension: 12x142 mm, Rotor mount: Center Lock, Rim height: 50 mm, Inner width: 20 mm, Rim material: Carbon, Weight: 1.88 lbs

Front Wheel Depth Icon

Front Wheel Depth

50mm

Rear Wheel Depth Icon

Rear Wheel Depth

50mm

Icon 1

Tires

Continental Aero 111, Width: 26 mm, Weight: 0.54 lbs | Continental Grand Prix 5000 S TR, 28mm, Width: 28 mm, Weight: 0.65 lbs

Tire Type Icon

Tire Type

Tubeless

Icon 1

Max Tire Size: 31 mm

This is the max tire size you can use

Brakes

Disc Brake

Brake Type: Disc Brake

Welcome to the future!

Icon 1

Brake Mount: Flat Mount

How these disc brakes are mounted

Icon 1

Brakes

SRAM RED AXS HRD, Number of pistons: 2, Weight: 0.80 lbs | SRAM RED eTap AXS HRD, Number of pistons: 2, Weight: 0.80 lbs

Icon 1

Brake Rotors

SRAM Centerline X, 160

Other Components

Icon 1

Saddle

Selle Italia SLR Boost Superflow Kit Carbonio, Width: 130 mm, Gender: Unisex, Max. Rider Weight: 100 kg, Weight: 0.28 lbs

Icon 1

Seatpost

Canyon SP0079 Aero Seatpost

Icon 1

Handlebars

Canyon CP0018 Aerocockpit

Icon 1

Bar Tape

Canyon Ergospeed Gel

Manufactures Description

Advanced aerodynamics The Aeroad CFR is built around a frame we developed together with the aero experts at Swiss Side. Tested in the wind tunnel, it combines supreme efficiency with agile handling and innovative adjustability. This is a race bike that makes zero compromises. Balanced geometry Many of our pro riders prefer the less aggressive Sport Pro geometry used on the Canyon Ultimate. So we implemented it on the Aeroad. The current Aero ... Read More
