Bike Info
Worldwide Shipping: Yes
Delivery across the globe!
Warranty: Lifetime
Limited warranty website average: 3.12 years
Released: 2023
The bike was released 3 years ago
Bike Type: Road
The style of riding intended for this bike
Bike Spec
Groupset
SRAM Force
Wheelset
Giant SLR 0 40 WheelSystem
Brake Type: Disc Brake
Welcome to the future!
Frameset Material
Carbon Fiber
Max Tire Size: 32 mm
This is the max tire size you can use
UCI Approved: Yes
You can use for official races
Sizing & Geometry
Frame Sizes
XS S M M/L L XLThis frame comes in 6 sizes, this is 0.44 more sizes than the website average.

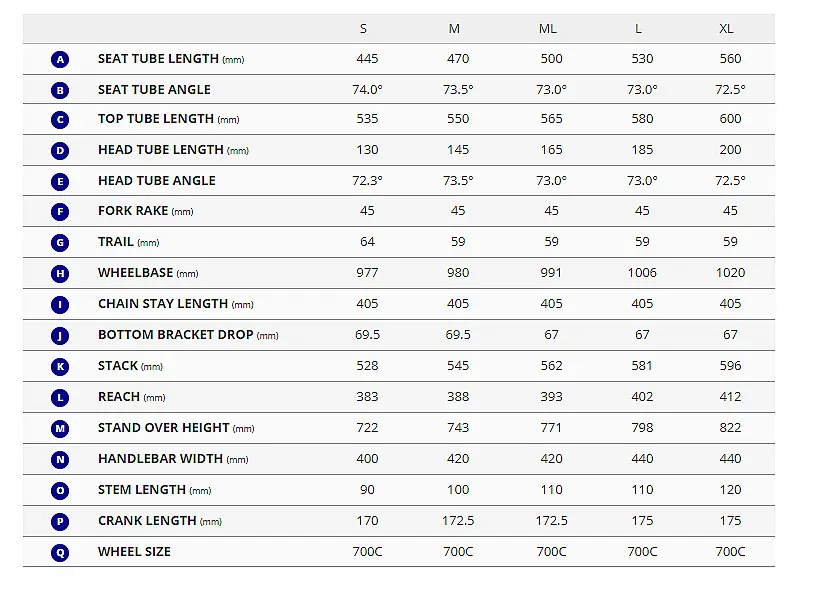

Sizing & Geometry
Frame measurements and sizing vary by bike size. Measurements are shown for each available frame size.
Swipe across to view all sizes.
| Geometry | XS | S | M | ML | L | XL |
|---|---|---|---|---|---|---|
| Sizing | ||||||

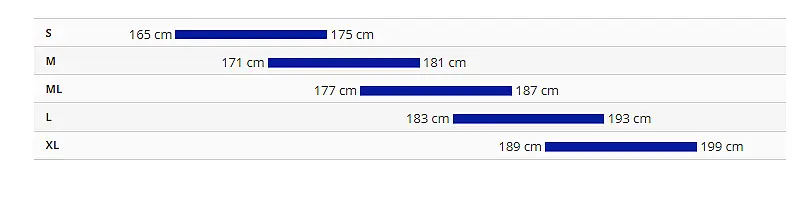

| Rider height | 157–169 cm | 165–175 cm | 171–181 cm | 177–187 cm | 183–193 cm | 189–199 cm |
| Frame geometry | ||||||
| Stack (mm) | 517 | 528 | 545 | 562 | 581 | 596 |
| Reach (mm) | 376 | 383 | 388 | 393 | 402 | 412 |
| Effective top tube (mm) | 520 | 535 | 550 | 565 | 580 | 600 |
| Seat tube (mm) | 425 | 445 | 470 | 500 | 530 | 560 |
| Head tube (mm) | 120 | 130 | 145 | 165 | 185 | 200 |
| Standover (mm) | 706 | 725 | 747 | 773 | 798 | 823 |
| Handling | ||||||
| Head angle (°) | 71 | 72.30 | 73 | 73 | 73 | 73 |
| Seat angle (°) | 74.50 | 74 | 73.50 | 73 | 73 | 72.50 |
| Chainstay (mm) | 405 | 405 | 405 | 405 | 405 | 405 |
| Wheelbase (mm) | 976 | 980 | 980 | 991 | 1,006 | 1,020 |
| Fork offset (mm) | 45 | 45 | 45 | 45 | 45 | 45 |
Frame Details
Frame Weight
This frame weighs 845g
Frame Material
Carbon Fiber
Forks
Advanced SL-Grade Composite, Full-Composite OverDrive Aero Steerer, 12x100mm thru-axle, Disc
Fork Material
The forks are made from Carbon Fiber
Cables: Semi Routed
Routed through the frame, not the bars
Axel Type: Thru-axle
How the wheels are secured to the frame
Brake Type: Disc Brake
Welcome to the future!
Brake Mount: Flat Mount
How the calipers are mounted
Integrated bar and stem: No
You can use any bar and stem
Drivechain Details
Groupset name
SRAM Force
Electric Groupset: Yes
This bike has electric gears
Shifters
SRAM Force AXS 2x12
Front Derailleur
SRAM Force eTap AXS, braze-on installation.
Rear Derailleur
SRAM Force AXS
Cassette
SRAM Force XG-1270, 12-speed.
Cranks
SRAM Force D1 DUB Carbon
Power Meter: Yes
This bike comes with a power meter
Bottom Bracket
SRAM DUB, press fit
Chain
SRAM Force D1, 12-speed with Flattop geometry.
Battery
Unknown
Wheel & Tire Details
Wheelset Name
Giant SLR 0 40 Carbon Disc
Front Wheel Depth
36mm
Rear Wheel Depth
36mm
Tires
New CADEX Race GC Tubeless 700x28mm effecitve 170 TPI, Folding
Tire Type
Tubeless
Max Tire Size: 32 mm
This is the max tire size you can use
Brakes
Brake Type: Disc Brake
Welcome to the future!
Brake Mount: Flat Mount
How these disc brakes are mounted
Brakes
SRAM Force AXS HRD
Brake Rotors
160 mm front / 140 mm rear using SRAM CenterLine XR centerlock rotors
Other Components
Saddle
Giant Fleet SL 7mm SST Rail With Giant ParticleFlow technology
Seatpost
Giant Variant, Composite Offset -5/+15mm
Handlebars
Giant Contact SLR, 10.5 degree flare
Bar Tape
Giant Stratus Lite 2.0 with gel
