Bike Info
Worldwide Shipping: Yes
Delivery across the globe!
Warranty: 5 Years
Limited warranty website average: 3.12 years
Released: 2025
The bike was released 1 years ago
Bike Type: Road
The style of riding intended for this bike
Bike Spec
Weight: 7 kg
The website average for Road bikes is 8.56 kg. This bike is 1.56 kg under the average. Total bike weight may vary depending on frame size.
Groupset
SRAM Red AXS
Wheelset
Miche Kleos 50
Brake Type: Disc Brake
Welcome to the future!
Frameset Material
Carbon Fiber
Max Tire Size: 30 mm
This is the max tire size you can use
UCI Approved: Yes
You can use for official races
Sizing & Geometry
Frame Sizes
XS S M L XL XXLThis frame comes in 6 sizes, this is 0.44 more sizes than the website average.

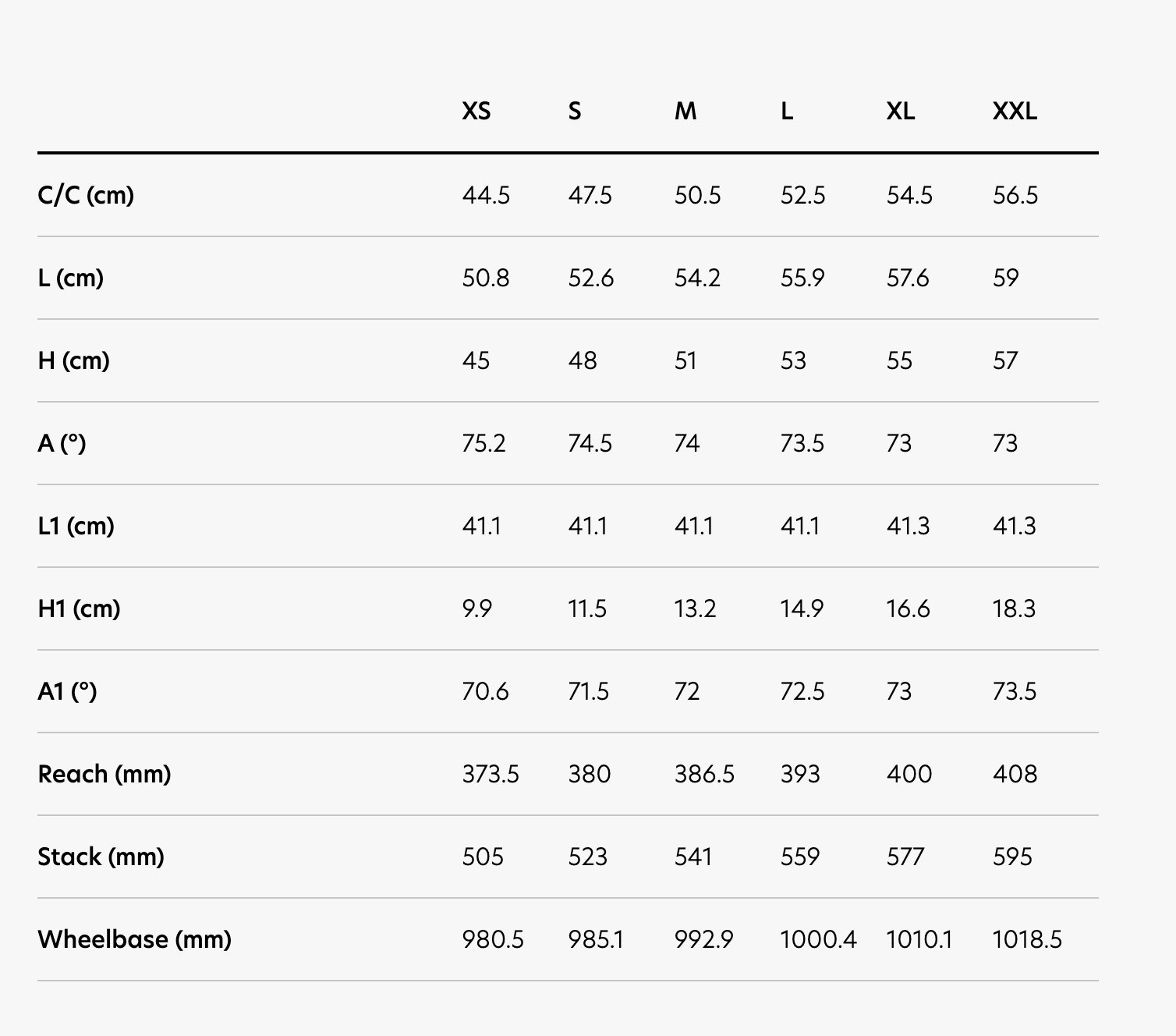

Sizing & Geometry
Frame measurements and sizing vary by bike size. Measurements are shown for each available frame size.
Swipe across to view all sizes.
| Geometry | XS | S | M | L | XL | XXL |
|---|---|---|---|---|---|---|
| Frame geometry | ||||||
| Stack (mm) | 505 | 523 | 541 | 559 | 577 | 595 |
| Reach (mm) | 373.5 | 380 | 386.5 | 393 | 400 | 408 |
| Effective top tube (mm) | 508 | 526 | 542 | 559 | 576 | 590 |
| Seat tube (mm) | 450 | 480 | 510 | 530 | 550 | 570 |
| Head tube (mm) | 99 | 115 | 132 | 149 | 166 | 183 |
| Handling | ||||||
| Head angle (°) | 70.60 | 71.50 | 72 | 72.50 | 73 | 73.50 |
| Seat angle (°) | 75.20 | 74.50 | 74 | 73.50 | 73 | 73 |
| Chainstay (mm) | 411 | 411 | 411 | 411 | 413 | 413 |
| Wheelbase (mm) | 980.5 | 985.1 | 992.9 | 1,000.4 | 1,010.1 | 1,018.5 |
Frame Details
Frame Weight
This frame weighs 860g
Frame Material
Carbon Fiber
Forks
FILANTE SLR ID2
Fork Material
The forks are made from Carbon Fiber
Cables: Internally Routed
Routed through bars, stem and frame
Axel Type: Thru-axle
How the wheels are secured to the frame
Brake Type: Disc Brake
Welcome to the future!
Brake Mount: Flat Mount
How the calipers are mounted

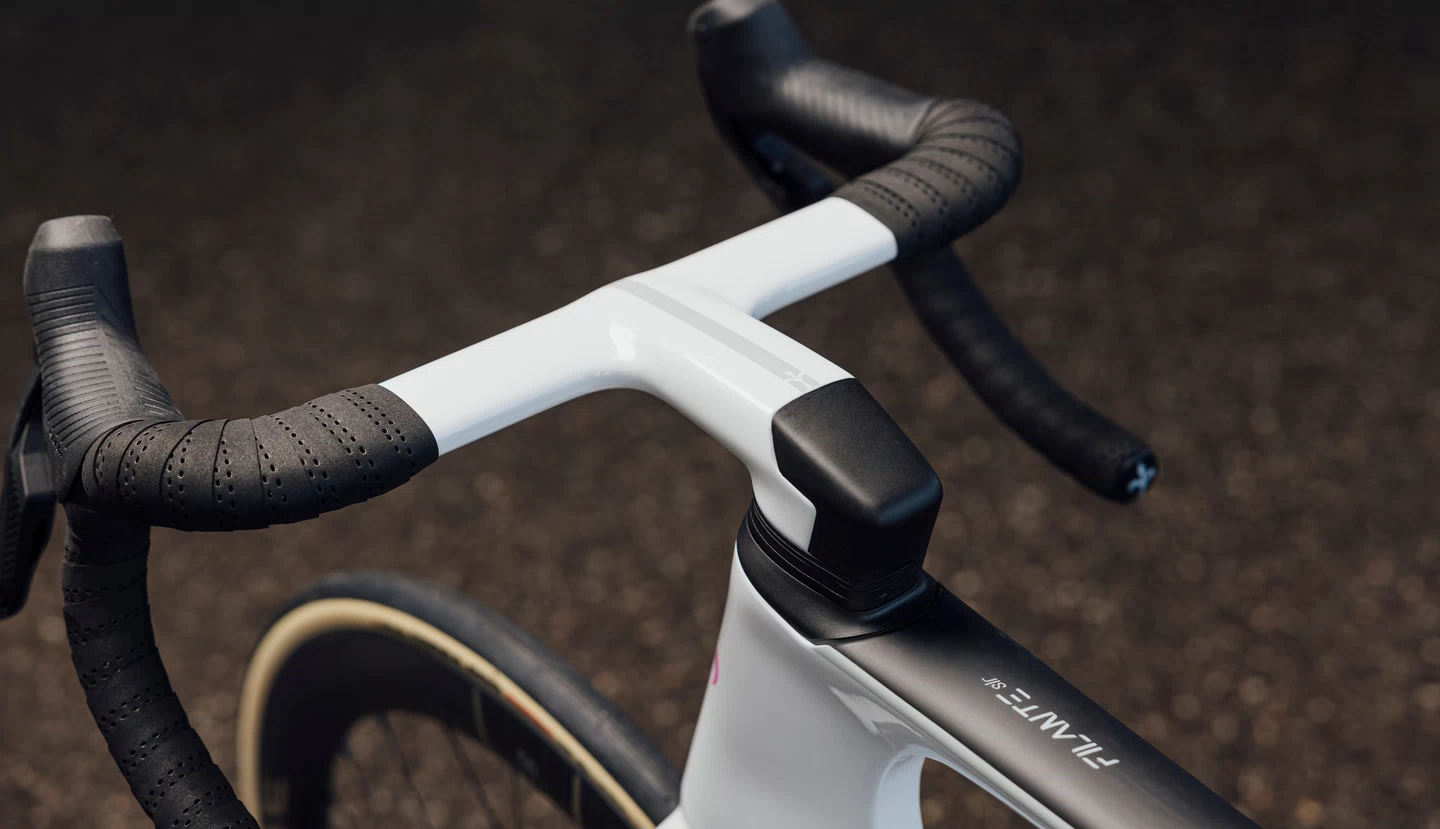

Integrated bar and stem: Yes
The bar and stem are integrated
Drivechain Details
Groupset name
SRAM Red AXS
Electric Groupset: Yes
This bike has electric gears
Shifters
SRAM RED AXS ED-RED-E1
Front Derailleur
SRAM RED AXS FD-RED-E-E1
Rear Derailleur
SRAM RED AXS E1
Cassette
SRAM RED CS-XG-1290-E1 10-36T
Cranks
SRAM RED E1 DUB FC-RED-P-E1 WITH POWERMETER 48-35T
Power Meter: Yes
This bike comes with a power meter
Bottom Bracket
SRAM DUB 86.5 PRESS FIT ROAD
Chain
SRAM RED CN-RED-E1
Battery
Unknown
Wheel & Tire Details
Wheelset Name
MICHE KLEOS RD 50 CARBON, CERAMICSPEED BEARINGS
Front Wheel Depth
50mm
Rear Wheel Depth
50mm
Tires
VITTORIA CORSA PRO 700X30
Tire Type
Unknown
Max Tire Size: 30 mm
This is the max tire size you can use

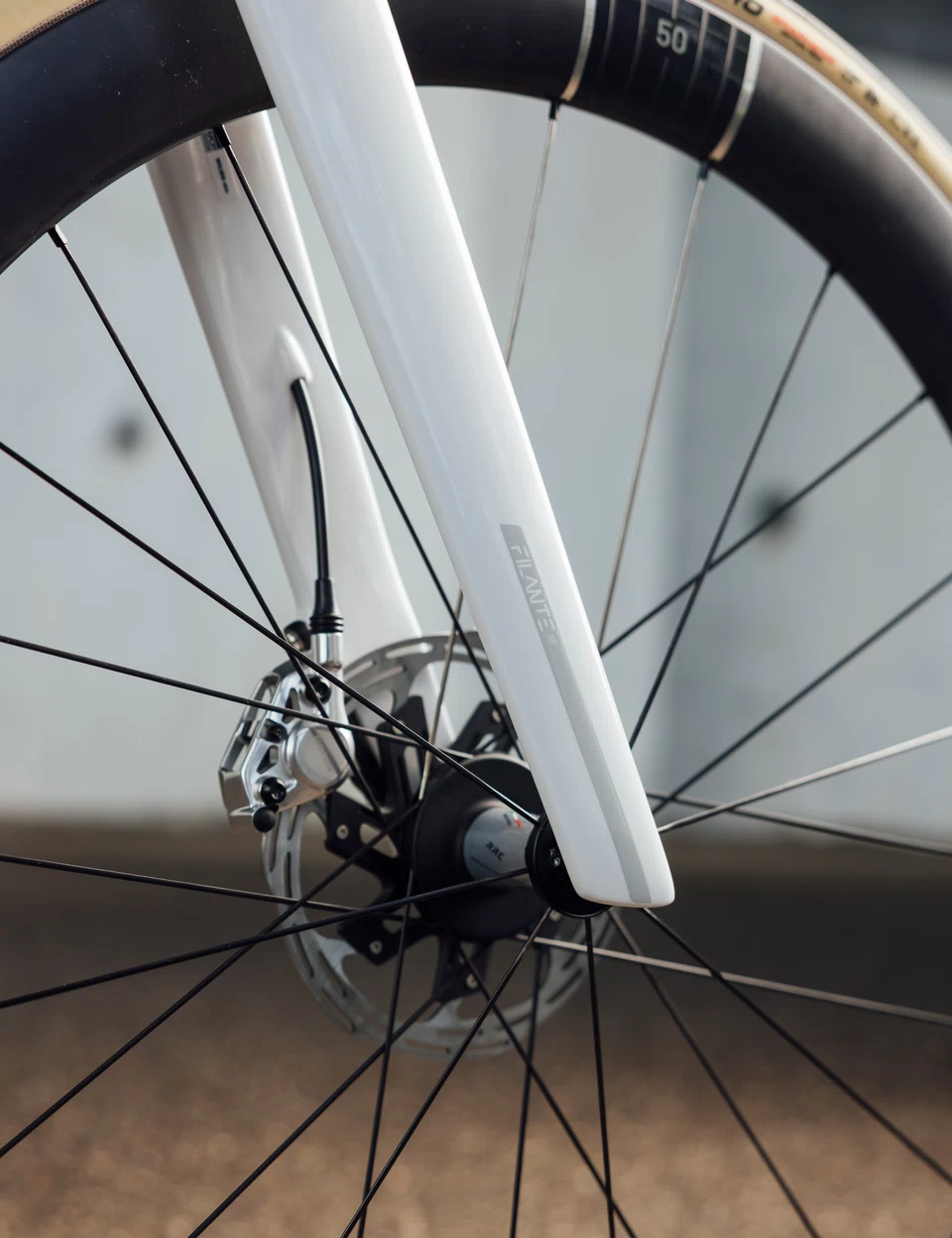

Brakes
Brake Type: Disc Brake
Welcome to the future!
Brake Mount: Flat Mount
How these disc brakes are mounted
Brakes
SRAM RED AXS ED-RED-E1
Brake Rotors
SRAM PACELINE X RT-PLN-X-A1 160 / 160
Other Components
Saddle
PROLOGO NAGO R4 PAS NACK 137mm
Seatpost
WILIER FILANTE ID2 CARBON CUSTOM MADE -0 mm
Handlebars
F BAR ID2 INTEGRATED CARBON CUSTOM MADE
