Bike Info
Worldwide Shipping: Yes
Delivery across the globe!
Warranty: Lifetime
Limited warranty website average: 3.12 years
Released: 2023
The bike was released 3 years ago
Bike Type: Road
The style of riding intended for this bike
Bike Spec
Weight: 7.1 kg
The website average for Road bikes is 8.56 kg. This bike is 1.46 kg under the average. Total bike weight may vary depending on frame size.
Groupset
Shimano Dura-Ace Di2
Wheelset
Bontrager Aeolus RSL 51
Brake Type: Disc Brake
Welcome to the future!
Frameset Material
Carbon Fiber
Max Tire Size: 32 mm
This is the max tire size you can use
UCI Approved: Yes
You can use for official races
Sizing & Geometry
Frame Sizes
47 50 52 54 56 58 60 62This frame comes in 8 sizes, this is 2.44 more sizes than the website average.
Sizing & Geometry
Frame measurements and sizing vary by bike size. Measurements are shown for each available frame size.
Swipe across to view all sizes.
| Geometry | 47cm | 50cm | 52cm | 54cm | 56cm | 58cm | 60cm | 62cm |
|---|---|---|---|---|---|---|---|---|
| Sizing | ||||||||
| Wheel size | 700c | 700c | 700c | 700c | 700c | 700c | 700c | 700c |
| Frame geometry | ||||||||
| Stack (mm) | 507 | 521 | 533 | 541 | 563 | 581 | 601 | 620 |
| Reach (mm) | 373 | 378 | 383 | 386 | 391 | 396 | 399 | 403 |
| Effective top tube (mm) | 512 | 521 | 534 | 543 | 559 | 574 | 586 | 598 |
| Seat tube (mm) | 424 | 453 | 483 | 496 | 525 | 553 | 573 | 593 |
| Head tube (mm) | 100 | 110 | 121 | 131 | 151 | 171 | 191 | 211 |
| Standover (mm) | 692 | 711 | 732 | 744 | 768 | 793 | 811 | 829 |
| Handling | ||||||||
| Head angle (°) | 72.10 | 72.10 | 72.80 | 73 | 73.50 | 73.80 | 73.90 | 73.90 |
| Seat angle (°) | 74.60 | 74.60 | 74.20 | 73.70 | 73.30 | 73 | 72.80 | 72.50 |
Frame Details
Frame Weight
This frame weighs 150g
Frame Material
Carbon Fiber
Forks
Madone KVF full carbon
Fork Material
The forks are made from Carbon Fiber
Cables: Internally Routed
Routed through bars, stem and frame
Axel Type: Thru-axle
How the wheels are secured to the frame
Brake Type: Disc Brake
Welcome to the future!
Brake Mount: Flat Mount
How the calipers are mounted

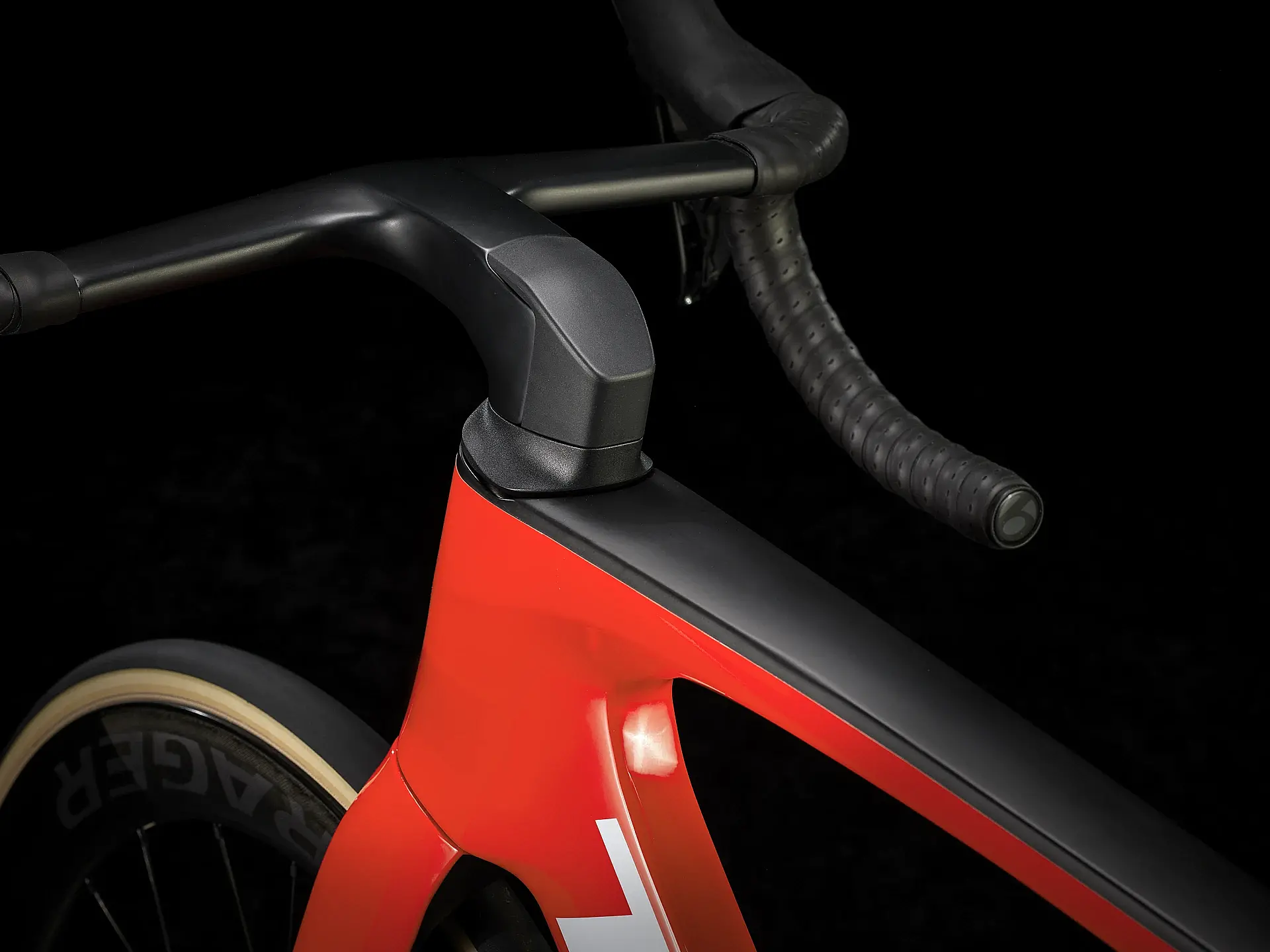

Integrated bar and stem: Yes
The bar and stem are integrated
Drivechain Details
Groupset name
Shimano Dura-Ace Di2
Electric Groupset: Yes
This bike has electric gears
Shifters
Shimano Dura-Ace R9270 Di2, 12 speed
Front Derailleur
Shimano Dura-Ace R9250 Di2, braze-on, down-swing. (Official)
Rear Derailleur
Shimano Dura-Ace R9250 Di2, 34T max cog
Cassette
R9200 11-30T
Cranks
Dura-Ace R9200
Power Meter: Yes
This bike comes with a power meter
Bottom Bracket
Praxis, T47 threaded, internal bearing
Chain
Shimano Dura-Ace/XTR M9100, 12-speed. (Official)
Battery
Shimano BT-DN300
Wheel & Tire Details
Wheelset Name
Bontrager Aeolus RSL 51
Front Wheel Depth
51mm
Rear Wheel Depth
51mm
Tires
Bontrager R4 320, 700x25 mm
Tire Type
Clincher
Max Tire Size: 32 mm
This is the max tire size you can use
Brakes
Brake Type: Disc Brake
Welcome to the future!
Brake Mount: Flat Mount
How these disc brakes are mounted
Brakes
Shimano Dura-Ace hydraulic disc
Brake Rotors
160 mm front and 160 mm rear
Other Components
Saddle
Aeolus RSL, carbon rails
Seatpost
Madone aero carbon seat post
Handlebars
Madone Integrated handlebar/stem
Bar Tape
Bontrager Supertack Perf tape
