Bike Info
Worldwide Shipping: Yes
Delivery across the globe!
Warranty: Lifetime
Limited warranty website average: 3.12 years
Released: 2025
The bike was released 1 years ago
Bike Type: Road
The style of riding intended for this bike
Bike Spec
Groupset
SRAM Rival AXS
Wheelset
Reserve 42TA
Brake Type: Disc Brake
Welcome to the future!
Frameset Material
Carbon Fiber
Max Tire Size: 36 mm
This is the max tire size you can use
UCI Approved: Yes
You can use for official races

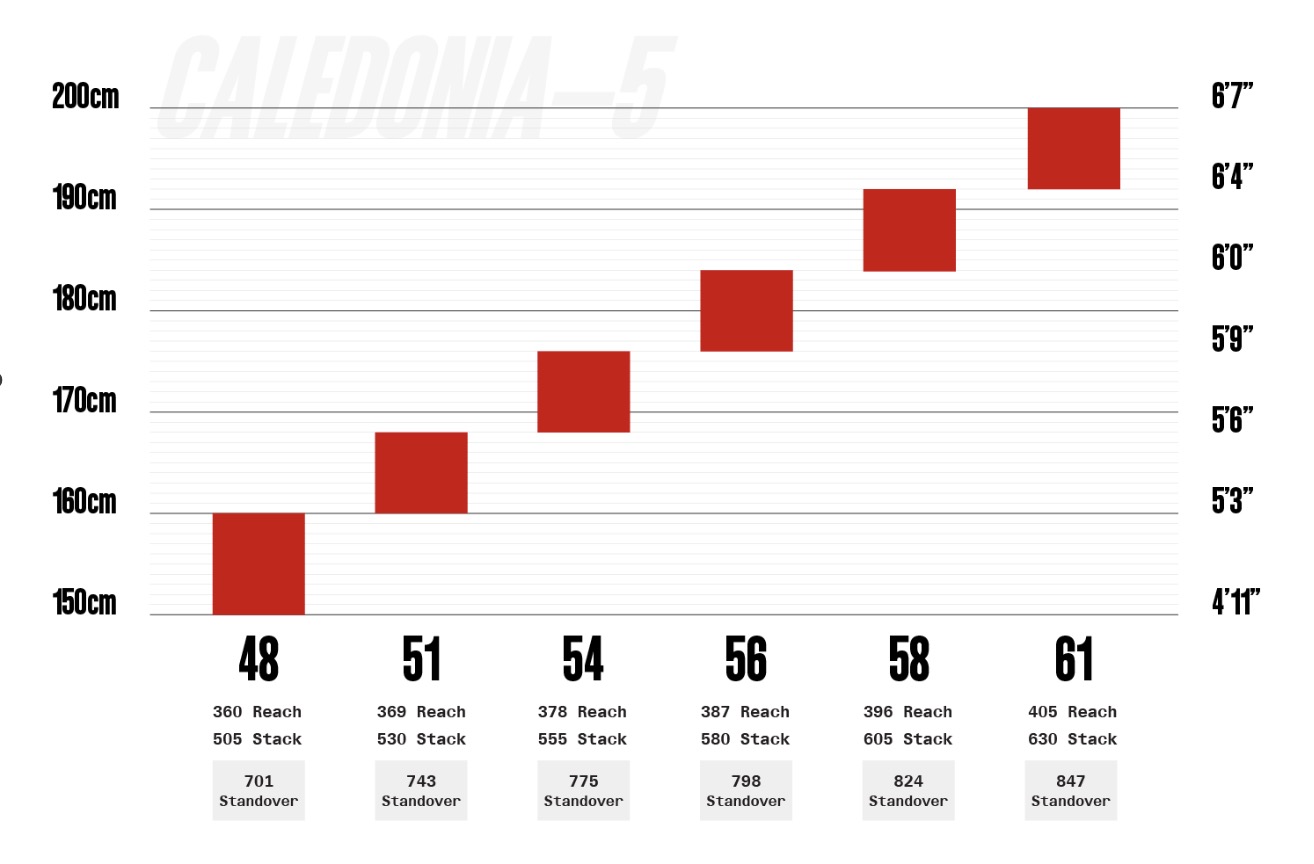

Sizing & Geometry
Frame Sizes
48 51 54 56 58 61This frame comes in 6 sizes, this is 0.44 more sizes than the website average.

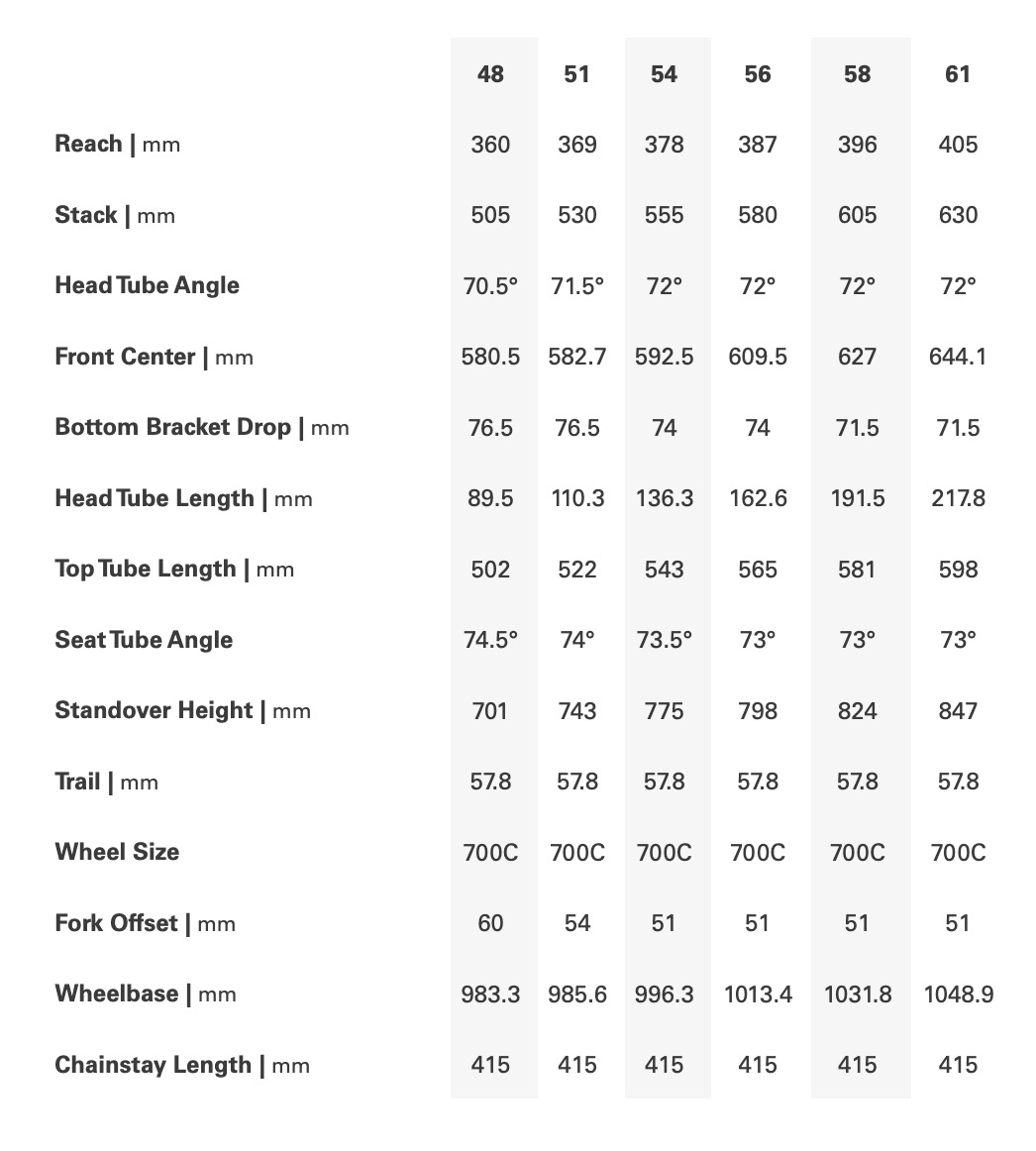

Sizing & Geometry
Frame measurements and sizing vary by bike size. Measurements are shown for each available frame size.
Swipe across to view all sizes.
| Geometry | 48 cm | 51 cm | 54 cm | 56 cm | 58 cm | 61 cm |
|---|---|---|---|---|---|---|
| Sizing | ||||||
| Wheel size | 700c | 700c | 700c | 700c | 700c | 700c |
| Frame geometry | ||||||
| Stack (mm) | 505 | 530 | 555 | 580 | 605 | 630 |
| Reach (mm) | 360 | 369 | 378 | 387 | 396 | 405 |
| Effective top tube (mm) | 502 | 522 | 543 | 565 | 581 | 598 |
| Head tube (mm) | 89.5 | 110.3 | 136.3 | 162.6 | 191.5 | 217.8 |
| Standover (mm) | 701 | 743 | 775 | 798 | 824 | 847 |
| Handling | ||||||
| Head angle (°) | 70.50 | 71.50 | 72 | 72 | 72 | 72 |
| Seat angle (°) | 74.50 | 74 | 73.50 | 73 | 73 | 73 |
| Chainstay (mm) | 415 | 415 | 415 | 415 | 415 | 415 |
| Wheelbase (mm) | 983 | 985.3 | 996.3 | 1,013.9 | 1,031.5 | 1,048.9 |
| Fork offset (mm) | 52.8 | 52.8 | 46.2 | 46.2 | 46.2 | 46.2 |
| Trail (mm) | 57.8 | 57.8 | 57.8 | 57.8 | 57.8 | 57.8 |
Frame Details
Frame Weight
This frame weighs 936g
Frame Material
Carbon Fiber
Forks
Cervélo All-Carbon, Tapered Caledonia-5 Fork
Fork Material
The forks are made from Carbon Fiber
Cables: Internally Routed
Routed through bars, stem and frame
Axel Type: Thru-axle
How the wheels are secured to the frame
Brake Type: Disc Brake
Welcome to the future!
Brake Mount:
How the calipers are mounted
Integrated bar and stem: No
You can use any bar and stem
Drivechain Details
Groupset name
SRAM Rival AXS
Electric Groupset: Yes
This bike has electric gears
Shifters
SRAM Rival AXS E1
Front Derailleur
SRAM Rival AXS, 12-speed (Official).
Rear Derailleur
SRAM Rival AXS E1
Cassette
SRAM Rival, 12-speed (Official).
Cranks
SRAM Rival AXS DUB
Power Meter: Yes
This bike comes with a power meter
Bottom Bracket
SRAM DUB, BBright
Chain
SRAM Rival, 12-speed Flattop chain (Official).
Battery
Unknown
Wheel & Tire Details
Wheelset Name
F:Reserve 42TA, DT Swiss 350, 12x100mm R: Reserve 49TA, DT Swiss 350, 12x142mm, XDR freehub,
Front Wheel Depth
30mm
Rear Wheel Depth
30mm
Tires
Vittoria Corsa N.EXT TLR G2.0 700x30c
Tire Type
Tubeless
Max Tire Size: 36 mm
This is the max tire size you can use
Brakes
Brake Type: Disc Brake
Welcome to the future!
Brake Mount:
How these disc brakes are mounted
Brakes
SRAM Rival
Brake Rotors
160 mm front and 160 mm rear
Other Components
Saddle
Selle Italia NOVUS BOOST EVO SuperFlow Manganese
Seatpost
Cervélo SP24 Carbon
Handlebars
Cervélo HB13 Carbon, 31.8mm clamp
