Bike Info
Worldwide Shipping: Yes
Delivery across the globe!
Warranty: 2 Years
Limited warranty website average: 3.12 years
Released: 2025
The bike was released 1 years ago
Bike Type: TT
The style of riding intended for this bike
Bike Spec
Weight: 9.3 kg
The website average for TT bikes is 9.16 kg. This bike is 0.13 kg over the average. Total bike weight may vary depending on frame size.
Groupset
Shimano Dura-Ace Di2 FD-R9250, Weight: 96 g
Wheelset
DT Swiss ARC 1100 Dicut
Brake Type: Disc Brake
Welcome to the future!
Frameset Material
Carbon Fiber
Max Tire Size: 30 mm
This is the max tire size you can use
UCI Approved: No
You can't use for official races
Sizing & Geometry
Frame Sizes
S M L XLThis frame comes in 4 sizes, this is 1.56 less sizes than the website average.

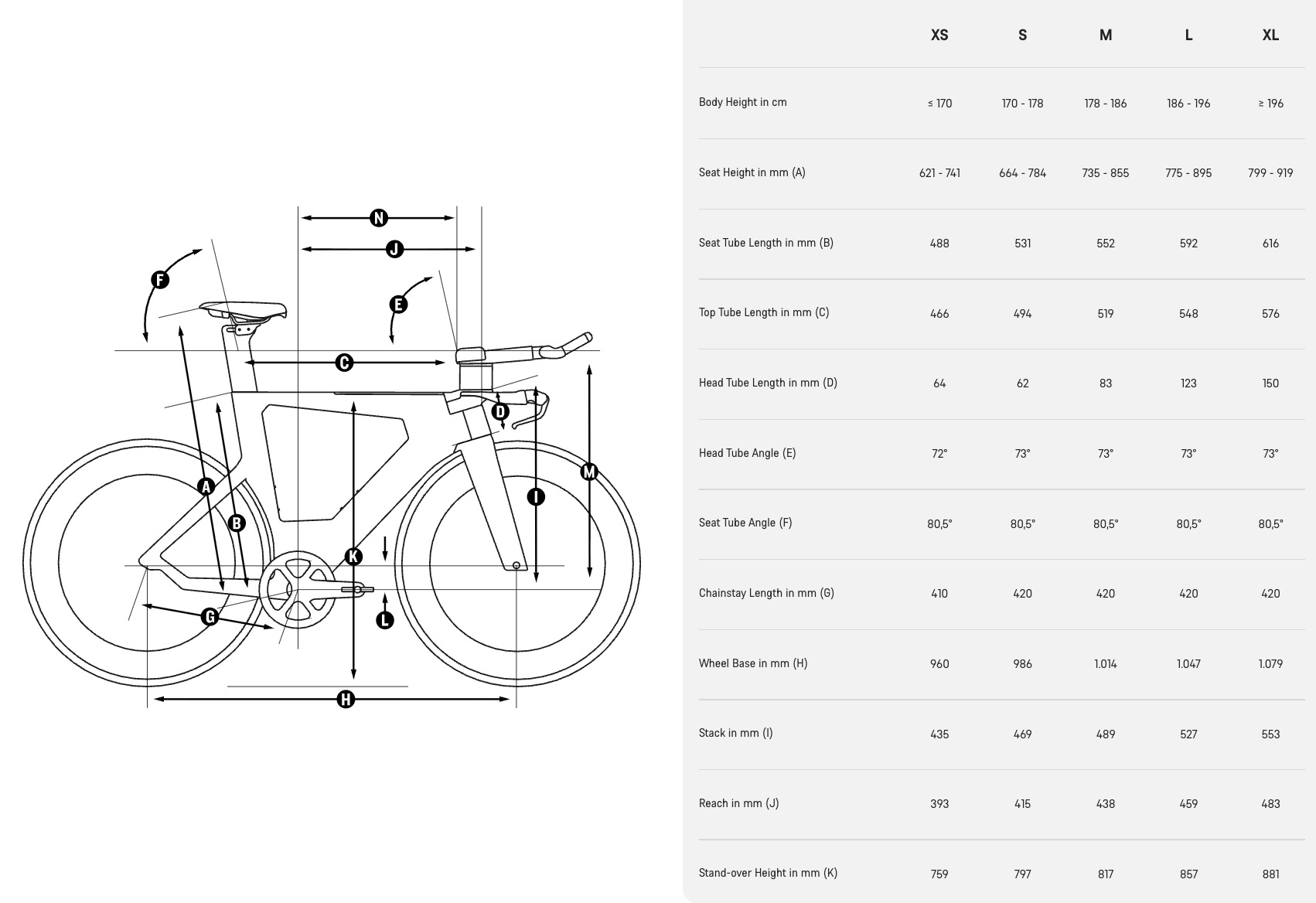

Sizing & Geometry
Frame measurements and sizing vary by bike size. Measurements are shown for each available frame size.
Swipe across to view all sizes.
| Geometry | S | M | L | XL |
|---|---|---|---|---|
| Sizing | ||||
| Wheel size | 700c | 700c | 700c | 700c |
| Frame geometry | ||||
| Stack (mm) | 470 | 481 | 511 | 542 |
| Reach (mm) | 419 | 440 | 463 | 486 |
| Effective top tube (mm) | 516 | 537 | 565 | 593 |
| Seat tube (mm) | 480 | 513 | 550 | 585 |
| Head tube (mm) | 62 | 73 | 105 | 137 |
| Standover (mm) | 759 | 780 | 814 | 846 |
| Handling | ||||
| Head angle (°) | 73 | 73 | 73 | 73 |
| Seat angle (°) | 81 | 81 | 81 | 81 |
| Chainstay (mm) | 420 | 420 | 420 | 420 |
| Wheelbase (mm) | 989 | 1,013 | 1,046 | 1,078 |
Frame Details
Frame Weight
This frame weighs 1440g
Frame Material
Carbon Fiber
Forks
Canyon FK0080 CF Disc Aero Fork
Fork Material
The forks are made from Carbon Fiber
Cables: Internally Routed
Routed through bars, stem and frame
Axel Type: Thru-axle
How the wheels are secured to the frame
Brake Type: Disc Brake
Welcome to the future!
Brake Mount: Flat Mount
How the calipers are mounted
Integrated bar and stem: Yes
The bar and stem are integrated
Drivechain Details
Groupset name
Shimano Dura-Ace Di2 FD-R9250, Weight: 96 g
Electric Groupset: Yes
This bike has electric gears
Shifters
Shimano Dura-Ace Di2 R9160 Remote TT, Weight: 19 g
Front Derailleur
Shimano Dura-Ace Di2 FD-R9250 (Official)
Rear Derailleur
Shimano Dura-Ace Di2 RD-R9250, 12-speed, Cage length: long, Weight: 217 g
Cassette
Shimano Dura-Ace CS-R9200 (Official)
Cranks
Shimano Dura-Ace FC-R9200-P (165.0 to 172.5 mm)
Power Meter: No
This bike doesn't have a power meter
Bottom Bracket
Shimano Pressfit BB92, Bottom bracket standard: PF 86,5, Weight: 55 g
Chain
Shimano Dura-Ace CN-M9100 12-speed hyperglide+ chain (Official)
Battery
Unknown
Wheel & Tire Details
Wheelset Name
DT Swiss ARC 1100 Dicut, Axle dimension: 12x100 mm, Rotor mount: Center Lock, Rim height: 80 mm, Inner width: 20 mm, Rim material: Carbon, Weight: 828 g | DT Swiss ARC 1100 Dicut, Axle dimension: 12x142 mm, Rotor mount: Center Lock, Rim height: 80 mm, Rim material: Carbon, Weight: 942 g
Front Wheel Depth
80mm
Rear Wheel Depth
85mm
Tires
Continental Grand Prix 5000 S TR, 28mm, Width: 28 mm, Weight: 294 g | Continental Aero 111, Width: 26 mm, Weight: 246 g
Tire Type
Tubeless
Max Tire Size: 30 mm
This is the max tire size you can use
Brakes
Brake Type: Disc Brake
Welcome to the future!
Brake Mount: Flat Mount
How these disc brakes are mounted
Brakes
Shimano Flat Mount Adapter +20mm
Brake Rotors
Shimano Dura-Ace RT-CL900 Center Lock rotors
Other Components
Saddle
Fizik Transiro, Gender: Unisex, Weight: 187 g
Seatpost
Canyon SP0049 Aero Seatpost
Handlebars
Canyon GP0226 Aerobar, Mono aero bar developed with aero experts Swiss Side to deliver optimal aero performance.
