Bike Info
Worldwide Shipping: Yes
Delivery across the globe!
Warranty: Lifetime
Limited warranty website average: 3.12 years
Released: 2025
The bike was released 1 years ago
Bike Type: Road
The style of riding intended for this bike
Bike Spec
Groupset
Sram Force AXS
Wheelset
Oquo Road Control RC25 Team
Brake Type: Disc Brake
Welcome to the future!
Frameset Material
Carbon Fiber
Max Tire Size: 50 mm
This is the max tire size you can use
UCI Approved: Unknown
You can't use for official races

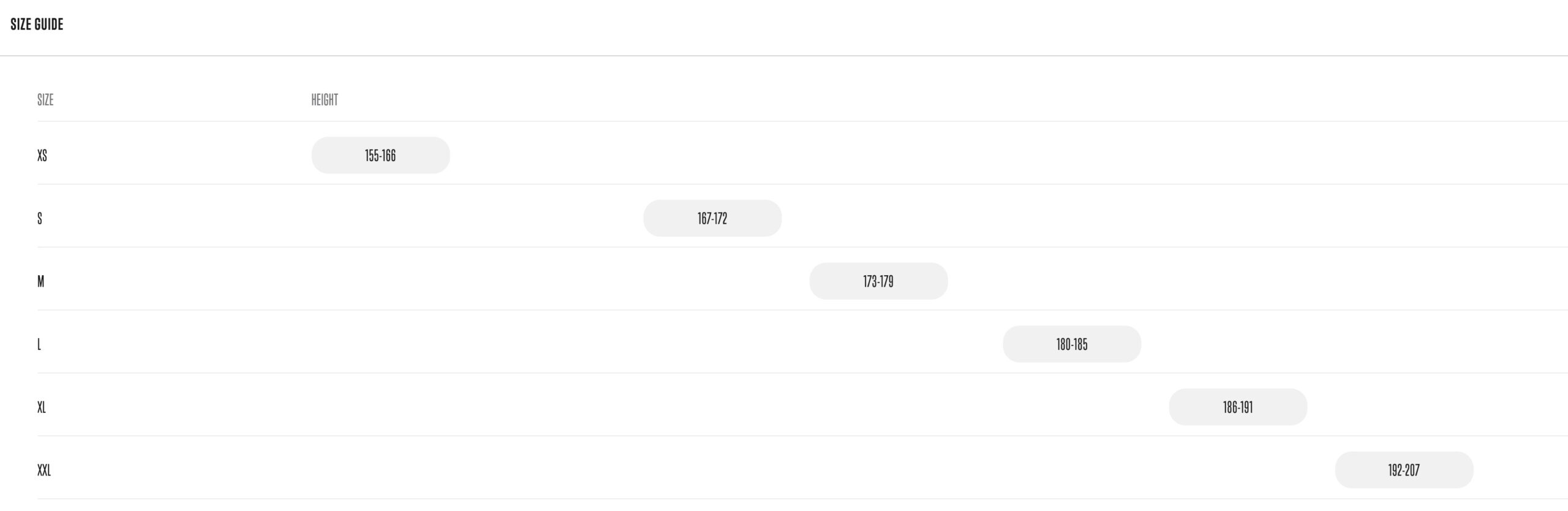

Sizing & Geometry
Frame Sizes
XS XXLThis frame comes in 2 sizes, this is 3.56 less sizes than the website average.

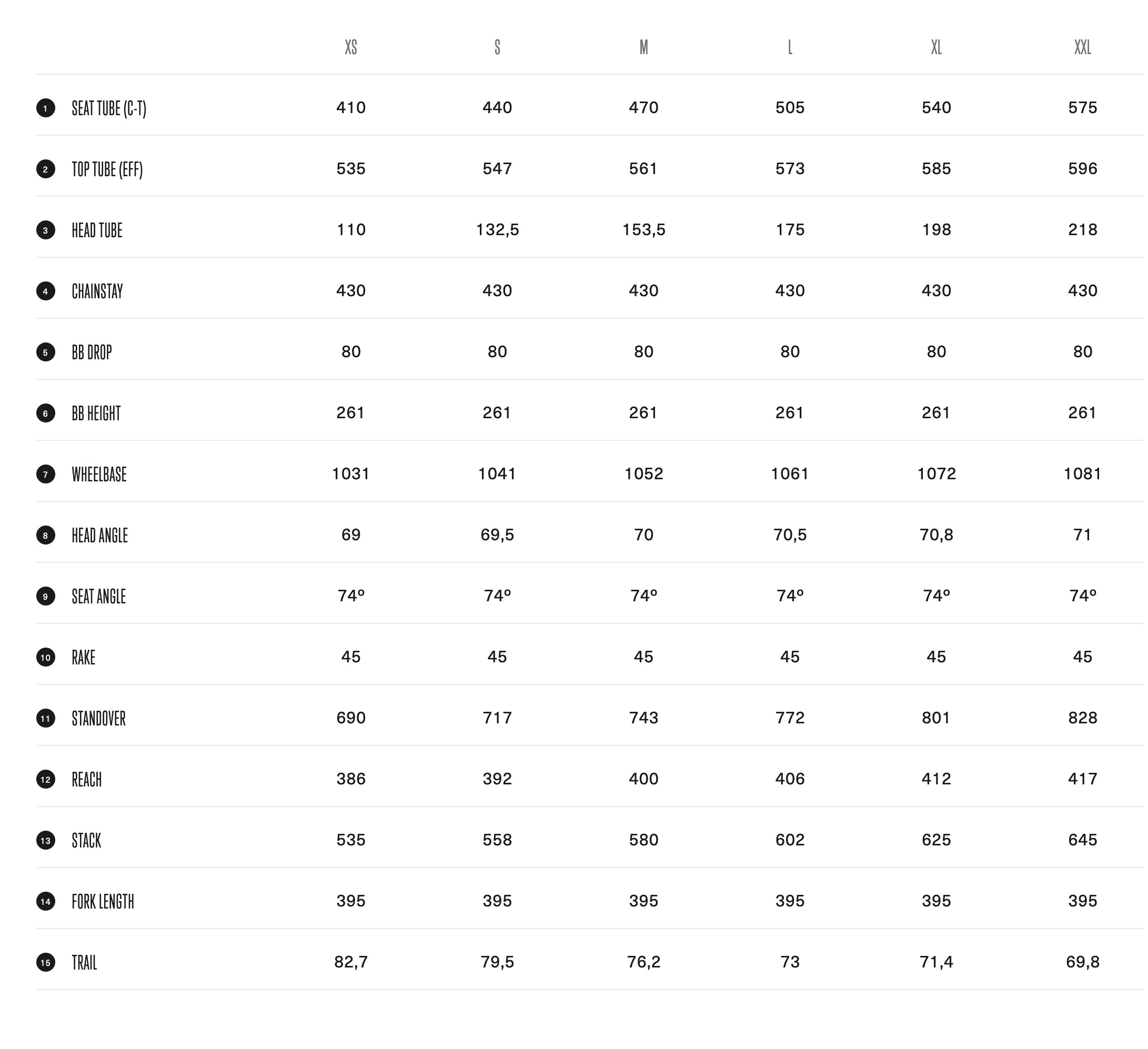

Sizing & Geometry
Frame measurements and sizing vary by bike size. Measurements are shown for each available frame size.
Swipe across to view all sizes.
| Geometry | Size L |
|---|---|
| Sizing | |
| Rider height | 180–185 cm |
| Handling | |
| Seat angle (°) | 73.50 |
Frame Details
Frame Weight
This frame weighs 1040g
Frame Material
Carbon Fiber
Forks
Orbea Terra carbon OMR Disc, monocoque construction, HS 1,5", PF30, powermeter compatible, Thru Axle 12x142mm rear, thread M12x2 P1, Internal Cable Routing, LOCKR service box
Fork Material
The forks are made from Carbon Fiber
Cables: Internally Routed
Routed through bars, stem and frame
Axel Type: Thru-axle
How the wheels are secured to the frame
Brake Type: Disc Brake
Welcome to the future!
Brake Mount: Flat Mount
How the calipers are mounted
Integrated bar and stem: No
You can use any bar and stem
Drivechain Details
Groupset name
Sram Force AXS
Electric Groupset: Yes
This bike has electric gears
Shifters
SRAM Force AXS
Front Derailleur
None
Rear Derailleur
SRAM Force XPLR AXS 12s
Cassette
SRAM XG-1271 XPLR.
Cranks
SRAM Force DUB Wide (165mm - 175mm)
Power Meter: No
This bike doesn't have a power meter
Bottom Bracket
PF30, press-fit
Chain
SRAM Force 12-speed chain featuring Flattop technology.
Battery
Unknown
Wheel & Tire Details
Wheelset Name
Oquo Road Control RC25TEAM
Front Wheel Depth
30mm
Rear Wheel Depth
30mm
Tires
Vittoria Terreno Dry CX-Gravel G2.0 TNT 700x38c
Tire Type
Tubeless
Max Tire Size: 50 mm
This is the max tire size you can use
Brakes
Brake Type: Disc Brake
Welcome to the future!
Brake Mount: Flat Mount
How these disc brakes are mounted
Brakes
SRAM Force AXS
Brake Rotors
160 mm Front / 160 mm Rear (Retailer-listed / Bluepaper Inferred). The factory setup for performance-tier Orbea Terra configurations drops out of the factory running matching dual 160mm Centerlock rotors
Other Components
Saddle
Prologo Akero AGX black rails size 155mm
Seatpost
Handlebars
Easton EC90 AX Carbon, flare 16º, Di2 internal routing
Bar Tape
Orbea Anti-Slippery/Shock Proof
