Bike Info
Worldwide Shipping: Yes
Delivery across the globe!
Warranty: 2 Years
Limited warranty website average: 3.12 years
Released: 2025
The bike was released 1 years ago
Bike Type: Road
The style of riding intended for this bike
Bike Spec
Weight: 7 kg
The website average for Road bikes is 8.56 kg. This bike is 1.56 kg under the average. Total bike weight may vary depending on frame size.
Groupset
SRAM Red AXS™, 12-Speed, Electronic Shifting System
Wheelset
Newmen Advanced SL X.R.36 VONOA Carbon
Brake Type: Disc Brake
Welcome to the future!
Frameset Material
Carbon Fiber
Max Tire Size: 34 mm
This is the max tire size you can use
UCI Approved: Yes
You can use for official races
Sizing & Geometry
Frame Sizes
50 53 56 58 61This frame comes in 5 sizes, this is 0.56 less sizes than the website average.

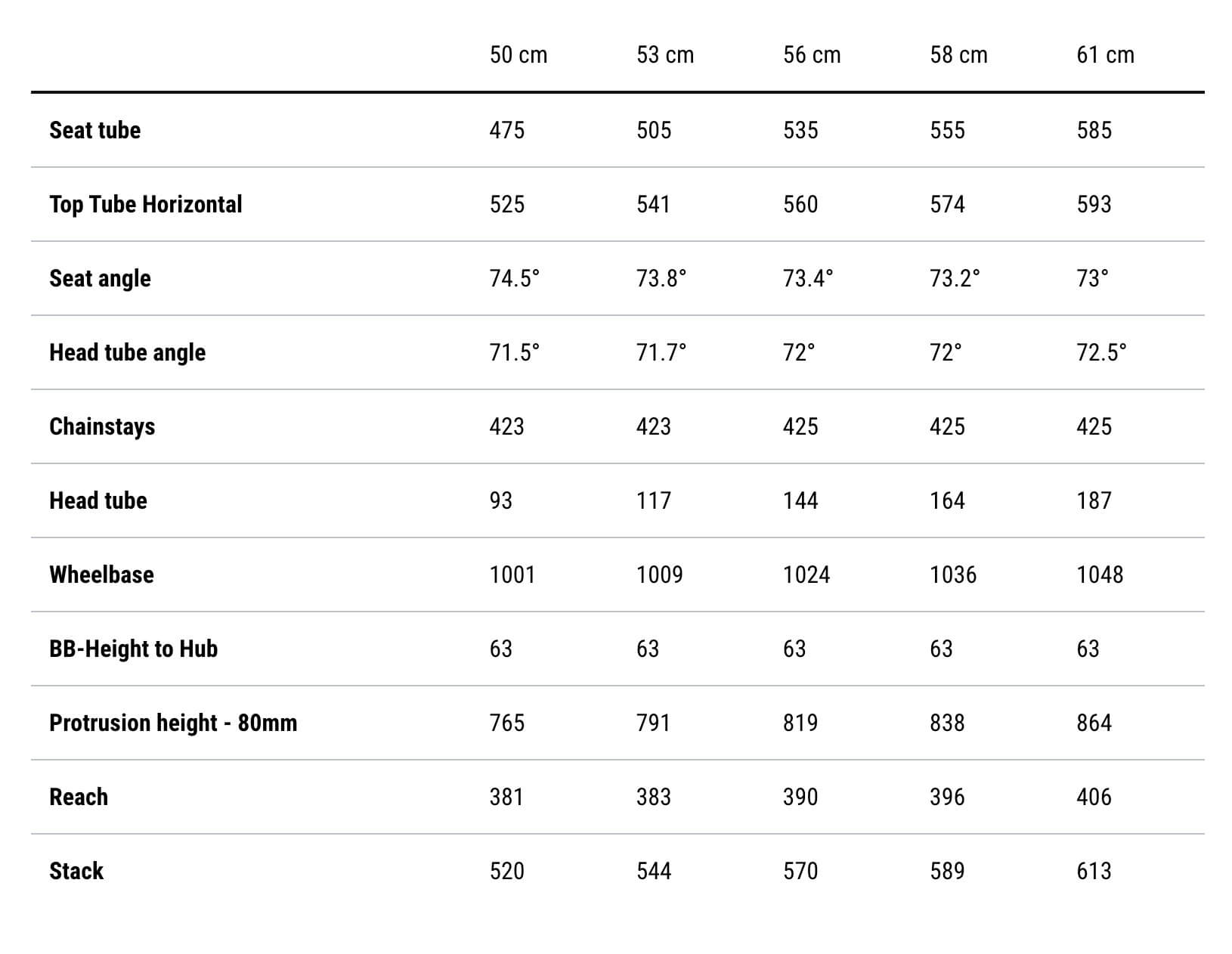

Sizing & Geometry
Frame measurements and sizing vary by bike size. Measurements are shown for each available frame size.
Swipe across to view all sizes.
| Geometry | 50 cm | 53 cm | 56 cm | 58 cm | 61 cm |
|---|---|---|---|---|---|
| Sizing | |||||
| Wheel size | 700c | 700c | 700c | 700c | 700c |
| Frame geometry | |||||
| Stack (mm) | 520 | 544 | 570 | 589 | 613 |
| Reach (mm) | 381 | 383 | 390 | 396 | 406 |
| Effective top tube (mm) | 525 | 541 | 560 | 574 | 593 |
| Seat tube (mm) | 475 | 505 | 535 | 555 | 585 |
| Head tube (mm) | 93 | 117 | 144 | 164 | 187 |
| Standover (mm) | 765 | 791 | 819 | 838 | 864 |
| Handling | |||||
| Head angle (°) | 71.50 | 71.70 | 72 | 72 | 72.50 |
| Seat angle (°) | 74.50 | 73.80 | 73.40 | 73.20 | 73 |
| Chainstay (mm) | 423 | 423 | 425 | 425 | 425 |
| Wheelbase (mm) | 1,001 | 1,009 | 1,024 | 1,036 | 1,048 |
Frame Details
Frame Weight
This frame weighs 900g
Frame Material
Carbon Fiber
Forks
C:68X® Monocoque Advanced Twin Mold Technology, Full Internal Cable Routing, Flat Mount Disc, 12x142mm, AXH
Fork Material
The forks are made from Carbon Fiber
Cables: Internally Routed
Routed through bars, stem and frame
Axel Type: Thru-axle
How the wheels are secured to the frame
Brake Type: Disc Brake
Welcome to the future!
Brake Mount: Flat Mount
How the calipers are mounted
Integrated bar and stem: Yes
The bar and stem are integrated
Drivechain Details
Groupset name
SRAM Red AXS™, 12-Speed, Electronic Shifting System
Electric Groupset: Yes
This bike has electric gears
Shifters
SRAM Red AXS™
Front Derailleur
None
Rear Derailleur
SRAM Red AXS™, 12-Speed, Electronic Shifting System
Cassette
SRAM Red XG-1290.

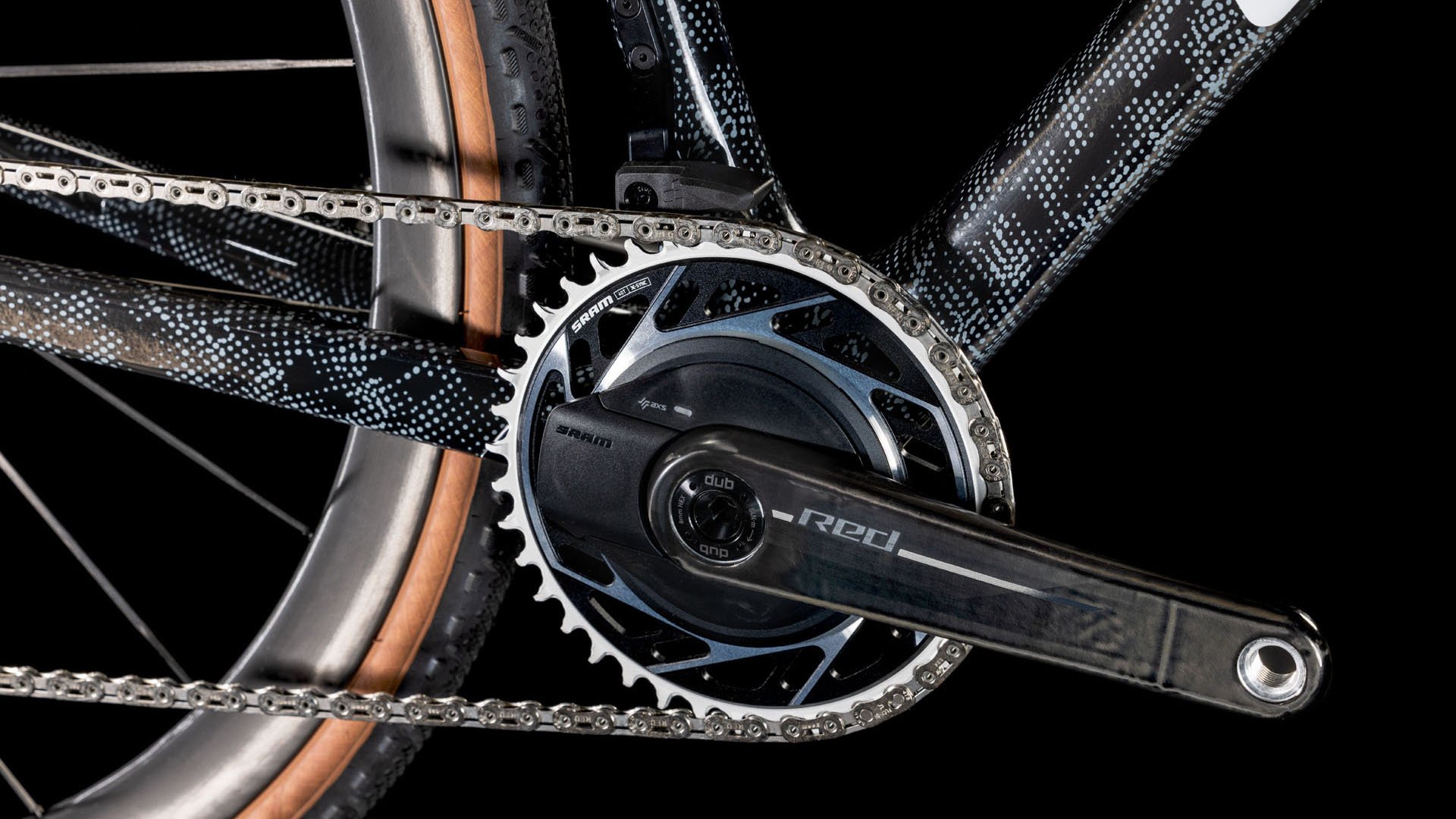

Cranks
SRAM Red XPLR Carbon
Power Meter: Yes
This bike comes with a power meter
Bottom Bracket
SRAM DUB Road Wide, Pressfit
Chain
SRAM Red E1.
Battery
Unknown
Wheel & Tire Details
Wheelset Name
Newmen Advanced SL X.R.36 VONOA Carbon, 21/21 Carbon Spokes, 12x100mm/12x142mm, Tubeless Ready
Front Wheel Depth
36mm
Rear Wheel Depth
36mm
Tires
Schwalbe X-One RS, Kevlar, 33-622
Tire Type
Clincher
Max Tire Size: 34 mm
This is the max tire size you can use
Brakes
Brake Type: Disc Brake
Welcome to the future!
Brake Mount: Flat Mount
How these disc brakes are mounted
Brakes
SRAM Red AXS™, Hydr. Disc Brake (160/160)
Brake Rotors
160 mm Front / 160 mm Rear
Other Components

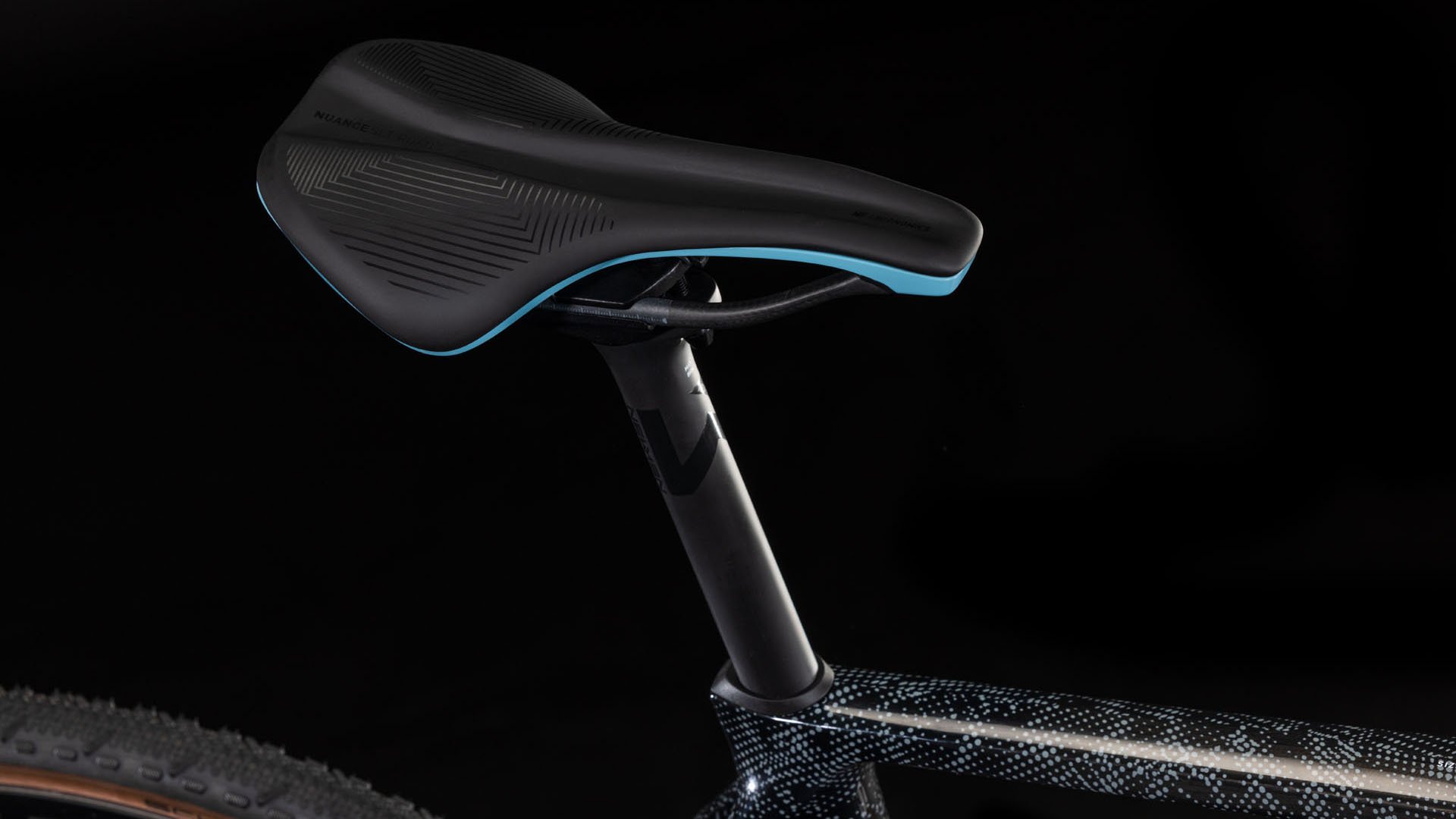

Saddle
Natural Fit Nuance SLT Road Carbon
Seatpost
Newmen Advanced, Carbon, 27.2mm
Handlebars
ICR Cockpit System, Integrated Cable Routing, Aero Spacer System, Garmin Mount Interface
Bar Tape
ACID Bartape RC 2.5
