Bike Info
Worldwide Shipping: Yes
Delivery across the globe!
Warranty: 2 Years
Limited warranty website average: 3.12 years
Released: 2025
The bike was released 1 years ago
Bike Type: Road
The style of riding intended for this bike
Bike Spec
Weight: 8.1 kg
The website average for Road bikes is 8.56 kg. This bike is 0.46 kg under the average. Total bike weight may vary depending on frame size.
Groupset
Canyon EP1839-01 Blind Plate, Weight: 4 g
Wheelset
DT Swiss GRC1400 Spline db
Brake Type: Disc Brake
Welcome to the future!
Frameset Material
Carbon Fiber
Max Tire Size: 42 mm
This is the max tire size you can use
UCI Approved: Yes
You can use for official races
Sizing & Geometry
Frame Sizes
2XS XXLThis frame comes in 2 sizes, this is 3.56 less sizes than the website average.
Frame Details
Frame Weight
This frame weighs 990g
Frame Material
Carbon Fiber
Forks

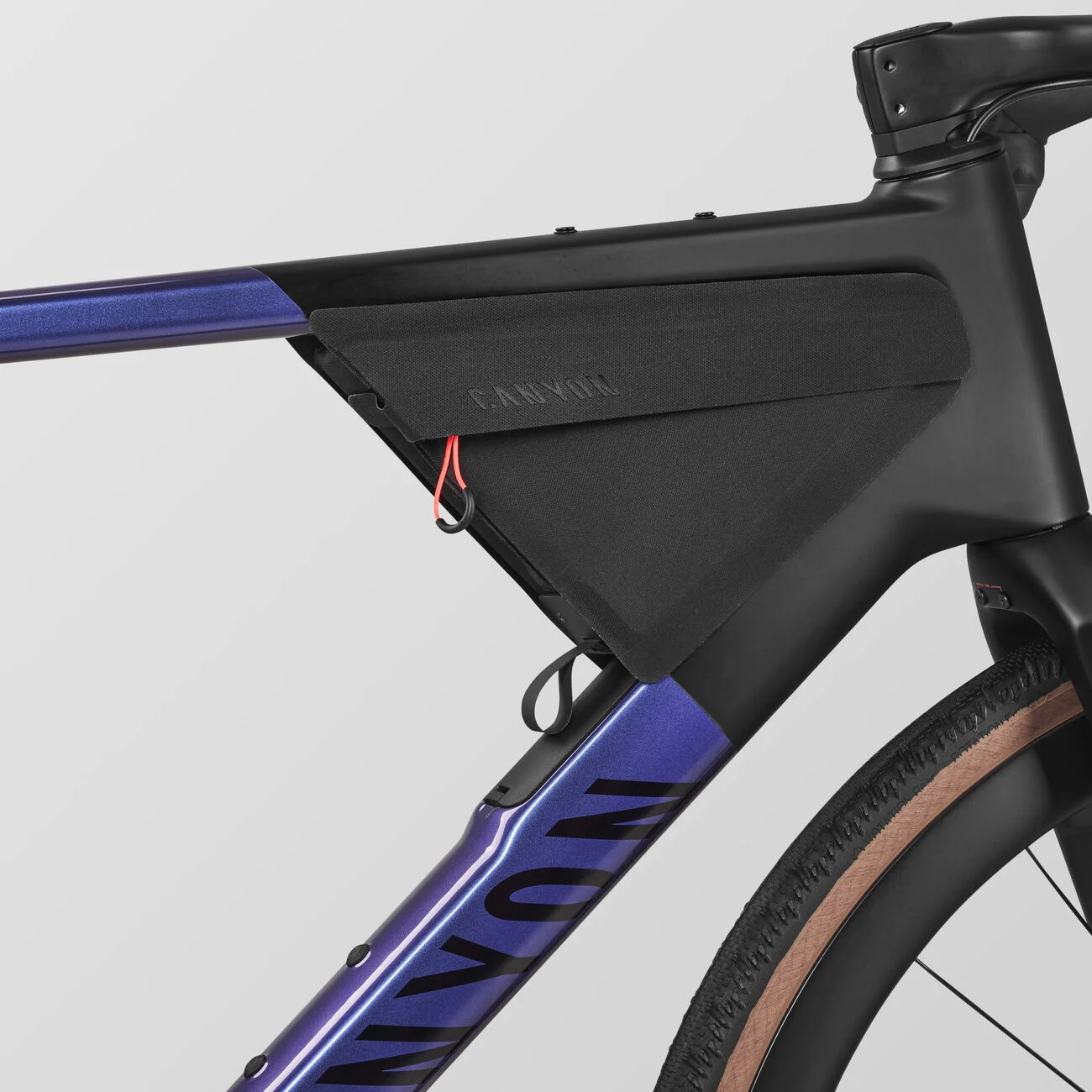

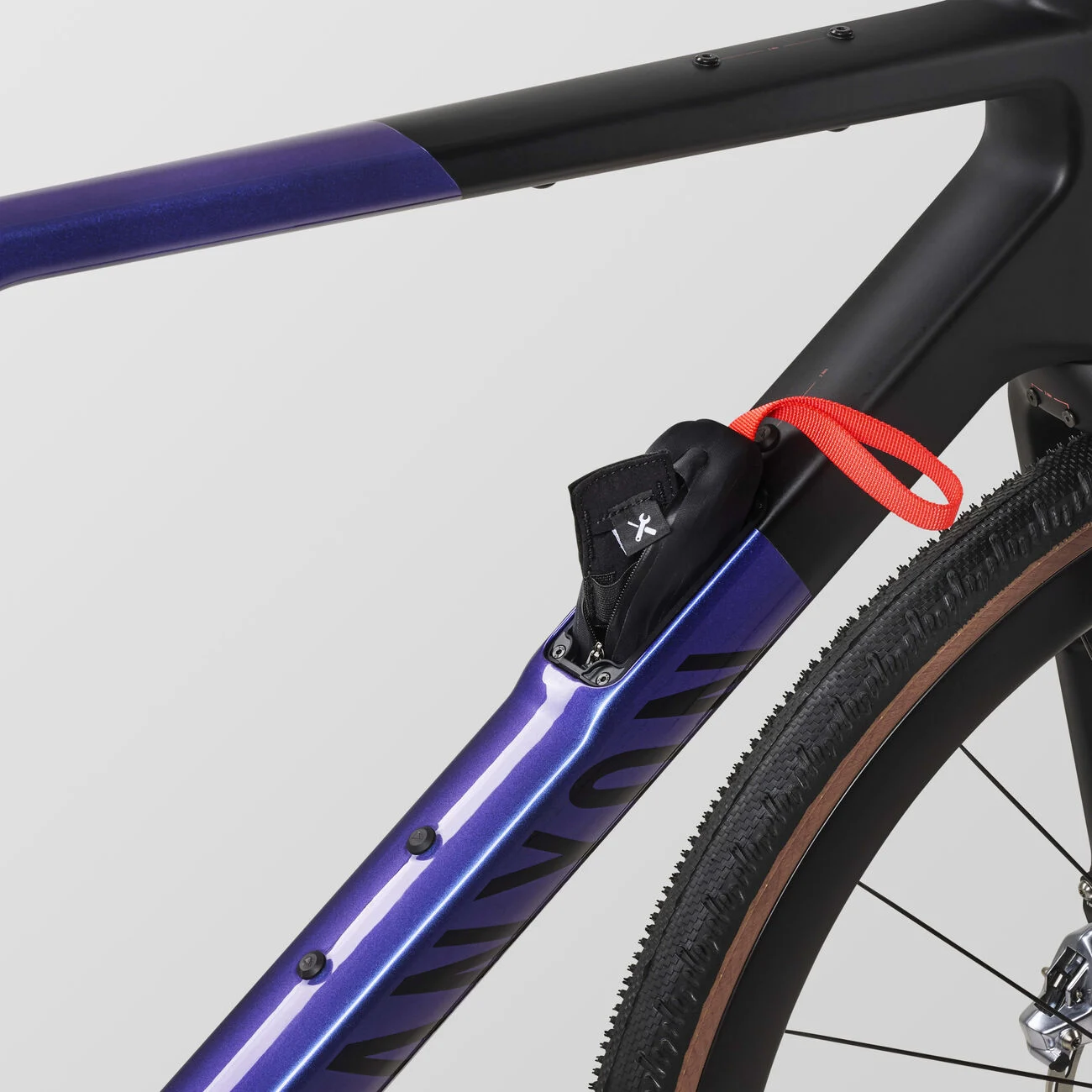

Canyon Grail CF SLX, Lightweight build of the latest-generation Grail gravel race bike. More capable geometry, aero tube forms, integrated LOAD down tube storage, top tube mounts and strapless bag compatibility., Axle dimension: 12x142 mm, Tyre clearance: 42 mm, Material: Carbon (CF), Weight: 1,135 g
Fork Material
The forks are made from Carbon Fiber
Cables: Internally Routed
Routed through bars, stem and frame
Axel Type: Thru-axle
How the wheels are secured to the frame
Brake Type: Disc Brake
Welcome to the future!
Brake Mount:
How the calipers are mounted

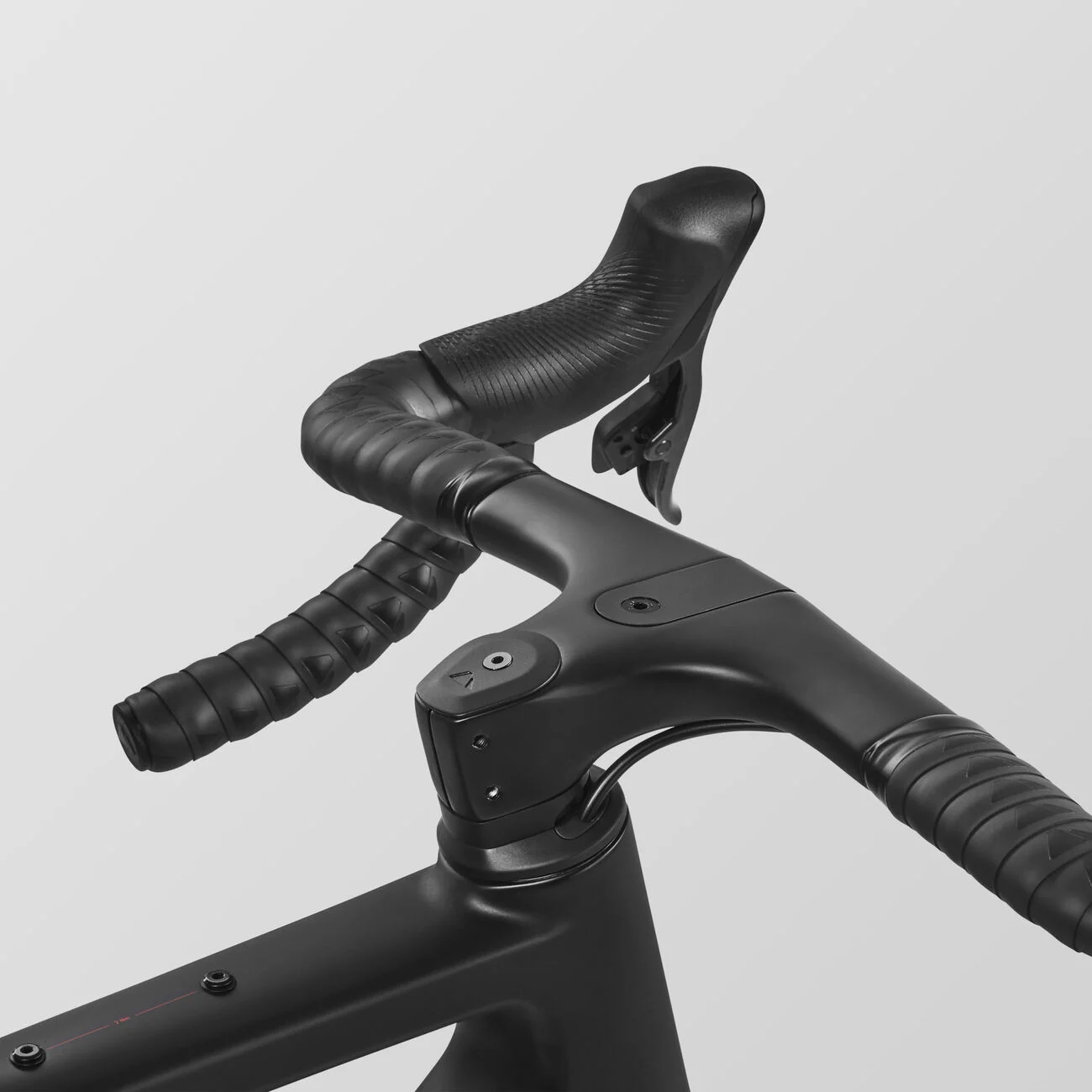

Integrated bar and stem: Yes
The bar and stem are integrated
Drivechain Details
Groupset name
Canyon EP1839-01 Blind Plate, Weight: 4 g
Electric Groupset: Yes
This bike has electric gears
Shifters
SRAM RED eTap AXS HRD, Number of pistons: 2, Weight: 605 g | SRAM RED eTap AXS HRD 12s, Number of pistons: 2, Weight: 450 g
Front Derailleur
None
Rear Derailleur
SRAM Red XPLR eTap AXS D1, Weight: 296 g
Cassette
SRAM RED XPLR XG-1271 (Inferred from standard 12-speed XPLR builds) or matching high-tier 12-speed XPLR component.
Cranks
SRAM RED AXS Carbon (165–175 mm)
Power Meter: Yes
This bike comes with a power meter
Bottom Bracket
SRAM DUB Pressfit, Bottom bracket standard: PF 86,5, Weight: 67 g
Chain
SRAM RED 12-speed chain (Flattop design).
Battery
Unknown
Wheel & Tire Details
Wheelset Name
DT Swiss GRC1400 Spline db, Axle dimension: 12x100 mm, Rotor mount: Center Lock, Rim height: 42 mm, Inner width: 24 mm, Rim material: Carbon, Weight: 750 g | DT Swiss GRC1400 Spline db XD-R, Axle dimension: 12x142 mm, Rotor mount: Center Lock, Rim height: 42 mm, Inner width: 24 mm, Rim material: Carbon, Weight: 750 g
Front Wheel Depth
42mm
Rear Wheel Depth
42mm
Tires
Schwalbe G-One RS Evo, Width: 40 mm, Weight: 445 g
Tire Type
Clincher
Max Tire Size: 42 mm
This is the max tire size you can use
Brakes
Brake Type: Disc Brake
Welcome to the future!
Brake Mount:
How these disc brakes are mounted
Brakes
SRAM RED eTap AXS HRD, Number of pistons: 2, Weight: 605 g | SRAM RED eTap AXS HRD 12s, Number of pistons: 2, Weight: 450 g
Brake Rotors
160 mm front / 160 mm rear Center Lock rotors
Other Components
Saddle
Fizik Vento Argo X3, Gender: Unisex, Weight: 213 g
Seatpost
Canyon SP0072
Handlebars
Canyon Cockpit CP0039
Bar Tape
Canyon Ergospeed Gel
