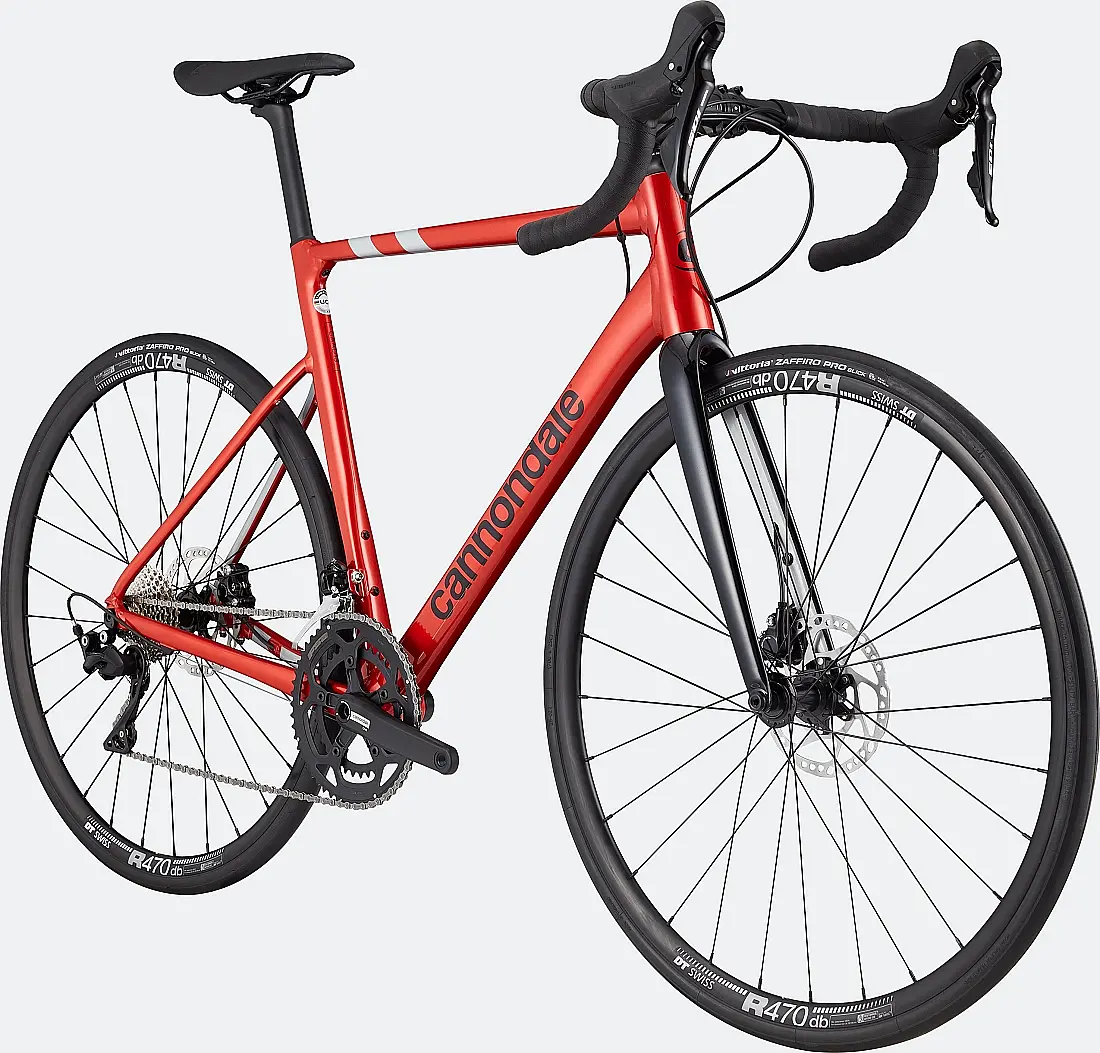

Bike Info
Worldwide Shipping: Yes
Delivery across the globe!
Warranty: Lifetime
Limited warranty website average: 3.12 years
Released: 2023
The bike was released 3 years ago
Bike Type: Road
The style of riding intended for this bike
Bike Spec
Weight: 9.1 kg
The website average for Road bikes is 8.56 kg. This bike is 0.53 kg over the average. Total bike weight may vary depending on frame size.
Groupset
Shimano 105
Wheelset
DT Swiss R470 db
Brake Type: Disc Brake
Welcome to the future!
Frameset Material
Aluminium
Max Tire Size: 30 mm
This is the max tire size you can use
UCI Approved: Yes
You can use for official races
Sizing & Geometry
Frame Sizes
44 48 51 54 56 58 60 62This frame comes in 8 sizes, this is 2.44 more sizes than the website average.
Sizing & Geometry
Frame measurements and sizing vary by bike size. Measurements are shown for each available frame size.
Swipe across to view all sizes.
| Geometry | 44 cm | 48 cm | 51 cm | 54 cm | 56 cm | 58 cm | 60 cm | 62 cm |
|---|---|---|---|---|---|---|---|---|
| Sizing | ||||||||
| Wheel size | 700c | 700c | 700c | 700c | 700c | 700c | 700c | 700c |
| Frame geometry | ||||||||
| Stack (mm) | 505 | 520 | 535 | 555 | 575 | 595 | 615 | 635 |
| Reach (mm) | 370 | 374 | 378 | 384 | 389 | 395 | 400 | 406 |
| Effective top tube (mm) | 510 | 520 | 530 | 546 | 562 | 578 | 594 | 611 |
| Seat tube (mm) | 404 | 442 | 481 | 519 | 540 | 562 | 583 | 604 |
| Head tube (mm) | 94 | 114 | 130 | 154 | 164 | 188 | 209 | 230 |
| Standover (mm) | 686 | 723 | 753 | 790 | 805 | 829 | 849 | 868 |
| Handling | ||||||||
| Head angle (°) | 70.90 | 71.20 | 71.20 | 71.20 | 73 | 73 | 73 | 73 |
| Seat angle (°) | 74.50 | 74.30 | 74.10 | 73.70 | 73.30 | 72.90 | 72.50 | 72.10 |
| Chainstay (mm) | 408 | 408 | 408 | 408 | 408 | 408 | 408 | 408 |
| Wheelbase (mm) | 976 | 985 | 994 | 1,008 | 992 | 1,005 | 1,016 | 1,028 |
| Fork offset (mm) | 55 | 55 | 55 | 55 | 45 | 45 | 45 | 45 |
| Trail (mm) | 60 | 58 | 58 | 58 | 58 | 58 | 58 | 58 |
Frame Details
Frame Weight
This frame weighs 1158g
Frame Material
Aluminium
Forks
CAAD13 Full Carbon
Fork Material
The forks are made from Carbon Fiber
Cables: Semi Routed
Routed through the frame, not the bars
Axel Type: Thru-axle
How the wheels are secured to the frame
Brake Type: Disc Brake
Welcome to the future!
Brake Mount: Flat Mount
How the calipers are mounted
Integrated bar and stem: No
You can use any bar and stem
Drivechain Details
Groupset name
Shimano 105
Electric Groupset: No
This bike doesn't have electric gears
Shifters
Shimano 105 hydraulic disc, 11-speed
Front Derailleur
Shimano 105 R7000, braze-on type (Official).

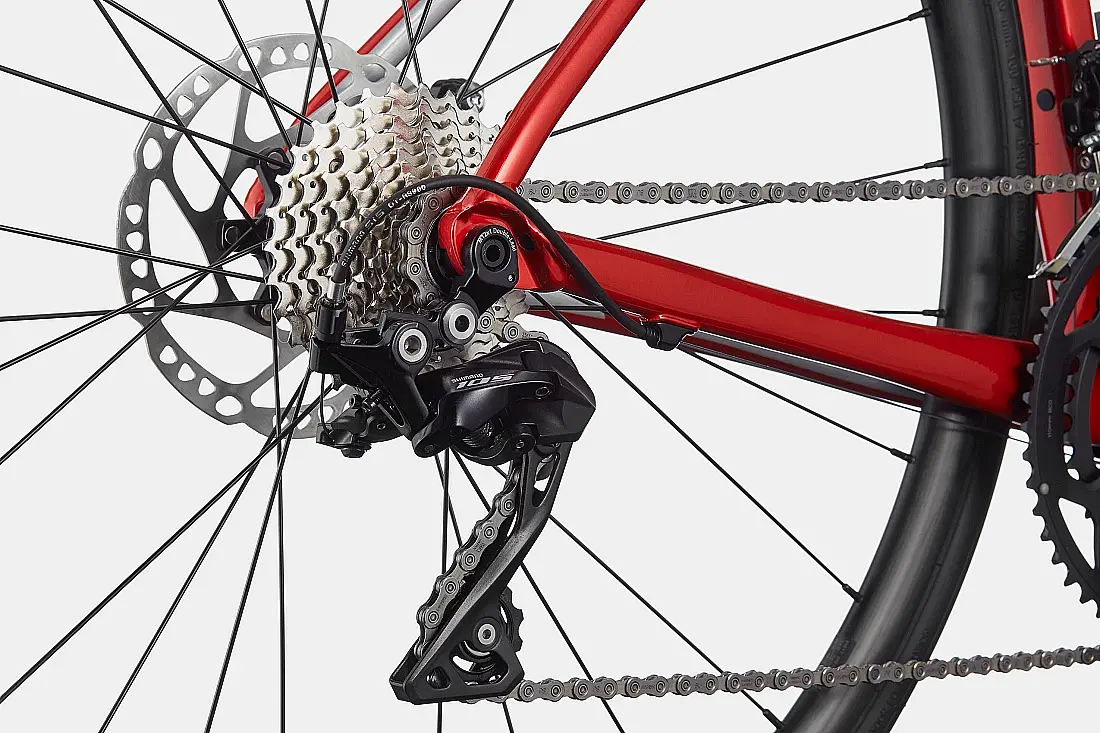

Rear Derailleur
Shimano 105 GS
Cassette
Shimano 105 R7000, 11-speed (Official).

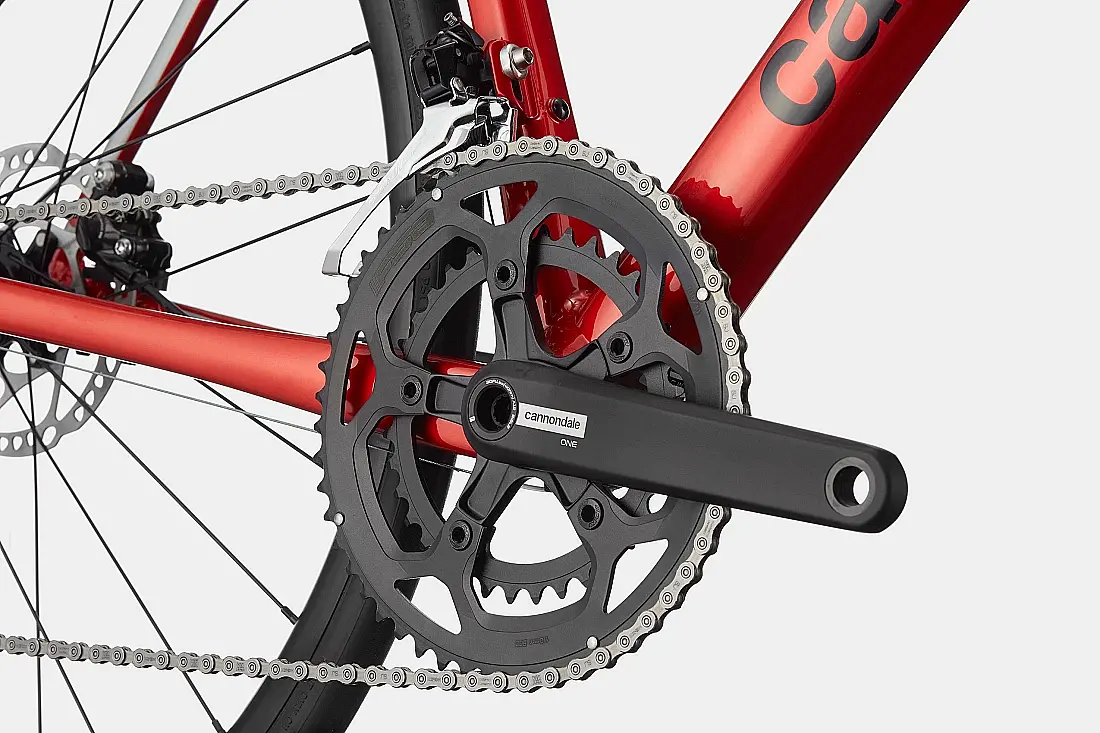

Cranks
Cannondale 1, BB30a
Power Meter: No
This bike doesn't have a power meter
Bottom Bracket
Cannondale BB30 w/ 24mm adapter
Chain
Shimano HG601, 11-speed (Official).
Wheel & Tire Details
Wheelset Name
DT Swiss R470 db
Front Wheel Depth
22mm
Rear Wheel Depth
22mm
Tires
Vittoria Rubino Pro Bright Black, 700x25c
Tire Type
Tubeless
Max Tire Size: 30 mm
This is the max tire size you can use
Brakes
Brake Type: Disc Brake
Welcome to the future!
Brake Mount: Flat Mount
How these disc brakes are mounted
Brakes
Shimano 105 hydraulic disc
Brake Rotors
Shimano RT54 centerlock rotors; 160 mm front and 160 mm rear
Other Components
Saddle
Fizik Aliante Delta, S-alloy rails
Seatpost
HollowGram 27 KNØT

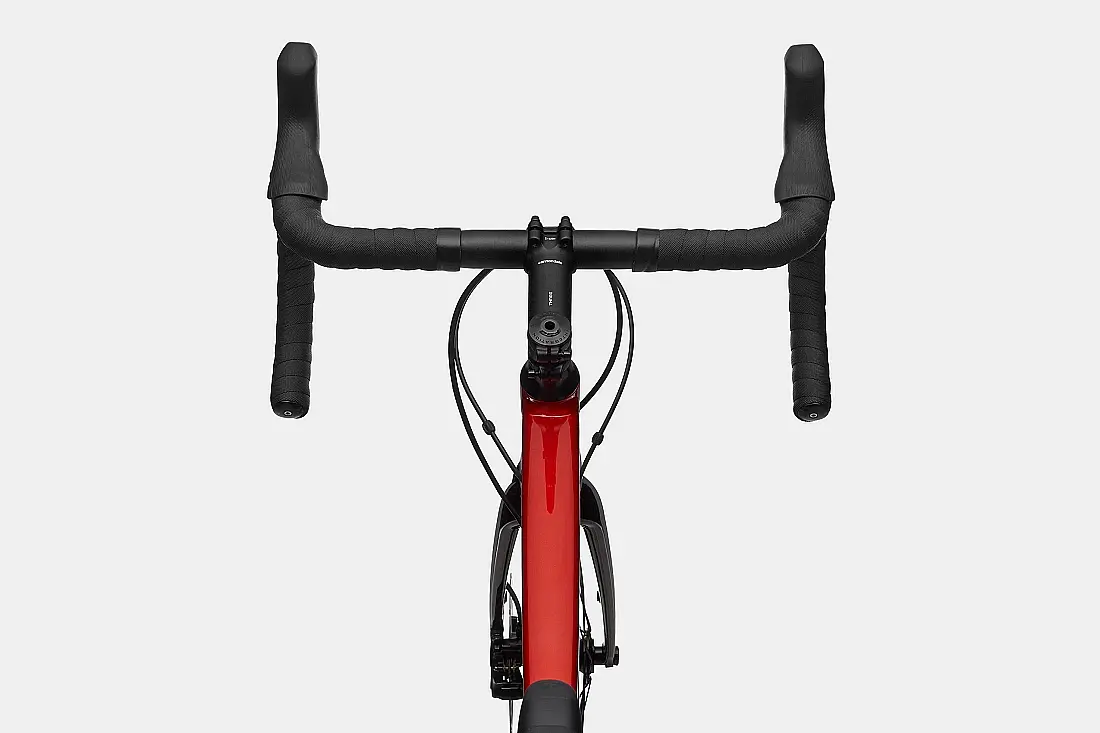

Handlebars
Cannondale 3, 6061 Alloy
Bar Tape
Cannondale Bar Tape, 3.5mm
