Bike Info
Worldwide Shipping: Yes
Delivery across the globe!
Warranty: Lifetime
Limited warranty website average: 3.12 years
Released: 2025
The bike was released 1 years ago
Bike Type: Road
The style of riding intended for this bike
Bike Spec
Groupset
Shimano GRX 820
Wheelset
WTB ST i23 TCS
Brake Type: Disc Brake
Welcome to the future!
Frameset Material
Aluminium
Max Tire Size: 45 mm
This is the max tire size you can use
UCI Approved: No
You can't use for official races
Sizing & Geometry
Frame Sizes
XS S M L XLThis frame comes in 5 sizes, this is 0.56 less sizes than the website average.
Sizing & Geometry
Frame measurements and sizing vary by bike size. Measurements are shown for each available frame size.
Swipe across to view all sizes.
| Geometry | XS | SM | MD | LG | XL |
|---|---|---|---|---|---|
| Sizing | |||||
| Wheel size | 700c | 700c | 700c | 700c | 700c |
| Frame geometry | |||||
| Stack (mm) | 518 | 549 | 579 | 610 | 640 |
| Reach (mm) | 369 | 377 | 385 | 394 | 402 |
| Effective top tube (mm) | 522 | 541 | 559 | 579 | 599 |
| Seat tube (mm) | 400 | 450 | 505 | 550 | 590 |
| Head tube (mm) | 95 | 122 | 154 | 187 | 218 |
| Standover (mm) | 704 | 744 | 790 | 829 | 863 |
| Handling | |||||
| Head angle (°) | 70 | 71 | 71 | 71 | 71 |
| Seat angle (°) | 71.80 | 71.80 | 71.80 | 71.80 | 71.80 |
| Chainstay (mm) | 435 | 435 | 435 | 435 | 435 |
| Wheelbase (mm) | 1,012 | 1,022 | 1,040 | 1,061 | 1,082 |
| Fork offset (mm) | 55 | 55 | 55 | 55 | 55 |
| Trail (mm) | 75 | 68 | 68 | 68 | 68 |

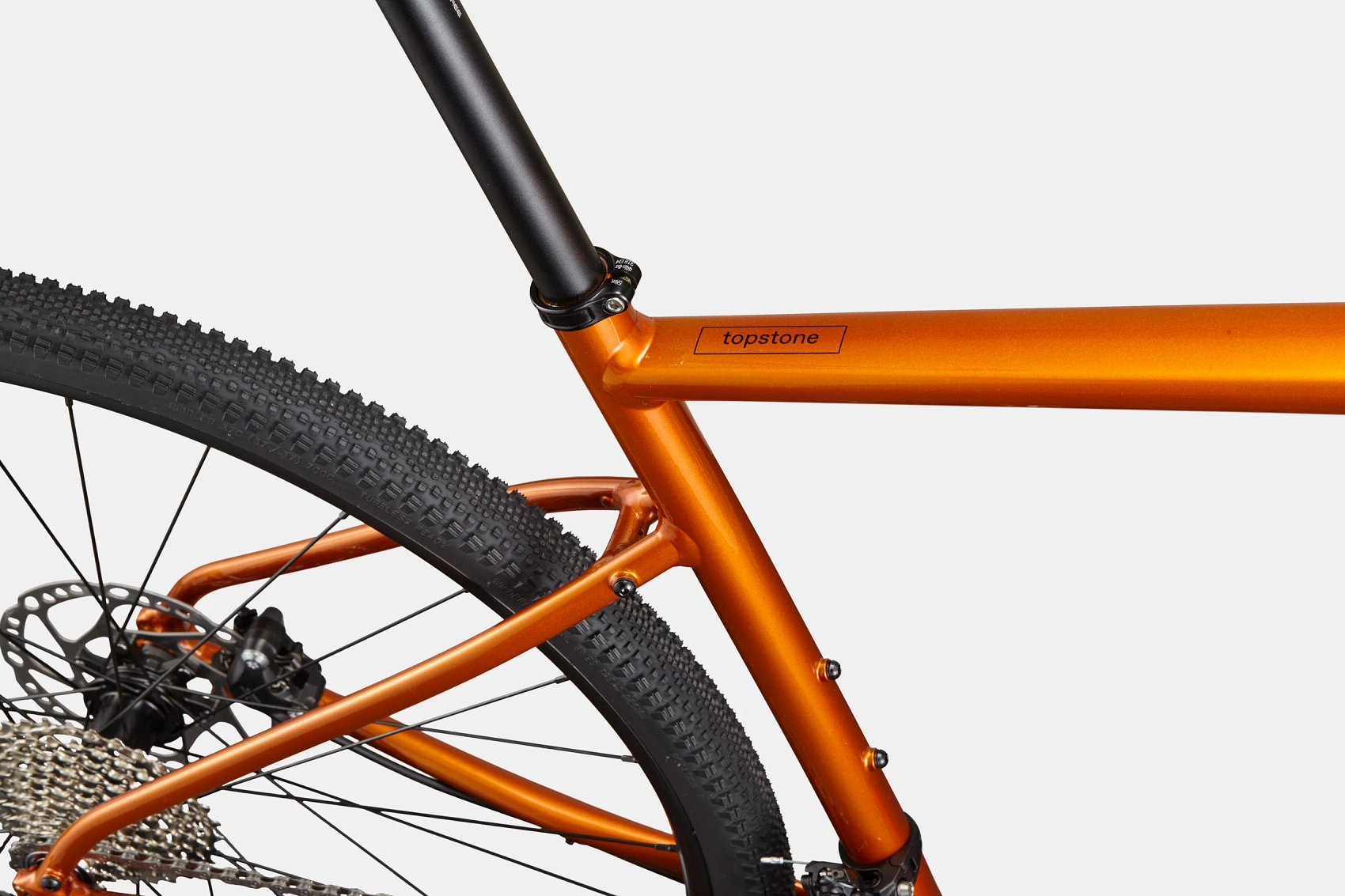

Frame Details
Frame Weight
This frame weighs 1500g
Frame Material
Aluminium
Forks
Topstone, lightweight SmartForm C2 Alloy, 12x142 thru-axle, tapered headtube, BSA threaded BBm flat mount disc, StraightShot internal cable routing, multiple gear/bottle mounts
Fork Material
The forks are made from Carbon Fiber
Cables: Semi Routed
Routed through the frame, not the bars
Axel Type: Thru-axle
How the wheels are secured to the frame
Brake Type: Disc Brake
Welcome to the future!
Brake Mount: Flat Mount
How the calipers are mounted
Integrated bar and stem: No
You can use any bar and stem
Drivechain Details
Groupset name
Shimano GRX 820
Electric Groupset: No
This bike doesn't have electric gears
Shifters
Shimano GRX 600, 12-speed
Front Derailleur
Shimano GRX 820, braze-on (Official)
Rear Derailleur
Shimano GRX 820, Shadow RD+
Cassette
Shimano HG R7100 (Official)

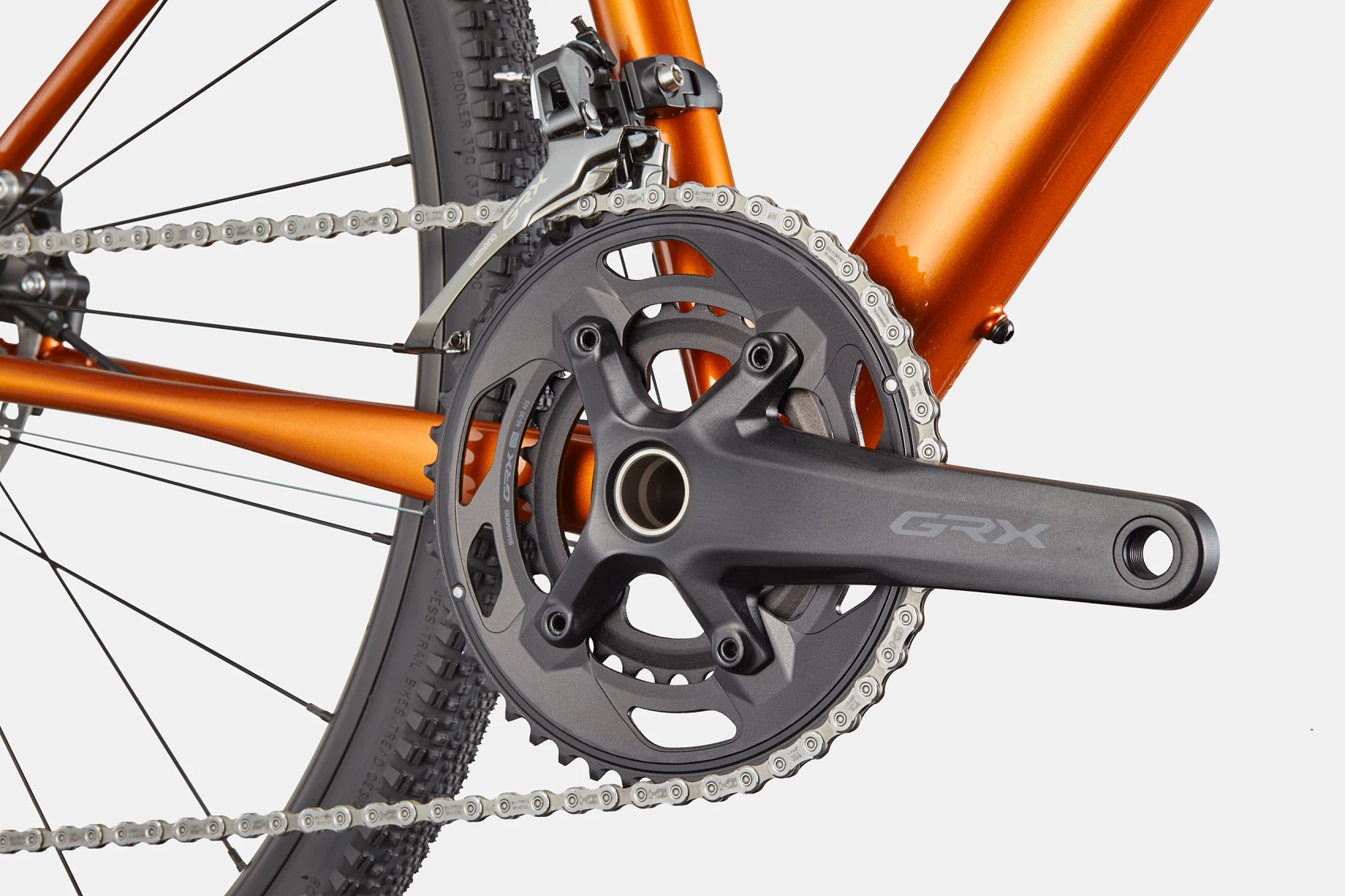

Cranks
Shimano GRX 600 (170mm to 175mm scaled)
Power Meter: No
This bike doesn't have a power meter
Bottom Bracket
Shimano BSA 68
Chain
Shimano HG M7100, 12-speed (Official)
Wheel & Tire Details
Wheelset Name
WTB ST i23 TCS, 28h, tubeless ready
Front Wheel Depth
18mm
Rear Wheel Depth
18mm
Tires
WTB Riddler TCS Light, 700x37c, tubeless ready
Tire Type
Clincher
Max Tire Size: 45 mm
This is the max tire size you can use
Brakes
Brake Type: Disc Brake
Welcome to the future!
Brake Mount: Flat Mount
How these disc brakes are mounted
Brakes
Shimano GRX 400 hydraulic disc, 160/160mm RT64 rotors
Brake Rotors
160 mm front and 160 mm rear. Utilises Shimano RT64 Centerlock rotors
Other Components
Saddle
Fizik Aliante Delta, S-alloy rails
Seatpost
Cannondale 3, 6061 Alloy, 27.2x350mmType: Rigid

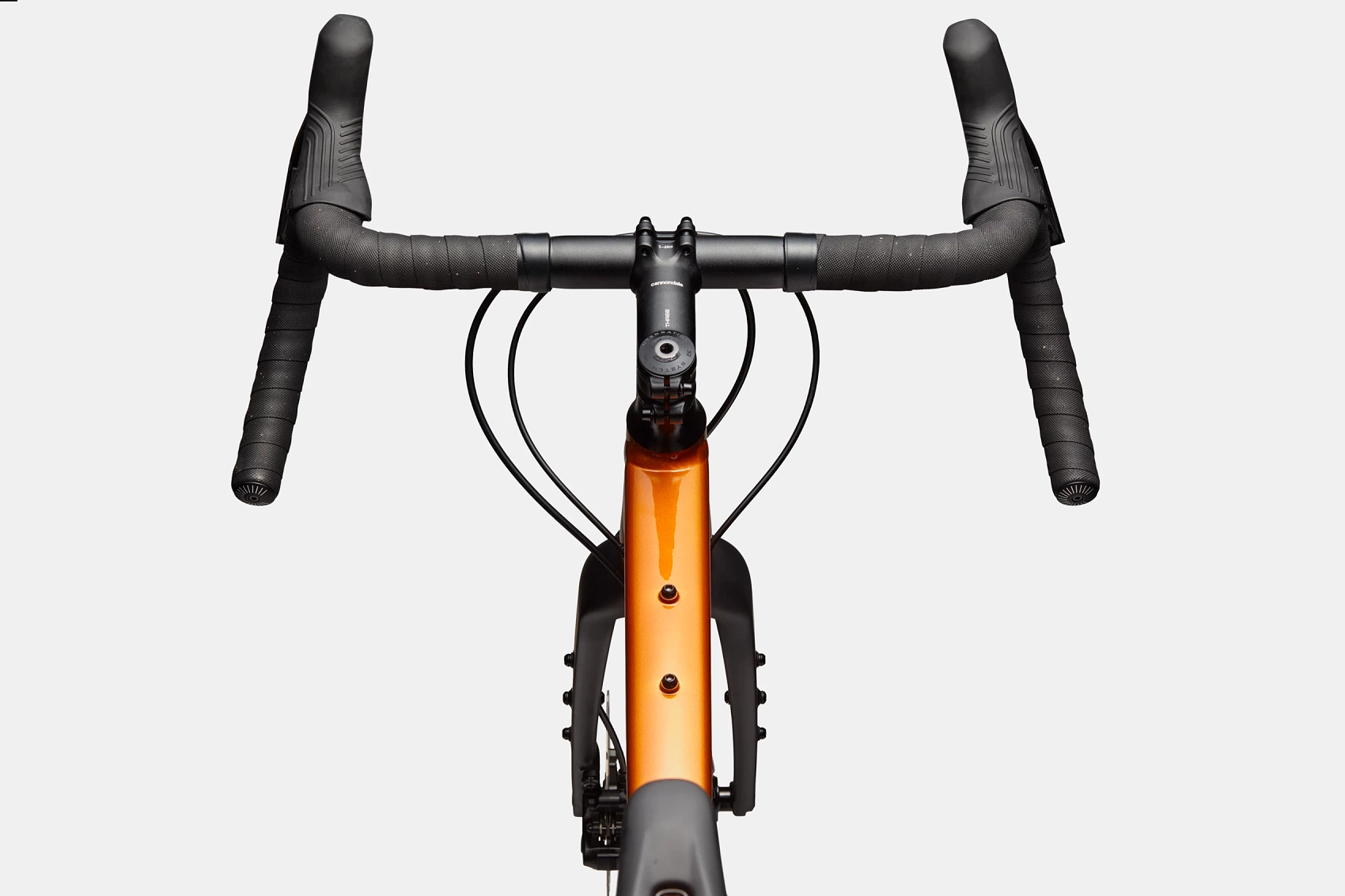

Handlebars
Cannondale 3, butted 6061 Alloy, 16 deg flare drop
Bar Tape
Cannondale Bar Tape, 3.5mm
