Bike Info
Worldwide Shipping: Yes
Delivery across the globe!
Warranty: Lifetime
Limited warranty website average: 3.12 years
Released: 2025
The bike was released 1 years ago
Bike Type: Road
The style of riding intended for this bike
Bike Spec
Weight: 8.7 kg
The website average for Road bikes is 8.56 kg. This bike is 0.13 kg over the average. Total bike weight may vary depending on frame size.
Groupset
Shimano 105 Di2
Wheelset
Vision Team 35 Clincher Disc
Brake Type: Disc Brake
Welcome to the future!
Frameset Material
Carbon Fiber
Max Tire Size: 30 mm
This is the max tire size you can use
UCI Approved: Yes
You can use for official races
Sizing & Geometry
Frame Sizes
XXS XS S M L XLThis frame comes in 6 sizes, this is 0.44 more sizes than the website average.

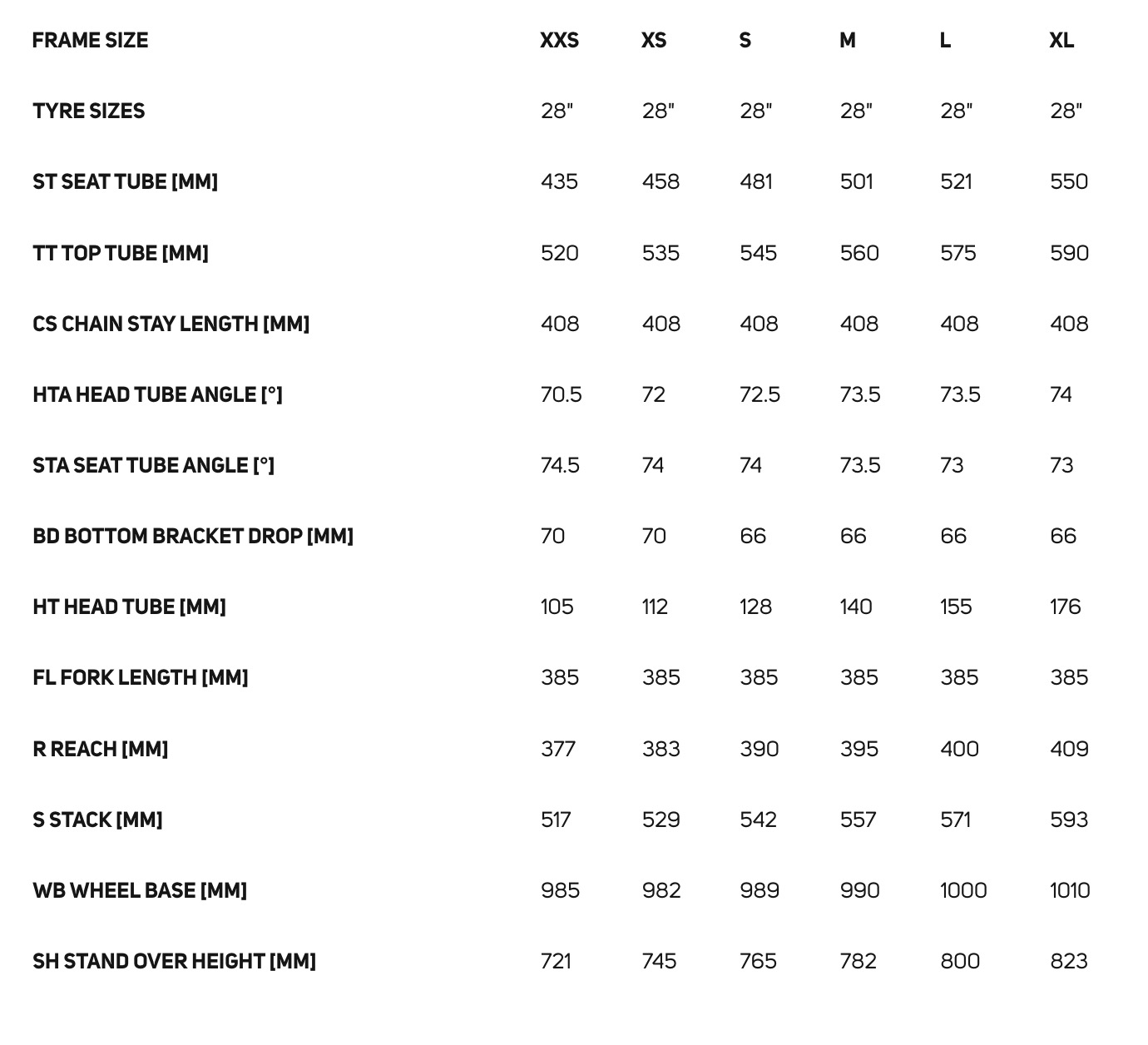

Sizing & Geometry
Frame measurements and sizing vary by bike size. Measurements are shown for each available frame size.
Swipe across to view all sizes.
| Geometry | XXS | XS | S | M | L | XL |
|---|---|---|---|---|---|---|
| Sizing | ||||||
| Rider height | 155–165 cm | 163–172 cm | 170–178 cm | 177–186 cm | 185–193 cm | — |
| Wheel size | 700c | 700c | 700c | 700c | 700c | 700c |
| Frame geometry | ||||||
| Stack (mm) | 517 | 529 | 542 | 557 | 571 | 593 |
| Reach (mm) | 377 | 383 | 390 | 395 | 400 | 409 |
| Effective top tube (mm) | 520 | 535 | 545 | 560 | 575 | 590 |
| Seat tube (mm) | 440 | 470 | 500 | 520 | 540 | 560 |
| Head tube (mm) | 110 | 122 | 135 | 140 | 155 | 178 |
| Standover (mm) | 721 | 749 | 775 | 793 | 811 | 830 |
| Handling | ||||||
| Head angle (°) | 71.50 | 72.50 | 73.50 | 73.50 | 73.50 | 74 |
| Seat angle (°) | 74.50 | 74 | 73.50 | 73.50 | 73 | 73 |
| Chainstay (mm) | 408 | 408 | 408 | 408 | 408 | 408 |
| Wheelbase (mm) | 979 | 984 | 984 | 999 | 1,009 | 1,019 |
| Fork offset (mm) | 45 | 45 | 45 | 45 | 45 | 45 |
| BB drop (mm) | 74 | 70 | 66 | 66 | 66 | 66 |
Frame Details
Frame Weight
This frame weighs 997g
Frame Material
Carbon Fiber
Forks
SCULTURA CF3 V, material: carbon, 700x30C max. wheelsize, 100x12/ 142x12mm axle standard, Pressfit 86,5
Fork Material
The forks are made from Carbon Fiber
Cables: Internally Routed
Routed through bars, stem and frame
Axel Type: Thru-axle
How the wheels are secured to the frame
Brake Type: Disc Brake
Welcome to the future!
Brake Mount: Flat Mount
How the calipers are mounted
Integrated bar and stem: No
You can use any bar and stem
Drivechain Details
Groupset name
Shimano 105 Di2
Electric Groupset: Yes
This bike has electric gears
Shifters
Shimano 105 disc Di2
Front Derailleur
Shimano 105 Di2 (Series FD-R7150).
Rear Derailleur
Shimano 105 Di2
Cassette
Shimano 105 R7101.
Cranks
Shimano 105 R7100
Power Meter: No
This bike doesn't have a power meter
Bottom Bracket
BB86/BB92, 86mm, press-fit
Chain
Shimano M6100-12 (12-speed Deore-tier chain used stock by factory assembly).
Battery
Unknown
Wheel & Tire Details
Wheelset Name
Vision Team 35 Clincher Disc, 100x12mm width front hub, 142x12mm width rear hub, 19mm inner width, 35mm height, centerlock, material: aluminium, Tubeless ready (tubeless tape and valves not included)
Front Wheel Depth
35mm
Rear Wheel Depth
35mm
Tires
Maxxis Highroad, 700x28C, fold *tubeless ready
Tire Type
Tubeless
Max Tire Size: 30 mm
This is the max tire size you can use
Brakes
Brake Type: Disc Brake
Welcome to the future!
Brake Mount: Flat Mount
How these disc brakes are mounted
Brakes
Shimano 105, Hydraulic disc
Brake Rotors
160 mm front / 160 mm rear. Utilises Shimano RT64 Centerlock rotors
Other Components
Saddle
MERIDA EXPERT SL, 6% recycled and 23% nature material, V-mount, incl. MERIDA minitool
Seatpost
MERIDA EXPERT CC 27.2mm diameter 15mm setback Carbon
Handlebars
MERIDA EXPERT SLII, material: aluminium, 380mm (3XS-XXS-XS), 400mm (S-M-L-XL)
