Bike Info
Worldwide Shipping: Yes
Delivery across the globe!
Warranty: Lifetime
Limited warranty website average: 3.12 years
Released: 2025
The bike was released 1 years ago
Bike Type: Gravel
The style of riding intended for this bike
Bike Spec
Groupset
Shimano CUES - 1x
Wheelset
GXD 1.0
Brake Type: Disc Brake
Welcome to the future!
Frameset Material
Aluminium
Max Tire Size: 45 mm
This is the max tire size you can use
UCI Approved: Unknown
You can't use for official races
Sizing & Geometry
Frame Sizes
XS S M L XLThis frame comes in 5 sizes, this is 0.56 less sizes than the website average.

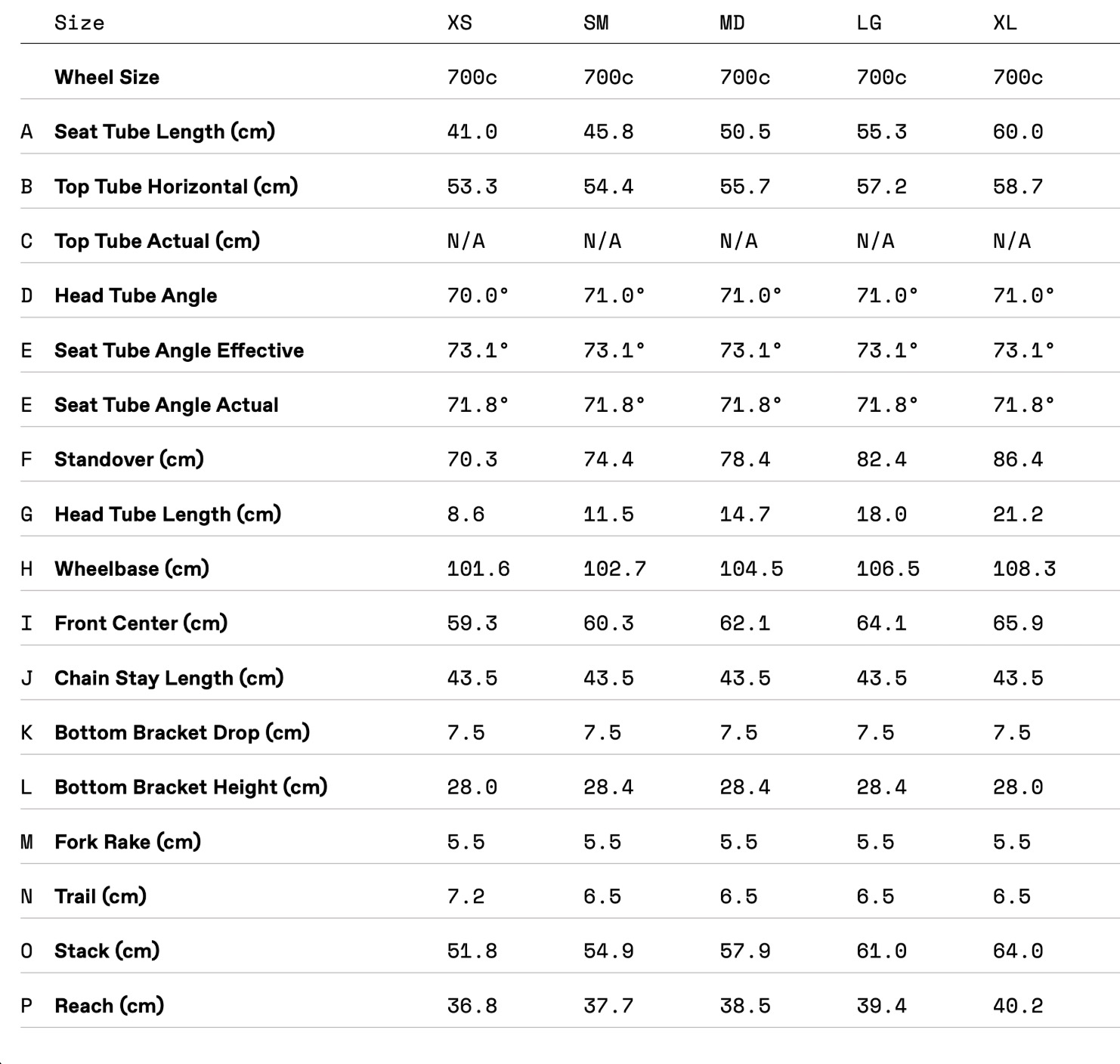

Sizing & Geometry
Frame measurements and sizing vary by bike size. Measurements are shown for each available frame size.
Swipe across to view all sizes.
| Geometry | XS | SM | MD | LG | XL |
|---|---|---|---|---|---|
| Sizing | |||||
| Rider height | 152–165 cm | 162–175 cm | 170–185 cm | 180–193 cm | 190–203 cm |
| Wheel size | 700c | 700c | 700c | 700c | 700c |
| Frame geometry | |||||
| Stack (mm) | 51.8 | 54.9 | 57.9 | 61 | 64 |
| Reach (mm) | 36.9 | 37.8 | 38.5 | 39.4 | 40.2 |
| Effective top tube (mm) | 53.3 | 54.4 | 55.7 | 57.2 | 58.7 |
| Seat tube (mm) | 41 | 45.8 | 50.5 | 55.3 | 60 |
| Head tube (mm) | 8.6 | 11.5 | 14.7 | 18 | 21.2 |
| Standover (mm) | 70.3 | 74.4 | 78.4 | 82.4 | 86.4 |
| Handling | |||||
| Head angle (°) | 70 | 71.20 | 71 | 71 | 71 |
| Seat angle (°) | 73.10 | 73.10 | 73.10 | 73.10 | 73.10 |
| Chainstay (mm) | 43.5 | 43.5 | 43.5 | 43.5 | 43.5 |
| Wheelbase (mm) | 102.1 | 102.5 | 104 | 105.7 | 107.3 |
| Fork offset (mm) | 5.5 | 5.5 | 5.5 | 5.5 | 5.5 |
| Trail (mm) | 62 | 54 | 56 | 56 | 56 |
Frame Details
Frame Weight
Unknown
Frame Material
Aluminium
Forks
Topstone, lightweight SmartForm C2 Alloy, 12x142 thru-axle, tapered headtube, BSA threaded BBm flat mount disc, StraightShot internal cable routing, multiple gear/bottle mounts
Fork Material
The forks are made from Carbon Fiber
Cables: Semi Routed
Routed through the frame, not the bars
Axel Type: Thru-axle
How the wheels are secured to the frame
Brake Type: Disc Brake
Welcome to the future!
Brake Mount: Flat Mount
How the calipers are mounted
Integrated bar and stem: No
You can use any bar and stem
Drivechain Details
Groupset name
Shimano CUES - 1x
Electric Groupset: No
This bike doesn't have electric gears
Shifters
Shimano CUES U6030, 11-speed
Front Derailleur
None

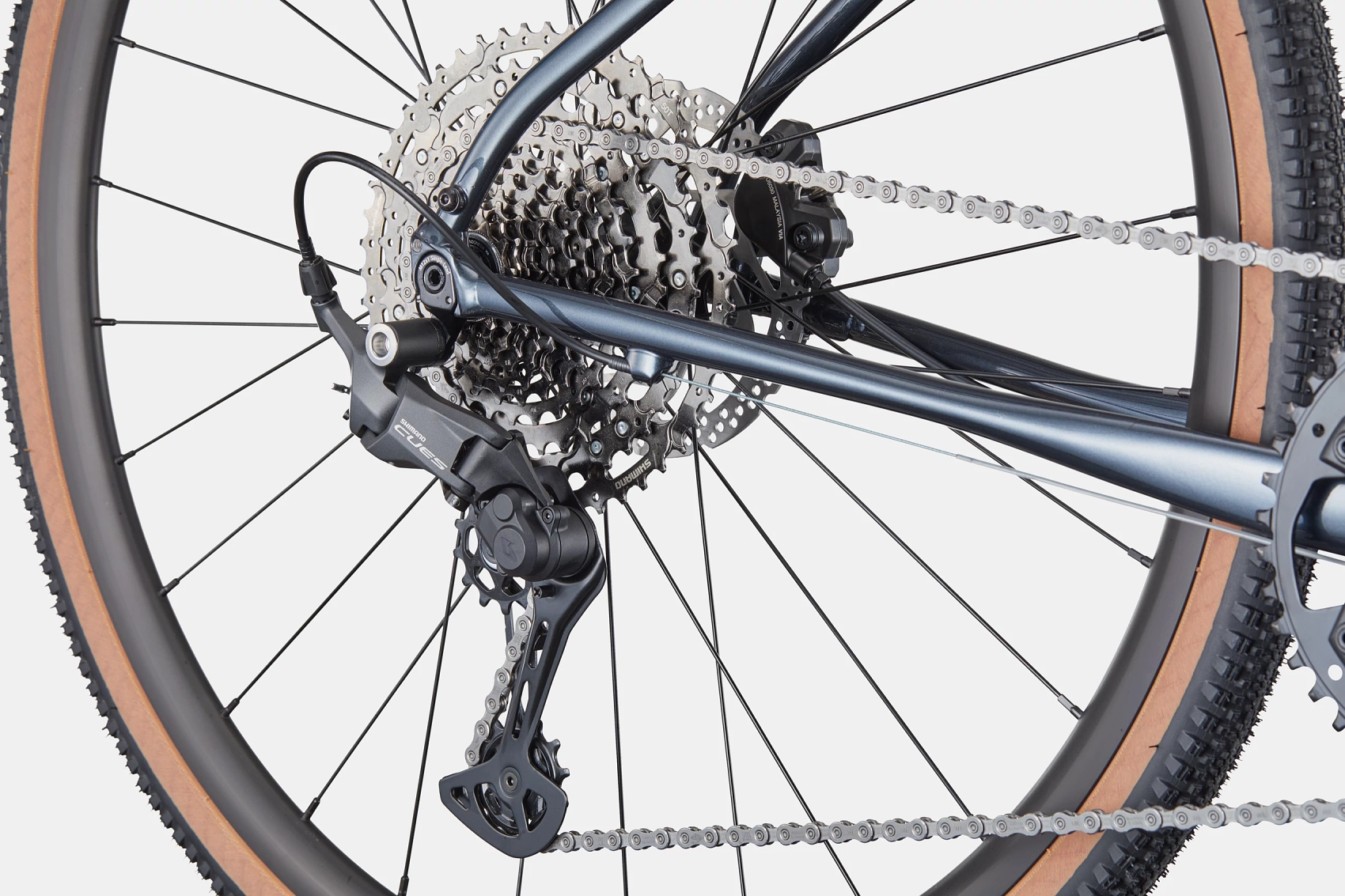

Rear Derailleur
Shimano CUES U6000 GS
Cassette
Shimano CUES LG400 (Linkglide technology built for high durability).
Cranks
Shimano CUES Crankset
Power Meter: No
This bike doesn't have a power meter
Bottom Bracket
Shimano BSA 68
Chain
Shimano LG500 Linkglide, 11-speed optimized.
Wheel & Tire Details
Wheelset Name
GXD 1.0, 28h, 23mm internal width, tubeless ready
Front Wheel Depth
Unknown
Rear Wheel Depth
Unknown
Tires
WTB Riddler TCS Light, 700x37c, tubeless ready
Tire Type
Clincher
Max Tire Size: 45 mm
This is the max tire size you can use
Brakes
Brake Type: Disc Brake
Welcome to the future!
Brake Mount: Flat Mount
How these disc brakes are mounted
Brakes
Shimano CUES 6030 hydraulic disc
Brake Rotors
180 mm front / 160 mm rear Shimano RT30 Centerlock rotors
Other Components
Saddle
Selle Royal SRX Open
Seatpost
Cannondale 3, 6061 Alloy, 27.2x350mmType: Rigid

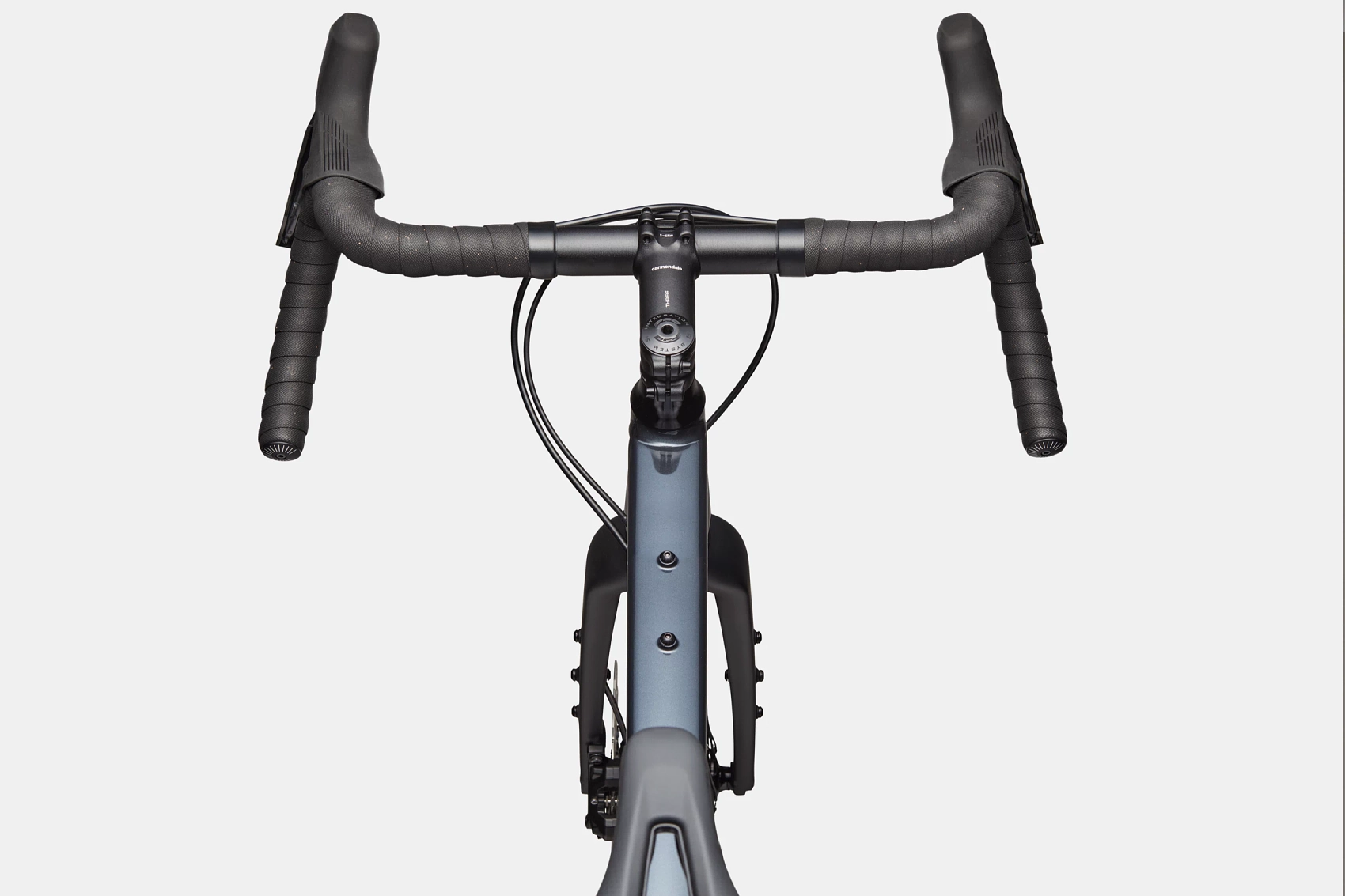

Handlebars
Cannondale 3, butted 6061 Alloy, 16 deg flare drop
Bar Tape
Cannondale KnurlCork, 2.7mm
