Bike Info
Worldwide Shipping: Yes
Delivery across the globe!
Warranty: Lifetime
Limited warranty website average: 3.12 years
Released: 2023
The bike was released 3 years ago
Bike Type: Road
The style of riding intended for this bike
Bike Spec
Groupset
Shimano 105 Di2 7150
Wheelset
DT Swiss R470 db
Brake Type: Disc Brake
Welcome to the future!
Frameset Material
Aluminium
Max Tire Size: 30 mm
This is the max tire size you can use
UCI Approved: Yes
You can use for official races
Sizing & Geometry
Frame Sizes
44 48 51 54 56 58 60 62This frame comes in 8 sizes, this is 2.44 more sizes than the website average.
Sizing & Geometry
Frame measurements and sizing vary by bike size. Measurements are shown for each available frame size.
Swipe across to view all sizes.
| Geometry | 44 cm | 48 cm | 51 cm | 54 cm | 56 cm | 58 cm | 60 cm | 62 cm |
|---|---|---|---|---|---|---|---|---|
| Sizing | ||||||||
| Wheel size | 700c | 700c | 700c | 700c | 700c | 700c | 700c | 700c |
| Frame geometry | ||||||||
| Stack (mm) | 512 | 520 | 540 | 555 | 575 | 595 | 614 | 634 |
| Reach (mm) | 369 | 374 | 380 | 384 | 390 | 395 | 401 | 406 |
| Effective top tube (mm) | 510 | 520 | 530 | 546 | 562 | 578 | 594 | 610 |
| Seat tube (mm) | 394 | 434 | 473 | 512 | 530 | 550 | 570 | 590 |
| Head tube (mm) | 100 | 114 | 130 | 144 | 164 | 184 | 204 | 224 |
| Standover (mm) | 701 | 735 | 766 | 798 | 815 | 832 | 849 | 866 |
| Handling | ||||||||
| Head angle (°) | 71.20 | 71.20 | 71.20 | 73 | 73 | 73 | 73 | 73 |
| Seat angle (°) | 74.60 | 74.40 | 74.30 | 73.70 | 73.30 | 72.90 | 72.50 | 72.10 |
| Chainstay (mm) | 408 | 408 | 408 | 408 | 408 | 408 | 408 | 408 |
| Wheelbase (mm) | 973 | 982 | 992 | 981 | 992 | 1,002 | 1,013 | 1,024 |
| Fork offset (mm) | 55 | 55 | 55 | 55 | 45 | 45 | 45 | 45 |
| Trail (mm) | 64 | 64 | 64 | 58 | 58 | 58 | 58 | 58 |

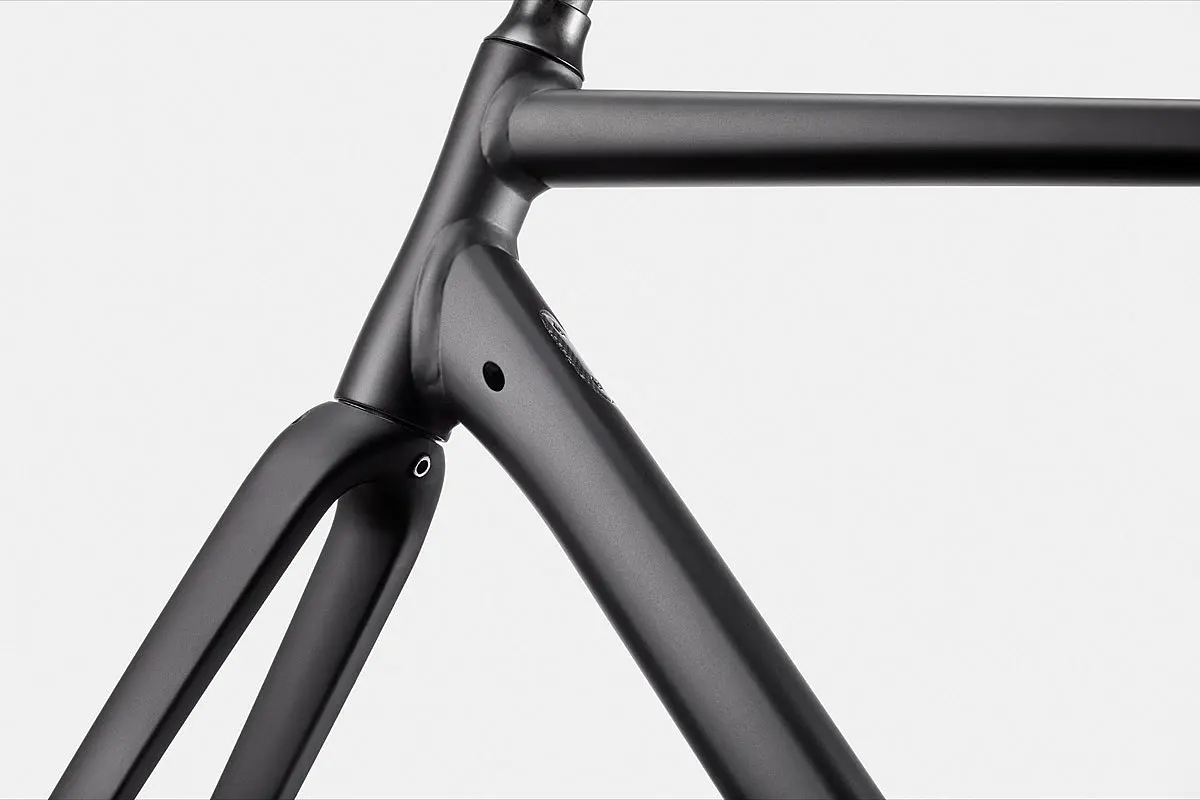

Frame Details
Frame Weight
This frame weighs 1100g
Frame Material
Aluminium
Forks
CAAD13 Full Carbon
Fork Material
The forks are made from Carbon Fiber
Cables: Semi Routed
Routed through the frame, not the bars
Axel Type: Thru-axle
How the wheels are secured to the frame
Brake Type: Disc Brake
Welcome to the future!
Brake Mount: Flat Mount
How the calipers are mounted
Integrated bar and stem: No
You can use any bar and stem
Drivechain Details
Groupset name
Shimano 105 Di2 7150
Electric Groupset: Yes
This bike has electric gears
Shifters
Shimano 105 7170 hydraulic disc
Front Derailleur
Shimano 105 Di2 FD-R7150, braze-on integration (Official).
Rear Derailleur
Shimano 105 Di2 7150
Cassette
Shimano 105 R7100, 11-34, 12-Speed
Cranks
Shimano 105 FC-R7100
Power Meter: No
This bike doesn't have a power meter
Bottom Bracket
FSA PF30a BB for 24mm
Chain
Shimano 105 CN-M7100, 12-speed (Official).
Battery
Unknown
Wheel & Tire Details
Wheelset Name
DT Swiss R470 db
Front Wheel Depth
23mm
Rear Wheel Depth
23mm
Tires
Vittoria Rubino Pro Bright Black, 700x25c, reflective strip
Tire Type
Clincher
Max Tire Size: 30 mm
This is the max tire size you can use
Brakes
Brake Type: Disc Brake
Welcome to the future!
Brake Mount: Flat Mount
How these disc brakes are mounted
Brakes
Shimano 105 7170 hydraulic disc
Brake Rotors
Shimano SM-RT70 (SLX/105 level Ice-Technologies rotors) | 160 mm front / 160 mm rear Centerlock rotors
Other Components
Saddle
Prologo Nago RS STN
Seatpost
HollowGram 27 SL
Handlebars
Cannondale 3, 6061 Alloy
Bar Tape
Cannondale Bar Tape, 3.5mm
