Bike Info
Worldwide Shipping: Yes
Delivery across the globe!
Warranty: Lifetime
Limited warranty website average: 3.12 years
Released: 2025
The bike was released 1 years ago
Bike Type: Road
The style of riding intended for this bike
Bike Spec
Weight: 8.9 kg
The website average for Road bikes is 8.56 kg. This bike is 0.33 kg over the average. Total bike weight may vary depending on frame size.
Groupset
Shimano 105 R7150 Di2, braze-on, down swing
Wheelset
Bontrager Paradigm Comp 25
Brake Type: Disc Brake
Welcome to the future!
Frameset Material
Carbon Fiber
Max Tire Size: 38 mm
This is the max tire size you can use
UCI Approved: Yes
You can use for official races

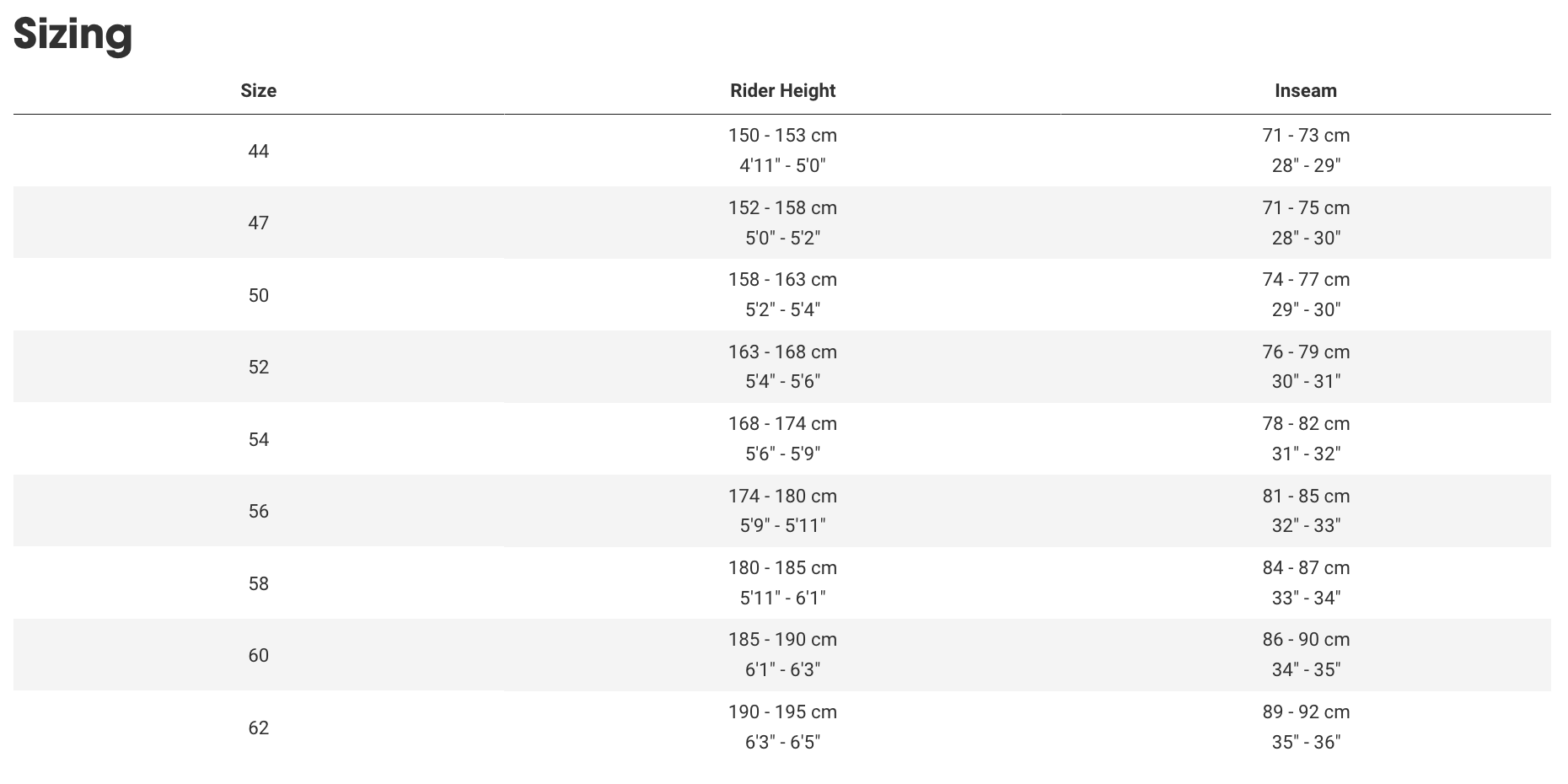

Sizing & Geometry
Frame Sizes
44 47 50 52 54 56 58 60 62This frame comes in 9 sizes, this is 3.44 more sizes than the website average.

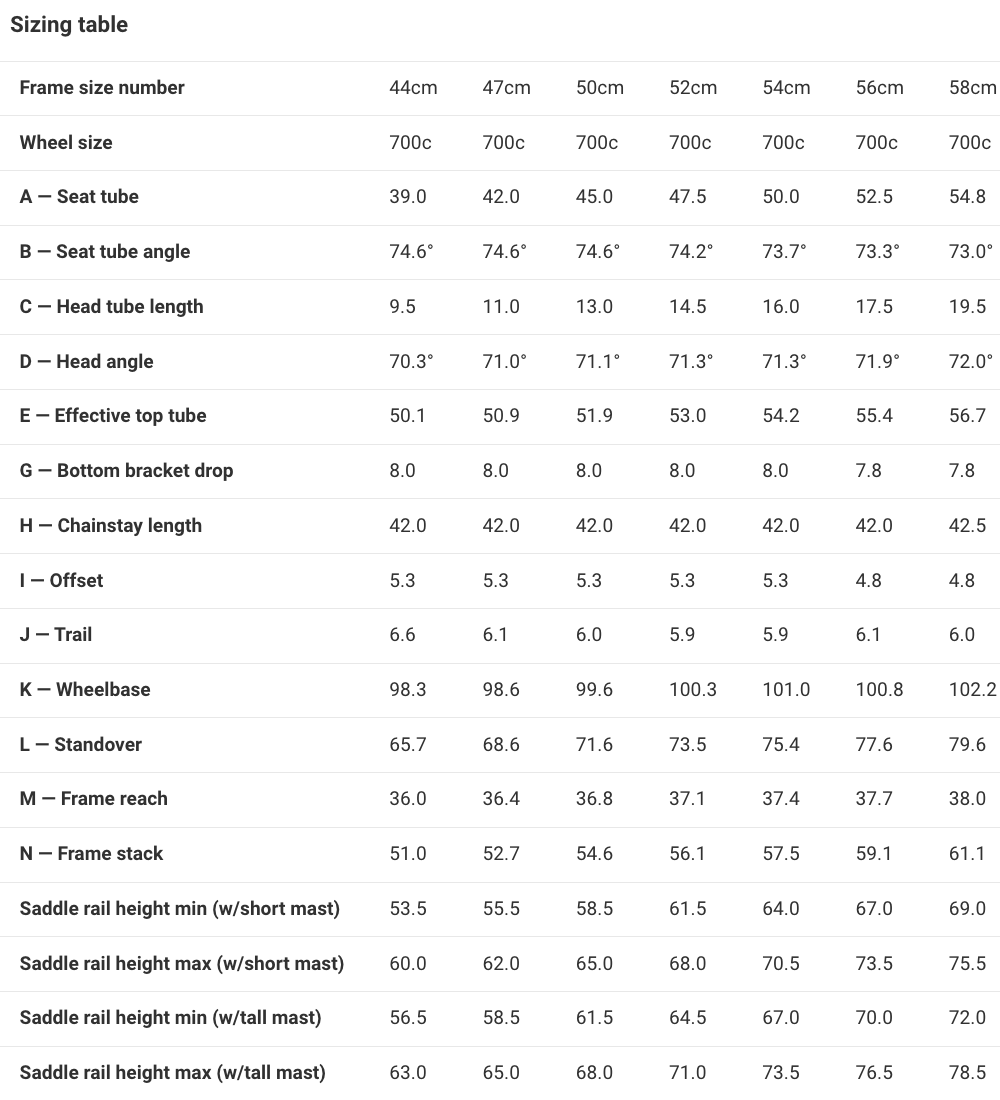

Sizing & Geometry
Frame measurements and sizing vary by bike size. Measurements are shown for each available frame size.
Swipe across to view all sizes.
| Geometry | 50 cm | 52 cm | 54 cm | 56 cm | 58 cm | 60 cm |
|---|---|---|---|---|---|---|
| Sizing | ||||||
| Rider height | 158–163 cm | 163–168 cm | 168–174 cm | 174–180 cm | 180–185 cm | 185–190 cm |
| Wheel size | 700c | 700c | 700c | 700c | 700c | 700c |
| Frame geometry | ||||||
| Stack (mm) | 546 | 561 | 575 | 591 | 611 | 632 |
| Reach (mm) | 368 | 371 | 374 | 377 | 380 | 383 |
| Effective top tube (mm) | 519 | 530 | 542 | 554 | 567 | 582 |
| Seat tube (mm) | 453 | 475 | 500 | 525 | 548 | 567 |
| Head tube (mm) | 130 | 145 | 160 | 175 | 195 | 220 |
| Standover (mm) | 716 | 733 | 754 | 776 | 796 | 815 |
| Handling | ||||||
| Head angle (°) | 71.10 | 71.30 | 71.30 | 71.90 | 72 | 72.10 |
| Seat angle (°) | 74.60 | 74.20 | 73.70 | 73.30 | 73 | 72.80 |
| Chainstay (mm) | 420 | 420 | 420 | 420 | 420 | 425 |
| Wheelbase (mm) | 1,001 | 1,003 | 1,010 | 1,011 | 1,017 | 1,027 |
| Fork offset (mm) | 53 | 53 | 53 | 48 | 48 | 48 |
| Trail (mm) | 61 | 59 | 59 | 60 | 59 | 58 |
Frame Details
Frame Weight
Unknown
Frame Material
Carbon Fiber
Forks
500 Series OCLV Carbon, IsoSpeed, internal storage, tapered head tube, internal cable routing, 3S chain keeper, fender mounts, flat mount disc, 142x12mm thru axle
Fork Material
The forks are made from Carbon Fiber
Cables: Internally Routed
Routed through bars, stem and frame
Axel Type: Thru-axle
How the wheels are secured to the frame
Brake Type: Disc Brake
Welcome to the future!
Brake Mount: Flat Mount
How the calipers are mounted
Integrated bar and stem: No
You can use any bar and stem
Drivechain Details
Groupset name
Shimano 105 R7150 Di2, braze-on, down swing
Electric Groupset: Yes
This bike has electric gears
Shifters
Shimano 105 R7170 Di2, 12 speed
Front Derailleur
Shimano 105 Di2 R7150, braze-on type (Official).
Rear Derailleur
Shimano R7150 Di2, 36T max cog
Cassette
Shimano 105 R7101 (Official).
Cranks
Shimano 105 R7100
Power Meter: No
This bike doesn't have a power meter
Bottom Bracket
Praxis, T47 threaded, internal bearing
Chain
Shimano Deore/105 M6100 or CN-M7100 12-speed (Official stock build lists alternative supplier sourcing but matching performance family).
Battery
Unknown
Wheel & Tire Details
Wheelset Name
Front: Bontrager Paradigm Comp 25, Tubeless Ready, 25mm rim width, 100x12mm thru axle, Rear: Bontrager Paradigm Comp 25, Tubeless Ready, 25mm rim width, Shimano 11/12-speed freehub, 142x12 thru axle
Front Wheel Depth
23mm
Rear Wheel Depth
23mm
Tires
Bontrager R3 Hard-Case Lite, Tubeless Ready, aramid bead, 120 tpi, 700x32mm
Tire Type
Tubeless
Max Tire Size: 38 mm
This is the max tire size you can use
Brakes
Brake Type: Disc Brake
Welcome to the future!
Brake Mount: Flat Mount
How these disc brakes are mounted
Brakes
Shimano RT70, centerlock, 160mm
Brake Rotors
160 mm both front and rear. Uses Shimano RT70 Centerlock brake rotors. 160 mm is also the maximum frame/fork configuration limit
Other Components
Saddle
Size: 44, 47, 50, 52, Verse Short Comp, steel rails, 155mm width; Size: 54, 56, 58, 60, 62, Verse Short Comp, steel rails, 145mm width
Seatpost
KVF aero carbon seat post, 20 mm offset
Handlebars
Size: 44, 47, Bontrager Elite IsoZone VR-SF, alloy, 31.8mm, internal Di2 routing, 75mm reach, 128mm drop, 36cm width; Size: 50, Bontrager Elite IsoZone VR-SF, alloy, 31.8mm, internal Di2 routing, 75mm reach, 128mm drop, 38cm width; Size: 52, Bontrager Elite IsoZone VR-SF, alloy, 31.8mm, internal Di2 routing, 75mm reach, 128mm drop, 40cm width; Size: 54, 56, Bontrager Elite IsoZone VR-SF, alloy, 31.8mm, internal Di2 routing, 75mm reach, 128mm drop, 42cm width; Size: 58, 60, 62, Bontrager Elite IsoZone VR-SF, alloy, 31.8mm, internal Di2 routing, 75mm reach, 128mm drop, 44cm width
Bar Tape
Bontrager Supertack Perf tape
