Bike Info
Worldwide Shipping: Yes
Delivery across the globe!
Warranty: 6 Years
Limited warranty website average: 3.12 years
Released: 2025
The bike was released 1 years ago
Bike Type: Gravel
The style of riding intended for this bike
Bike Spec
Weight: 8.3 kg
The website average for Gravel bikes is 9.44 kg. This bike is 1.14 kg under the average. Total bike weight may vary depending on frame size.
Groupset
SRAM Rival eTap AXS
Wheelset
DT Swiss CRC 1600 Spline
Brake Type: Disc Brake
Welcome to the future!
Frameset Material
Carbon Fiber
Max Tire Size: 35 mm
This is the max tire size you can use
UCI Approved: Yes
You can use for official races
Sizing & Geometry
Frame Sizes
3XS 2XS XS S M L XL XXLThis frame comes in 8 sizes, this is 2.44 more sizes than the website average.

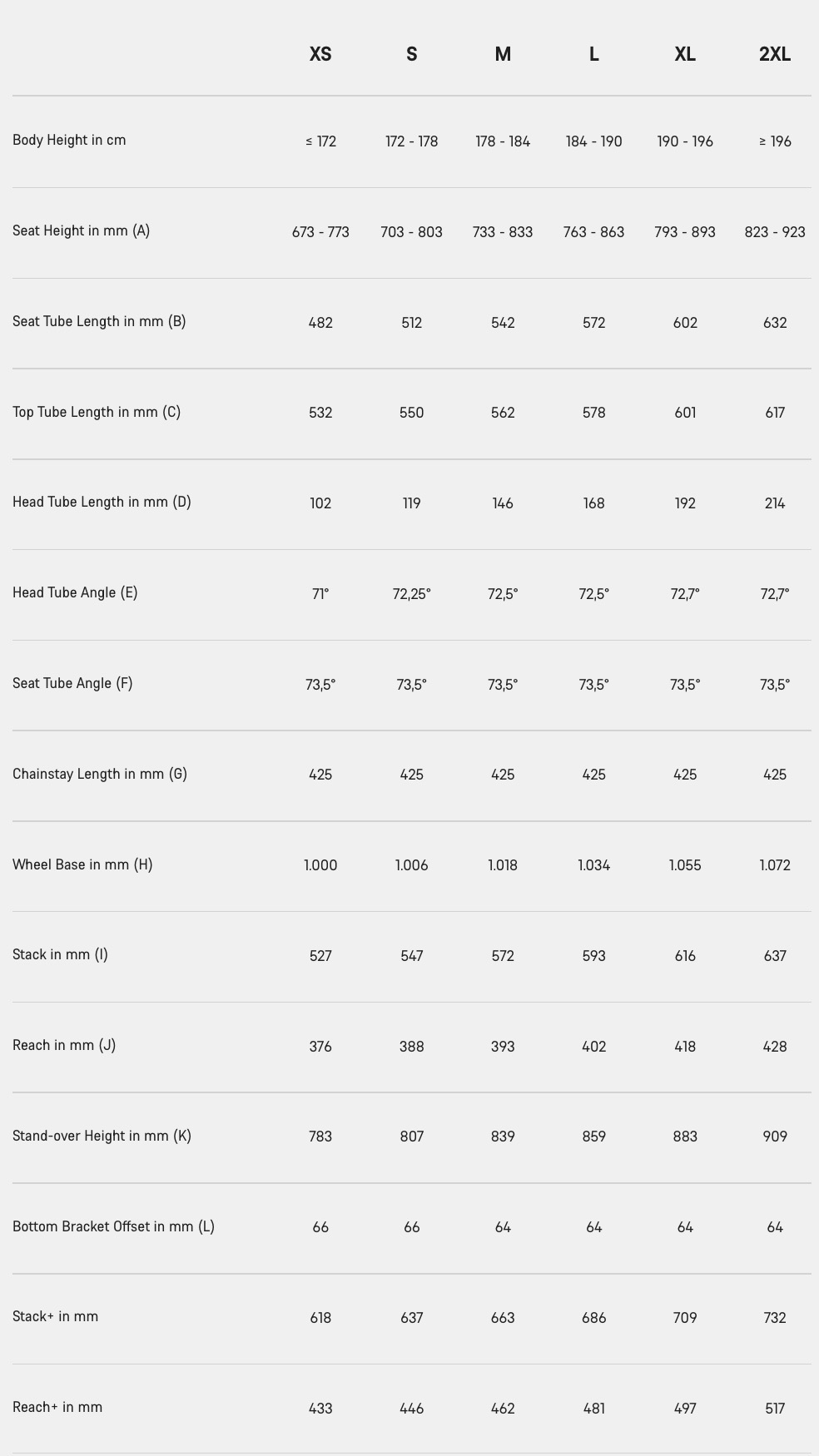

Sizing & Geometry
Frame measurements and sizing vary by bike size. Measurements are shown for each available frame size.
Swipe across to view all sizes.
| Geometry | XS | S | M | L | XL | 2XL |
|---|---|---|---|---|---|---|
| Frame geometry | ||||||
| Stack (mm) | 527 | 547 | 572 | 593 | 616 | 637 |
| Reach (mm) | 376 | 388 | 393 | 402 | 418 | 428 |
| Effective top tube (mm) | 532 | 550 | 562 | 578 | 601 | 617 |
| Seat tube (mm) | 482 | 512 | 542 | 572 | 602 | 632 |
| Head tube (mm) | 102 | 119 | 146 | 168 | 192 | 214 |
| Handling | ||||||
| Head angle (°) | 71 | 72.25 | 72.50 | 72.50 | 72.70 | 72.70 |
| Seat angle (°) | 73.50 | 73.50 | 73.50 | 73.50 | 73.50 | 73.50 |
| Chainstay (mm) | 425 | 425 | 425 | 425 | 425 | 425 |
| Wheelbase (mm) | 1,000 | 1,006 | 1,018 | 1,034 | 1,055 | 1,072 |
Frame Details
Frame Weight
This frame weighs 940g
Frame Material
Carbon Fiber
Forks
Canyon Inflite CF, The latest-generation Inflite cyclocross race bike. With World Championship-winning geometry, mud-shedding tube forms, and shoulder-friendly seat tube kink., Axle dimension: 12x142 mm, Tyre clearance: 35 mm, Material: Carbon (CF)
Fork Material
The forks are made from Carbon Fiber
Cables: Internally Routed
Routed through bars, stem and frame
Axel Type: Thru-axle
How the wheels are secured to the frame
Brake Type: Disc Brake
Welcome to the future!
Brake Mount: Flat Mount
How the calipers are mounted

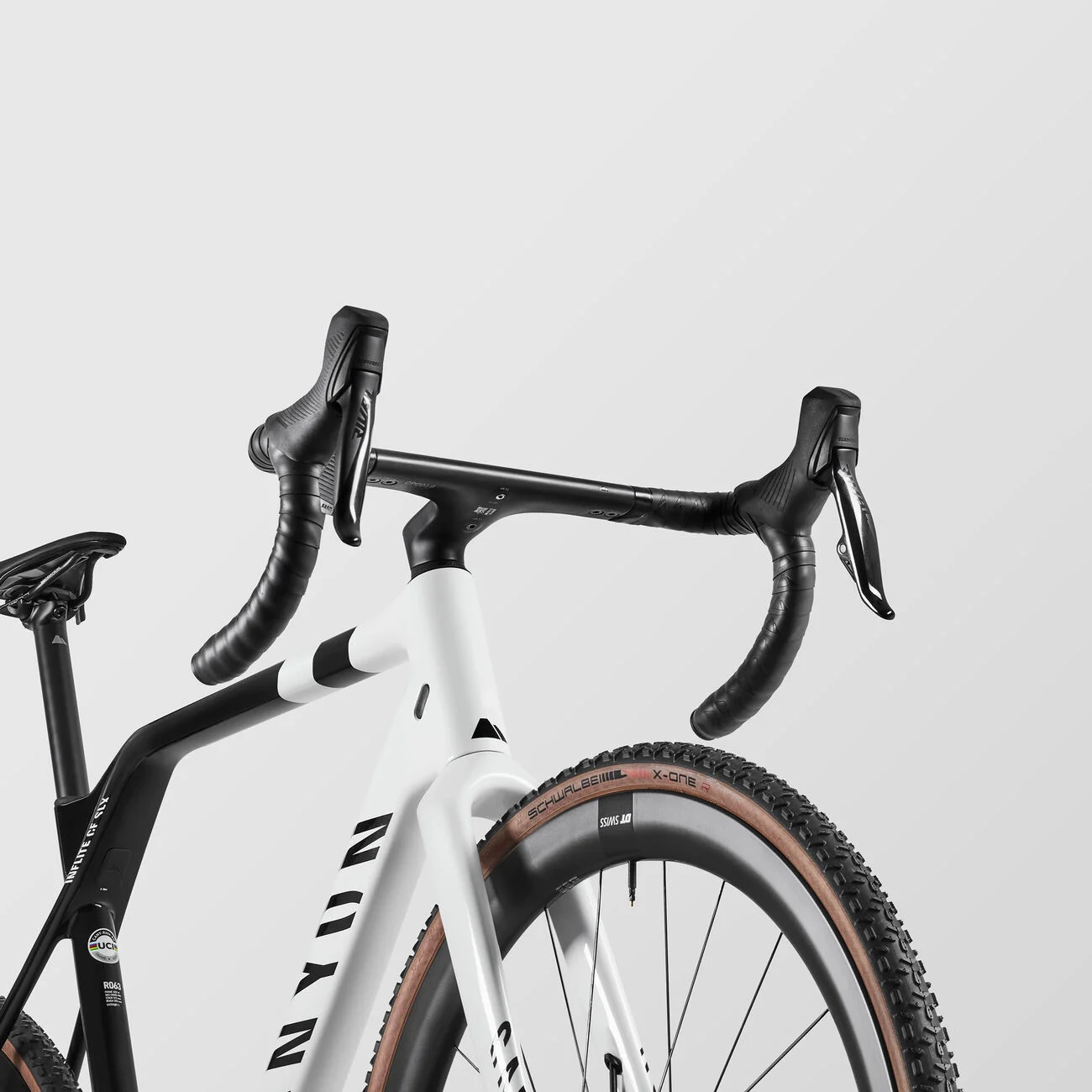

Integrated bar and stem: Yes
The bar and stem are integrated
Drivechain Details
Groupset name
SRAM Rival eTap AXS
Electric Groupset: Yes
This bike has electric gears
Shifters
SRAM Rival eTap AXS HRD 12s, Number of pistons: 2, Weight: 1.06 lbs | SRAM Rival eTap AXS HRD 2s, Number of pistons: 2, Weight: 0.96 lbs
Front Derailleur
None
Rear Derailleur
SRAM Rival eTap AXS RD 12s, Weight: 0.72 lbs
Cassette
SRAM Rival XG-1250.
Cranks
SRAM Rival 1 DUB Wide
Power Meter: Yes
This bike comes with a power meter
Bottom Bracket
SRAM Pressfit DUB Wide, PF 86,5,
Chain
SRAM Rival D1 12-speed (Flattop design).
Battery
Unknown
Wheel & Tire Details
Wheelset Name
DT Swiss CRC 1600 Spline,
Front Wheel Depth
45mm
Rear Wheel Depth
45mm
Tires
Schwalbe X-One R Evo, Width: 33 mm, Weight: 0.92 lbs
Tire Type
Tubeless
Max Tire Size: 35 mm
This is the max tire size you can use
Brakes
Brake Type: Disc Brake
Welcome to the future!
Brake Mount: Flat Mount
How these disc brakes are mounted
Brakes
SRAM Rival eTap AXS HRD 12s, Number of pistons: 2, Weight: 1.06 lbs | SRAM Rival eTap AXS HRD 2s, Number of pistons: 2, Weight: 0.96 lbs
Brake Rotors
160 mm front rotor and 140 mm rear rotor setup
Other Components
Saddle
Selle Italia SLR Boost, Gender: Unisex, Max. Rider Weight: 100 kg, Weight: 0.43 lbs
Seatpost
Canyon SP0042 VCLS CF Material: Carbon Setback: 8 mm
Handlebars
Canyon CP0018 Cockpit CF
Bar Tape
Canyon Ergospeed Gel
