Bike Info
Worldwide Shipping: Yes
Delivery across the globe!
Warranty: Lifetime
Limited warranty website average: 3.12 years
Released: 2025
The bike was released 1 years ago
Bike Type: Road
The style of riding intended for this bike
Bike Spec
Weight: 9.5 kg
The website average for Road bikes is 8.56 kg. This bike is 0.93 kg over the average. Total bike weight may vary depending on frame size.
Groupset
SRAM Apex XPLR eTap AXS
Wheelset
Bontrager Paradigm SL TLR
Brake Type: Disc Brake
Welcome to the future!
Frameset Material
Carbon Fiber
Max Tire Size: 50 mm
This is the max tire size you can use
UCI Approved: Yes
You can use for official races

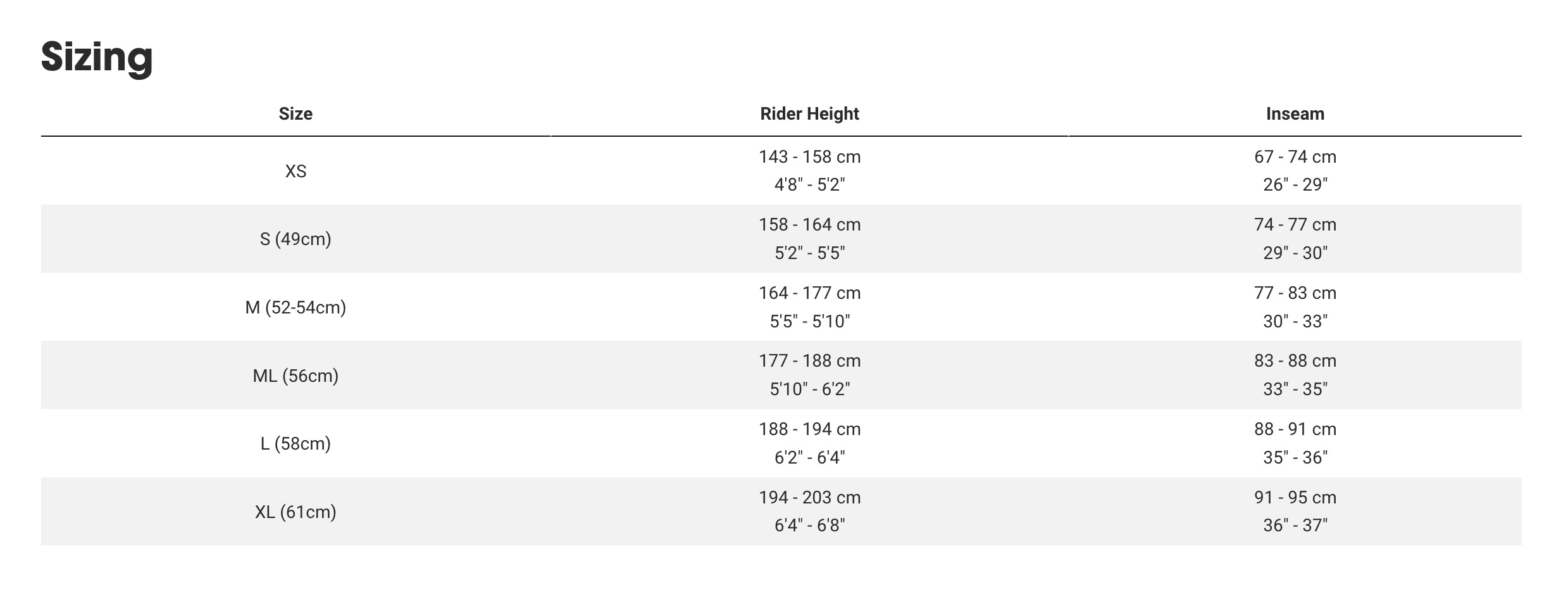

Sizing & Geometry
Frame Sizes
XS S M M/L L XLThis frame comes in 6 sizes, this is 0.44 more sizes than the website average.

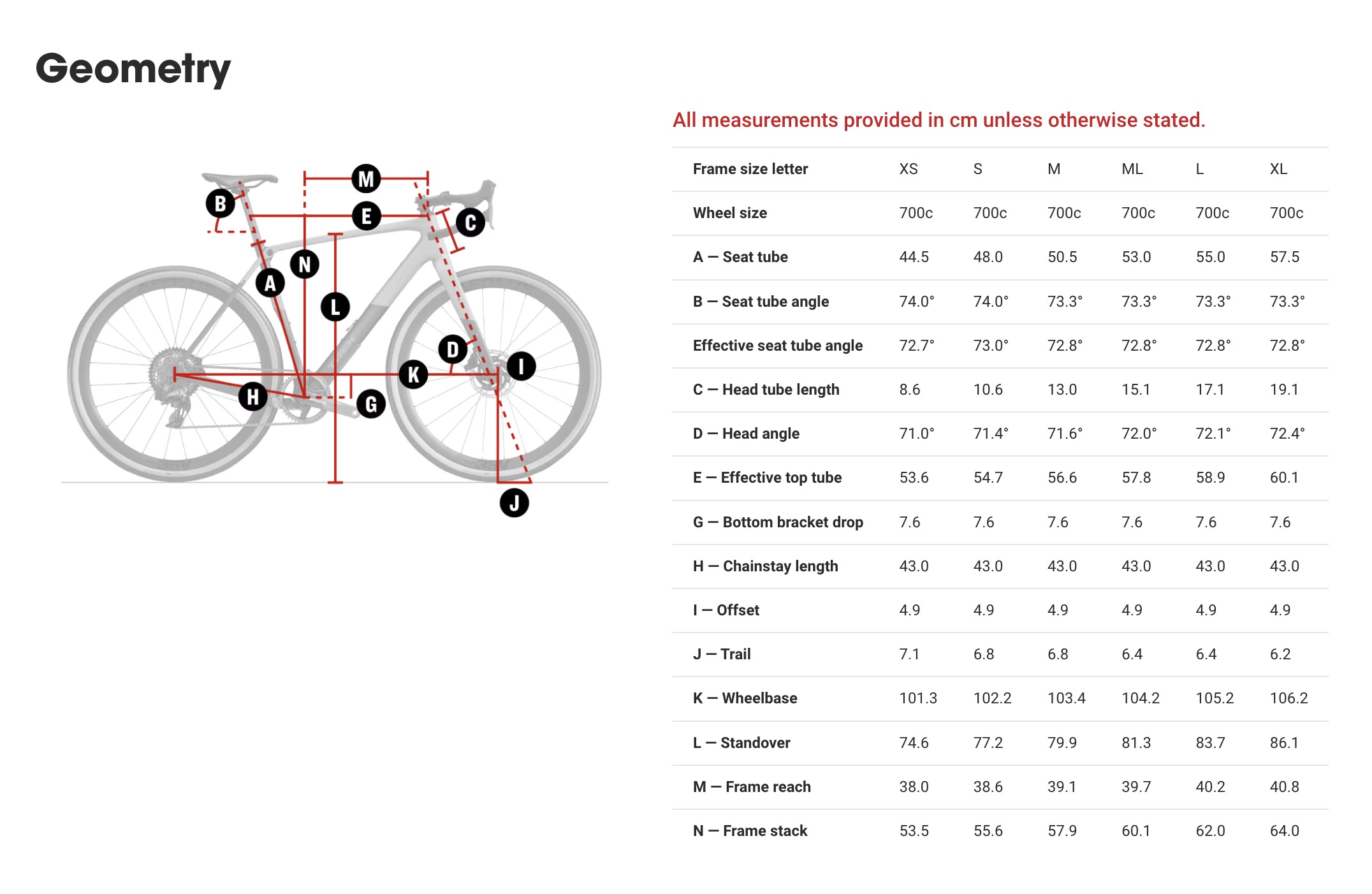

Sizing & Geometry
Frame measurements and sizing vary by bike size. Measurements are shown for each available frame size.
Swipe across to view all sizes.
| Geometry | XS | S | M | ML | L | XL |
|---|---|---|---|---|---|---|
| Sizing | ||||||
| Wheel size | 700c | 700c | 700c | 700c | 700c | 700c |
| Frame geometry | ||||||
| Stack (mm) | 535 | 556 | 579 | 601 | 620 | 640 |
| Reach (mm) | 380 | 386 | 391 | 397 | 402 | 408 |
| Effective top tube (mm) | 521 | 538 | 554 | 569 | 583 | 600 |
| Seat tube (mm) | 430 | 460 | 490 | 510 | 530 | 560 |
| Head tube (mm) | 90 | 110 | 135 | 155 | 175 | 195 |
| Standover (mm) | 689 | 719 | 747 | 769 | 789 | 815 |
| Handling | ||||||
| Head angle (°) | 70 | 70.80 | 71.30 | 71.80 | 71.80 | 71.80 |
| Seat angle (°) | 74.50 | 74 | 73.50 | 73.20 | 73 | 72.80 |
| Chainstay (mm) | 435 | 435 | 435 | 435 | 435 | 435 |
| Wheelbase (mm) | 1,018 | 1,024 | 1,030 | 1,040 | 1,054 | 1,071 |
| Fork offset (mm) | 50 | 50 | 50 | 50 | 50 | 50 |
| Trail (mm) | 77 | 72 | 68 | 65 | 65 | 65 |
Frame Details
Frame Weight
Unknown
Frame Material
Carbon Fiber
Forks
500 Series OCLV Carbon, IsoSpeed, downtube storage door, hidden fender mounts, rack mounts, integrated frame bag mounts, invisible cable routing, T47, flat mount disc, integrated chainkeeper, removable FD hanger, UDH, 142x12mm chamfered thru axle
Fork Material
The forks are made from Carbon Fiber
Cables: Internally Routed
Routed through bars, stem and frame
Axel Type: Thru-axle
How the wheels are secured to the frame
Brake Type: Disc Brake
Welcome to the future!
Brake Mount: Flat Mount
How the calipers are mounted
Integrated bar and stem: No
You can use any bar and stem
Drivechain Details
Groupset name
SRAM Apex XPLR eTap AXS
Electric Groupset: Yes
This bike has electric gears
Shifters
Size: XS, S, M, ML, L, XL, SRAM Apex, 12 speed; Size: XS, S, M, ML, L, XL, SRAM Apex AXS, 12 speed
Front Derailleur
None
Rear Derailleur
SRAM Apex XPLR eTap AXS, 44T max cog
Cassette
SRAM XPLR PG-1231 (Stock).
Cranks
SRAM Apex 1 Wide
Power Meter: No
This bike doesn't have a power meter
Bottom Bracket
SRAM DUB Wide, T47 threaded, internal bearing
Chain
SRAM Apex, 12-speed flat-top chain (Stock).
Battery
Unknown
Wheel & Tire Details
Wheelset Name
Front: Bontrager Paradigm SL TLR rim with CL-712 100x12mm Centerlock Disc hub, 24H, Black spokes and nipples, Rear: Bontrager Paradigm SL TLR rim with CL-712 142x12mm Centerlock Disc hub, 24H, Black spokes and nipples
Front Wheel Depth
20mm
Rear Wheel Depth
20mm
Tires
Bontrager Girona RSL, Tubeless Ready, GR puncture protection, aramid bead, 220 tpi, 700x42mm
Tire Type
Tubeless
Max Tire Size: 50 mm
This is the max tire size you can use
Brakes
Brake Type: Disc Brake
Welcome to the future!
Brake Mount: Flat Mount
How these disc brakes are mounted
Brakes
SRAM Paceline, rounded, centerlock, 160mm
Brake Rotors
160 mm front and 160 mm rear standard. The calipers grasp SRAM Paceline Centerlock rounded rotors
Other Components
Saddle
Size: XS, S, Verse Short Comp, steel rails, 155mm width; Size: M, ML, L, XL, Verse Short Comp, steel rails, 145mm width
Seatpost
Bontrager carbon, 27.2 mm, 8 mm offset, 330 mm length
Handlebars
Size: XS, Bontrager Elite Gravel, alloy, 40cm width; Size: S, M, Bontrager Elite Gravel, alloy, 42cm width; Size: ML, L, Bontrager Elite Gravel, alloy, 44cm width; Size: XL, Bontrager Elite Gravel, alloy, 46cm width
Bar Tape
Bontrager Supertack Perf tape
