Bike Info
Worldwide Shipping: Yes
Delivery across the globe!
Warranty: Lifetime
Limited warranty website average: 3.12 years
Released: 2025
The bike was released 1 years ago
Bike Type: Road
The style of riding intended for this bike
Bike Spec
Weight: 9.9 kg
The website average for Road bikes is 8.56 kg. This bike is 1.33 kg over the average. Total bike weight may vary depending on frame size.
Groupset
Shimano 105 R7100, 31.8mm clamp, down swing
Wheelset
Bontrager Paradigm SL
Brake Type: Disc Brake
Welcome to the future!
Frameset Material
Aluminium
Max Tire Size: 38 mm
This is the max tire size you can use
UCI Approved: Unknown
You can't use for official races
Sizing & Geometry
Frame Sizes
44 49 52 54 56 58 61This frame comes in 7 sizes, this is 1.44 more sizes than the website average.

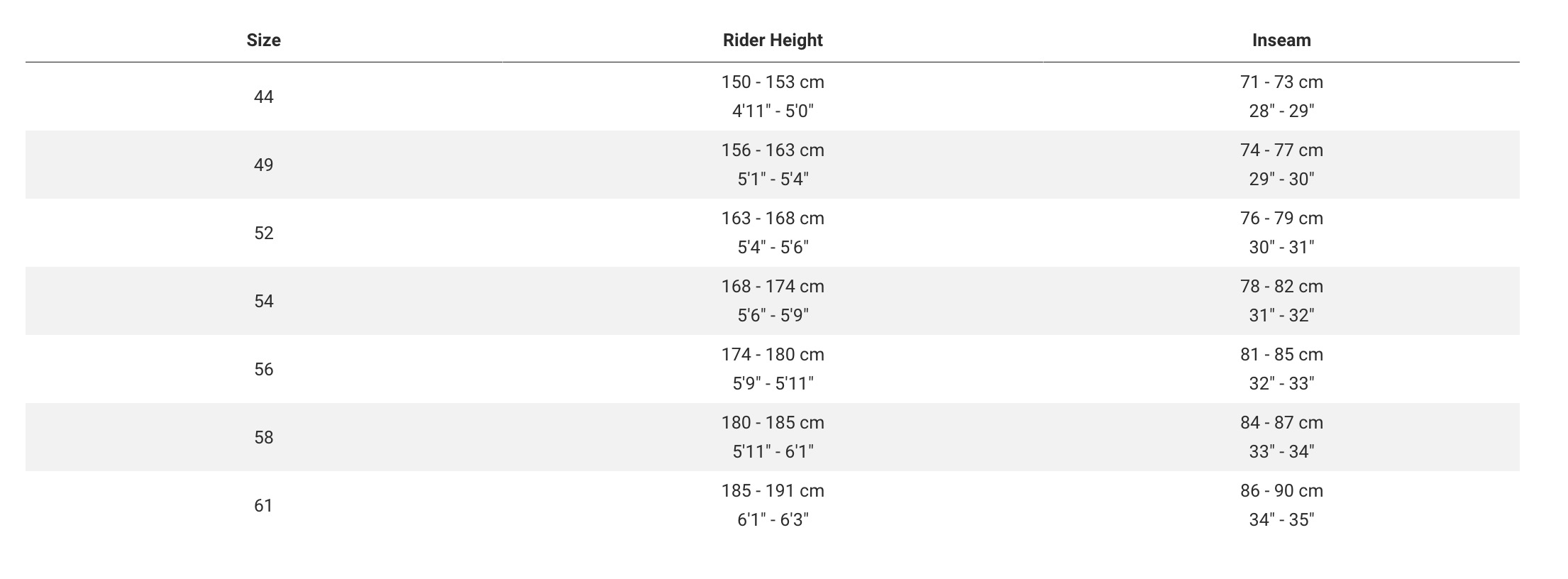

Sizing & Geometry
Frame measurements and sizing vary by bike size. Measurements are shown for each available frame size.
Swipe across to view all sizes.
| Geometry | 44 cm | 49 cm | 52 cm | 54 cm | 56 cm | 58 cm | 61 cm |
|---|---|---|---|---|---|---|---|
| Sizing | |||||||
| Rider height | 150–153 cm | 156–162 cm | 163–168 cm | 168–174 cm | 174–180 cm | 180–185 cm | 185–190 cm |
| Wheel size | 700c | 700c | 700c | 700c | 700c | 700c | 700c |
| Frame geometry | |||||||
| Stack (mm) | 51 | 52.7 | 54.6 | 56.1 | 57.5 | 59.1 | 61.1 |
| Reach (mm) | 36 | 36.5 | 36.8 | 37.1 | 37.4 | 37.7 | 38 |
| Effective top tube (mm) | 50.8 | 51.6 | 53 | 54.2 | 55.4 | 56.7 | 58.1 |
| Seat tube (mm) | 39.5 | 44 | 47.5 | 49.5 | 52.5 | 54.8 | 57.6 |
| Head tube (mm) | 10.3 | 12.3 | 14.3 | 16 | 17.5 | 19.5 | 21.5 |
| Standover (mm) | 68.6 | 72.1 | 74.8 | 76.5 | 78.9 | 81.1 | 83.3 |
| Handling | |||||||
| Head angle (°) | 70.30 | 70.80 | 71.30 | 71.30 | 71.90 | 72 | 72.10 |
| Seat angle (°) | 74.60 | 74.60 | 74.20 | 73.70 | 73.30 | 73 | 72.70 |
| Chainstay (mm) | 42 | 42 | 42 | 42 | 42 | 42.5 | 42.5 |
| Wheelbase (mm) | 99.4 | 100.3 | 101 | 101.8 | 102.2 | 103.2 | 104.2 |
| Fork offset (mm) | 5.3 | 5.3 | 5.3 | 5.3 | 4.8 | 4.8 | 4.8 |
| Trail (mm) | 6.4 | 6.1 | 5.9 | 5.9 | 6.1 | 6 | 6 |
Frame Details
Frame Weight
Unknown
Frame Material
Aluminium
Forks
100 Series Alpha Aluminium, tapered head tube, internal routing, fender mounts, flat mount disc, UDH, 142x12mm thru axle
Fork Material
The forks are made from Carbon Fiber
Cables: Internally Routed
Routed through bars, stem and frame
Axel Type: Thru-axle
How the wheels are secured to the frame
Brake Type: Disc Brake
Welcome to the future!
Brake Mount: Flat Mount
How the calipers are mounted
Integrated bar and stem: No
You can use any bar and stem
Drivechain Details
Groupset name
Shimano 105 R7100, 31.8mm clamp, down swing
Electric Groupset: No
This bike doesn't have electric gears
Shifters
Shimano 105 R7120, 12 speed
Front Derailleur
Shimano 105 R7100, 31.8 mm band-clamp mount, down-swing operation.
Rear Derailleur
Shimano 105 R7100, 36T max cog
Cassette
Shimano 105 R7101.
Cranks
Shimano 105 R7100 (170 mm to 175 mm)
Power Meter: No
This bike doesn't have a power meter
Bottom Bracket
Size: 49, 52, 54, 56, 58, 61, Shimano RS501 BSA; Size: 49, 52, 54, 56, 58, 61, Shimano RS500, 68mm, threaded external
Chain
Shimano SLX M7100 12-speed chain (natively shared across Shimano's 12-speed road and mountain bike lines).
Wheel & Tire Details
Wheelset Name
Bontrager Paradigm SL, Tubeless Ready, 24-hole, 21mm width, Presta valve
Front Wheel Depth
21mm
Rear Wheel Depth
21mm
Tires
Bontrager R1 Hard-Case Lite, wire bead, 60 tpi, 700x32mm
Tire Type
Clincher
Max Tire Size: 38 mm
This is the max tire size you can use
Brakes
Brake Type: Disc Brake
Welcome to the future!
Brake Mount: Flat Mount
How these disc brakes are mounted
Brakes
Shimano 105 hydraulic disc, flat mount
Brake Rotors
160 mm front and 160 mm rear
Other Components
Saddle
Verse Short, steel rails, 145mm width
Seatpost
Bontrager Comp
Handlebars
Size: 49, 52, Bontrager Comp, alloy, 31.8mm, 80mm reach, 121mm drop, 38cm control width, 42cm drop width; Size: 54, 56, 58, Bontrager Comp, alloy, 31.8mm, 80mm reach, 121mm drop, 40cm control width, 44cm drop width; Size: 61, Bontrager Comp, alloy, 31.8mm, 80mm reach, 121mm drop, 42cm control width, 46cm drop width
Bar Tape
Bontrager Supertack Perf tape
