Bike Info
Worldwide Shipping: Yes
Delivery across the globe!
Warranty: 2 Years
Limited warranty website average: 3.12 years
Released: 2025
The bike was released 1 years ago
Bike Type: Road
The style of riding intended for this bike
Bike Spec
Weight: 9.4 kg
The website average for Road bikes is 8.56 kg. This bike is 0.83 kg over the average. Total bike weight may vary depending on frame size.
Groupset
Shimano GRX ST-RX610
Wheelset
Newmen Performance 25
Brake Type: Disc Brake
Welcome to the future!
Frameset Material
Carbon Fiber
Max Tire Size: 50 mm
This is the max tire size you can use
UCI Approved: Yes
You can use for official races
Sizing & Geometry
Frame Sizes
50 53 56 58 61This frame comes in 5 sizes, this is 0.56 less sizes than the website average.

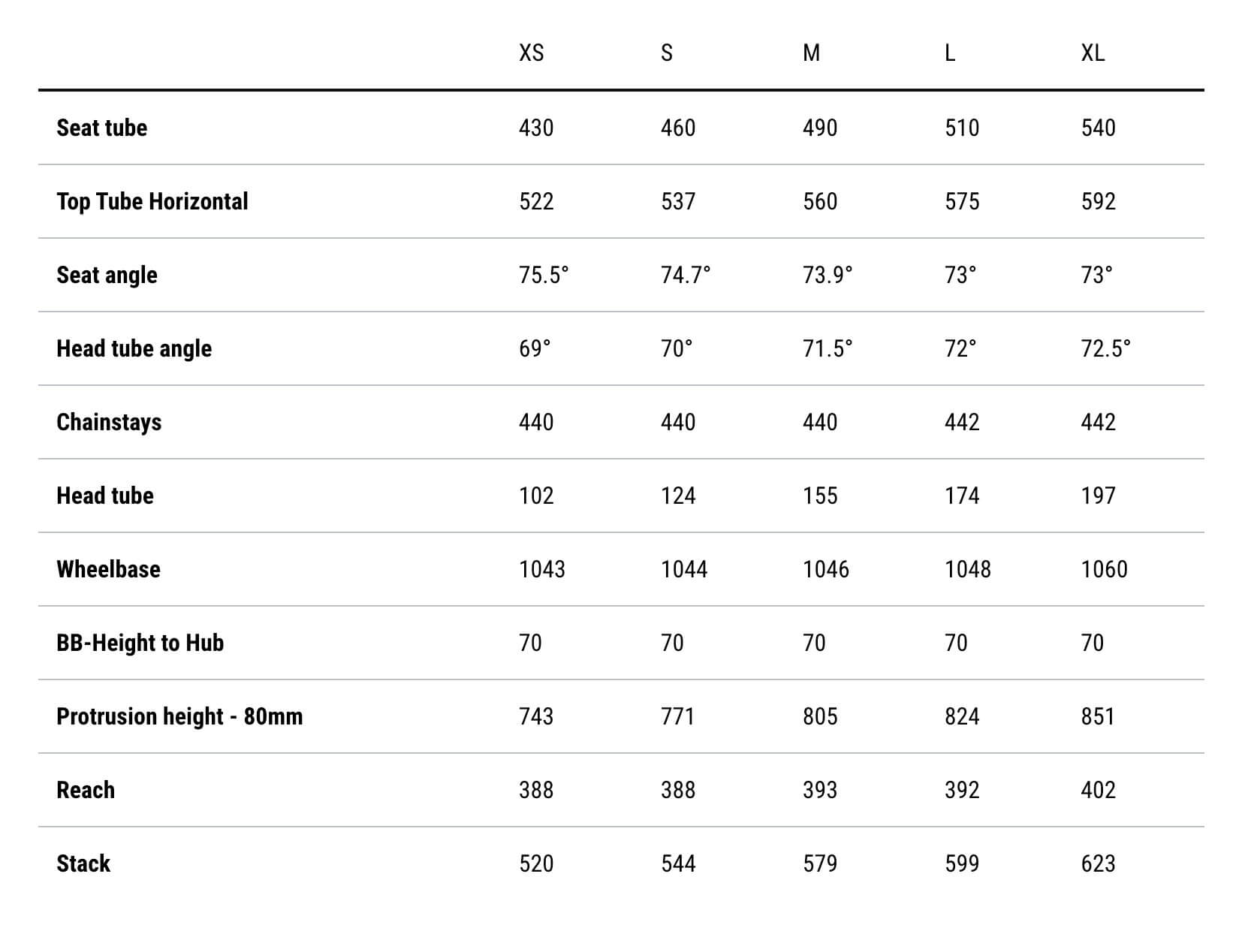

Sizing & Geometry
Frame measurements and sizing vary by bike size. Measurements are shown for each available frame size.
Swipe across to view all sizes.
| Geometry | XS | S | M | L | XL |
|---|---|---|---|---|---|
| Sizing | |||||
| Rider height | 156–166 cm | 163–174 cm | 171–182 cm | 179–189 cm | 185–195 cm |
| Wheel size | 700c | 700c | 700c | 700c | 700c |
| Frame geometry | |||||
| Stack (mm) | 520 | 544 | 579 | 599 | 623 |
| Reach (mm) | 388 | 388 | 393 | 392 | 402 |
Frame Details
Frame Weight
This frame weighs 1150g
Frame Material
Carbon Fiber
Forks
C:62® Advanced Twin Mold Technology, Internal Cable Routing, Integrated Seat Post Clamp, Flat Mount Disc, Fender/Rack & Kickstand Option, 12x142mm, UDH™
Fork Material
The forks are made from Carbon Fiber
Cables: Semi Routed
Routed through the frame, not the bars
Axel Type: Thru-axle
How the wheels are secured to the frame
Brake Type: Disc Brake
Welcome to the future!
Brake Mount: Flat Mount
How the calipers are mounted
Integrated bar and stem: No
You can use any bar and stem
Drivechain Details
Groupset name
Shimano GRX ST-RX610
Electric Groupset: No
This bike doesn't have electric gears
Shifters
Shimano GRX ST-RX610
Front Derailleur
None
Rear Derailleur
Shimano GRX RD-RX822-SGS, 12-Speed
Cassette
Shimano Deore CS-M6100. Note that while the core groupset belongs to the GRX family, it utilizes an ultra-wide mountain bike cassette architecture necessitating a Shimano Micro Spline freehub body.
Cranks
Shimano GRX FC-RX610 (165mm - 172.5mm)
Power Meter: No
This bike doesn't have a power meter
Bottom Bracket
Shimano SM-BB71-41B, 86mm Pressfit
Chain
Shimano CN-M6100.
Wheel & Tire Details
Wheelset Name
Newmen Performance 25, 28/28 Spokes, 12x100mm/12x142mm, Tubeless Ready
Front Wheel Depth
20mm
Rear Wheel Depth
20mm
Tires
Schwalbe G-One Allround, Kevlar, 45-622
Tire Type
Tubeless
Max Tire Size: 50 mm
This is the max tire size you can use
Brakes
Brake Type: Disc Brake
Welcome to the future!
Brake Mount: Flat Mount
How these disc brakes are mounted
Brakes
Shimano GRX BR-RX400, Hydr. Disc Brake, Flat Mount (160/160)
Brake Rotors
160 mm front rotor / 160 mm rear rotor
Other Components
Saddle
ACID Nuance Pro
Seatpost
Newmen Advanced
Handlebars
Newmen Advanced Gravel Bar 318, Carbon, 31.8mm
Bar Tape
ACID Bartape CX
