Bike Info
Worldwide Shipping: Yes
Delivery across the globe!
Warranty: Lifetime
Limited warranty website average: 3.12 years
Released: 2025
The bike was released 1 years ago
Bike Type: Road
The style of riding intended for this bike
Bike Spec
Weight: 10.6 kg
The website average for Road bikes is 8.56 kg. This bike is 2.03 kg over the average. Total bike weight may vary depending on frame size.
Groupset
Shimano Sora R3000, 31.8mm clamp
Wheelset
Bontrager Paradigm
Brake Type: Disc Brake
Welcome to the future!
Frameset Material
Aluminium
Max Tire Size: 45 mm
This is the max tire size you can use
UCI Approved: Unknown
You can't use for official races
Sizing & Geometry
Frame Sizes
49 52 54 56 58 61This frame comes in 6 sizes, this is 0.44 more sizes than the website average.

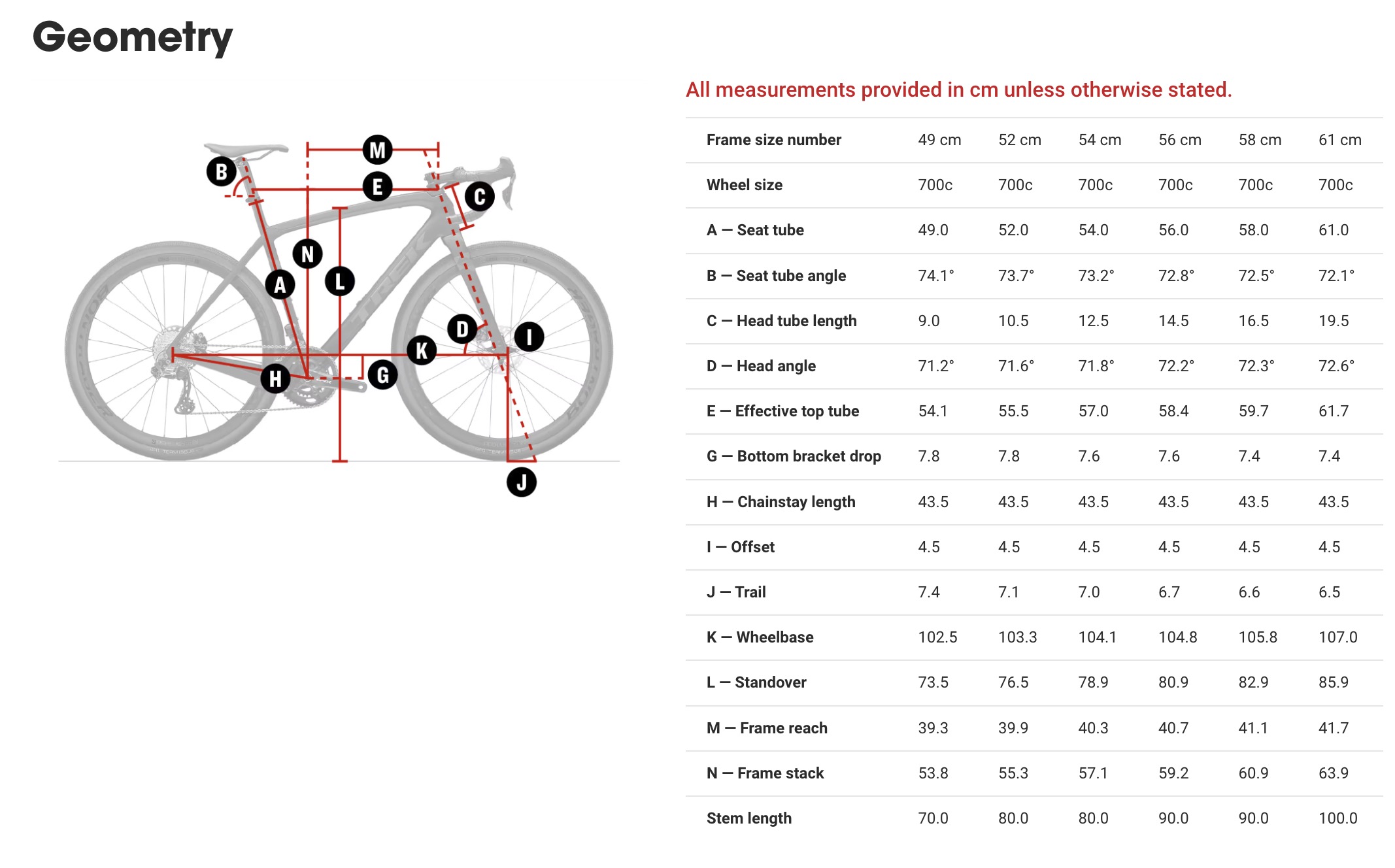

Sizing & Geometry
Frame measurements and sizing vary by bike size. Measurements are shown for each available frame size.
Swipe across to view all sizes.
| Geometry | 49 cm | 52 cm | 54 cm | 56 cm | 58 cm | 61 cm |
|---|---|---|---|---|---|---|
| Sizing | ||||||

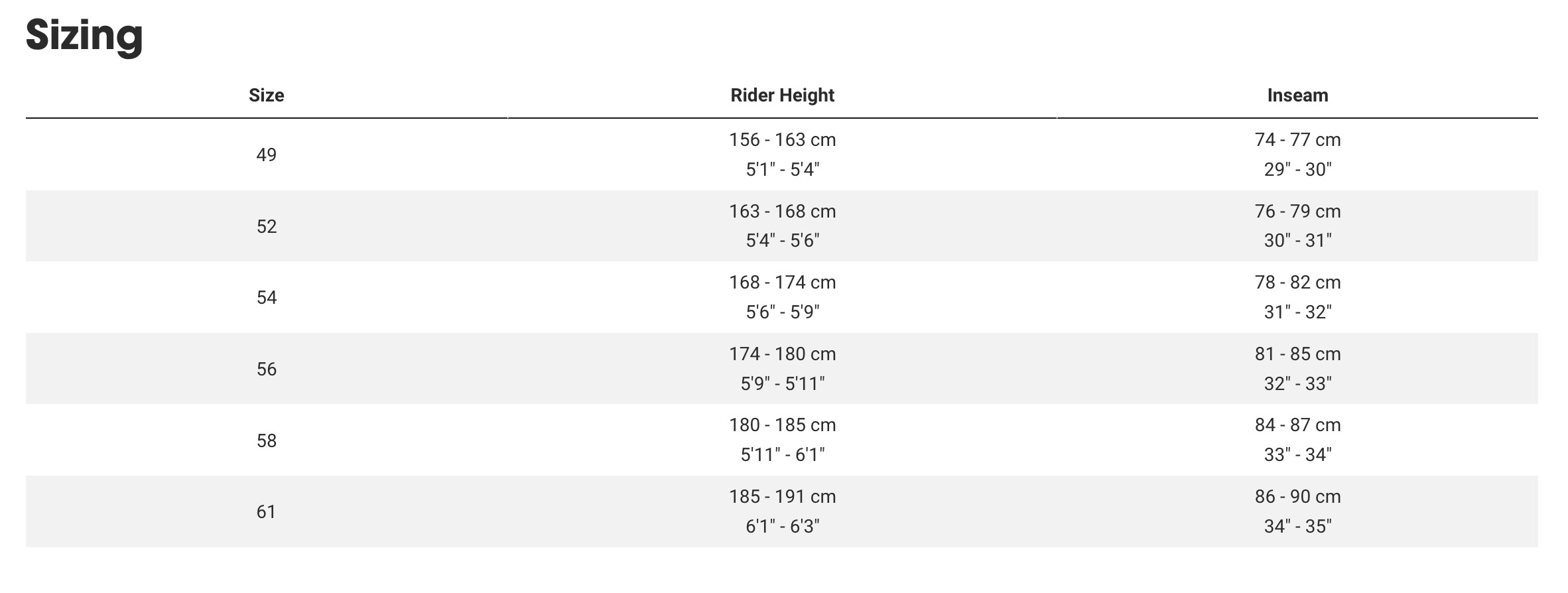

| Rider height | 156–162 cm | 163–168 cm | 168–174 cm | 174–180 cm | 180–185 cm | 185–196 cm |
| Wheel size | 700c | 700c | 700c | 700c | 700c | 700c |
| Frame geometry | ||||||
| Stack (mm) | 538 | 553 | 571 | 592 | 609 | 639 |
| Reach (mm) | 393 | 399 | 403 | 407 | 411 | 419 |
| Effective top tube (mm) | 533 | 545 | 557 | 569 | 583 | 601 |
| Seat tube (mm) | 425 | 455 | 485 | 515 | 545 | 575 |
| Head tube (mm) | 90 | 105 | 123 | 144 | 162 | 194 |
| Standover (mm) | 735 | 759 | 783 | 808 | 832 | 860 |
| Handling | ||||||
| Head angle (°) | 71.20 | 71.50 | 71.80 | 72.20 | 72.20 | 72.50 |
| Seat angle (°) | 74.10 | 74.20 | 73.90 | 73.60 | 73.20 | 72.80 |
| Chainstay (mm) | 435 | 435 | 435 | 435 | 435 | 435 |
| Wheelbase (mm) | 1,025 | 1,033 | 1,041 | 1,049 | 1,060 | 1,073 |
| Fork offset (mm) | 50 | 50 | 45 | 45 | 45 | 45 |
| Trail (mm) | 75.4 | 73.1 | 77 | 74.2 | 74.2 | 72.2 |
Frame Details
Frame Weight
Unknown
Frame Material
Aluminium
Forks
300 Series Alpha Aluminium, tapered head tube, Internal cable routing, 3S chain keeper, T47 BB, rack and fender mounts, integrated frame bag mounts, flat mount disc, 142x12mm thru axle
Fork Material
The forks are made from Carbon Fiber
Cables: Internally Routed
Routed through bars, stem and frame
Axel Type: Thru-axle
How the wheels are secured to the frame
Brake Type: Disc Brake
Welcome to the future!
Brake Mount: Flat Mount
How the calipers are mounted
Integrated bar and stem: No
You can use any bar and stem
Drivechain Details
Groupset name
Shimano Sora R3000, 31.8mm clamp
Electric Groupset: No
This bike doesn't have electric gears
Shifters
Shimano Sora R3000, 9 speed
Front Derailleur
Shimano Sora R3000, 31.8 mm clamp-on style.
Rear Derailleur
Shimano Sora R3000, mid cage, 34T max cog
Cassette
Shimano Sora HG400, 9-speed.
Cranks
FSA Omega Alloy
Power Meter: No
This bike doesn't have a power meter
Bottom Bracket
T47, threaded
Chain
Shimano Sora HG53, 9-speed.
Wheel & Tire Details
Wheelset Name
Bontrager Paradigm, Tubeless Ready, 24-hole, 21mm width, Presta valve
Front Wheel Depth
23mm
Rear Wheel Depth
23mm
Tires
Bontrager Girona Pro, Tubeless Ready, GR puncture protection, aramid bead, 60 tpi, 700x42mm
Tire Type
Clincher
Max Tire Size: 45 mm
This is the max tire size you can use
Brakes
Brake Type: Disc Brake
Welcome to the future!
Brake Mount: Flat Mount
How these disc brakes are mounted
Brakes
Tektro C550 mechanical disc brake, dual piston, flat mount
Brake Rotors
160 mm front and rear. The rotors utilize a Shimano CenterLock interface pattern
Other Components
Saddle
Size: 49, 52, Bontrager Verse Comp, steel rails, 155mm width; Size: 54, 56, 58, 61, Bontrager Verse Comp, steel rails, 145mm width
Seatpost
Bontrager alloy, 27.2 mm, 12 mm offset, 330 mm length
Handlebars
Size: 49, Bontrager Elite Gravel, 38cm width; Size: 52, Bontrager Elite Gravel, 40cm width; Size: 54, 56, Bontrager Elite Gravel, 42cm width; Size: 58, 61, Bontrager Elite Gravel, 44cm width
Bar Tape
Bontrager Supertack Perf tape
