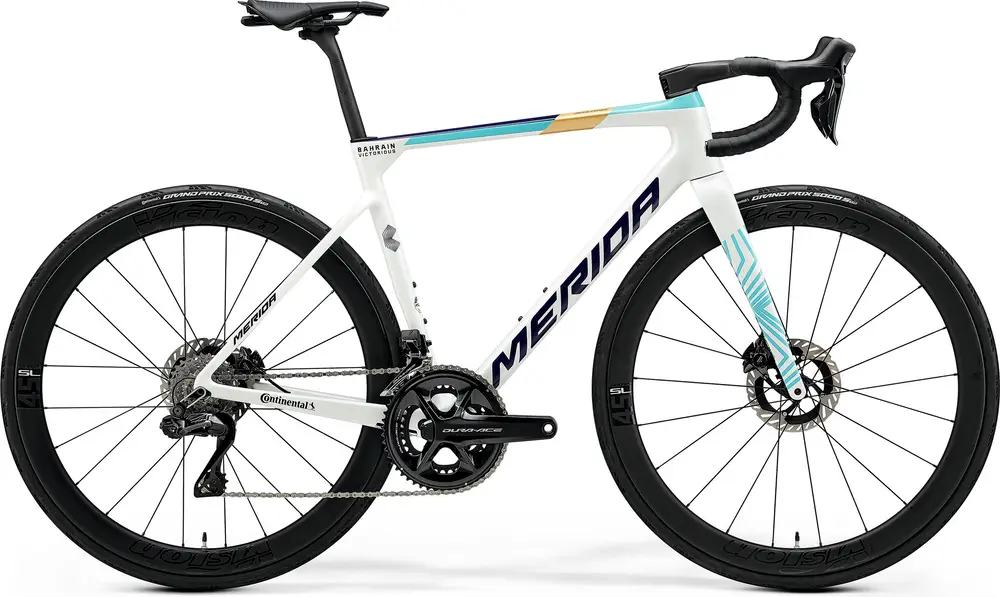

Merida SCULTURA TEAM 2025 bike details 01

Generated Summary

The Merida Merida SCULTURA TEAM, a Road bike released in 2025, priced at £8000. It weighs approximately 7.2kg, balancing performance and efficiency. It features a frame made of Carbon Fiber and a fork constructed from Carbon Fiber. The bike is equipped with a Shimano Dura Ace Di2 groupset (Electric Shifting: Yes). It uses Disc Brake braking for confident stopping power. Rolling on a Vision Metron 45 SL Clincher TL Disc, 100x12mm width front hub, 142x12mm width rear hub, 21mm inner width, 45mm height, Centerlock, material: carbon, Tubeless ready (tubeless tape and valves included) wheelset, it features a Shimano SM-BB72-41B, Pressfit 86.5 bottom bracket for drivetrain efficiency. It uses Internally Routed cable routing for a cleaner look and improved aerodynamics. It supports tires up to 30 mm, offering flexibility for comfort or off-road use. This bike is UCI compliant, meaning it can be used in officially sanctioned races. It comes with a lifetime warranty. Curious how it stacks up against similar bikes? Compare below...

Merida REACTO TEAM - 2025

Price: £8,500.00 (+£500.00)

Merida REACTO 9000 - 2025

Price: £6,250.00 (-£1,750.00)

Merida SCULTURA 10K

Merida SCULTURA 10K - 2025

Price: £10,000.00 (+£2,000.00)

Merida SCULTURA 9000

Merida SCULTURA 9000 - 2025

Price: £5,800.00 (-£2,200.00)

Merida REACTO TEAM - 2025

Price: £8,500.00 (+£500.00)

Merida REACTO 9000 - 2025

Price: £6,250.00 (-£1,750.00)

Merida SCULTURA 10K

Merida SCULTURA 10K - 2025

Price: £10,000.00 (+£2,000.00)

Merida SCULTURA 9000

Merida SCULTURA 9000 - 2025

Price: £5,800.00 (-£2,200.00)

94924-10_TARMAC-SL8-PRO-ETAP-CARB-METWHTSIL_RDSQ

Specalized Tarmac SL8 Pro – SRAM Force eTap AXS - 2023

Price: £8,000.00 (same price)

94924-12_TARMAC-SL8-PRO-UDI2-METPNGRN-WHT_HERO

Specalized Tarmac SL8 Pro – Ultegra Di2 - 2023

Price: £8,000.00 (same price)

94423-10_ROUBAIX-PRO-METPNGRN_HERO

Specalized Roubaix SL8 Pro - 2023

Price: £8,000.00 (same price)

Screenshot_368

Specalized Aethos Pro – Shimano Ultegra Di2 - 2023

Price: £8,000.00 (same price)

Quick Compare Merida SCULTURA TEAM to:

Bike Info

Worldwide Shipping: Yes

Delivery across the globe!

Icon 1

Warranty: Lifetime

Limited warranty website average: 3.12 years

Icon 1

Released: 2025

The bike was released this year

Icon 1

Bike Type: Road

The style of riding intended for this bike

Bike Spec

Weight Icon

Weight: 7.2 kg

The website average for Road bikes is 8.57 kg. This bike is 1.38 kg under the average. Total bike weight may vary depending on frame size.

Icon 1

Groupset

Shimano Dura Ace Di2

Icon 1

Wheelset

Vision Metron 45 SL Clincher TL Disc, 100x12mm width front hub, 142x12mm width rear hub, 21mm inner width, 45mm height, Centerlock, material: carbon, Tubeless ready (tubeless tape and valves included)

Disc Brake

Brake Type: Disc Brake

Welcome to the future!

Icon 1

Frameset Material

Carbon Fiber

Icon 1

Max Tire Size: 30 mm

This is the max tire size you can use

Icon 1

UCI Approved: Yes

You can use for official races

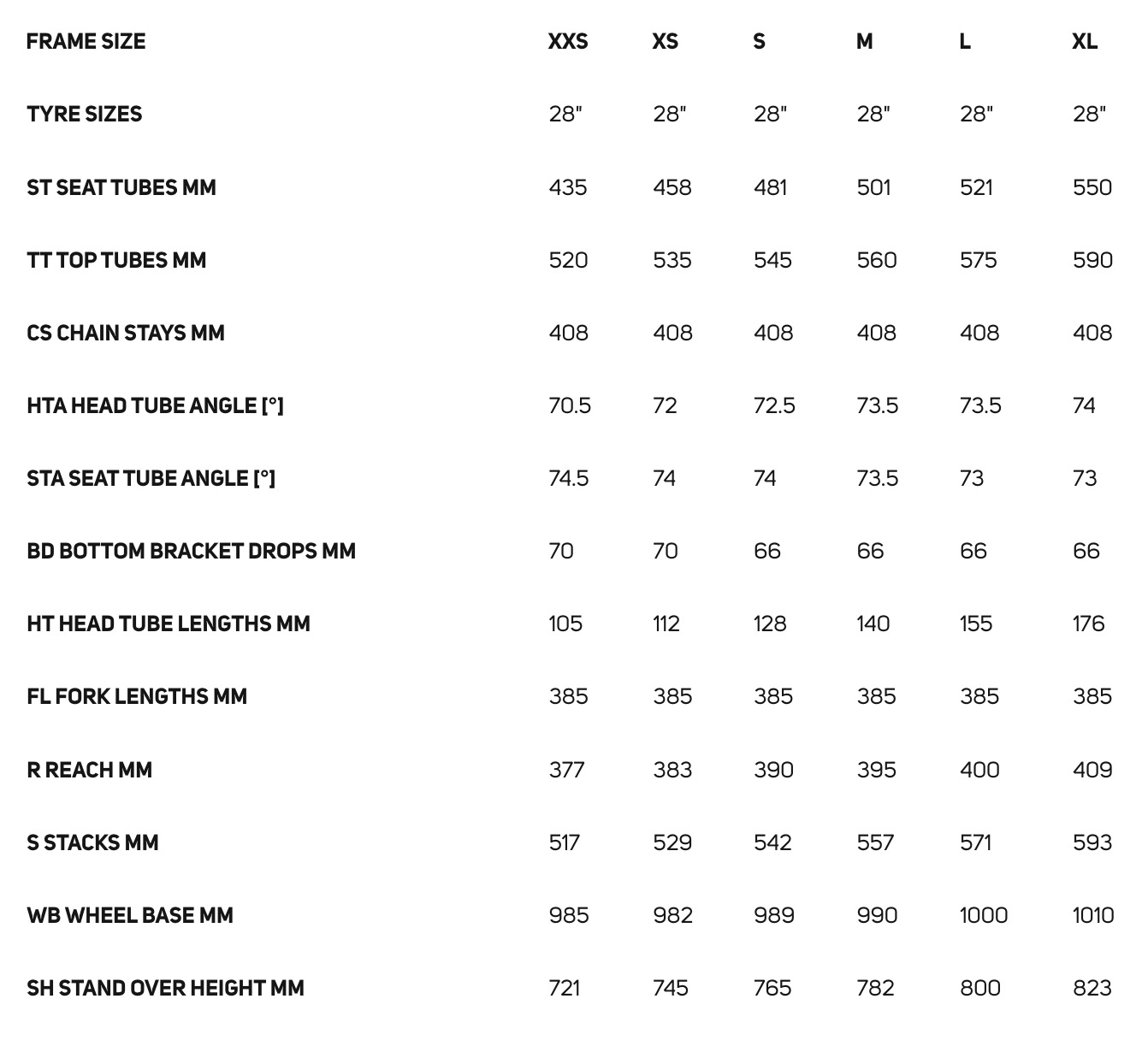

Sizing & Geometry

Frame Sizes

XXS XS S M L XL

This frame comes in 6 sizes, this is 0.47 more sizes than the website average.

Handebar Sizes Available

38 40

Crank Arm Sizes Available

165 170 172.5 175

Frame Details

Icon 1

Frame Weight

Unknown

Icon 1

Frame Material

Carbon Fiber

Icon 1

Forks

SCULTURA CF5 V, material: carbon, 700x30C max. wheelsize, 100x12/ 142x12mm axle standard, Pressfit 86,5

Icon 1

Fork Material

The forks are made from Carbon Fiber

Icon 1

Cables: Internally Routed

Routed through bars, stem and frame

Icon 1

Axel Type: Thru-axle

How the wheels are secured to the frame

Disc Brake

Brake Type: Disc Brake

Welcome to the future!

Icon 1

Brake Mount:

How the calipers are mounted

Yes

Integrated bar and stem: Yes

The bar and stem are integrated

Drivechain Details

Icon 1

Groupset name

Shimano Dura Ace Di2

Icon 1

Electric Groupset: Yes

This bike has electric gears

Icon 1

Shifters

Shimano Dura Ace disc Di2

Icon 1

Front Derailleur

Shimano Dura Ace Di2

Icon 1

Rear Derailleur

Shimano Dura Ace Di2

Icon 1

Cassette

Shimano Dura-Ace R9200, 11-30 teeth, 12 speed

Icon 1

Cranks

Shimano Dura Ace, 52-36 teeth, Power Meter, 165 mm-3XS-XXS, 170 mm-XS, 172.5 mm-S/M/L, 175 mm (XL),

Icon 1

Power Meter: Yes

This bike comes with a power meter

Icon 1

Bottom Bracket

Shimano SM-BB72-41B, Pressfit 86.5

Icon 1

Chain

Shimano M9100-12

Icon 1

Battery

Unknown

Wheel & Tire Details

Icon 1

Wheelset Name

Vision Metron 45 SL Clincher TL Disc, 100x12mm width front hub, 142x12mm width rear hub, 21mm inner width, 45mm height, Centerlock, material: carbon, Tubeless ready (tubeless tape and valves included)

Front Wheel Depth Icon

Front Wheel Depth

45mm

Rear Wheel Depth Icon

Rear Wheel Depth

45mm

Icon 1

Tires

Front: Continental Grand Prix 5000S TR, 700x28C, fold, tubeless ready, Rear: Continental Grand Prix 5000S TR, 700x28C, fold, tubeless ready

Tire Type Icon

Tire Type

Unknown

Icon 1

Max Tire Size: 30 mm

This is the max tire size you can use

Brakes

Disc Brake

Brake Type: Disc Brake

Welcome to the future!

Icon 1

Brake Mount:

How these disc brakes are mounted

Icon 1

Brakes

Shimano Dura Ace, Hydraulic disc

Icon 1

Brake Rotors

Shimano CL900 160mm

Other Components

Icon 1

Saddle

Prologo Scratch M5, V-mount adapter, incl. MERIDA minitool

Icon 1

Seatpost

MERIDA TEAM SL 27.2mm diameter 15mm setback Carbon S-Flex

Icon 1

Handlebars

MERIDA TEAM SL 1P INTEGRATED, material: carbon, 380mm (3XS-XXS-XS-S) 400mm (M-L-XL)

Icon 1

Bar Tape

Prologo One-Touch

Manufactures Description

Raced and put through its paces by Team Bahrain Victorious, the SCULTURA TEAM is the comfort-focused alternative to the REACTO aero bike. While the latest SCULTURA has learned a lot from the REACTO in terms of aerodynamics, we have put extra effort into reducing the weight even further and making it the most comfortable pure road race bike in our range. Equipped with top-end components from Shimano, Vision, Continental and MERIDA, the TEAM is the ... Read More
