Bike Info
Worldwide Shipping: Yes
Delivery across the globe!
Warranty: Lifetime
Limited warranty website average: 3.12 years
Released: 2025
The bike was released 1 years ago
Bike Type: Road
The style of riding intended for this bike
Bike Spec
Weight: 7.6 kg
The website average for Road bikes is 8.56 kg. This bike is 0.97 kg under the average. Total bike weight may vary depending on frame size.
Groupset
Shimano Dura Ace Di2
Wheelset
Vision Metron 60 SL
Brake Type: Disc Brake
Welcome to the future!
Frameset Material
Carbon Fiber
Max Tire Size: 32 mm
This is the max tire size you can use
UCI Approved: Yes
You can use for official races
Sizing & Geometry
Frame Sizes
3XS XXS XS S M L XLThis frame comes in 7 sizes, this is 1.44 more sizes than the website average.

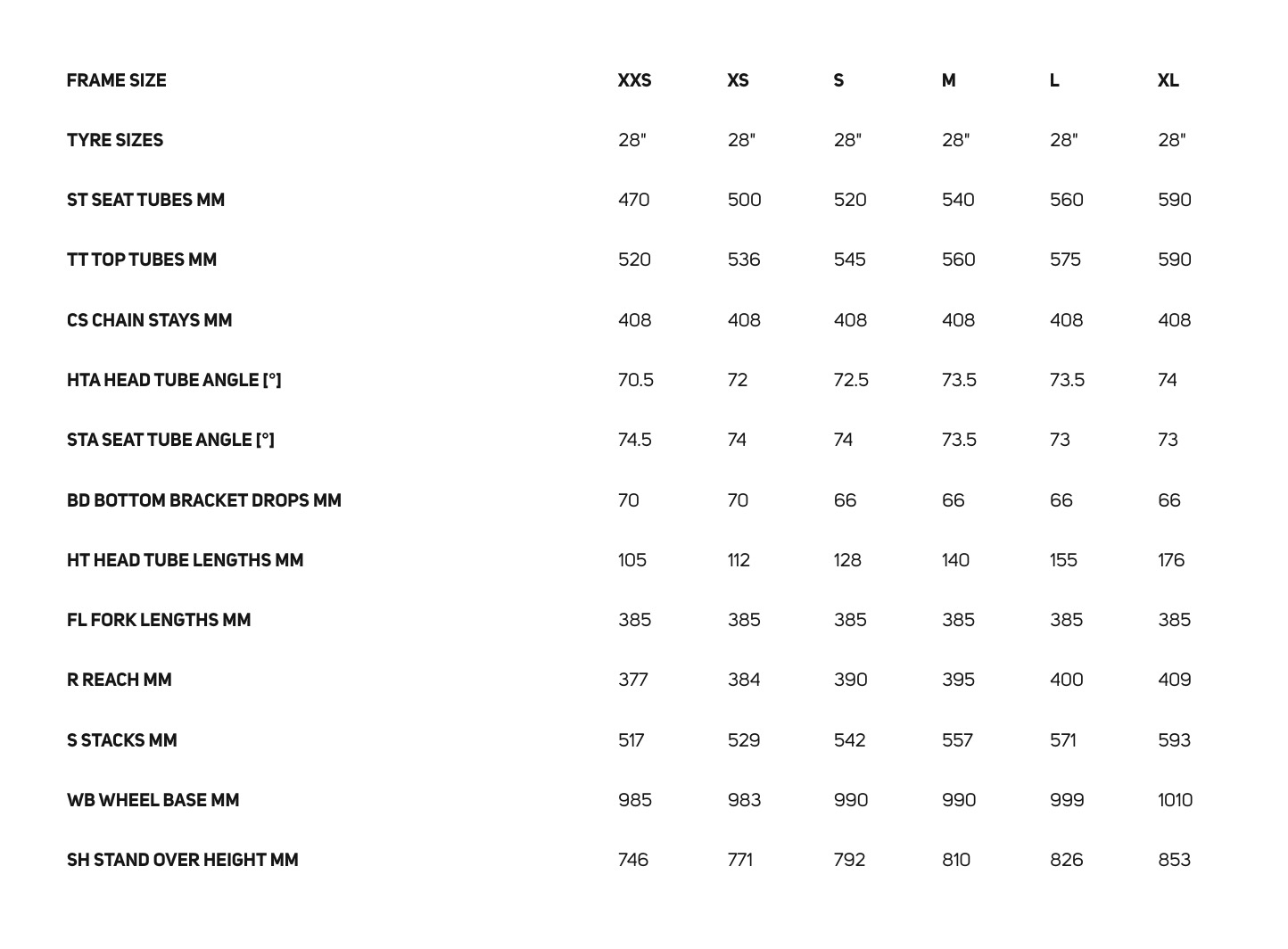

Sizing & Geometry
Frame measurements and sizing vary by bike size. Measurements are shown for each available frame size.
Swipe across to view all sizes.
| Geometry | 3XS | XXS | XS | S | M | L | XL |
|---|---|---|---|---|---|---|---|
| Frame geometry | |||||||
| Stack (mm) | 512 | 517 | 529 | 542 | 557 | 571 | 593 |
| Reach (mm) | 373 | 377 | 384 | 390 | 395 | 400 | 409 |
| Effective top tube (mm) | 516 | 520 | 535 | 545 | 560 | 575 | 590 |
| Seat tube (mm) | 440 | 470 | 500 | 520 | 540 | 560 | 590 |
| Head tube (mm) | 104 | 109 | 120 | 134 | 150 | 165 | 189 |
| Standover (mm) | 711 | 737 | 764 | 782 | 801 | 819 | 847 |
| Handling | |||||||
| Head angle (°) | 70.50 | 71 | 72 | 72.50 | 73.50 | 73.50 | 74 |
| Seat angle (°) | 75 | 74.50 | 74 | 73.50 | 73.50 | 73 | 73 |
| Chainstay (mm) | 408 | 408 | 408 | 408 | 408 | 408 | 408 |
| Wheelbase (mm) | 974 | 975 | 980 | 985 | 990 | 1,000 | 1,011 |
| Fork offset (mm) | 45 | 45 | 45 | 45 | 45 | 45 | 45 |
Frame Details
Frame Weight
This frame weighs 950g
Frame Material
Carbon Fiber
Forks
REACTO CF5 IV, material: carbon, 700x30C max. wheelsize, 100x12/ 142x12mm axle standard, BB86,5 bottom bracket standard
Fork Material
The forks are made from Carbon Fiber
Cables: Internally Routed
Routed through bars, stem and frame
Axel Type: Thru-axle
How the wheels are secured to the frame
Brake Type: Disc Brake
Welcome to the future!
Brake Mount: Flat Mount
How the calipers are mounted
Integrated bar and stem: Yes
The bar and stem are integrated
Drivechain Details
Groupset name
Shimano Dura Ace Di2
Electric Groupset: Yes
This bike has electric gears
Shifters
Shimano Dura Ace disc Di2
Front Derailleur
Shimano Dura-Ace Di2 FD-R9250 (electronic braze-on).
Rear Derailleur
Shimano Dura Ace Di2
Cassette
Shimano Dura-Ace CS-R9200.
Cranks
Shimano Dura-Ace FC-R9200-P (165mm to 175mm)
Power Meter: Yes
This bike comes with a power meter
Bottom Bracket
Shimano SM-BB72-41B, Pressfit 86.5
Chain
Shimano CN-M9100-12 (XTR/Dura-Ace grade 12-speed hyperglide+ chain).
Battery
Unknown
Wheel & Tire Details
Wheelset Name
Vision Metron 60 SL Clincher TL Disc, 100x12mm width front hub, 142x12mm width rear hub, 21mm inner width, 60mm height, Centerlock, material: carbon, Tubeless ready (tubeless tape and valves not included)
Front Wheel Depth
60mm
Rear Wheel Depth
60mm
Tires
Front: Continental Grand Prix 5000S TR, 700x28C, fold, tubeless ready, Rear: Continental Grand Prix 5000S TR, 700x28C, fold, tubeless ready
Tire Type
Clincher
Max Tire Size: 32 mm
This is the max tire size you can use
Brakes
Brake Type: Disc Brake
Welcome to the future!
Brake Mount: Flat Mount
How these disc brakes are mounted
Brakes
Shimano Dura Ace, Hydraulic disc
Brake Rotors
Shimano RT-CL900 Centerlock rotors | 160 mm front and rear
Other Components
Saddle
Prologo Scratch M5, V-mount adapter, incl. MERIDA minitool
Seatpost
MERIDA TEAM CW Aero shape 15mm setback Carbon
Handlebars
Vision Metron 5D ACR EVO, material: carbon, 380mm (3XS-XXS-XS-S), 400mm (M-L-XL)
Bar Tape
Prologo One-Touch
