Bike Info
Worldwide Shipping: Yes
Delivery across the globe!
Warranty: Lifetime
Limited warranty website average: 3.12 years
Released: 2023
The bike was released 3 years ago
Bike Type: Road
The style of riding intended for this bike
Bike Spec
Groupset
Shimano 105
Wheelset
Giant SLR 2 36 Carbon Disc
Brake Type: Disc Brake
Welcome to the future!
Frameset Material
Carbon Fiber
Max Tire Size: 32 mm
This is the max tire size you can use
UCI Approved: Yes
You can use for official races

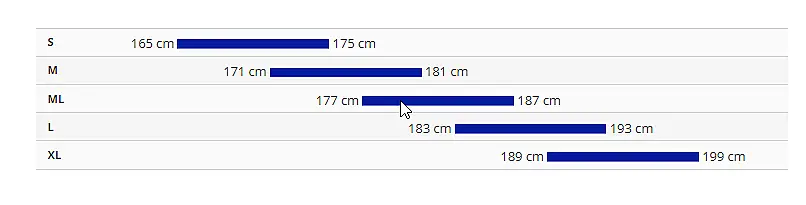

Sizing & Geometry
Frame Sizes
XS S M M/L L XLThis frame comes in 6 sizes, this is 0.44 more sizes than the website average.

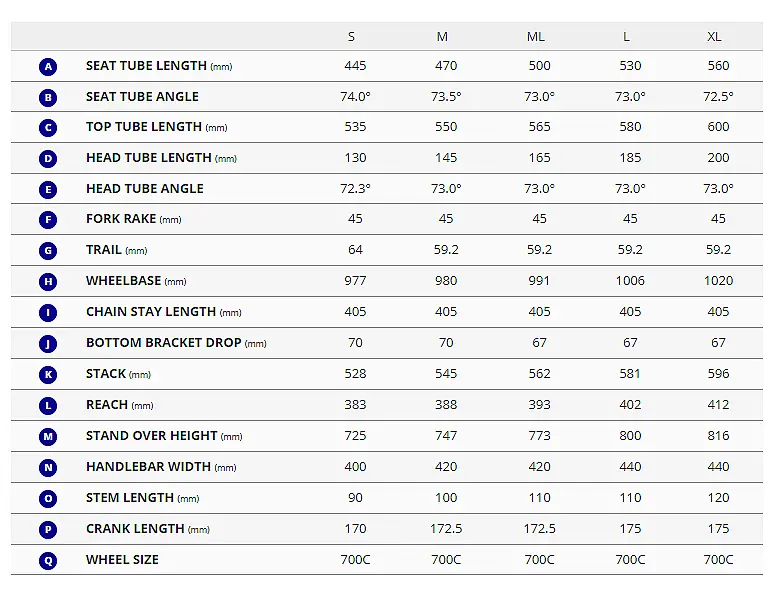

Sizing & Geometry
Frame measurements and sizing vary by bike size. Measurements are shown for each available frame size.
Swipe across to view all sizes.
| Geometry | XS | S | M | ML | L | XL |
|---|---|---|---|---|---|---|
| Sizing | ||||||
| Wheel size | 700c | 700c | 700c | 700c | 700c | 700c |
| Frame geometry | ||||||
| Stack (mm) | 517 | 528 | 545 | 562 | 581 | 596 |
| Reach (mm) | 376 | 383 | 388 | 393 | 402 | 412 |
| Effective top tube (mm) | 520 | 535 | 550 | 565 | 580 | 600 |
| Seat tube (mm) | 425 | 445 | 470 | 500 | 530 | 560 |
| Head tube (mm) | 120 | 130 | 145 | 165 | 185 | 200 |
| Standover (mm) | 706 | 725 | 747 | 773 | 800 | 816 |
| Handling | ||||||
| Head angle (°) | 71 | 72.30 | 73 | 73 | 73 | 73 |
| Seat angle (°) | 74.50 | 74 | 73.50 | 73 | 73 | 72.50 |
| Chainstay (mm) | 405 | 405 | 405 | 405 | 405 | 405 |
| Wheelbase (mm) | 976 | 977 | 980 | 991 | 1,006 | 1,020 |
| Fork offset (mm) | 45 | 45 | 45 | 45 | 45 | 45 |
| Trail (mm) | 72.1 | 64 | 59.2 | 59.2 | 59.2 | 59.2 |
Frame Details
Frame Weight
This frame weighs 800g
Frame Material
Carbon Fiber
Forks
Advanced-grade composite, full-composite OverDrive 2 steerer, disc
Fork Material
The forks are made from Carbon Fiber
Cables: Semi Routed
Routed through the frame, not the bars
Axel Type: Thru-axle
How the wheels are secured to the frame
Brake Type: Disc Brake
Welcome to the future!
Brake Mount: Flat Mount
How the calipers are mounted
Integrated bar and stem: No
You can use any bar and stem
Drivechain Details
Groupset name
Shimano 105
Electric Groupset: No
This bike doesn't have electric gears
Shifters
Shimano 105 2x12
Front Derailleur
Shimano 105 R7000 (Braze-on fitting).
Rear Derailleur
Shimano 105
Cassette
Shimano 105 R7000.
Cranks
Shimano 105 (170/172.5/175mm by size)
Power Meter: No
This bike doesn't have a power meter
Bottom Bracket
Shimano, press fit
Chain
KMC X11EL-1 (Note: Some regional batches substituted this with a Shimano HG601 chain due to mid-season component supply constraints).
Wheel & Tire Details
Wheelset Name
Giant SLR 2 36 Carbon Disc
Front Wheel Depth
36mm
Rear Wheel Depth
36mm
Tires
Giant Gavia Course 1, tubeless, 700x25c (28mm), folding
Tire Type
Tubeless
Max Tire Size: 32 mm
This is the max tire size you can use
Brakes
Brake Type: Disc Brake
Welcome to the future!
Brake Mount: Flat Mount
How these disc brakes are mounted
Brakes
Shimano 105 hydraulic
Brake Rotors
Shimano CenterLock rotors measuring 160 mm on the front wheel and 140 mm on the rear wheel
Other Components
Saddle
Giant Fleet SL
Seatpost
Giant Variant, composite, -5/+15mm offset
Handlebars
Giant Contact SL S:40cm, M:42cm, M/L:42cm, L:44cm, XL:44cm
Bar Tape
Stratus Lite 2.0
