Bike Info
Worldwide Shipping: Yes
Delivery across the globe!
Warranty: Lifetime
Limited warranty website average: 3.12 years
Released: 2023
The bike was released 3 years ago
Bike Type: Road
The style of riding intended for this bike
Bike Spec
Groupset
Shimano Tiagra
Wheelset
Shimano Tiagra
Brake Type: Disc Brake
Welcome to the future!
Frameset Material
Carbon Fiber
Max Tire Size: 35 mm
This is the max tire size you can use
UCI Approved: Yes
You can use for official races
Sizing & Geometry
Frame Sizes
XS S M L XLThis frame comes in 5 sizes, this is 0.56 less sizes than the website average.
Sizing & Geometry
Frame measurements and sizing vary by bike size. Measurements are shown for each available frame size.
Swipe across to view all sizes.
| Geometry | XS | S | M | M/L | L | XL |
|---|---|---|---|---|---|---|
| Sizing | ||||||
| Rider height | 157–169 cm | 165–175 cm | 171–181 cm | 177–187 cm | 183–193 cm | 189–199 cm |
| Wheel size | 700c | 700c | 700c | 700c | 700c | 700c |
| Frame geometry | ||||||
| Stack (mm) | 522 | 546 | 567 | 586 | 605 | 624 |
| Reach (mm) | 370 | 374 | 377 | 381 | 390 | 398 |
| Effective top tube (mm) | 515 | 530 | 545 | 560 | 575 | 595 |
| Seat tube (mm) | 410 | 445 | 480 | 515 | 535 | 565 |
| Head tube (mm) | 120 | 140 | 160 | 185 | 205 | 225 |
| Standover (mm) | 731 | 754 | 777 | 805 | 823 | 843 |
| Handling | ||||||
| Head angle (°) | 70.50 | 71.80 | 72.50 | 72.50 | 72.50 | 72.50 |
| Seat angle (°) | 74.50 | 74 | 73.50 | 73 | 73 | 72.50 |
| Chainstay (mm) | 420 | 420 | 420 | 420 | 420 | 420 |
| Wheelbase (mm) | 995 | 995 | 998 | 1,010 | 1,025 | 1,040 |
| Fork offset (mm) | 50 | 50 | 50 | 50 | 50 | 50 |
| Trail (mm) | 71.3 | 63.1 | 58.2 | 58.2 | 58.2 | 58.2 |

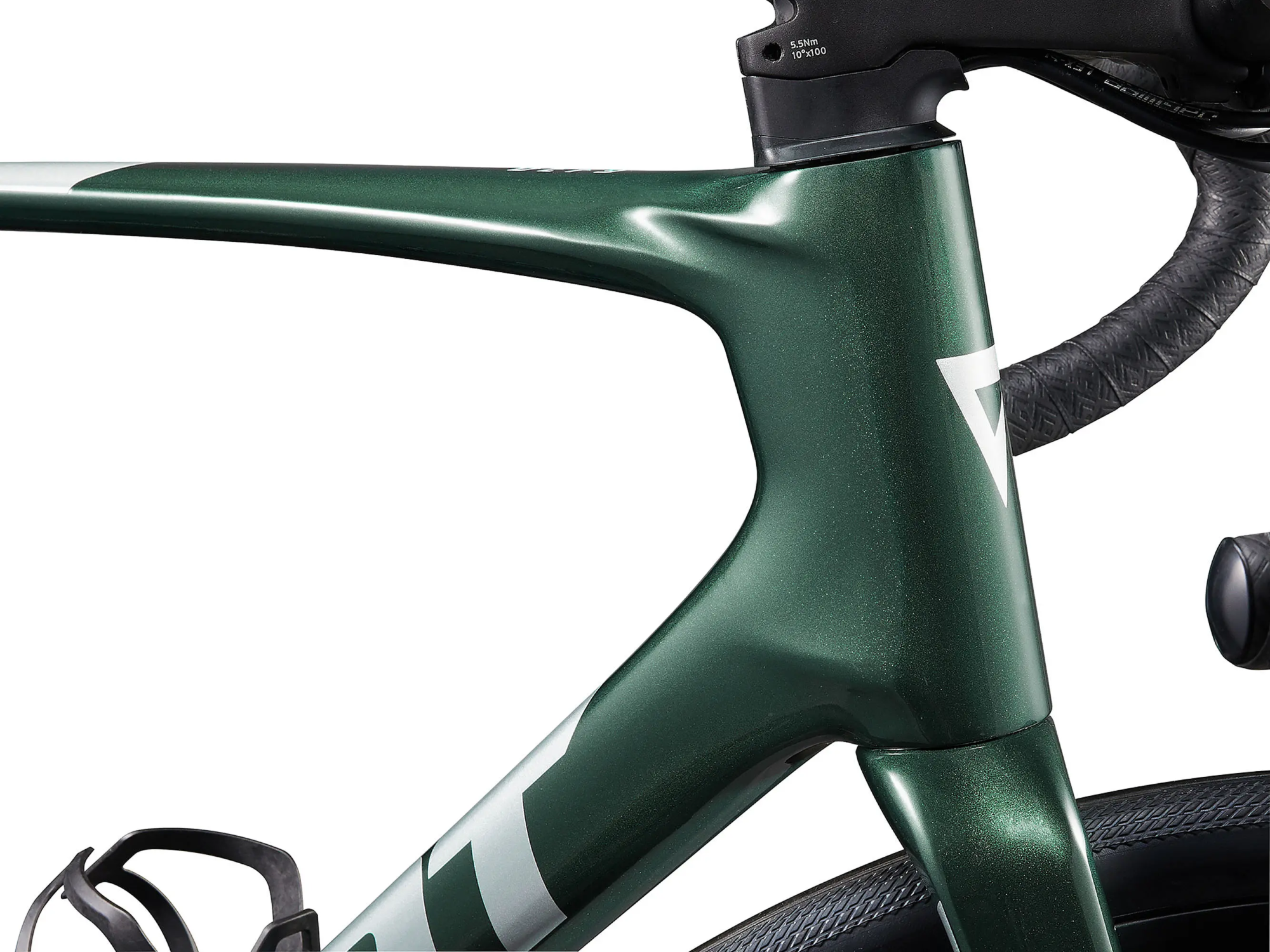

Frame Details
Frame Weight
This frame weighs 860g
Frame Material
Carbon Fiber
Forks
Advanced-grade composite, full-composite steerer, disc
Fork Material
The forks are made from Carbon Fiber
Cables: Semi Routed
Routed through the frame, not the bars
Axel Type: Thru-axle
How the wheels are secured to the frame
Brake Type: Disc Brake
Welcome to the future!
Brake Mount: Flat Mount
How the calipers are mounted
Integrated bar and stem: No
You can use any bar and stem

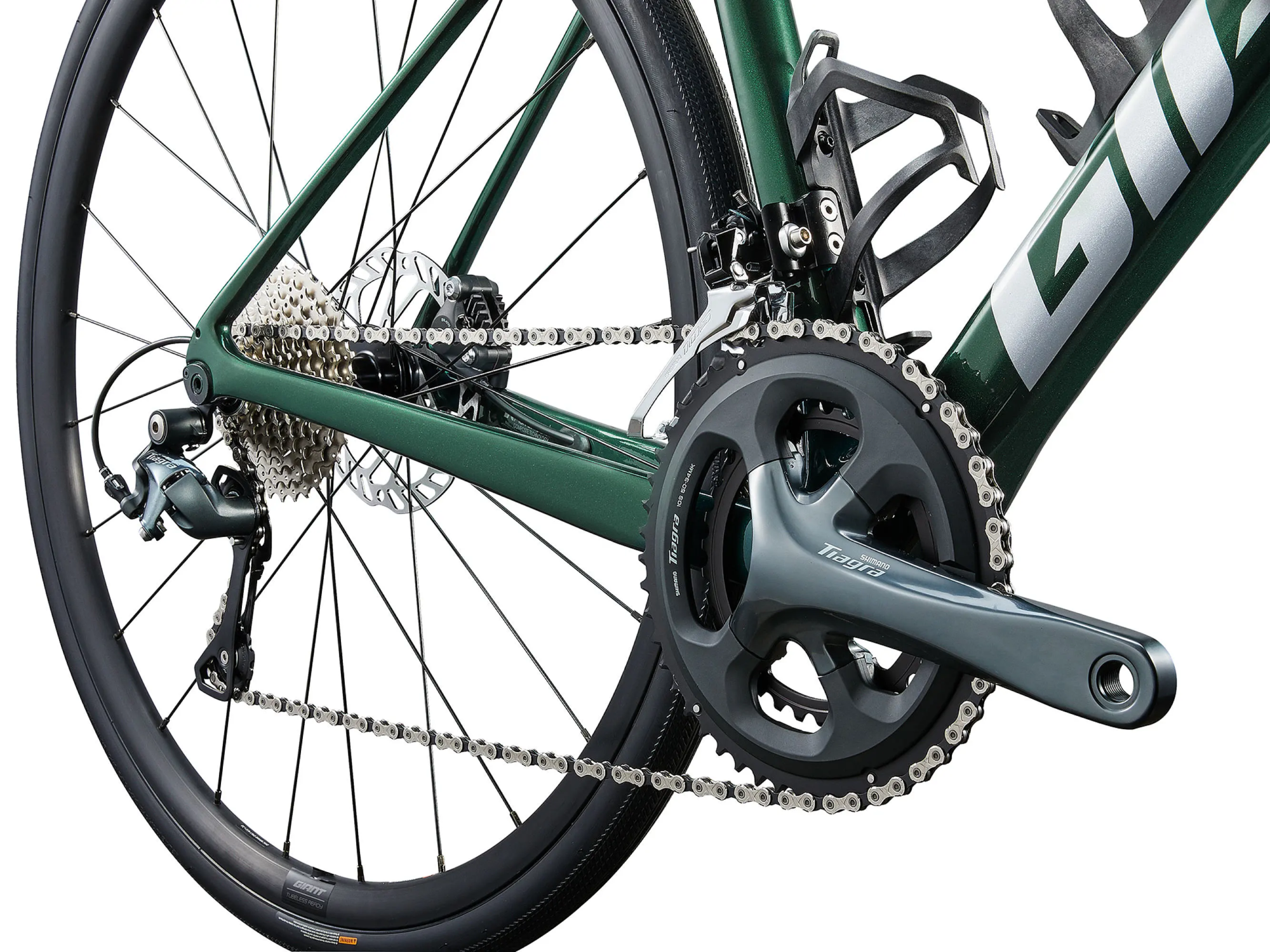

Drivechain Details
Groupset name
Shimano Tiagra
Electric Groupset: No
This bike doesn't have electric gears
Shifters
Shimano Tiagra
Front Derailleur
Shimano Tiagra, braze-on.
Rear Derailleur
Shimano Tiagra
Cassette
Shimano Tiagra HG500.
Cranks
Shimano Tiagra FC-4700 (170mm to 175mm)
Power Meter: No
This bike doesn't have a power meter
Bottom Bracket
Shimano, press fit
Chain
KMC X10 with MissingLink connector.
Wheel & Tire Details
Wheelset Name
Shimano Tiagra
Front Wheel Depth
25mm
Rear Wheel Depth
25mm
Tires
Giant Gavia Fondo 1, tubeless, 700x32c (33.5mm), folding
Tire Type
Tubeless
Max Tire Size: 35 mm
This is the max tire size you can use
Brakes
Brake Type: Disc Brake
Welcome to the future!
Brake Mount: Flat Mount
How these disc brakes are mounted
Brakes
Shimano Tiagra hydraulic
Brake Rotors
Giant MPH 6-bolt disc rotors with a 160 mm front rotor and a 140 mm rear rotor. (Note: A few regional dealer build spreadsheets list dual 160 mm rotors [F/R], but standard global specifications rely on the 160mm/140mm configuration)
Other Components
Saddle
Giant Approach
Seatpost
Giant D-Fuse, composite, 14mm offset

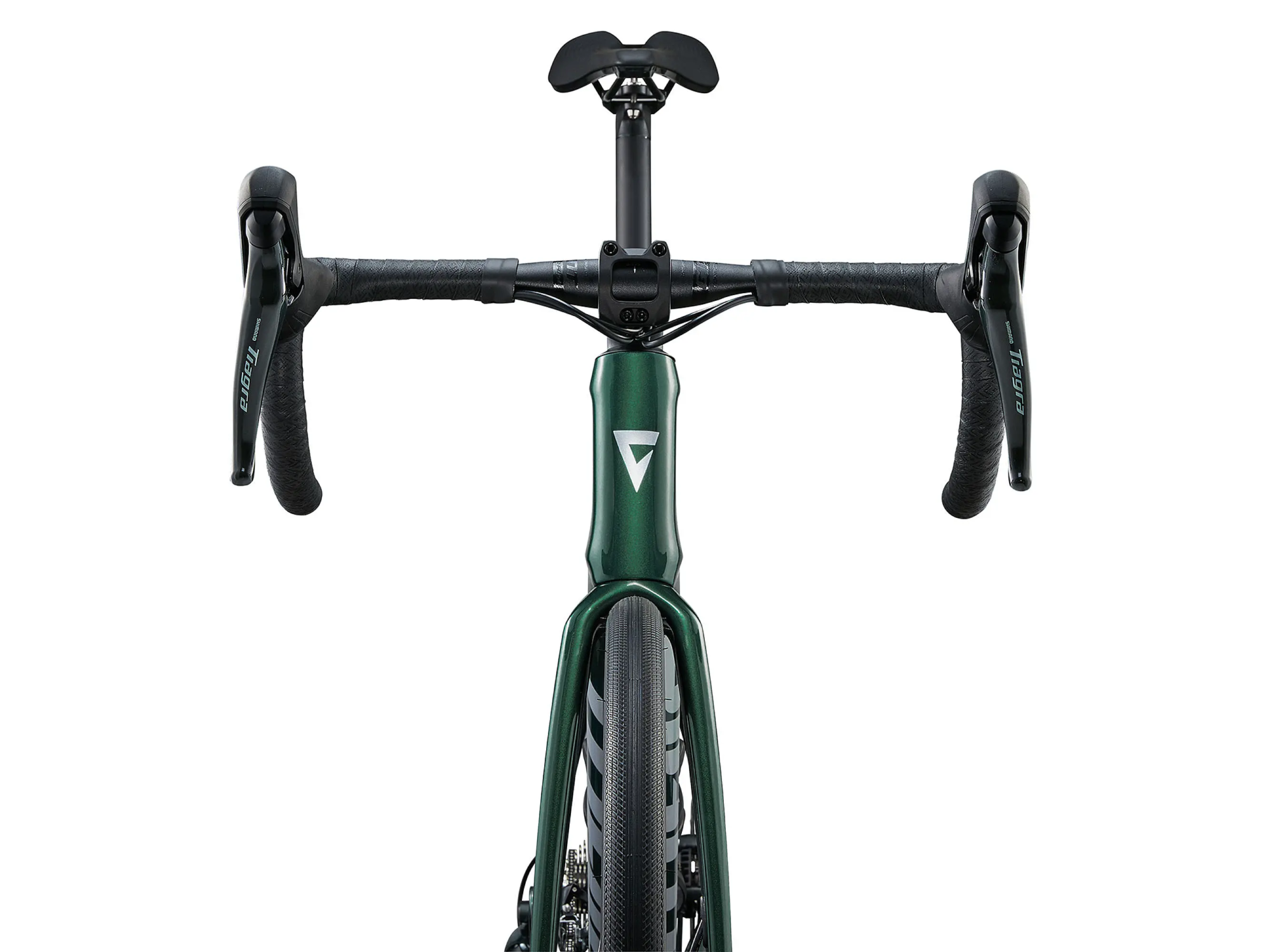

Handlebars
Giant Contact SL D-Fuse S:40cm, M:42cm, M/L:42cm, L:44cm, XL:44cm
Bar Tape
Stratus Lite 3.0
