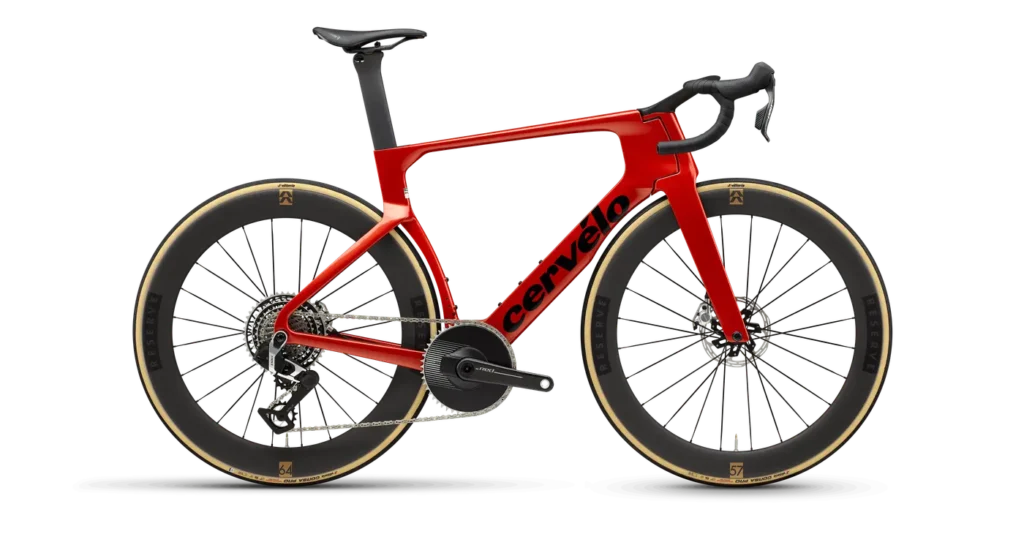

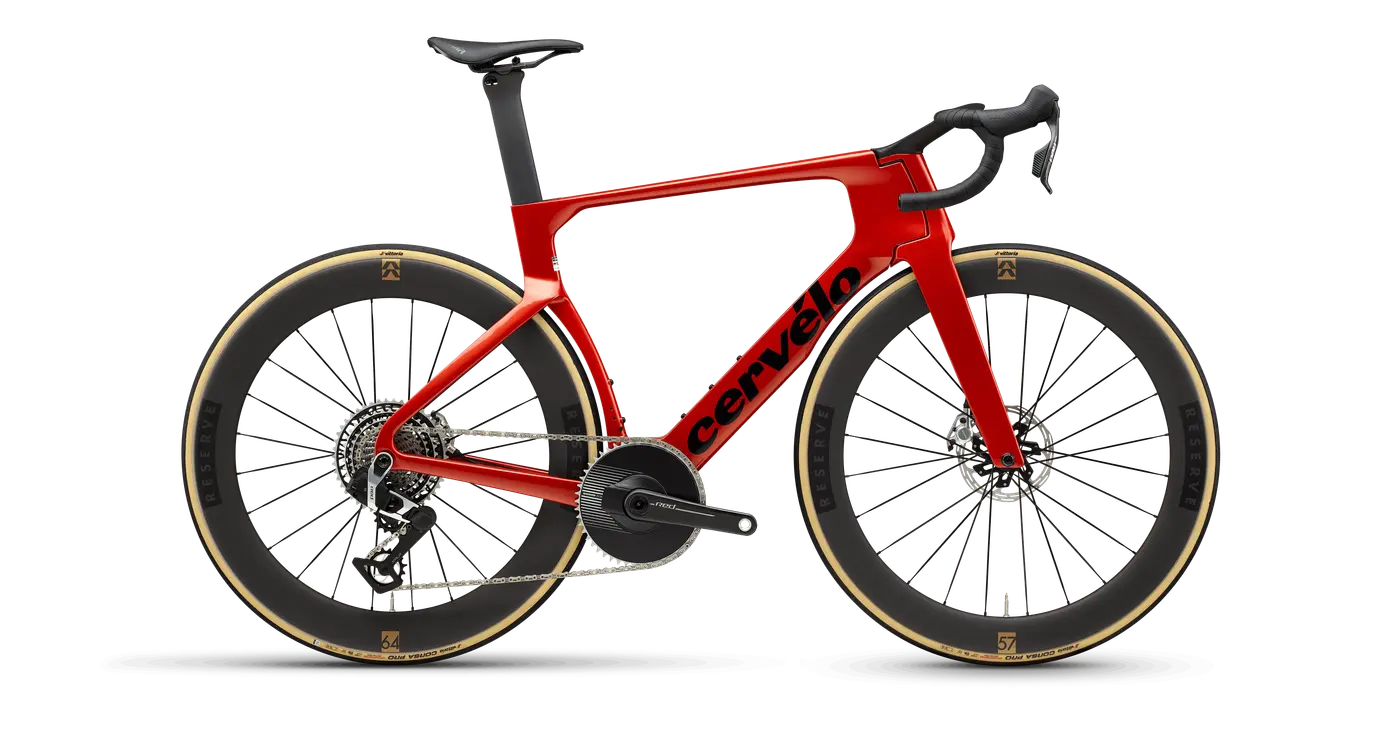

Cervelo S5 Red XPLR AXS 1 2022 bike details 01

Summary

The Cervelo Cervelo S5 Red XPLR AXS 1, a Road bike released in 2022, priced at £12000. The frame is Carbon Fiber and a fork is Carbon Fiber. The bike is equipped with a SRAm Red XPLR AXS 1 groupset (Electric Shifting: Yes) and uses Disc Brakes. Rolling on a Reserve 57TA wheelset, it features a SRAM DUB Ceramic, BBright bottom bracket. It uses Internally Routed cable routing and supports tires up to 34 mm. It comes with a lifetime warranty. Curious how it stacks up against similar bikes? Compare below...

Bike Info

Worldwide Shipping: Yes

Delivery across the globe!

Icon 1

Warranty: Lifetime

Limited warranty website average: 3.12 years

Icon 1

Released: 2022

The bike was released 4 years ago

Icon 1

Bike Type: Road

The style of riding intended for this bike

Bike Spec

Bracket Icon

Weight

The weight of this bike is unknown

Icon 1

Groupset

SRAm Red XPLR AXS 1

Icon 1

Wheelset

Reserve 57TA

Disc Brake

Brake Type: Disc Brake

Welcome to the future!

Icon 1

Frameset Material

Carbon Fiber

Icon 1

Max Tire Size: 34 mm

This is the max tire size you can use

Icon 1

UCI Approved: Yes

You can use for official races

Sizing & Geometry

Frame Sizes

48 51 54 56 58 61

This frame comes in 6 sizes, this is 0.44 more sizes than the website average.

Handebar Sizes Available

36 38 40

Crank Arm Sizes Available

165 170 172.5

Frame Details

Icon 1

Frame Weight

This frame weighs 703g

Icon 1

Frame Material

Carbon Fiber

Icon 1

Forks

Cervélo All-Carbon, Bayonet S5 Fork

Icon 1

Fork Material

The forks are made from Carbon Fiber

Icon 1

Cables: Internally Routed

Routed through bars, stem and frame

Icon 1

Axel Type: Thru-axle

How the wheels are secured to the frame

Disc Brake

Brake Type: Disc Brake

Welcome to the future!

Icon 1

Brake Mount:

How the calipers are mounted

Yes

Integrated bar and stem: Yes

The bar and stem are integrated

Drivechain Details

Icon 1

Groupset name

SRAm Red XPLR AXS 1

Icon 1

Electric Groupset: Yes

This bike has electric gears

Icon 1

Shifters

SRAM Red AXS E1

Icon 1

Front Derailleur

Icon 1

Rear Derailleur

SRAM Red XPLR AXS E1

Icon 1

Cassette

SRAM Red XPLR E1, 10-46T, 13-Speed

Icon 1

Cranks

SRAM Red 1 AXS E1, 50T Aero, DUB, with power meter

Icon 1

Power Meter: Yes

This bike comes with a power meter

Icon 1

Bottom Bracket

SRAM DUB Ceramic, BBright

Icon 1

Chain

SRAM Red E1

Icon 1

Battery

Unknown

Wheel & Tire Details

Icon 1

Wheelset Name

F: Reserve 57TA, DT Swiss 180, R: Reserve 64TA, DT Swiss 180, 12x142mm

Front Wheel Depth Icon

Front Wheel Depth

Unknown

Rear Wheel Depth Icon

Rear Wheel Depth

Unknown

Icon 1

Tires

Vittoria Corsa Pro TLR G2.0 700x29c

Tire Type Icon

Tire Type

Unknown

Icon 1

Max Tire Size: 34 mm

This is the max tire size you can use

Brakes

Disc Brake

Brake Type: Disc Brake

Welcome to the future!

Icon 1

Brake Mount:

How these disc brakes are mounted

Icon 1

Brakes

SRAM Red

Icon 1

Brake Rotors

SRAM Paceline X Centerlock

Other Components

Icon 1

Saddle

Selle Italia NOVUS BOOST EVO SuperFlow Carbon

Icon 1

Seatpost

Cervélo SP34 Carbon

Icon 1

Handlebars

Cervélo HB19 Carbon

Icon 1

Bar Tape
