The website average for Road bikes is 8.62 kg. This bike is 1.23 kg under the average. Total bike weight may vary depending on frame size.
Groupset
SRAM Force AXS Front Derailleur D2, Weight: 0.36 lbs
Wheelset
Zipp 303 Firecrest Hookless, Axle dimension: 12x100 mm, Rotor mount: Center Lock, Rim height: 40 mm, Inner width: 25 mm, Rim material: Carbon, Weight: 1.43 lbs | Zipp 303 Firecrest Hookless XDR, Axle dimension: 12x142 mm, Rotor mount: Center Lock, Rim height: 40 mm, Inner width: 25 mm, Rim material: Carbon, Weight: 1.75 lbs
Brake Type: Disc Brake
Welcome to the future!
Frameset Material
Carbon Fiber
Max Tire Size: 33 mm
This is the max tire size you can use
UCI Approved: Yes
You can use for official races
Sizing & Geometry
Frame Sizes
XXSXSSMLXLXXL
This frame comes in 7 sizes, this is 1.48 more sizes than the website average.
Handebar Sizes Available
3941
Crank Arm Sizes Available
165170172.5175177.5
Frame Details
Frame Weight
Unknown
Frame Material
Carbon Fiber

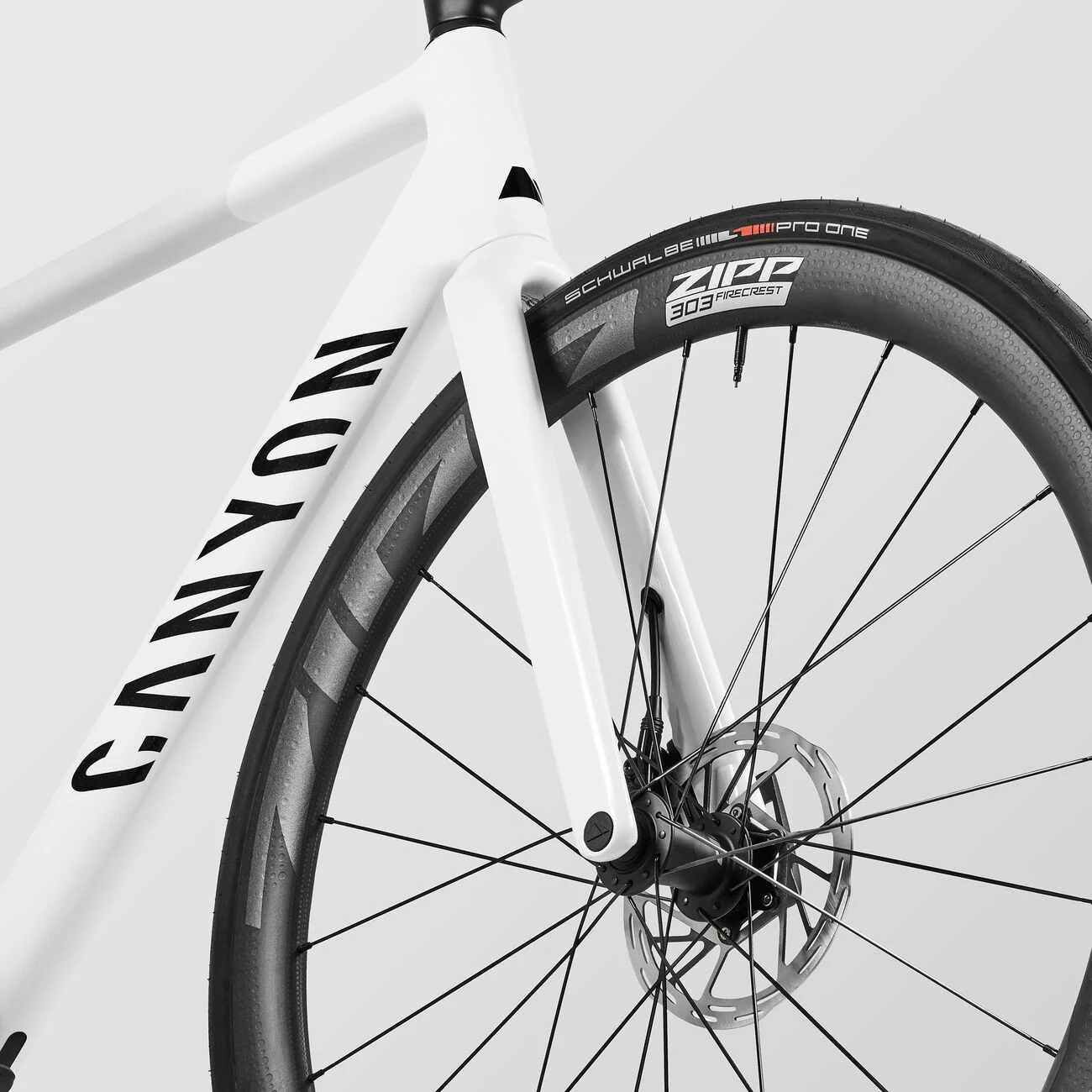

Forks
Canyon Ultimate CF SLX, Our latest 5th-generation Ultimate frame., Axle dimension: 12x142 mm, Tyre clearance: 33 mm, Material: Carbon (CF), Weight: 2.07 lbs
Fork Material
The forks are made from Carbon Fiber
Cables: Internally Routed
Routed through bars, stem and frame
Axel Type: Thru-axle
How the wheels are secured to the frame
Brake Type: Disc Brake
Welcome to the future!
Brake Mount:
How the calipers are mounted

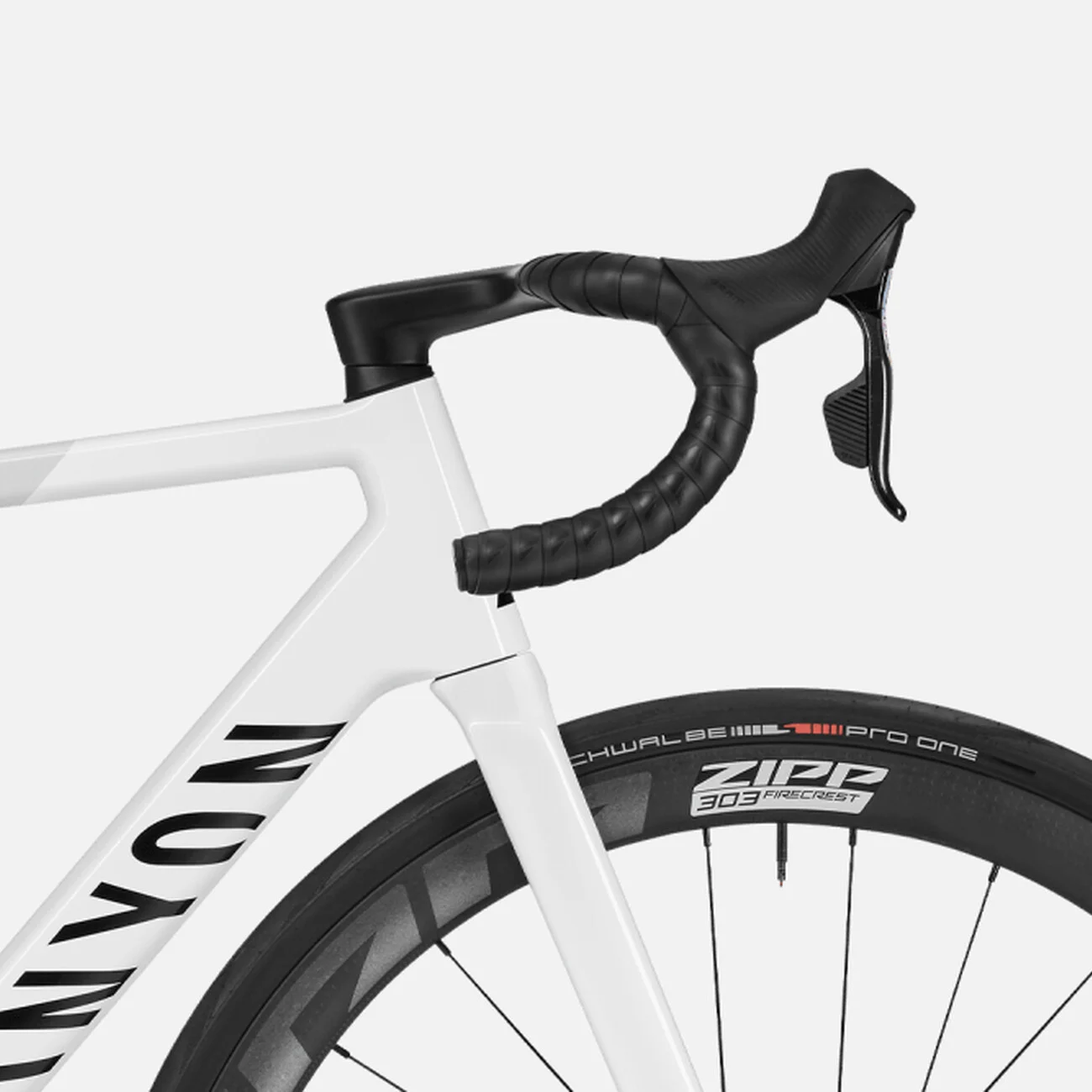

Integrated bar and stem: Yes
The bar and stem are integrated
Drivechain Details
Groupset name
SRAM Force AXS Front Derailleur D2, Weight: 0.36 lbs
Electric Groupset: Yes
This bike has electric gears
Shifters
SRAM Force AXS HRD, 12-speed, Number of pistons: 2, Weight: 0.88 lbs | SRAM Force AXS HRD D2, Number of pistons: 2, Weight: 0.89 lbs
Front Derailleur
SRAM Force AXS Front Derailleur D2, Weight: 0.36 lbs
Rear Derailleur
SRAM Force AXS RD 12s, Weight: 0.67 lbs
Cassette
SRAM RED XG-1290 10-33 12s, Number of sprockets: 12, Range: 10-33
Cranks
SRAM Force AXS Powermeter, Number of chainrings: 2
Zipp 303 Firecrest Hookless, Axle dimension: 12x100 mm, Rotor mount: Center Lock, Rim height: 40 mm, Inner width: 25 mm, Rim material: Carbon, Weight: 1.43 lbs | Zipp 303 Firecrest Hookless XDR, Axle dimension: 12x142 mm, Rotor mount: Center Lock, Rim height: 40 mm, Inner width: 25 mm, Rim material: Carbon, Weight: 1.75 lbs
Front Wheel Depth
40mm
Rear Wheel Depth
40mm
Tires
Schwalbe Pro One TLE, Width: 30 mm, Weight: 0.67 lbs
Tire Type
Unknown
Max Tire Size: 33 mm
This is the max tire size you can use
Brakes
Brake Type: Disc Brake
Welcome to the future!
Brake Mount:
How these disc brakes are mounted
Brakes
SRAM Force AXS HRD, 12-speed, Number of pistons: 2, Weight: 0.88 lbs | SRAM Force AXS HRD D2, Number of pistons: 2, Weight: 0.89 lbs
Brake Rotors
SRAM Paceline
Other Components

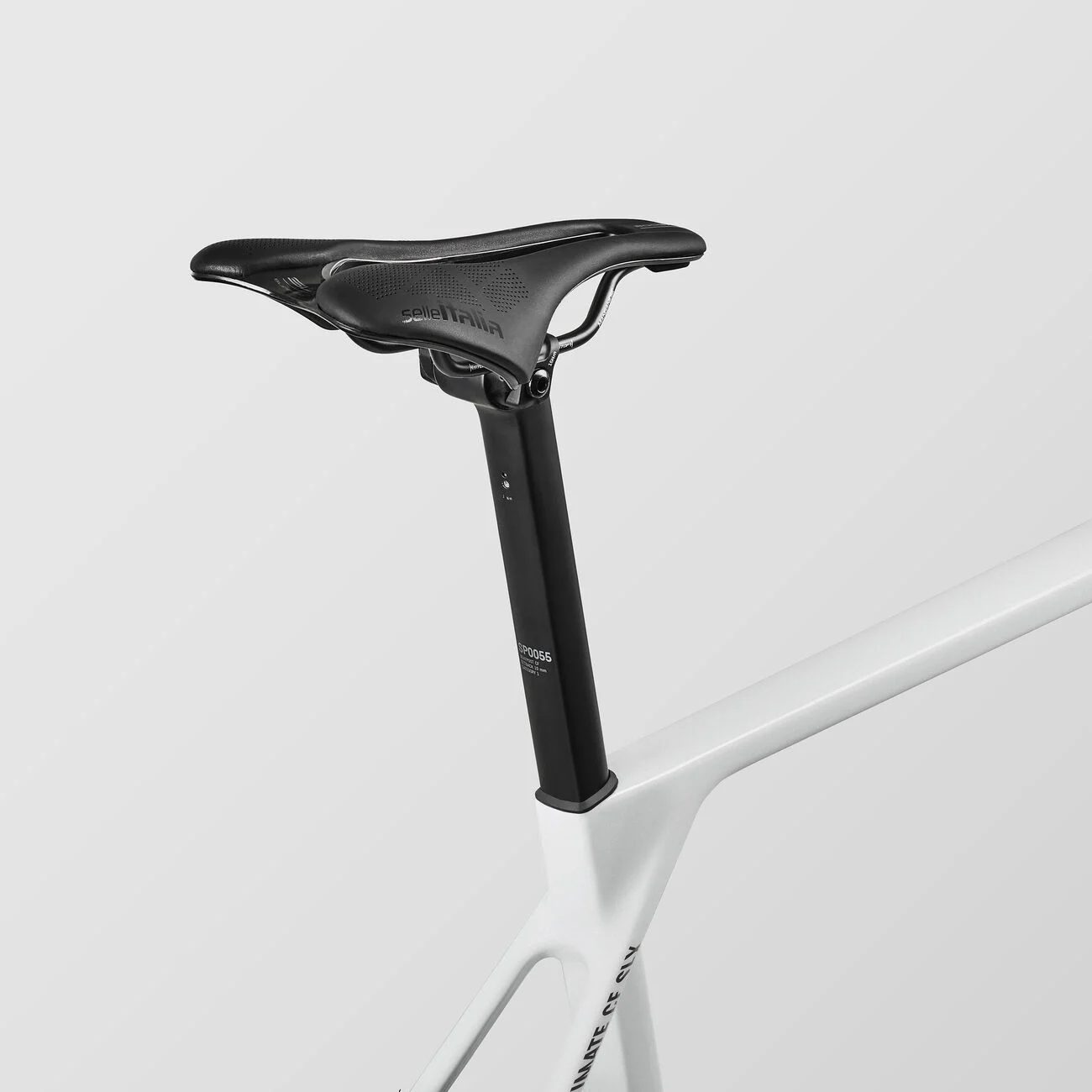

Saddle
Selle Italia SLR Boost Superflow S manganese, Width: 130 mm, Gender: Unisex, Max. Rider Weight: 100 kg, Weight: 0.40 lbs
Seatpost
Selle Italia SLR Boost Superflow S manganese

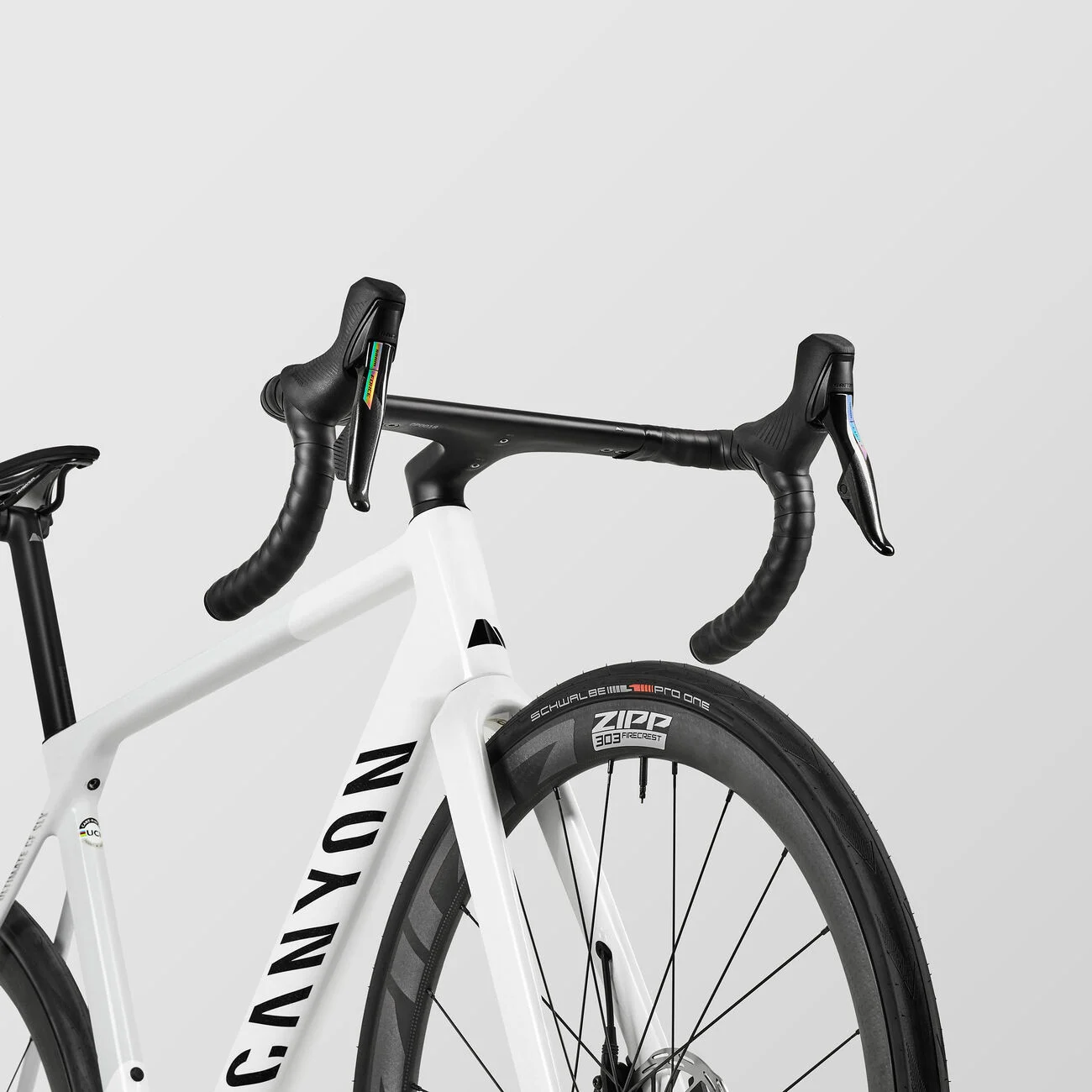

Handlebars
Canyon SP0055
Bar Tape
Canyon Ergospeed Gel
Manufactures Description
Climbing. Descending. Cruising on the flats. This superb all-round road race bike is lightning fast in all scenarios, combining the legendary Ultimate frameset with wireless SRAM shifting, an integrated Quarq power meter, and sensational Zipp wheels.
Climbing. Descending. Cruising on the flats. This superb all-round road race bike is lightning fast in all scenarios, combining the legendary Ultimate frameset with wireless SRAM shifting, an integrated Quarq power meter, and sensational Zipp wheels.
