Bike Info
Worldwide Shipping: Yes
Delivery across the globe!
Warranty: 2 Years
Limited warranty website average: 3.12 years
Released: 2023
The bike was released 3 years ago
Bike Type: Road
The style of riding intended for this bike
Bike Spec
Weight: 7.42 kg
The website average for Road bikes is 8.56 kg. This bike is 1.14 kg under the average. Total bike weight may vary depending on frame size.
Groupset
SRAM Force AXS
Wheelset
Zipp 303 Firecrest Force Launch Edition
Brake Type: Disc Brake
Welcome to the future!
Frameset Material
Carbon Fiber
Max Tire Size: 32 mm
This is the max tire size you can use
UCI Approved: Yes
You can use for official races
Sizing & Geometry
Frame Sizes
3XS 2XS XS S M L XL XXLThis frame comes in 8 sizes, this is 2.44 more sizes than the website average.
Sizing & Geometry
Frame measurements and sizing vary by bike size. Measurements are shown for each available frame size.
Swipe across to view all sizes.
| Geometry | 2XS | XS | S | M | L | XL | 2XL |
|---|---|---|---|---|---|---|---|
| Sizing | |||||||
| Rider height | Up to 166 cm | 166–172 cm | 172–178 cm | 178–184 cm | 184–190 cm | 190–196 cm | 196+ cm |
| Wheel size | — | 650b | 650b | — | — | — | — |
| Frame geometry | |||||||
| Stack (mm) | 498 | 520 | 539 | 560 | 580 | 606 | 624 |
| Reach (mm) | 372 | 378 | 390 | 393 | 401 | 419 | 429 |
| Effective top tube (mm) | 516 | 529 | 546 | 555 | 569 | 594 | 609 |
| Seat tube (mm) | 420 | 450 | 480 | 510 | 540 | 570 | 600 |
| Head tube (mm) | 88 | 107 | 121 | 142 | 162 | 188 | 206 |
| Standover (mm) | 720 | 748 | 775 | 801 | 828 | 851 | 874 |
| Handling | |||||||
| Head angle (°) | 70 | 71.20 | 72.80 | 73.25 | 73.30 | 73.50 | 73.80 |
| Seat angle (°) | 73.50 | 73.50 | 73.50 | 73.50 | 73.50 | 73.50 | 73.50 |
| Chainstay (mm) | 410 | 410 | 410 | 410 | 413 | 415 | 415 |
| Wheelbase (mm) | 975 | 979 | 982 | 988 | 1,003 | 1,029 | 1,042 |
Frame Details
Frame Weight
This frame weighs 2g
Frame Material
Carbon Fiber
Forks
Canyon FK0104 CF
Fork Material
The forks are made from Carbon Fiber
Cables: Internally Routed
Routed through bars, stem and frame
Axel Type: Thru-axle
How the wheels are secured to the frame
Brake Type: Disc Brake
Welcome to the future!
Brake Mount: Flat Mount
How the calipers are mounted
Integrated bar and stem: Yes
The bar and stem are integrated
Drivechain Details
Groupset name
SRAM Force AXS
Electric Groupset: Yes
This bike has electric gears
Shifters
SRAM Force AXS HRD
Front Derailleur
SRAM Force AXS (D2 revision layout).
Rear Derailleur
SRAM Force AXS 12s
Cassette
SRAM Force 12-speed 10-33T
Cranks
SRAM Force Carbon AXS
Power Meter: Yes
This bike comes with a power meter
Bottom Bracket
SRAM DUB Pressfit
Chain
SRAM Force D1 12-speed with Flattop geometry.
Battery
SRAM Powerpack
Wheel & Tire Details
Wheelset Name
Zipp 303 Firecrest Force Launch Edition
Front Wheel Depth
40mm
Rear Wheel Depth
40mm
Tires
Schwalbe Pro One, 28mm
Tire Type
Tubeless
Max Tire Size: 32 mm
This is the max tire size you can use
Brakes
Brake Type: Disc Brake
Welcome to the future!
Brake Mount: Flat Mount
How these disc brakes are mounted
Brakes
SRAM Force AXS HRD
Brake Rotors
Staggered 160 mm front / 140 mm rear utilizing SRAM Paceline center-lock rotors on mid-to-large sizes. (Highly compact frame sizes like 2XS/3XS occasionally default to a dual 140 mm layout natively)
Other Components

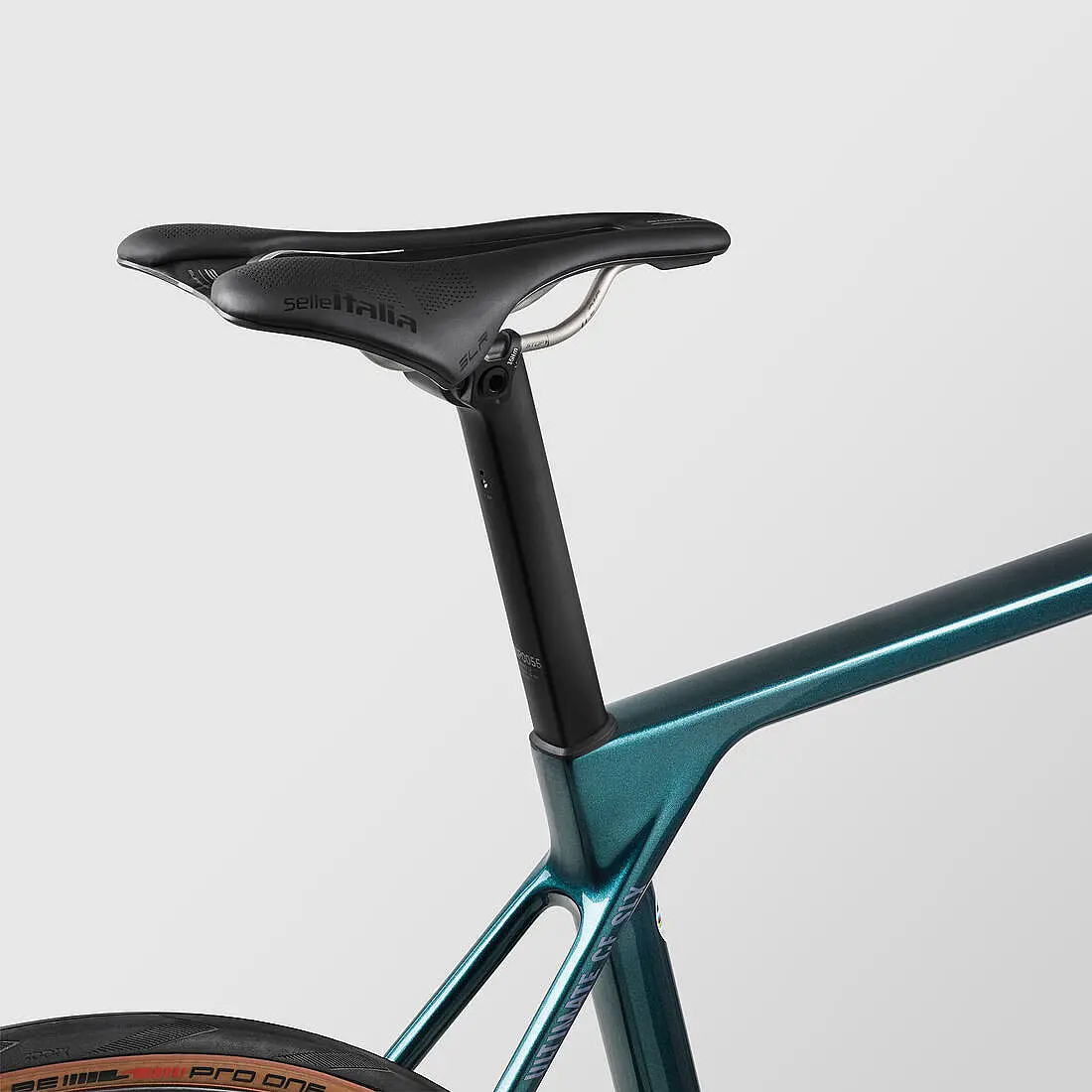

Saddle
Selle Italia SLR Boost Superflow Titanium
Seatpost
Canyon SP0055

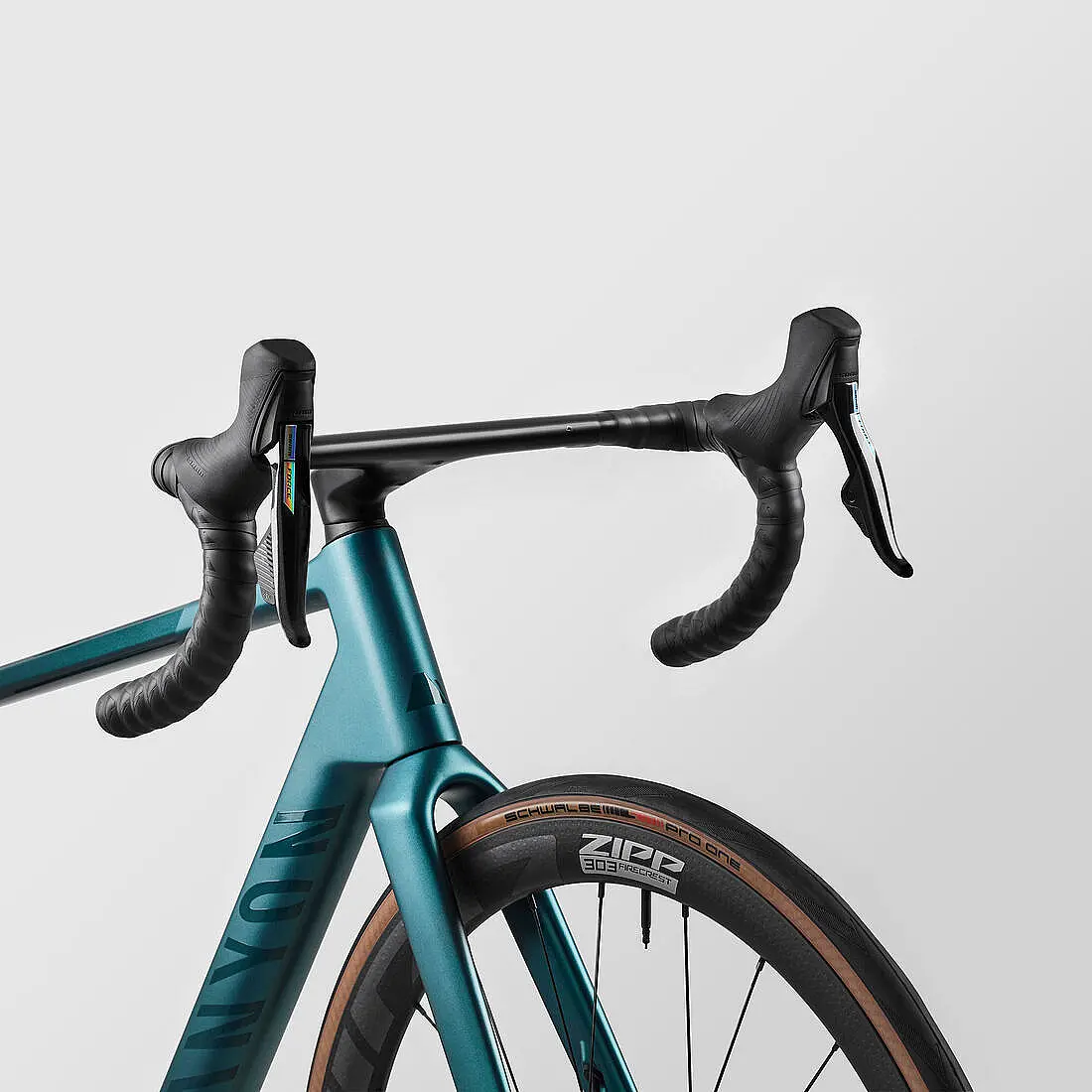

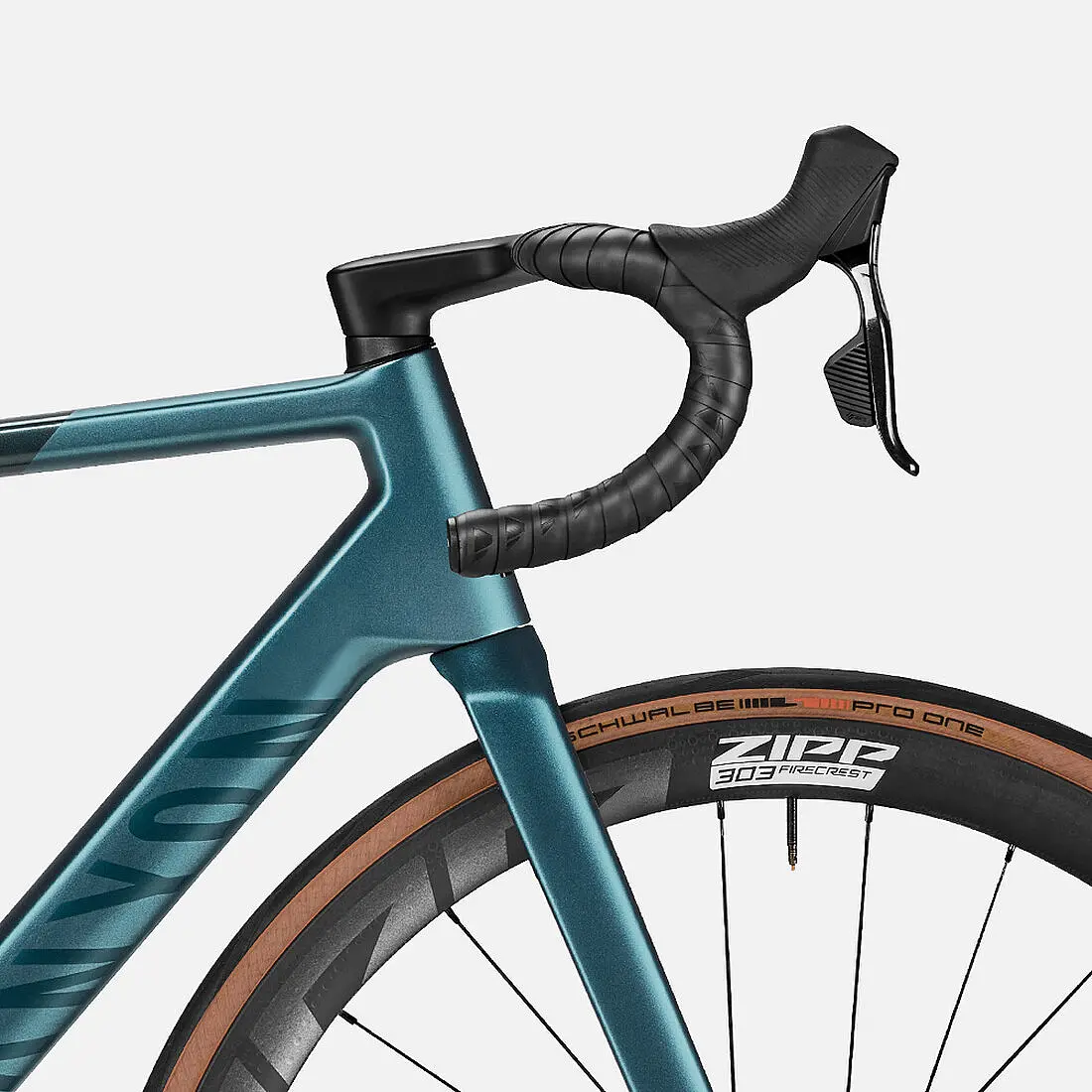

Handlebars
Canyon CP0018 Aerocockpit
Bar Tape
Canyon Ergospeed Gel
