Bike Info
Worldwide Shipping: Yes
Delivery across the globe!
Warranty: 2 Years
Limited warranty website average: 3.12 years
Released: 2025
The bike was released 1 years ago
Bike Type: TT
The style of riding intended for this bike
Bike Spec
Weight: 8.9 kg
The website average for TT bikes is 9.12 kg. This bike is 0.23 kg under the average. Total bike weight may vary depending on frame size.
Groupset
Shimano Dura-Ace Di2 FD-R9250, Weight: 0.21 lbs
Wheelset
HED Vanquish V62 Pro
Brake Type: Disc Brake
Welcome to the future!
Frameset Material
Carbon Fiber
Max Tire Size: 30 mm
This is the max tire size you can use
UCI Approved: Yes
You can use for official races

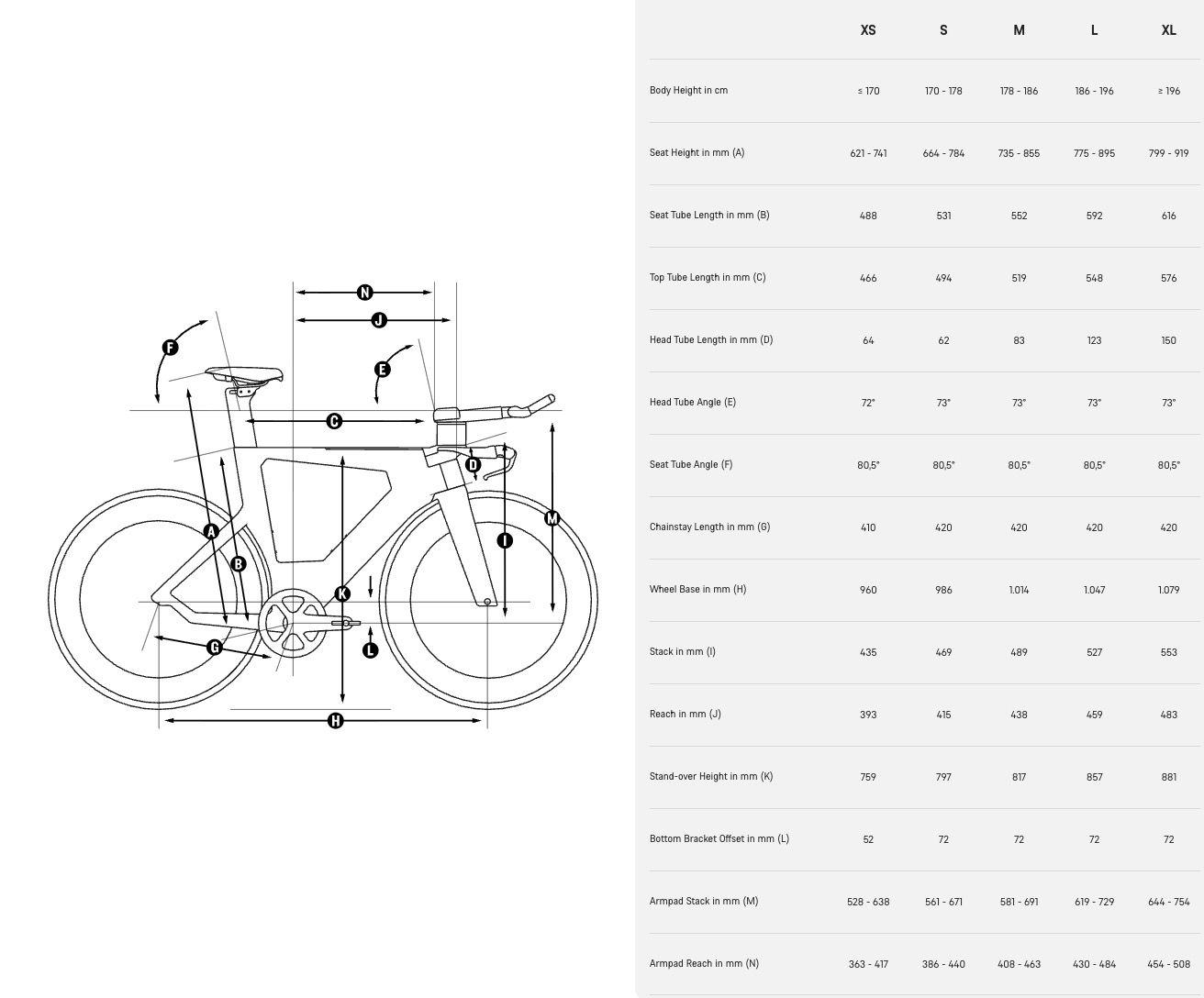

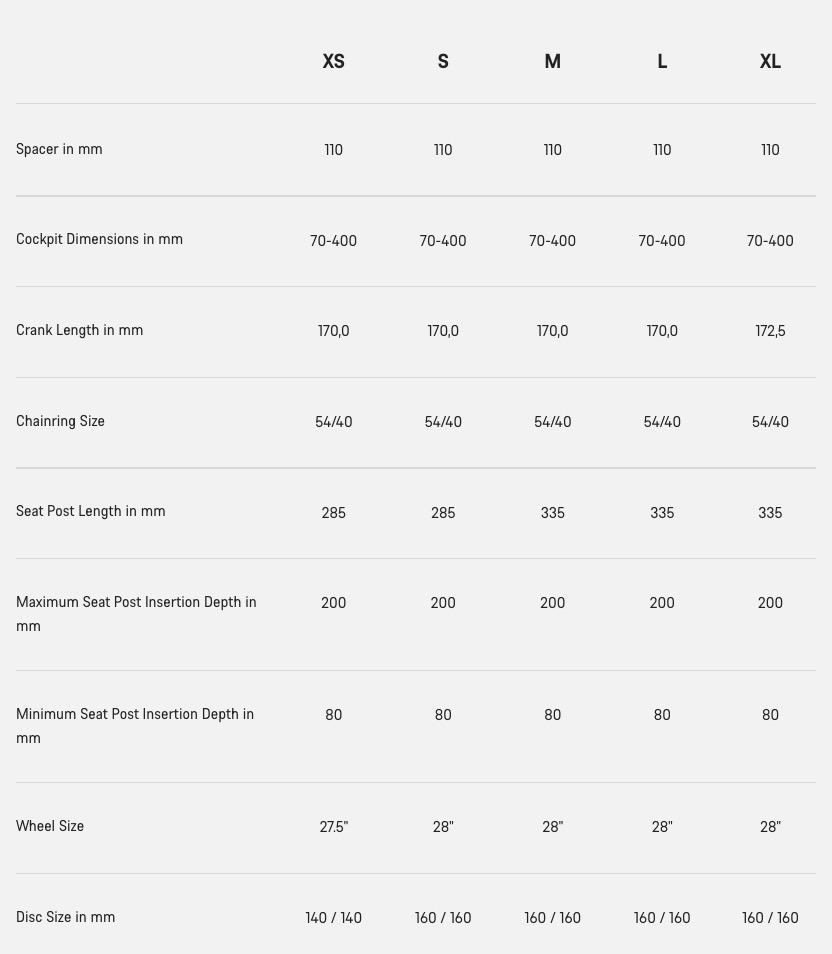

Sizing & Geometry
Frame Sizes
XS S M L XLThis frame comes in 5 sizes, this is 0.56 less sizes than the website average.
Frame Details
Frame Weight
Unknown
Frame Material
Carbon Fiber
Forks
Canyon Speedmax CFR Disc, Canyon Factory Racing triathlon carbon frame, featuring ultra-rare Toray M40X carbon fibres. Shaped by extensive computational fluid dynamics analysis with our aero partners Swiss Side, validated in the wind tunnel. Fully internal routing, integrated hydration system, hidden toolbox, easily accessible bento box, 12x142 mm through axle, flat-mount disc standard., Axle dimension: 12x142 mm, Tyre clearance: 30 mm, Material: Carbon (CFR), Weight: 3.53 lbs
Fork Material
The forks are made from Carbon Fiber
Cables: Internally Routed
Routed through bars, stem and frame
Axel Type: Thru-axle
How the wheels are secured to the frame
Brake Type: Disc Brake
Welcome to the future!
Brake Mount: Flat Mount
How the calipers are mounted
Integrated bar and stem: Yes
The bar and stem are integrated
Drivechain Details
Groupset name
Shimano Dura-Ace Di2 FD-R9250, Weight: 0.21 lbs
Electric Groupset: Yes
This bike has electric gears
Shifters
Shimano Dura-Ace Di2 R9160 Remote TT, Weight: 0.04 lbs
Front Derailleur
Shimano Dura-Ace Di2 FD-R9250, Weight: 0.21 lbs
Rear Derailleur
Shimano Dura-Ace Di2 RD-R9250, 12-speed, Cage length: long, Weight: 0.48 lbs
Cassette
Shimano Dura-Ace CS-R9200, Number of sprockets: 12, Range: 11-30
Cranks
Shimano Dura-Ace R9200, Number of chainrings: 2
Power Meter: No
This bike doesn't have a power meter
Bottom Bracket
Shimano Pressfit BB92, Bottom bracket standard: PF 86,5, Weight: 0.12 lbs
Chain
Shimano CN-M9100 12s
Battery
Unknown
Wheel & Tire Details
Wheelset Name
HED Vanquish V62 Pro, Axle dimension: 12x100 mm, Rotor mount: Center Lock | HED Vanquish V62 Pro, Axle dimension: 12x142 mm, Rotor mount: Center Lock
Front Wheel Depth
62mm
Rear Wheel Depth
62mm
Tires
Continental Grand Prix 5000 S TR, 25mm, Width: 25 mm, Weight: 0.54 lbs | Continental Grand Prix 5000 S TR, 28mm, Width: 28 mm, Weight: 0.65 lbs
Tire Type
Unknown
Max Tire Size: 30 mm
This is the max tire size you can use
Brakes
Brake Type: Disc Brake
Welcome to the future!
Brake Mount: Flat Mount
How these disc brakes are mounted
Brakes
Shimano Flat Mount Adapter +20mm
Brake Rotors
Shimano Dura-Ace RT-CL900 Size: 160 mm Weight: 0.25 lbs
Other Components
Saddle
Fizik Transiro, Gender: Unisex, Weight: 0.41 lbs
Seatpost
Canyon SP0049 Aero Seatpost
Handlebars
Canyon GP0226 Aerobar, Mono aero bar developed with aero experts Swiss Side to deliver optimal aero performance.
Bar Tape
Manufactures Description
The Speedmax CFR sets the world standard in triathlon by packing unmatched adjustability, aerodynamics, integration and comfort into a frame kitted with the finest components, including top-line Shimano Dura-Ace shifting and HED Vanquish Pro wheels.
Similar Bikes Based on Type, Frame Material, and Price

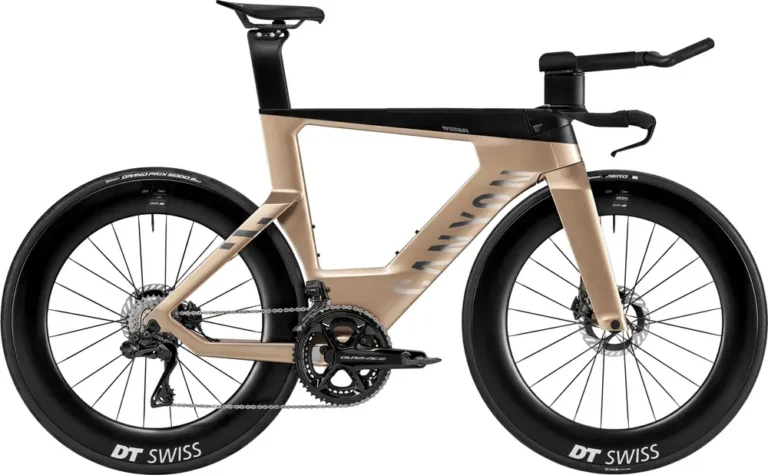

Canyon Speedmax CFR Di2 - 2025
Price: £10,199.00 (+£719.79)

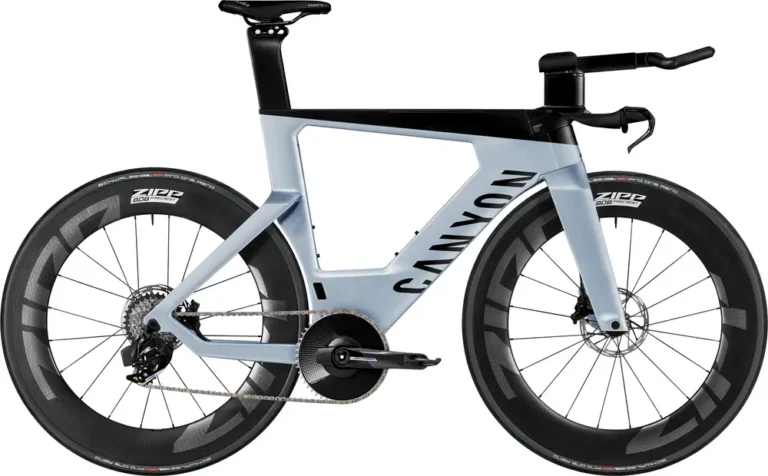

Canyon Speedmax CF SLX 8 AXS 808 - 2025
Price: £8,349.00 (-£1,130.21)

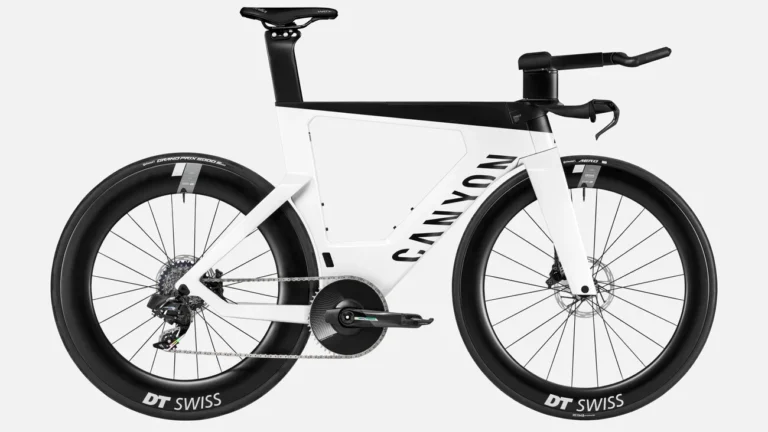

Canyon Speedmax CF SLX 8 AXS - 2025
Price: £8,199.00 (-£1,280.21)
Canyon Speedmax CFR AXS - 2025
Price: £11,149.00 (+£1,669.79)

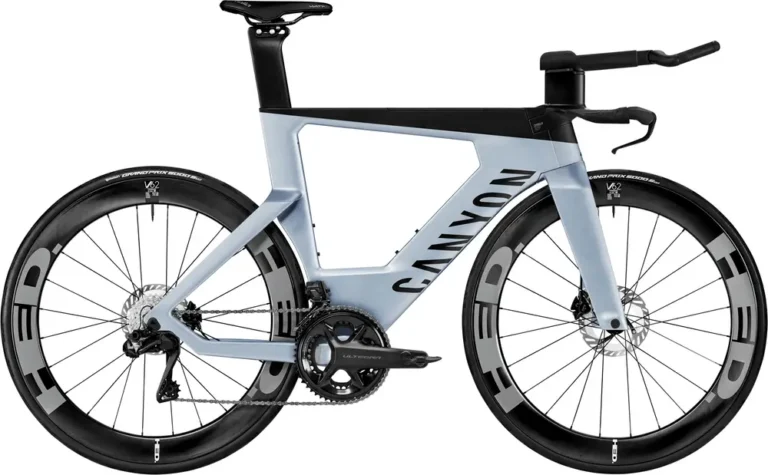

Canyon Speedmax CF SLX 8 Di2 Vanquish - 2025
