Bike Info
Worldwide Shipping: Yes
Delivery across the globe!
Warranty: 2 Years
Limited warranty website average: 3.12 years
Released: 2025
The bike was released 1 years ago
Bike Type: TT
The style of riding intended for this bike
Bike Spec
Weight: 8.7 kg
The website average for TT bikes is 9.16 kg. This bike is 0.46 kg under the average. Total bike weight may vary depending on frame size.
Groupset
SRAM Red AXS
Wheelset
Zipp 858 NSW Hookless
Brake Type: Disc Brake
Welcome to the future!
Frameset Material
Carbon Fiber
Max Tire Size: 30 mm
This is the max tire size you can use
UCI Approved: No
You can't use for official races
Sizing & Geometry
Frame Sizes
XS S M L XLThis frame comes in 5 sizes, this is 0.56 less sizes than the website average.

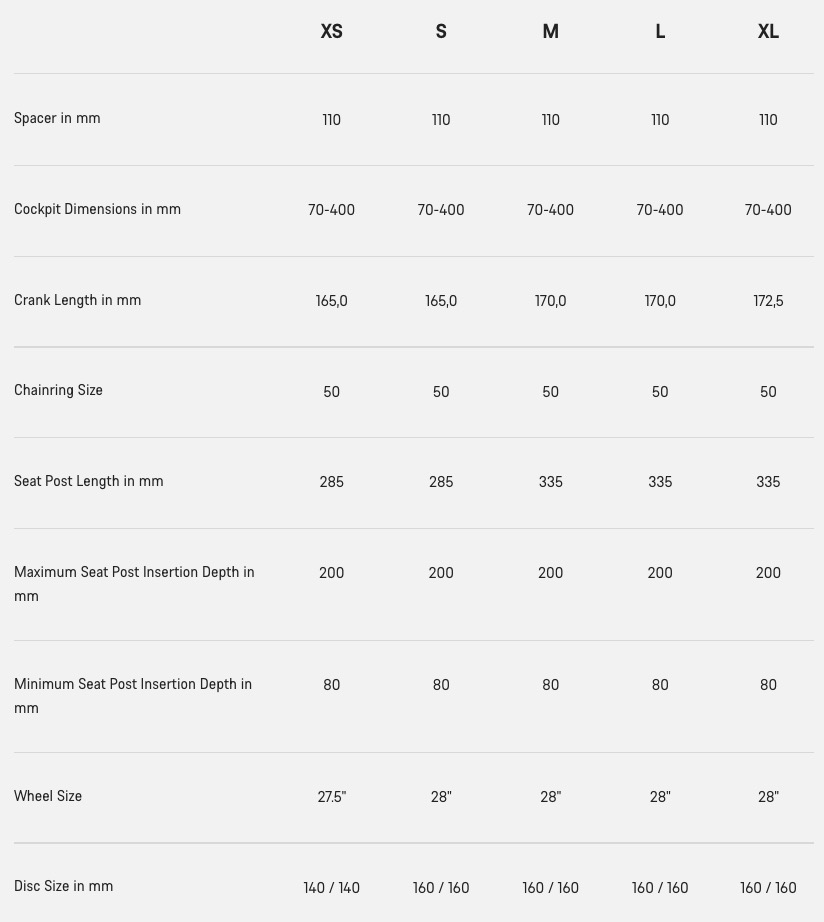

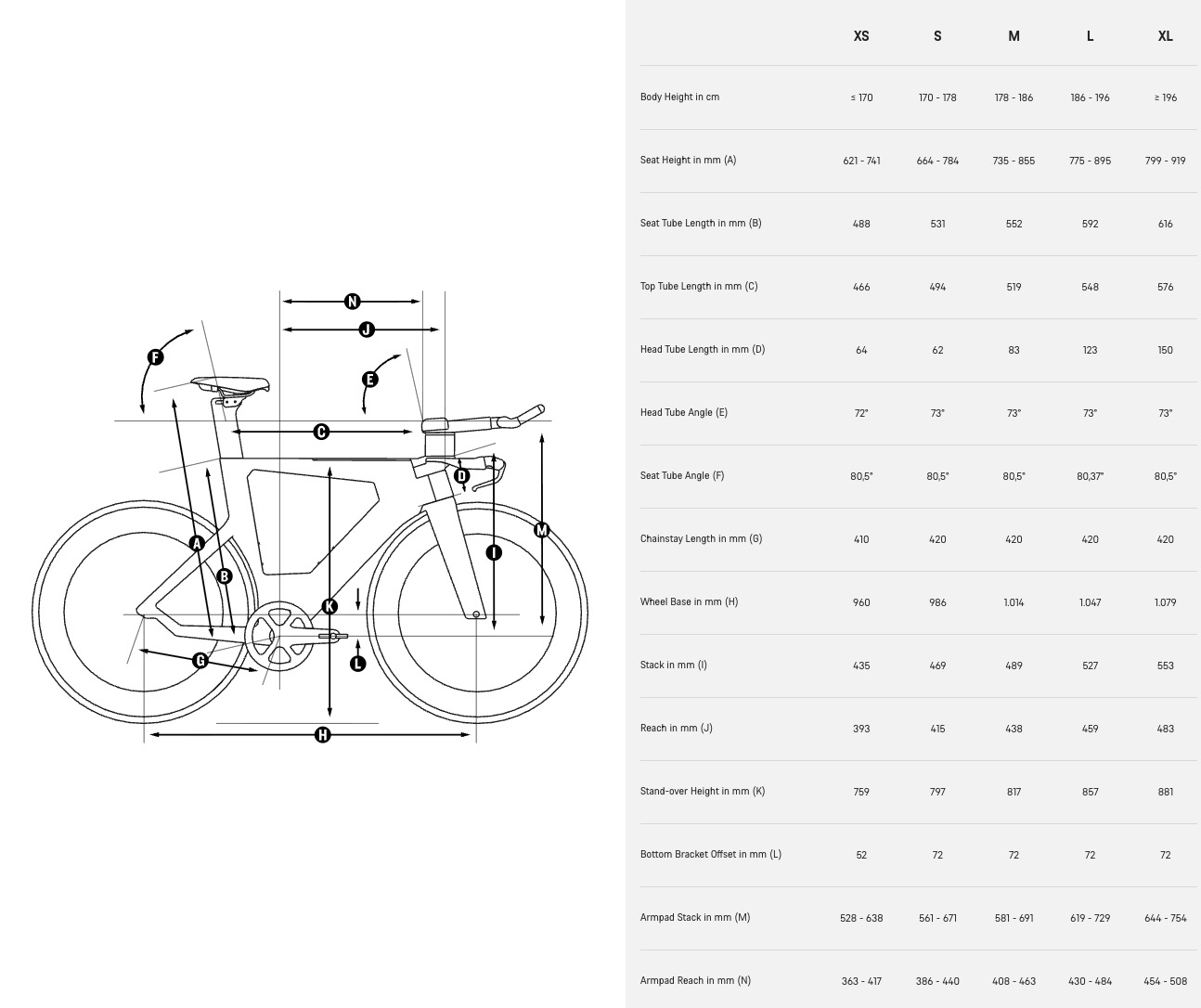

Sizing & Geometry
Frame measurements and sizing vary by bike size. Measurements are shown for each available frame size.
Swipe across to view all sizes.
| Geometry | XS | S | M | L | XL |
|---|---|---|---|---|---|
| Sizing | |||||
| Rider height | 148–158 cm | 158–168 cm | 168–178 cm | 178–185 cm | 185–193 cm |
| Wheel size | 650b | 650b | — | — | — |
| Frame geometry | |||||
| Stack (mm) | 435 | 469 | 489 | 527 | 553 |
| Reach (mm) | 393 | 415 | 438 | 459 | 483 |
| Effective top tube (mm) | 466 | 494 | 519 | 548 | 576 |
| Seat tube (mm) | 488 | 531 | 552 | 592 | 616 |
| Head tube (mm) | 64 | 62 | 83 | 123 | 150 |
| Standover (mm) | 759 | 797 | 817 | 857 | 881 |
| Handling | |||||
| Head angle (°) | 72 | 73 | 73 | 73 | 73 |
| Seat angle (°) | 80.50 | 80.50 | 80.50 | 80.50 | 80.50 |
| Chainstay (mm) | 410 | 420 | 420 | 420 | 420 |
| Wheelbase (mm) | 960 | 986 | 1,014 | 1,047 | 1,079 |
Frame Details
Frame Weight
Unknown
Frame Material
Carbon Fiber
Forks

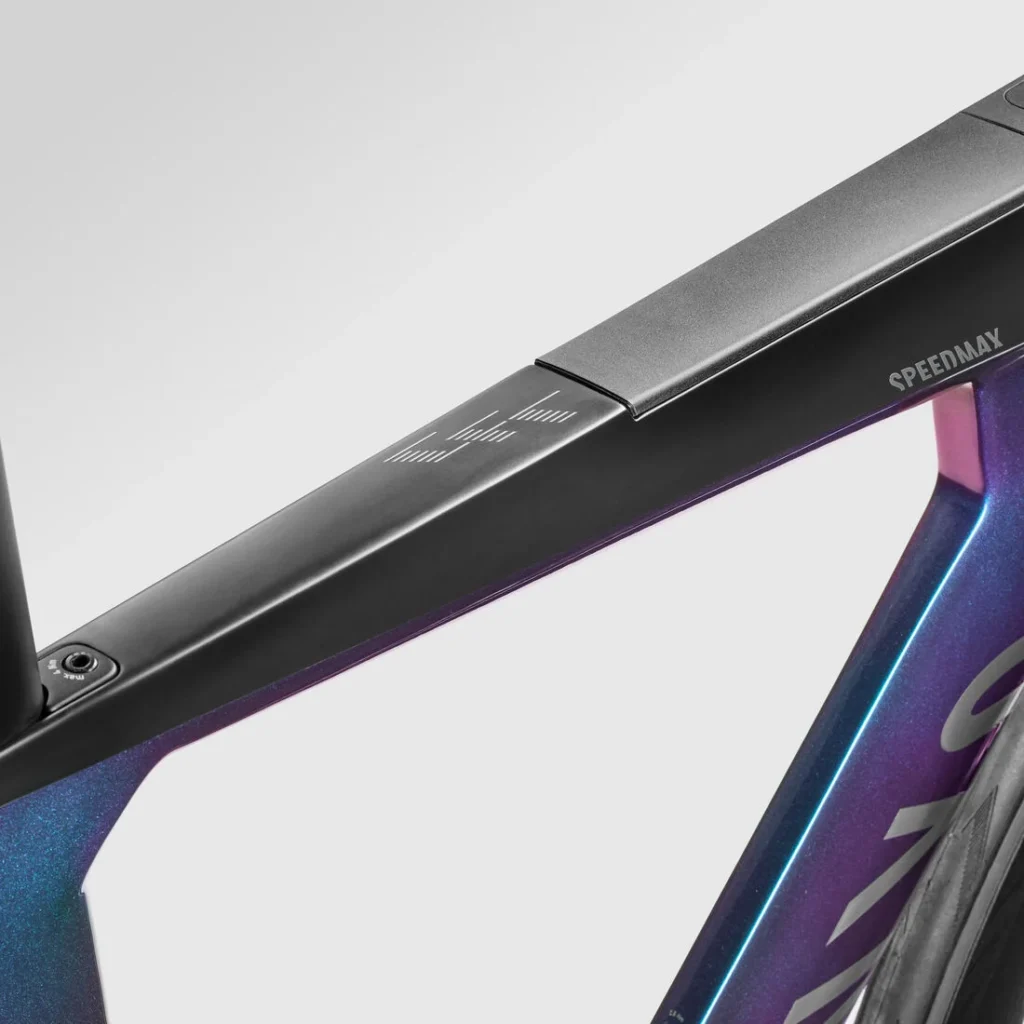

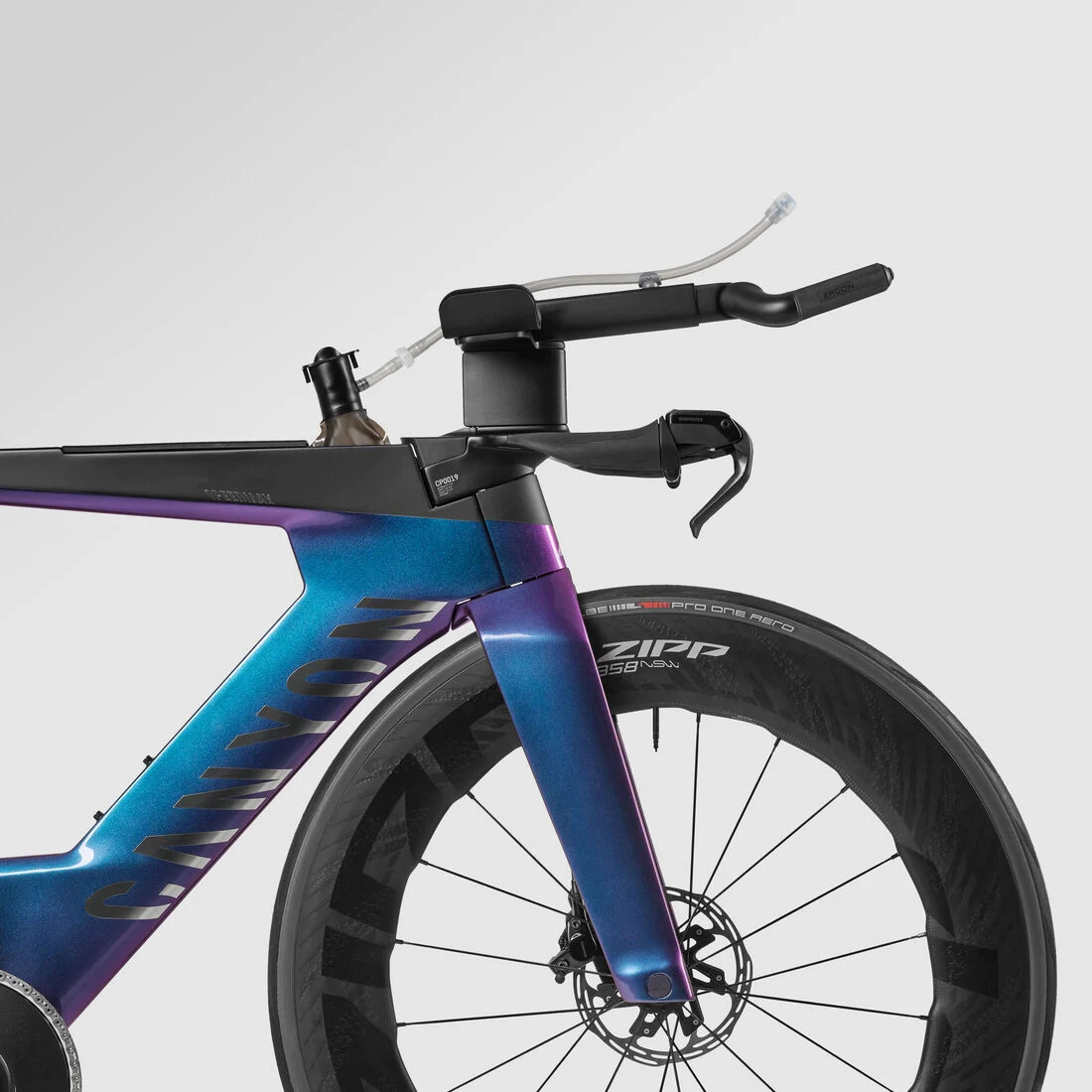

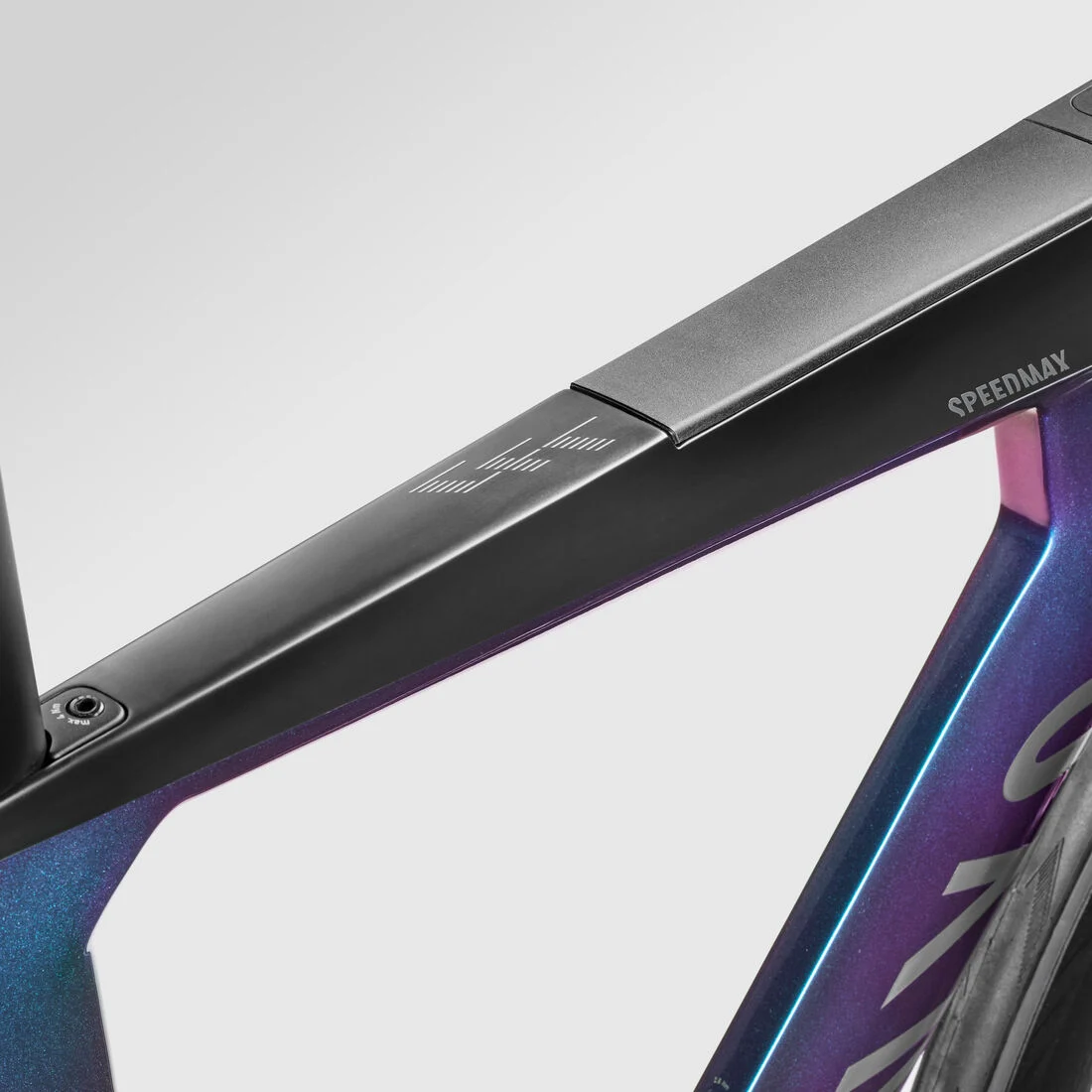

Canyon Speedmax CFR Disc, Canyon Factory Racing triathlon carbon frame, featuring ultra-rare Toray M40X carbon fibres. Shaped by extensive computational fluid dynamics analysis with our aero partners Swiss Side, validated in the wind tunnel. Fully internal routing, integrated hydration system, hidden toolbox, easily accessible bento box, 12x142 mm through axle, flat-mount disc standard., Axle dimension: 12x142 mm, Tyre clearance: 30 mm, Material: Carbon (CFR), Weight: 1,600 g
Fork Material
The forks are made from Carbon Fiber
Cables: Internally Routed
Routed through bars, stem and frame
Axel Type: Thru-axle
How the wheels are secured to the frame
Brake Type: Disc Brake
Welcome to the future!
Brake Mount: Flat Mount
How the calipers are mounted
Integrated bar and stem: Yes
The bar and stem are integrated
Drivechain Details
Groupset name
SRAM Red AXS
Electric Groupset: Yes
This bike has electric gears
Shifters
SRAM eTap Clics, Weight: 33 g
Front Derailleur
None
Rear Derailleur
SRAM RED AXS RD 12s, Weight: 264 g
Cassette
SRAM RED XG-1290.
Cranks
SRAM RED AXS Aero
Power Meter: Yes
This bike comes with a power meter
Bottom Bracket
SRAM DUB Pressfit, Bottom bracket standard: PF 86,5, Weight: 67 g
Chain
SRAM RED E1 12-speed (Flattop design matching the RED ecosystem).
Battery
Unknown
Wheel & Tire Details
Wheelset Name
ZIPP 858 NSW Hookless, Axle dimension: 12x100 mm, Rotor mount: Center Lock, Rim height: 82 mm, Weight: 725 g | ZIPP 858 NSW Hookless, XDR, Axle dimension: 12x142 mm, Rotor mount: Center Lock, Rim height: 82 mm, Weight: 870 g
Front Wheel Depth
82mm
Rear Wheel Depth
85mm
Tires
Schwalbe Pro One Aero Front TLE, Width: 28 mm, Weight: 253 g | Schwalbe Pro One Aero Rear TLE, Width: 28 mm, Weight: 270 g
Tire Type
Tubeless
Max Tire Size: 30 mm
This is the max tire size you can use
Brakes
Brake Type: Disc Brake
Welcome to the future!
Brake Mount: Flat Mount
How these disc brakes are mounted
Brakes
SRAM S-900 Aero HRD, Weight: 282 g | SRAM S-900 Aero HRD, Weight: 272 g
Brake Rotors
160 mm front and rear (Utilising premium SRAM Paceline X Center Lock disc rotors). Note: Select regional spec-databases report a 160 mm front / 140 mm rear rotor scaling depending on frameset sizes (e.g. XS/S)
Other Components
Saddle
Fizik Transiro, Gender: Unisex, Weight: 187 g
Seatpost
Canyon SP0049 Aero Seatpost

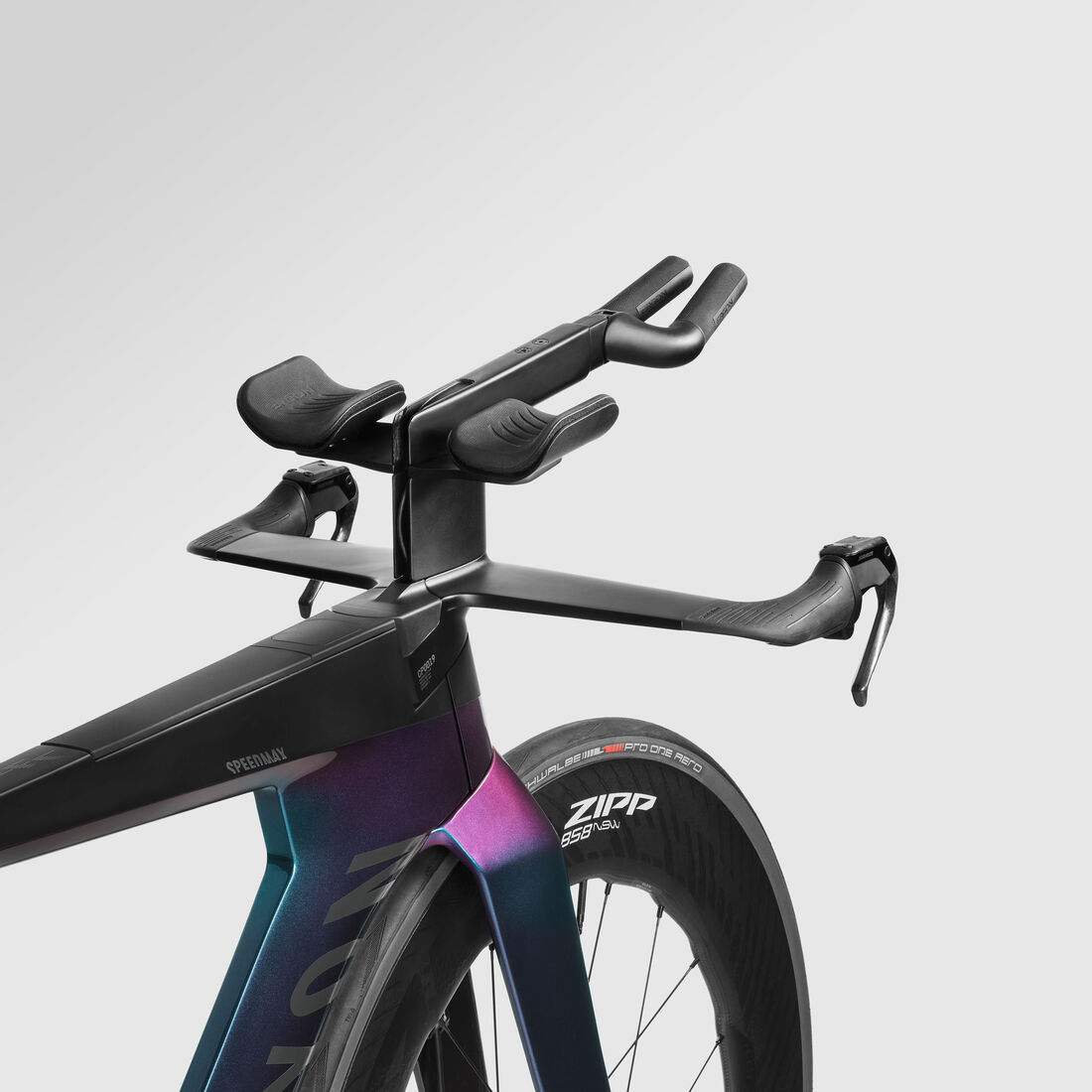

Handlebars
Canyon GP0226 Aerobar, Mono aero bar developed with aero experts Swiss Side to deliver optimal aero performance.
