Bike Info
Worldwide Shipping: Yes
Delivery across the globe!
Warranty: 2 Years
Limited warranty website average: 3.12 years
Released: 2025
The bike was released 1 years ago
Bike Type: TT
The style of riding intended for this bike
Bike Spec
Weight: 8.6 kg
The website average for TT bikes is 9.16 kg. This bike is 0.56 kg under the average. Total bike weight may vary depending on frame size.
Groupset
SRAM Force AXS
Wheelset
DT Swiss ARC 1400 Dicut
Brake Type: Disc Brake
Welcome to the future!
Frameset Material
Carbon Fiber
Max Tire Size: 30 mm
This is the max tire size you can use
UCI Approved: No
You can't use for official races
Sizing & Geometry
Frame Sizes
XS S M L XLThis frame comes in 5 sizes, this is 0.56 less sizes than the website average.
Sizing & Geometry
Frame measurements and sizing vary by bike size. Measurements are shown for each available frame size.
Swipe across to view all sizes.
| Geometry | XS | S | M | L | XL |
|---|---|---|---|---|---|
| Sizing | |||||
| Rider height | Up to 170 cm | 170–178 cm | 178–186 cm | 186–196 cm | 196+ cm |
| Wheel size | 650b | 650b | — | — | — |
| Frame geometry | |||||
| Stack (mm) | 435 | 469 | 489 | 527 | 553 |
| Reach (mm) | 393 | 415 | 438 | 459 | 483 |
| Effective top tube (mm) | 466 | 494 | 519 | 548 | 576 |
| Seat tube (mm) | 488 | 531 | 552 | 592 | 616 |
| Head tube (mm) | 64 | 62 | 83 | 123 | 150 |
| Standover (mm) | 759 | 797 | 817 | 857 | 881 |
| Handling | |||||
| Head angle (°) | 72 | 73 | 73 | 73 | 73 |
| Seat angle (°) | 80.50 | 80.50 | 80.50 | 80.37 | 80.50 |
| Chainstay (mm) | 410 | 420 | 420 | 420 | 420 |
| Wheelbase (mm) | 960 | 986 | 1,014 | 1,047 | 1,079 |
Frame Details
Frame Weight
This frame weighs 1700g
Frame Material
Carbon Fiber
Forks

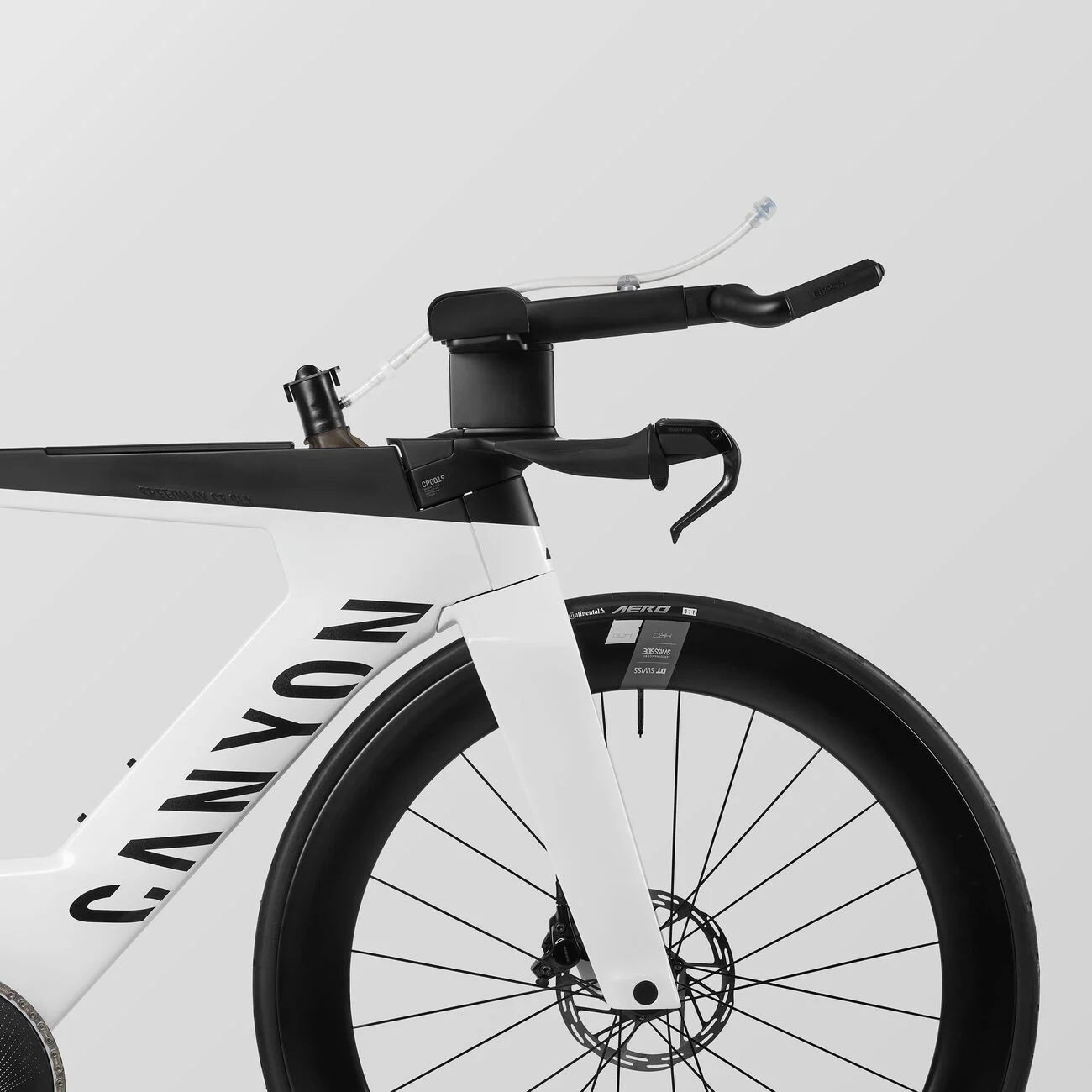

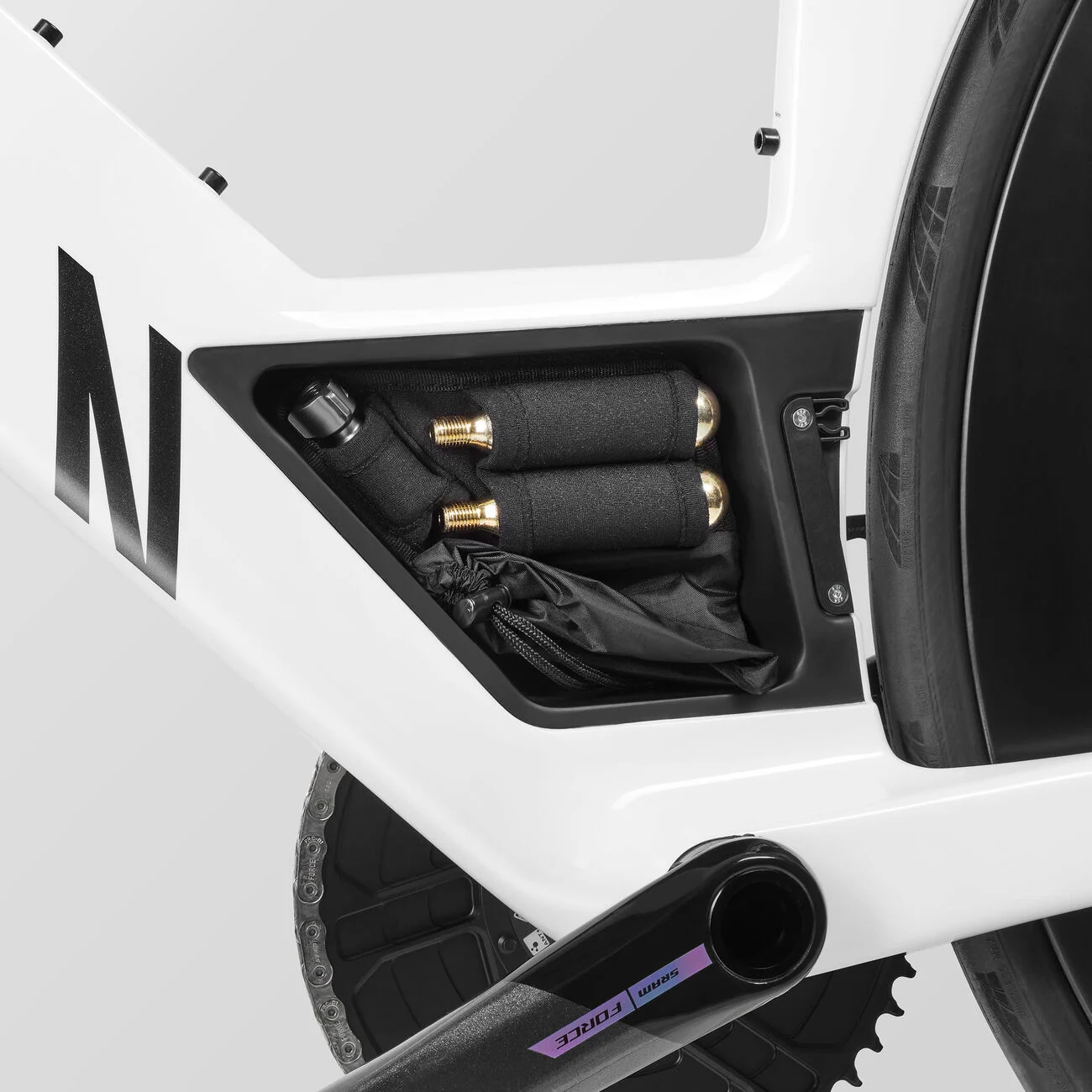

Canyon Speedmax CF SLX Disc, All-new Speedmax CF SLX frame shaped by extensive computational fluid dynamics analysis with our aero partners Swiss Side, validated in the wind tunnel. Fully internal routing, integrated hydration system, hidden toolbox, easily accessible bento box, 12x142 mm through axle, flat-mount disc standard., Axle dimension: 12x142 mm, Tyre clearance: 30 mm, Material: Carbon (CF), Weight: 3.75 lbs
Fork Material
The forks are made from Carbon Fiber
Cables: Internally Routed
Routed through bars, stem and frame
Axel Type: Thru-axle
How the wheels are secured to the frame
Brake Type: Disc Brake
Welcome to the future!
Brake Mount: Flat Mount
How the calipers are mounted
Integrated bar and stem: Yes
The bar and stem are integrated
Drivechain Details
Groupset name
SRAM Force AXS
Electric Groupset: Yes
This bike has electric gears
Shifters
SL SRAM BLIP AXS WLS MOUNT TAPE, Weight: 1.15 lbs
Front Derailleur
SRAM Force AXS D1 (Official).
Rear Derailleur
SRAM Force AXS RD 12s, Weight: 0.67 lbs
Cassette
SRAM Force XG-1270 (Official).
Cranks
SRAM Force AXS (165 mm to 172.5 mm by size)
Power Meter: Yes
This bike comes with a power meter
Bottom Bracket
SRAM DUB Pressfit, Bottom bracket standard: PF 86,5, Weight: 0.15 lbs
Chain
SRAM Force D1 12-speed Flattop chain (Official).
Battery
Unknown
Wheel & Tire Details
Wheelset Name
DT Swiss ARC 1400 Dicut, Axle dimension: 12x100 mm, Rotor mount: Center Lock, Rim height: 62 mm, Inner width: 20 mm, Rim material: Carbon, Weight: 1.76 lbs | DT Swiss ARC 1400 Dicut, XDR, Axle dimension: 12x142 mm, Rotor mount: Center Lock, Rim height: 80 mm, Rim material: Carbon, Weight: 2.19 lbs
Front Wheel Depth
65mm
Rear Wheel Depth
85mm
Tires
Continental Grand Prix 5000 S TR, 28mm, Width: 28 mm, Weight: 0.65 lbs | Continental Aero 111, Width: 26 mm, Weight: 0.54 lbs
Tire Type
Tubeless
Max Tire Size: 30 mm
This is the max tire size you can use
Brakes
Brake Type: Disc Brake
Welcome to the future!
Brake Mount: Flat Mount
How these disc brakes are mounted
Brakes
SRAM S-900 Aero HRD, Weight: 0.62 lbs | SRAM S-900 Aero HRD, Weight: 0.60 lbs
Brake Rotors
160 mm front / 140 mm rear (Official geometry configuration doc); select databases register matching 160 mm front and rear depending on factory caliper updates
Other Components
Saddle
Selle Italia Watt Superflow, Gender: Unisex, Max. Rider Weight: 100 kg, Weight: 0.55 lbs
Seatpost
Canyon SP0049 Aero Seatpost

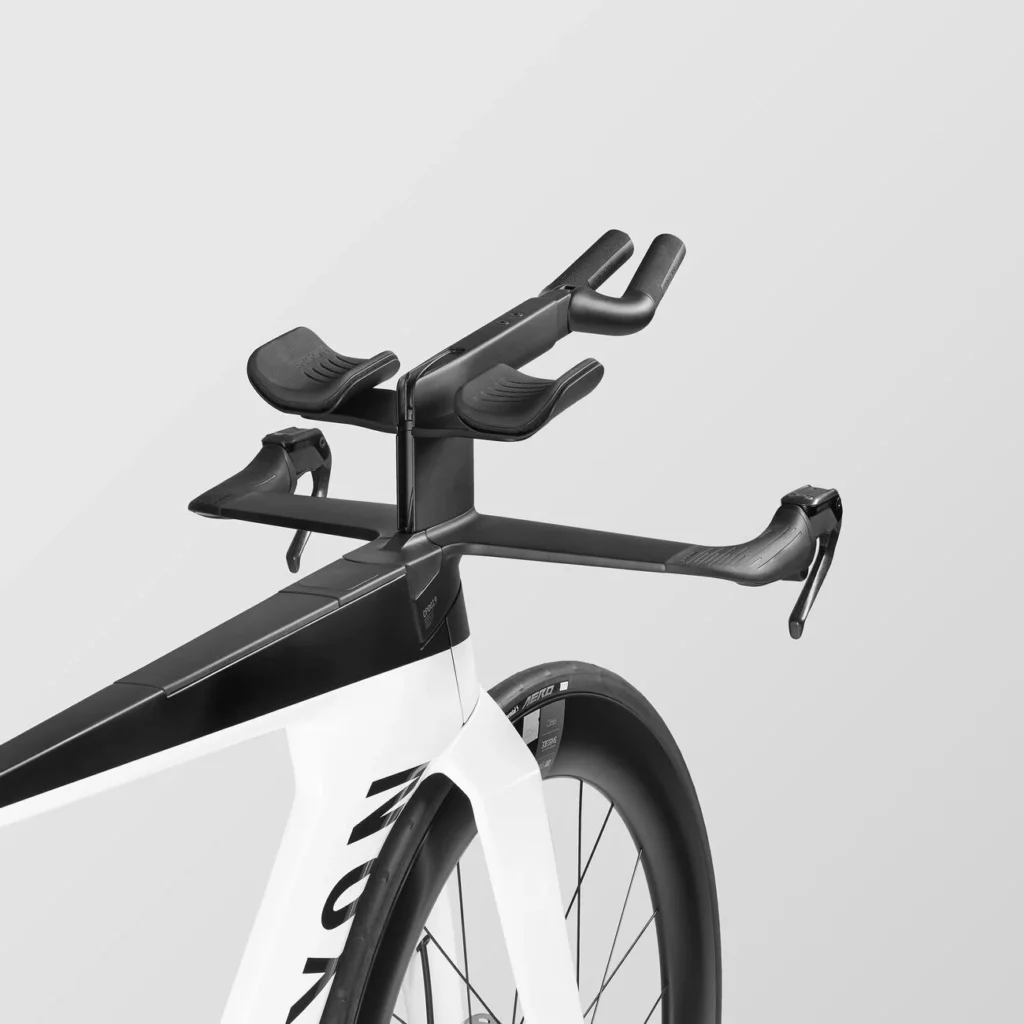

Handlebars
Canyon GP0226 Aerobar, Mono aero bar developed with aero experts Swiss Side to deliver optimal aero performance.
