Quick Compare Canyon Grail CFR XPLR to:
Bike Info
Worldwide Shipping: Yes
Delivery across the globe!
Warranty: 2 Years
Limited warranty website average: 3.12 years
Released: 2025
The bike was released this year
Bike Type: Road
The style of riding intended for this bike
Bike Spec
Weight: 7.5 kg
The website average for Road bikes is 8.50 kg. This bike is 1.01 kg under the average. Total bike weight may vary depending on frame size.
Groupset
Canyon EP1839-01 Blind Plate, Weight: 4 g
Wheelset
Zipp 303 XPLR SW, Axle dimension: 12x100 mm, Rotor mount: Center Lock, Rim height: 54 mm, Inner width: 32 mm, Rim material: Carbon, Weight: 665 g | Zipp 303 XPLR SW, Axle dimension: 12x148 mm, Rotor mount: Center Lock, Rim height: 54 mm, Inner width: 32 mm, Rim material: Carbon, Weight: 827 g
Brake Type: Disc Brake
Welcome to the future!
Frameset Material
Carbon Fiber
Max Tire Size: 42 mm
This is the max tire size you can use
UCI Approved: Yes
You can use for official races

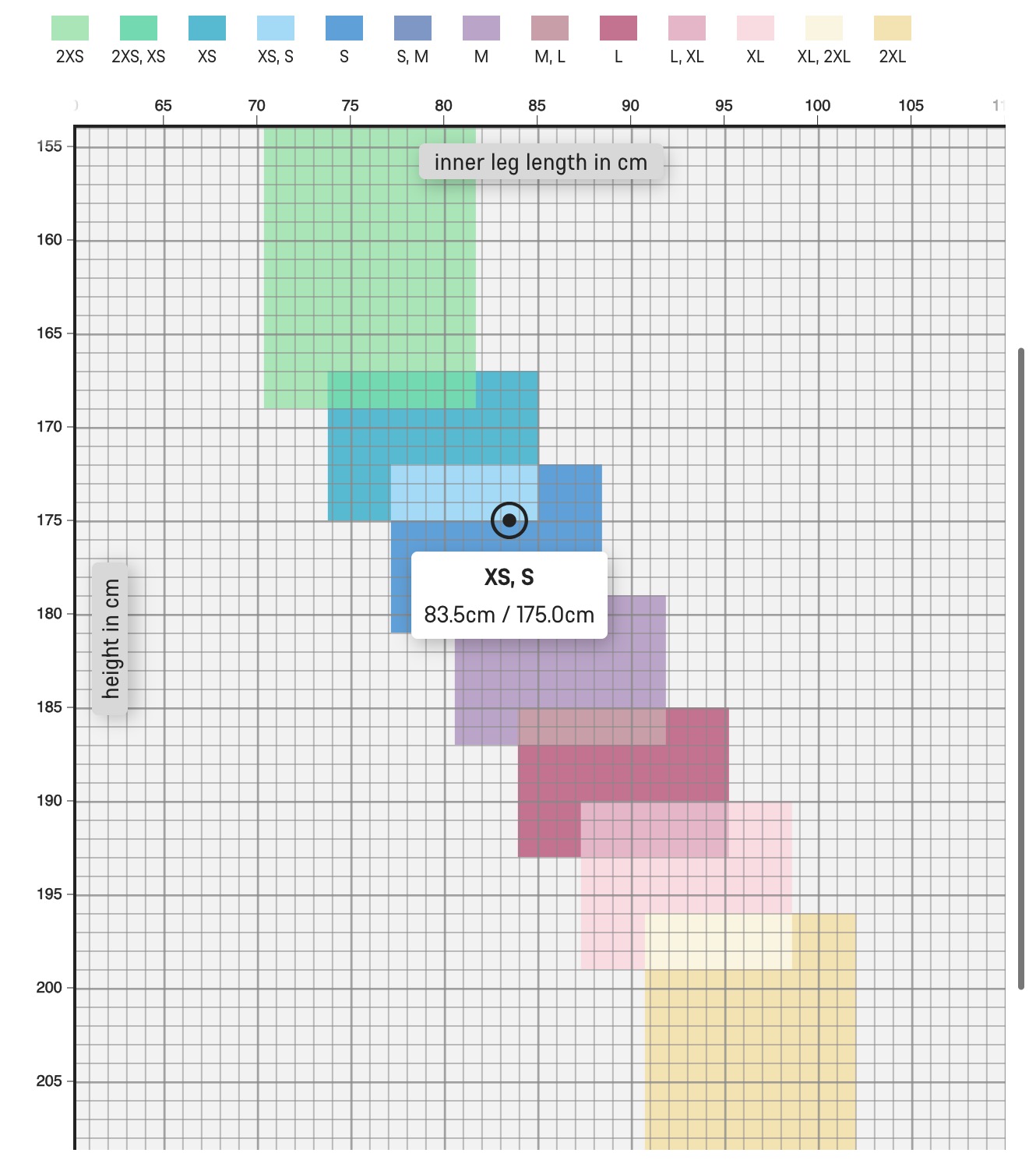

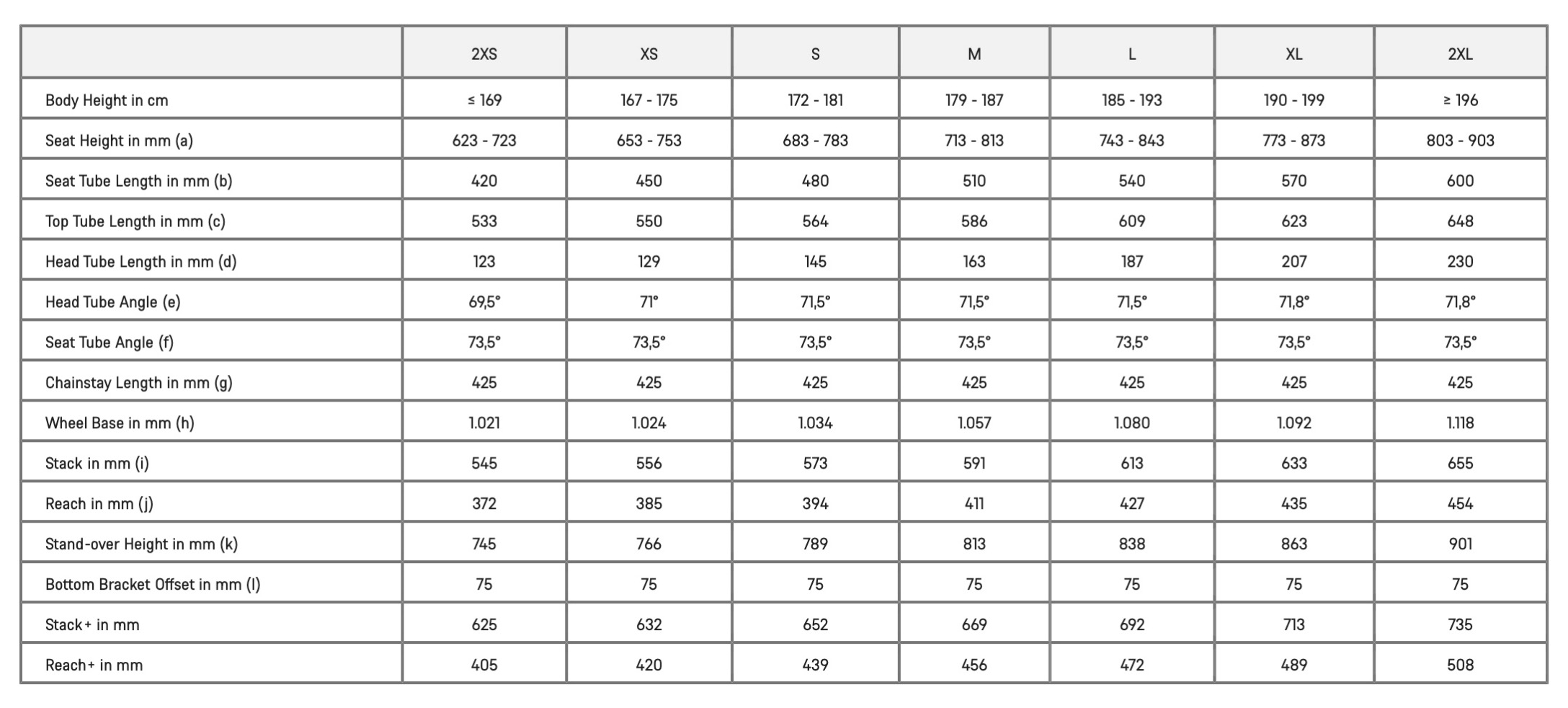

Sizing & Geometry
Frame Sizes
XXS XS S M L XL XXLThis frame comes in 7 sizes, this is 1.48 more sizes than the website average.
Frame Details
Frame Weight
Unknown
Frame Material
Carbon Fiber
Forks

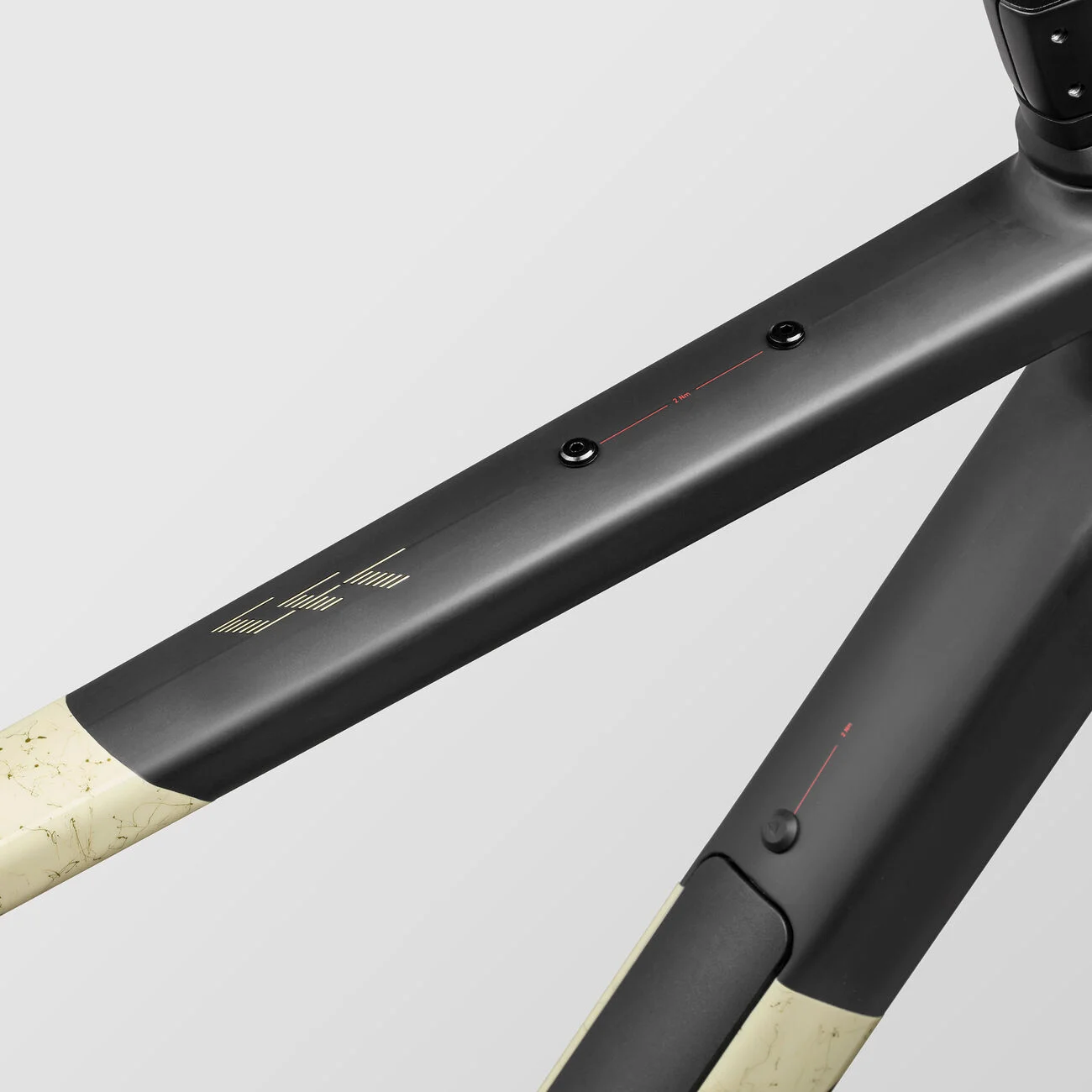

Canyon Grail CFR, Superlight pro-level build of the latest-generation Grail gravel race bike. Benchmark stiffness-to-weight, more capable geometry, aero tube forms, integrated LOAD down tube storage, top tube mounts and strapless bag compatibility., Axle dimension: 12x142 mm, Tyre clearance: 42 mm, Material: Carbon (CFR), Weight: 1,033 g
Fork Material
The forks are made from Carbon Fiber
Cables: Internally Routed
Routed through bars, stem and frame
Axel Type: Thru-axle
How the wheels are secured to the frame
Brake Type: Disc Brake
Welcome to the future!
Brake Mount:
How the calipers are mounted

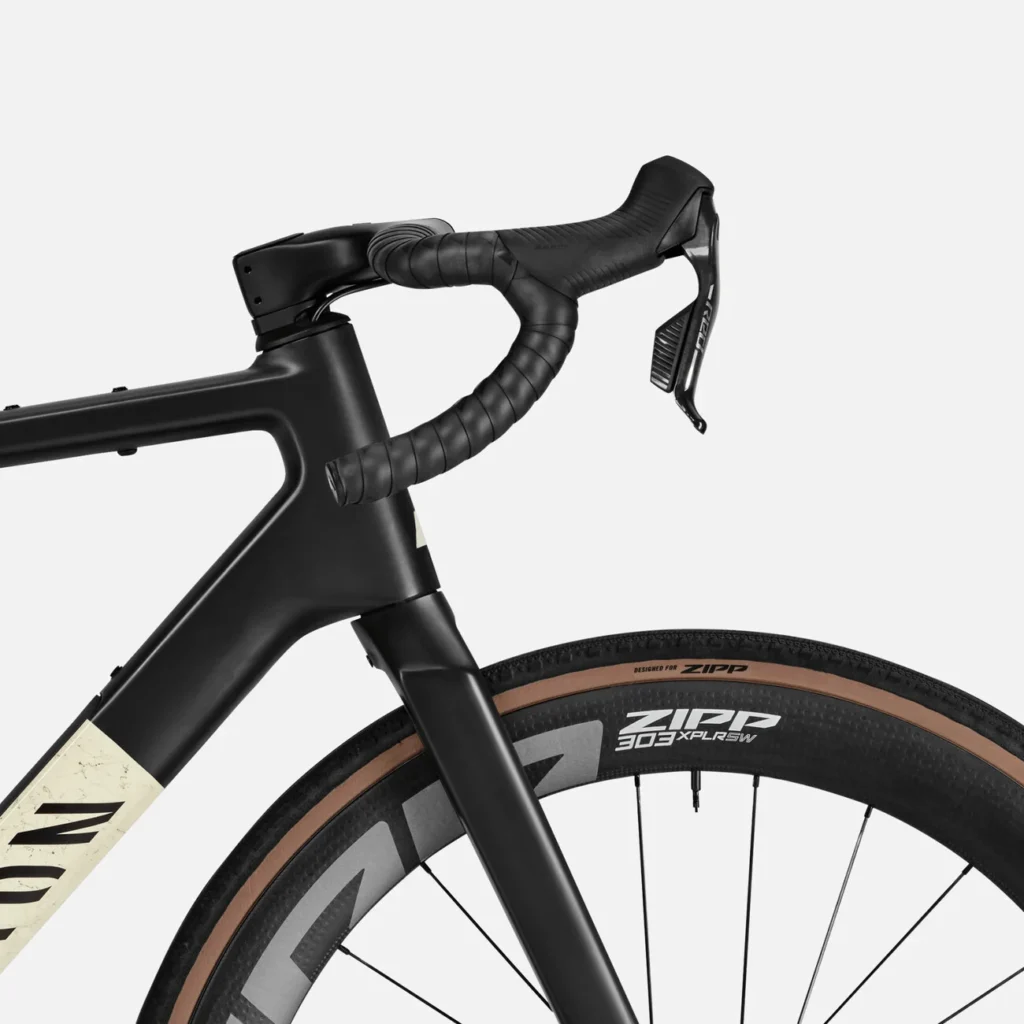

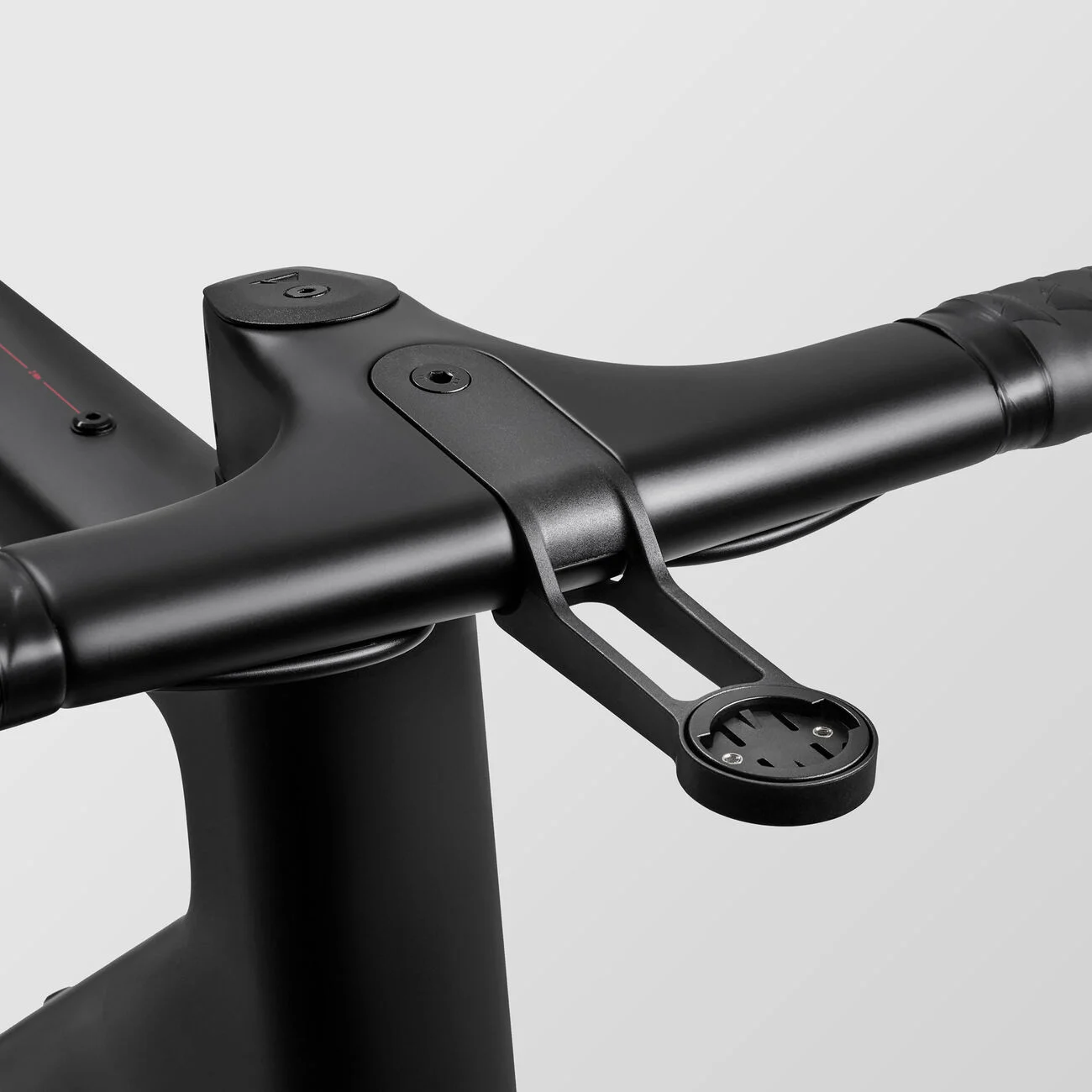

Integrated bar and stem: Yes
The bar and stem are integrated
Drivechain Details
Groupset name
Canyon EP1839-01 Blind Plate, Weight: 4 g
Electric Groupset: No
This bike doesn't have electric gears
Shifters
SRAM RED AXS, Number of pistons: 2, Weight: 355 g | SRAM RED eTap AXS HRD, Number of pistons: 2, Weight: 363 g
Front Derailleur
Canyon EP1839-01 Blind Plate, Weight: 4 g
Rear Derailleur
SRAM RED XPLR AXS, Weight: 378 g
Cassette
SRAM Red XPLR, Number of sprockets: 13
Cranks

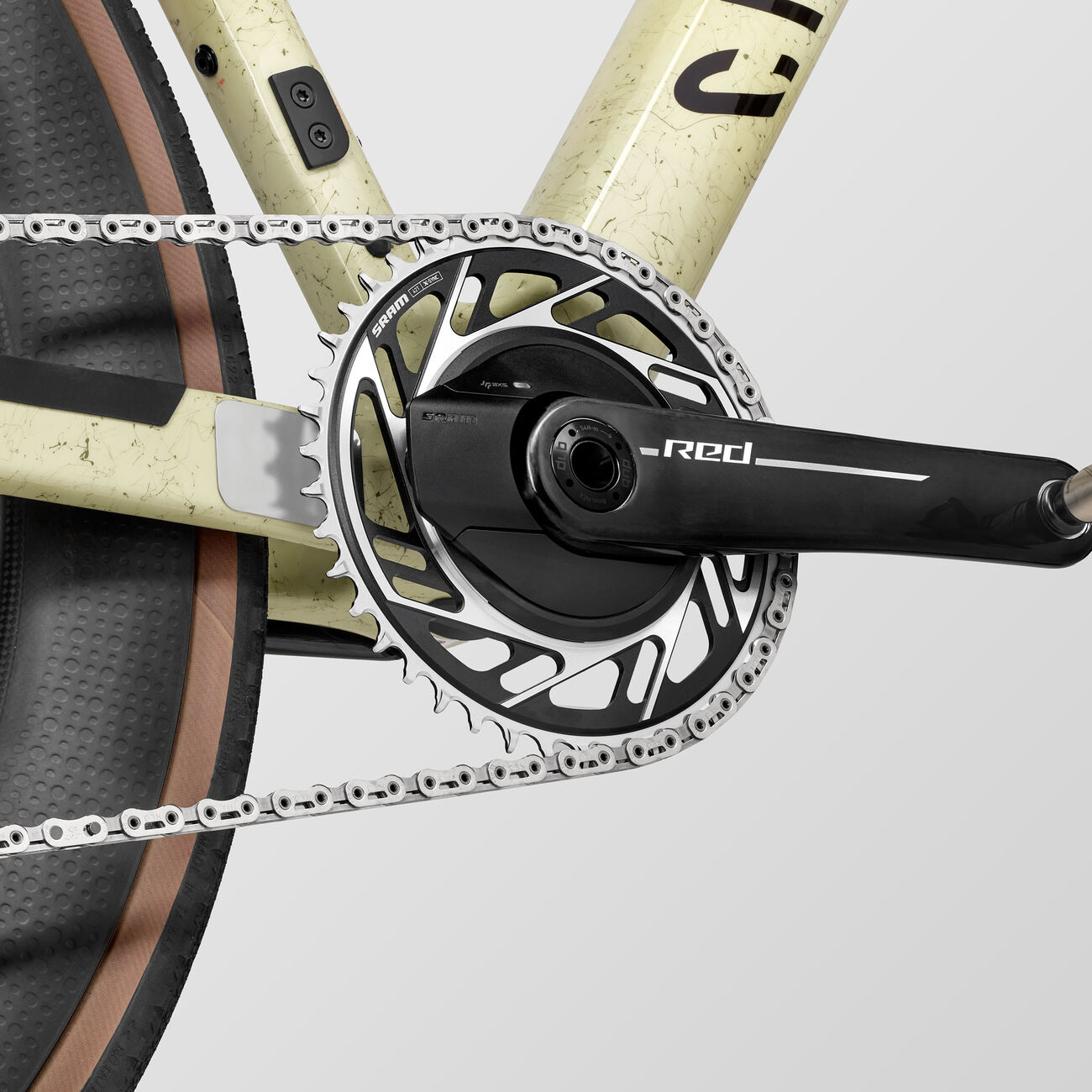

SRAM RED XPLR AXS Powermeter, Number of chainrings: 1
Power Meter: Yes
This bike comes with a power meter
Bottom Bracket
SRAM Pressfit DUB Wide, Bottom bracket standard: PF 86,5, Weight: 65 g
Chain
SRAM RED E1 12s/13s
Wheel & Tire Details
Wheelset Name
Zipp 303 XPLR SW, Axle dimension: 12x100 mm, Rotor mount: Center Lock, Rim height: 54 mm, Inner width: 32 mm, Rim material: Carbon, Weight: 665 g | Zipp 303 XPLR SW, Axle dimension: 12x148 mm, Rotor mount: Center Lock, Rim height: 54 mm, Inner width: 32 mm, Rim material: Carbon, Weight: 827 g
Front Wheel Depth
54mm
Rear Wheel Depth
54mm
Tires
Goodyear XPLR, Width: 40 mm, Weight: 440 g
Tire Type
Unknown
Max Tire Size: 42 mm
This is the max tire size you can use
Brakes
Brake Type: Disc Brake
Welcome to the future!
Brake Mount:
How these disc brakes are mounted
Brakes
SRAM RED AXS, Number of pistons: 2, Weight: 355 g | SRAM RED eTap AXS HRD, Number of pistons: 2, Weight: 363 g
Brake Rotors
Unknown
Other Components
Saddle
Fizik Vento Argo X1, Width: 140 mm, Gender: Unisex, Weight: 179 g
Seatpost
Canyon SP0072
Handlebars
Canyon Cockpit CP0039
Bar Tape
Canyon Ergospeed Gel
Manufactures Description
The latest components. Benchmark stiffness-to-weight. Benchmark carbon. Uniting our flagship gravel frame with SRAM's new pro-level 13-speed SRAM RED XPLR shifting and premium Zipp 303 XPLR carbon wheels, this bike is fit for the world’s best.
