Bike Info
Worldwide Shipping: Yes
Delivery across the globe!
Warranty: Lifetime
Limited warranty website average: 3.12 years
Released: 2023
The bike was released 3 years ago
Bike Type: Road
The style of riding intended for this bike
Bike Spec
Weight: 6.4 kg
The website average for Road bikes is 8.56 kg. This bike is 2.16 kg under the average. Total bike weight may vary depending on frame size.
Groupset
Shimano Ultegra Di2
Wheelset
Giant SLR 1
Brake Type: Disc Brake
Welcome to the future!
Frameset Material
Carbon Fiber
Max Tire Size: 32 mm
This is the max tire size you can use
UCI Approved: Yes
You can use for official races
Sizing & Geometry
Frame Sizes
XS S M L XLThis frame comes in 5 sizes, this is 0.56 less sizes than the website average.
Sizing & Geometry
Frame measurements and sizing vary by bike size. Measurements are shown for each available frame size.
Swipe across to view all sizes.
| Geometry | XS | S | M | M/L | L | XL |
|---|---|---|---|---|---|---|
| Sizing | ||||||
| Wheel size | 700c | 700c | 700c | 700c | 700c | 700c |
| Frame geometry | ||||||
| Stack (mm) | 517 | 528 | 545 | 562 | 581 | 596 |
| Reach (mm) | 376 | 383 | 388 | 393 | 402 | 412 |
| Effective top tube (mm) | 520 | 535 | 550 | 565 | 580 | 600 |
| Seat tube (mm) | 680 | 710 | 740 | 770 | 800 | 830 |
| Head tube (mm) | 120 | 130 | 145 | 165 | 185 | 200 |
| Standover (mm) | 706 | 725 | 747 | 773 | 800 | 815 |
| Handling | ||||||
| Head angle (°) | 71 | 72.30 | 73 | 73 | 73 | 73 |
| Seat angle (°) | 74.50 | 74 | 73.50 | 73 | 73 | 72.50 |
| Chainstay (mm) | 405 | 405 | 405 | 405 | 405 | 405 |
| Wheelbase (mm) | 971 | 977 | 980 | 991 | 1,006 | 1,020 |
| Fork offset (mm) | 45 | 45 | 45 | 45 | 45 | 45 |
| Trail (mm) | 72.1 | 64 | 59.2 | 59.2 | 59.2 | 59.2 |

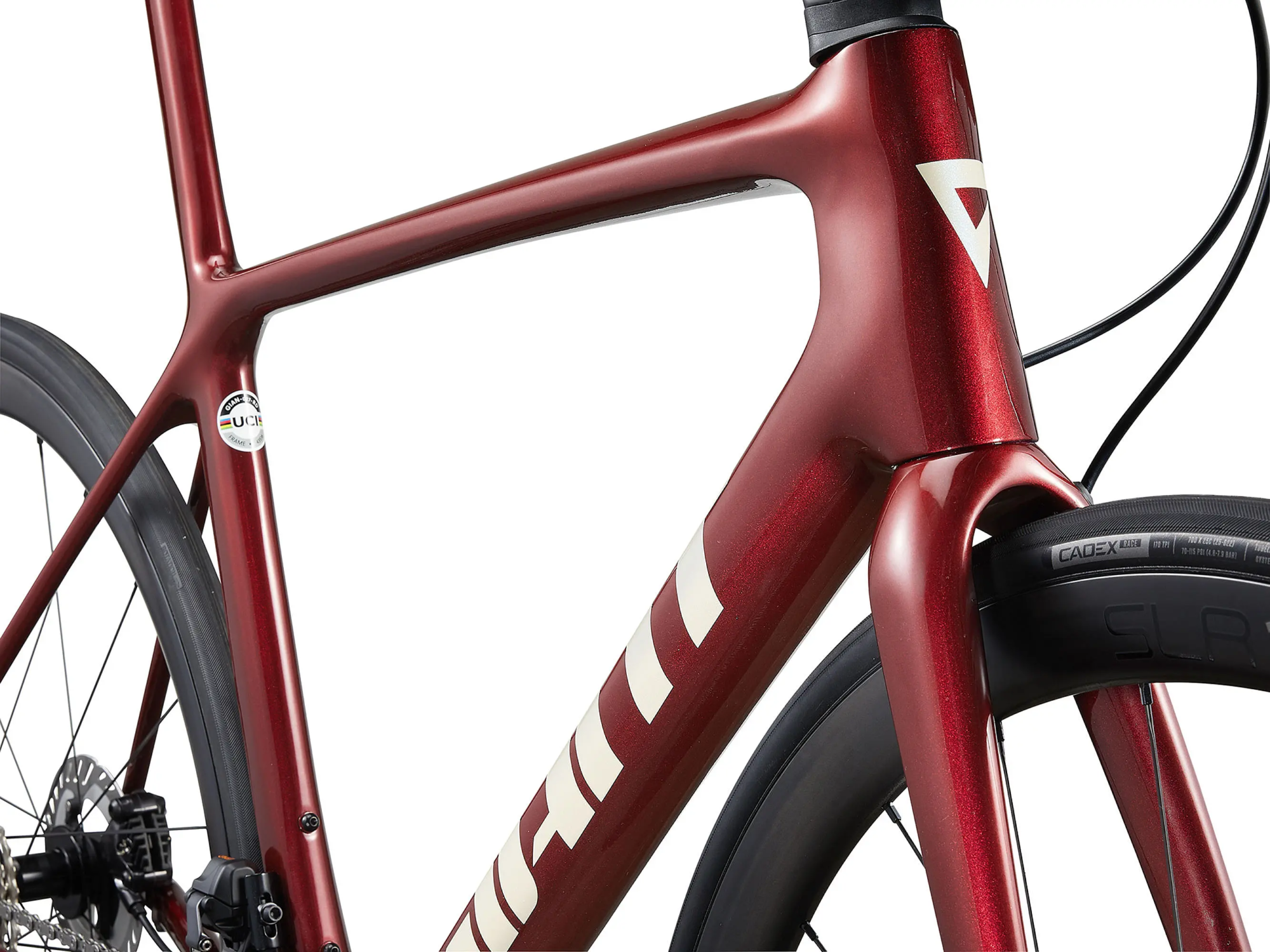

Frame Details
Frame Weight
This frame weighs 765g
Frame Material
Carbon Fiber
Forks
Advanced SL-grade composite, full-composite OverDrive 2 steerer, disc
Fork Material
The forks are made from Carbon Fiber
Cables: Semi Routed
Routed through the frame, not the bars
Axel Type: Thru-axle
How the wheels are secured to the frame
Brake Type: Disc Brake
Welcome to the future!
Brake Mount: Flat Mount
How the calipers are mounted
Integrated bar and stem: No
You can use any bar and stem

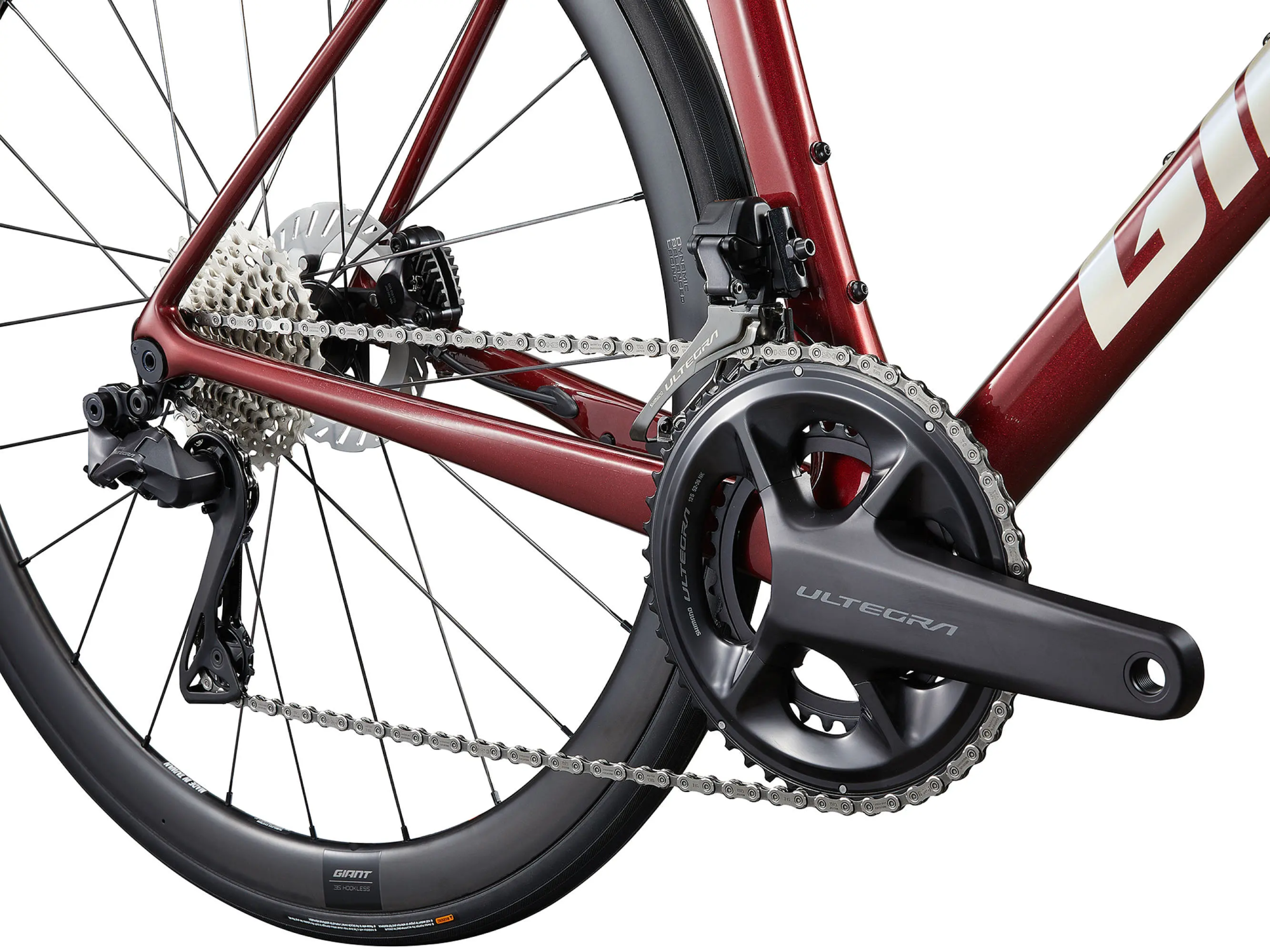

Drivechain Details
Groupset name
Shimano Ultegra Di2
Electric Groupset: Yes
This bike has electric gears
Shifters
Shimano Ultegra Di2 ST-R8170 2x12
Front Derailleur
D-R8150 Front
Rear Derailleur
Shimano Ultegra Di2 FD-R8150
Cassette
Shimano Ultegra, 12-speed, 11x34
Cranks
Shimano Ultegra, 36/52 with Giant Power Pro power meter S:170mm, M:172.5mm, M/L:172.5mm, L:175mm, XL:175mm
Power Meter: No
This bike doesn't have a power meter
Bottom Bracket
Shimano, press fit
Chain
Shimano Ultegra
Battery
Unknown
Wheel & Tire Details
Wheelset Name
Giant SLR 1
Front Wheel Depth
36mm
Rear Wheel Depth
36mm
Tires
CADEX Race, tubeless, 700x25c (26.5mm), folding
Tire Type
Tubeless
Max Tire Size: 32 mm
This is the max tire size you can use
Brakes
Brake Type: Disc Brake
Welcome to the future!
Brake Mount: Flat Mount
How these disc brakes are mounted
Brakes
Shimano Ultegra Di2 hydraulic
Brake Rotors
160mm front rotor / 140mm rear rotor
Other Components
Saddle
Giant Fleet SLR
Seatpost
Advanced SL-grade composite, integrated design, -5/+15mm offset

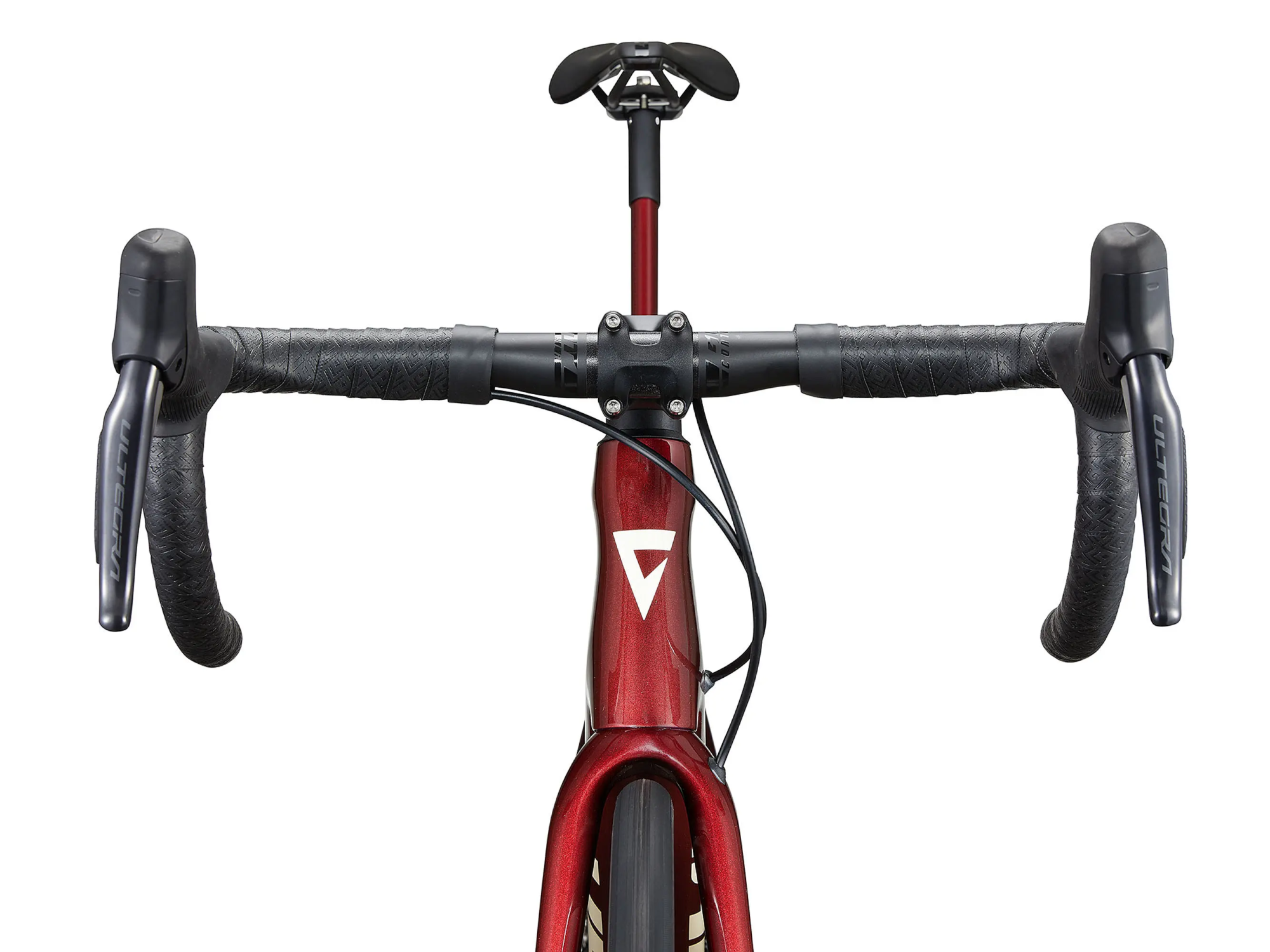

Handlebars
Giant Contact SLR S:40cm, M:42cm, M/L:42cm, L:44cm, XL:44cm
Bar Tape
Stratus Lite 2.0
