Bike Info
Worldwide Shipping: Yes
Delivery across the globe!
Warranty: Lifetime
Limited warranty website average: 3.12 years
Released: 2025
The bike was released 1 years ago
Bike Type: Road
The style of riding intended for this bike
Bike Spec
Weight: 7.3 kg
The website average for Road bikes is 8.56 kg. This bike is 1.26 kg under the average. Total bike weight may vary depending on frame size.
Groupset
Shimano Dura-Ace R9250 Di2, braze-on, down swing
Wheelset
Bontrager Aeolus RSL 37
Brake Type: Disc Brake
Welcome to the future!
Frameset Material
Carbon Fiber
Max Tire Size: 38 mm
This is the max tire size you can use
UCI Approved: Yes
You can use for official races

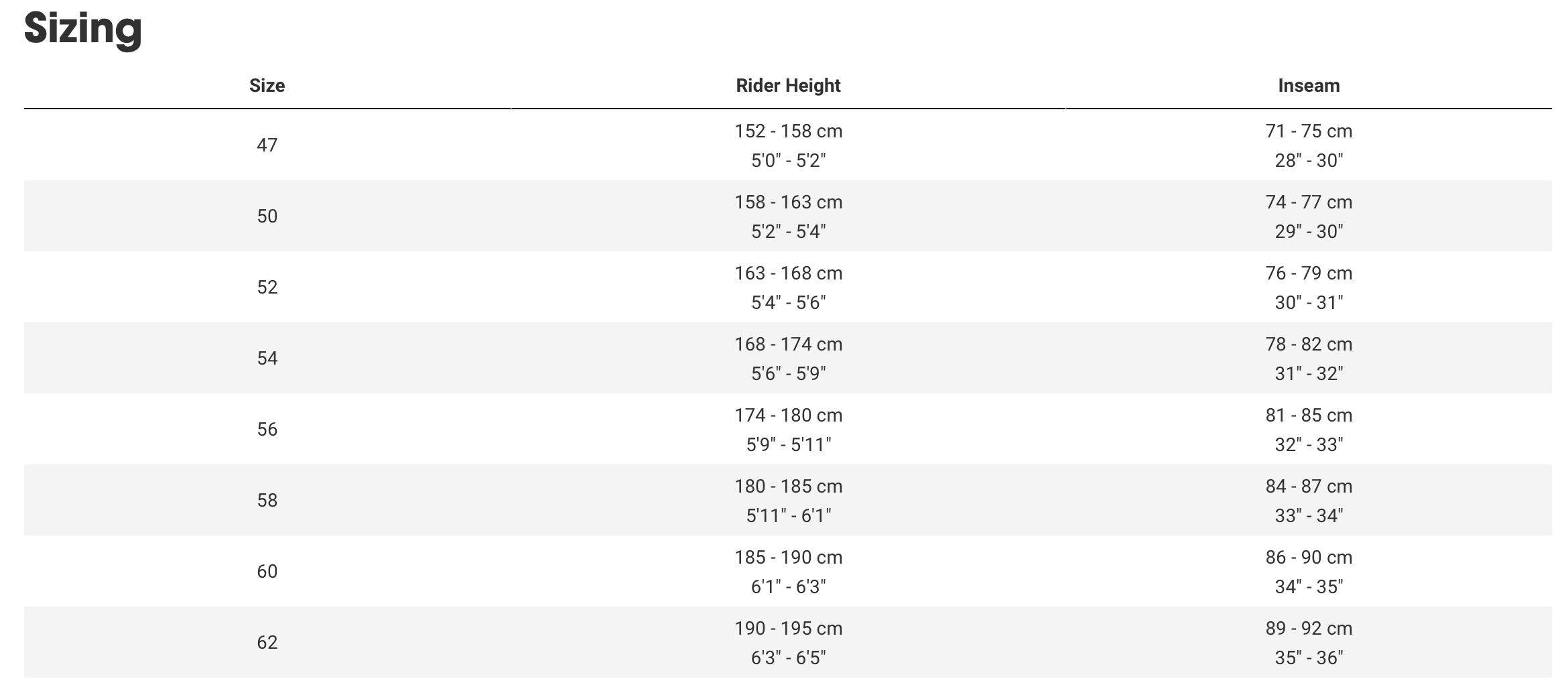

Sizing & Geometry
Frame Sizes
47 50 52 54 56 58 60 62This frame comes in 8 sizes, this is 2.44 more sizes than the website average.

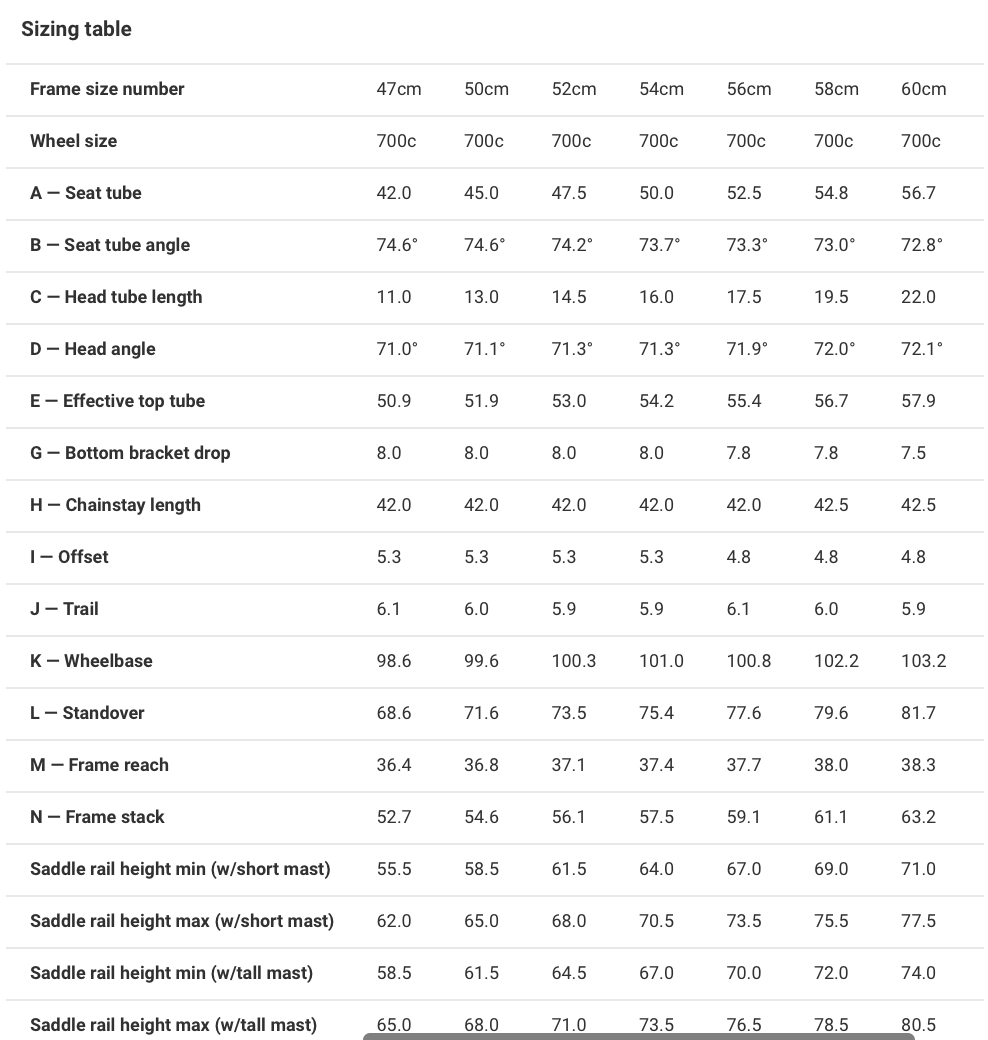

Sizing & Geometry
Frame measurements and sizing vary by bike size. Measurements are shown for each available frame size.
Swipe across to view all sizes.
| Geometry | 52 cm | 54 cm | 56 cm | 58 cm |
|---|---|---|---|---|
| Sizing | ||||
| Wheel size | 700c | 700c | 700c | 700c |
| Frame geometry | ||||
| Stack (mm) | 56.1 | 57.5 | 59.1 | 61.1 |
| Reach (mm) | 37.1 | 37.4 | 37.7 | 38 |
| Effective top tube (mm) | 53 | 54.2 | 55.4 | 56.7 |
| Seat tube (mm) | 47.5 | 50 | 52.5 | 54.8 |
| Head tube (mm) | 14.5 | 16 | 17.5 | 19.5 |
| Standover (mm) | 73.5 | 75.4 | 77.6 | 79.6 |
| Handling | ||||
| Head angle (°) | 71.30 | 71.30 | 71.90 | 72 |
| Seat angle (°) | 74.20 | 73.70 | 73.30 | 73 |
| Chainstay (mm) | 42 | 42 | 42 | 42.5 |
| Wheelbase (mm) | 100.3 | 101 | 101.5 | 102.2 |
| Fork offset (mm) | 5.3 | 5.3 | 4.8 | 4.8 |
| Trail (mm) | 5.9 | 5.9 | 5.9 | 5.9 |
| BB drop (mm) | 8 | 8 | 7.8 | 7.8 |
Frame Details
Frame Weight
This frame weighs 1193g
Frame Material
Carbon Fiber
Forks
800 Series OCLV Carbon, IsoSpeed, internal storage, tapered head tube, internal cable routing, 3S chain keeper, fender mounts, flat mount disc, 142x12mm thru axle
Fork Material
The forks are made from Carbon Fiber
Cables: Internally Routed
Routed through bars, stem and frame
Axel Type: Thru-axle
How the wheels are secured to the frame
Brake Type: Disc Brake
Welcome to the future!
Brake Mount: Flat Mount
How the calipers are mounted
Integrated bar and stem: No
You can use any bar and stem
Drivechain Details
Groupset name
Shimano Dura-Ace R9250 Di2, braze-on, down swing
Electric Groupset: Yes
This bike has electric gears
Shifters
Shimano Dura-Ace R9270 Di2, 12 speed
Front Derailleur
Shimano Dura-Ace R9250 Di2, braze-on, down swing
Rear Derailleur
Shimano Dura-Ace R9250 Di2, 34T max cog
Cassette
R9200 11-34T 12-speed
Cranks
Shimano Dura-Ace R9200
Power Meter: No
This bike doesn't have a power meter
Bottom Bracket
Praxis, T47 threaded, internal bearing
Chain
Shimano Dura-Ace M9100
Battery
Unknown
Wheel & Tire Details
Wheelset Name
Front: Bontrager Aeolus RSL 37, OCLV Carbon, Tubeless Ready, 37mm rim depth, 100x12mm thru axle, Rear: Bontrager Aeolus RSL 37, OCLV Carbon, Tubeless Ready, 37mm rim depth, 142x12mm thru axle
Front Wheel Depth
37mm
Rear Wheel Depth
37mm
Tires
Bontrager R3 Hard-Case Lite, Tubeless Ready, aramid bead, 120 tpi, 700x32mm
Tire Type
Tubeless
Max Tire Size: 38 mm
This is the max tire size you can use
Brakes
Brake Type: Disc Brake
Welcome to the future!
Brake Mount: Flat Mount
How these disc brakes are mounted
Brakes
Shimano Dura-Ace hydraulic disc, flat mount
Brake Rotors
160 mm front and 160 mm rear
Other Components
Saddle
Size: 47, 50, 52, Verse Short Pro, carbon rails, 155mm width; Size: 54, 56, 58, 60, 62, Verse Short Pro, carbon rails, 145mm width
Seatpost
KVF aero carbon seat post, 20 mm offset
Handlebars
Size: 47, Bontrager Pro IsoCore VR-SF, 38cm; Size: 50, 52, Bontrager Pro IsoCore VR-SF, 40cm; Size: 54, 56, Bontrager Pro IsoCore VR-SF, 42cm; Size: 58, 60, 62, Bontrager Pro IsoCore VR-SF, 44cm
Bar Tape
Bontrager Supertack Perf tape
