Bike Info
Worldwide Shipping: Yes
Delivery across the globe!
Warranty: Lifetime
Limited warranty website average: 3.12 years
Released: 2025
The bike was released 1 years ago
Bike Type: Road
The style of riding intended for this bike
Bike Spec
Weight: 6.7 kg
The website average for Road bikes is 8.56 kg. This bike is 1.86 kg under the average. Total bike weight may vary depending on frame size.
Groupset
Shimano Dura-Ace R9250, braze-on
Wheelset
Roval Rapide CLX II
Brake Type: Disc Brake
Welcome to the future!
Frameset Material
Carbon Fiber
Max Tire Size: 32 mm
This is the max tire size you can use
UCI Approved: Yes
You can use for official races

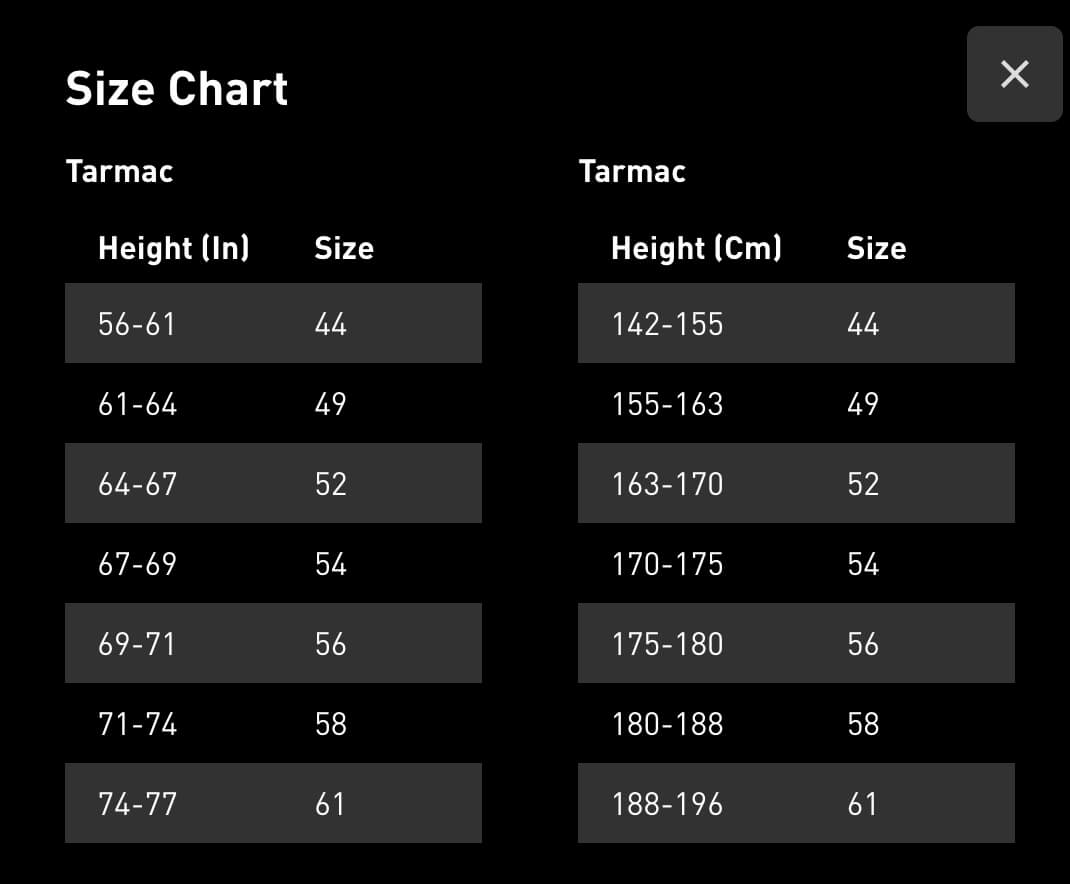

Sizing & Geometry
Frame Sizes
44 49 52 54 56 58 61This frame comes in 7 sizes, this is 1.44 more sizes than the website average.

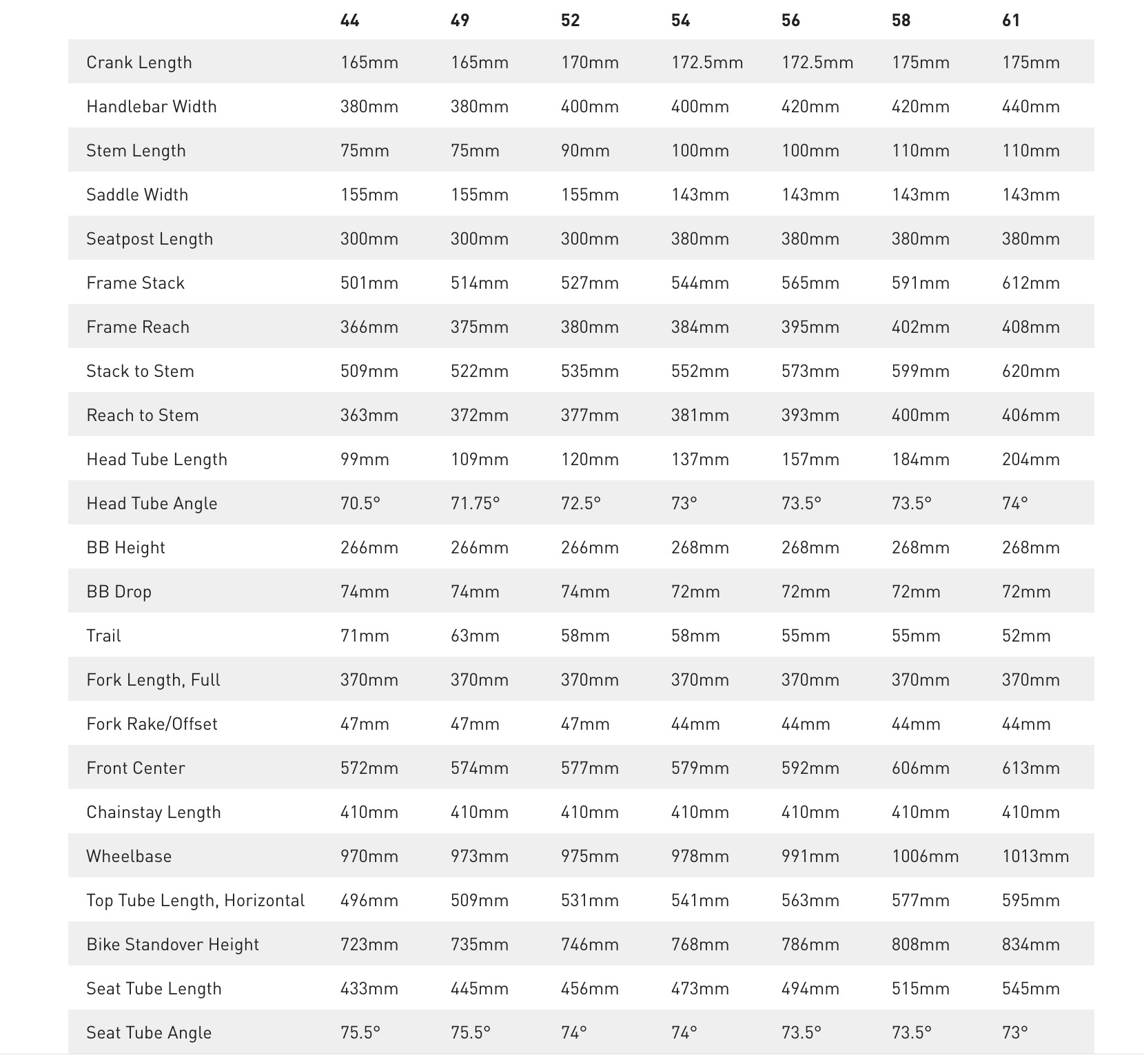

Sizing & Geometry
Frame measurements and sizing vary by bike size. Measurements are shown for each available frame size.
Swipe across to view all sizes.
| Geometry | 49 | 52 | 54 | 56 | 58 |
|---|---|---|---|---|---|
| Sizing | |||||
| Rider height | 155–163 cm | 163–170 cm | 170–175 cm | 175–180 cm | 180–188 cm |
| Wheel size | 700c | 700c | 700c | 700c | 700c |
| Frame geometry | |||||
| Stack (mm) | 514 | 527 | 544 | 565 | 591 |
| Reach (mm) | 375 | 380 | 384 | 395 | 402 |
| Effective top tube (mm) | 509 | 531 | 541 | 563 | 577 |
| Seat tube (mm) | 445 | 456 | 473 | 494 | 515 |
| Head tube (mm) | 109 | 120 | 137 | 157 | 184 |
| Standover (mm) | 740 | 760 | 775 | 795 | 816 |
| Handling | |||||
| Head angle (°) | 71.75 | 72.50 | 73 | 73.50 | 73.50 |
| Seat angle (°) | 75.50 | 74 | 74 | 73.50 | 73.50 |
| Chainstay (mm) | 410 | 410 | 410 | 410 | 410 |
| Wheelbase (mm) | 973 | 975 | 978 | 991 | 1,006 |
| Fork offset (mm) | 44 | 44 | 44 | 44 | 44 |
| Trail (mm) | 63 | 58 | 58 | 52 | 52 |
Frame Details
Frame Weight
This frame weighs 685g
Frame Material
Carbon Fiber
Forks
S-Works Tarmac SL8
Fork Material
The forks are made from Carbon Fiber
Cables: Internally Routed
Routed through bars, stem and frame
Axel Type: Thru-axle
How the wheels are secured to the frame
Brake Type: Disc Brake
Welcome to the future!
Brake Mount: Flat Mount
How the calipers are mounted
Integrated bar and stem: Yes
The bar and stem are integrated
Drivechain Details
Groupset name
Shimano Dura-Ace R9250, braze-on
Electric Groupset: No
This bike doesn't have electric gears
Shifters
Shimano Dura-Ace R9270, hydraulic disc
Front Derailleur
Shimano Dura-Ace Di2 R9250.
Rear Derailleur
Shimano Dura-Ace R9250, 12-speed
Cassette
Shimano Dura-Ace CS-R9200.
Cranks
Shimano Dura-Ace R9200
Power Meter: Yes
This bike comes with a power meter
Bottom Bracket
Shimano Dura-Ace, BB-R9100
Chain
Shimano Dura-Ace CN-M9100.
Wheel & Tire Details
Wheelset Name
Front: Roval Rapide CLX II, Tubeless, 21mm internal width carbon rim, 51mm depth, Win Tunnel Engineered, Roval AFD hub, 18h, DT Swiss Aerolite spokes, White Team Logos, Rear: Roval Rapide CLX II, Tubeless, 21mm internal width carbon rim, 60mm depth, Win Tunnel Engineered, Roval AFD hub, 24h, DT Swiss Aerolite spokes, White Team Logos
Front Wheel Depth
51mm
Rear Wheel Depth
60mm
Tires
Front: S-works Turbo Rapidair 2BR, 700x26mm, Rear: S-works Turbo Rapidair 2BR, 700x26mm
Tire Type
Tubeless
Max Tire Size: 32 mm
This is the max tire size you can use
Brakes
Brake Type: Disc Brake
Welcome to the future!
Brake Mount: Flat Mount
How these disc brakes are mounted
Brakes
Front: Shimano Dura-Ace R9270, hydraulic disc, Rear: Shimano Dura-Ace R9270, hydraulic disc
Brake Rotors
160 mm front, 140 mm rear (Shimano RT-CL900 centerlock rotors)
Other Components
Saddle
S-Works Power with Mirror
Seatpost
S-Works Tarmac SL8 Carbon seat post, FACT Carbon, 15mm offset

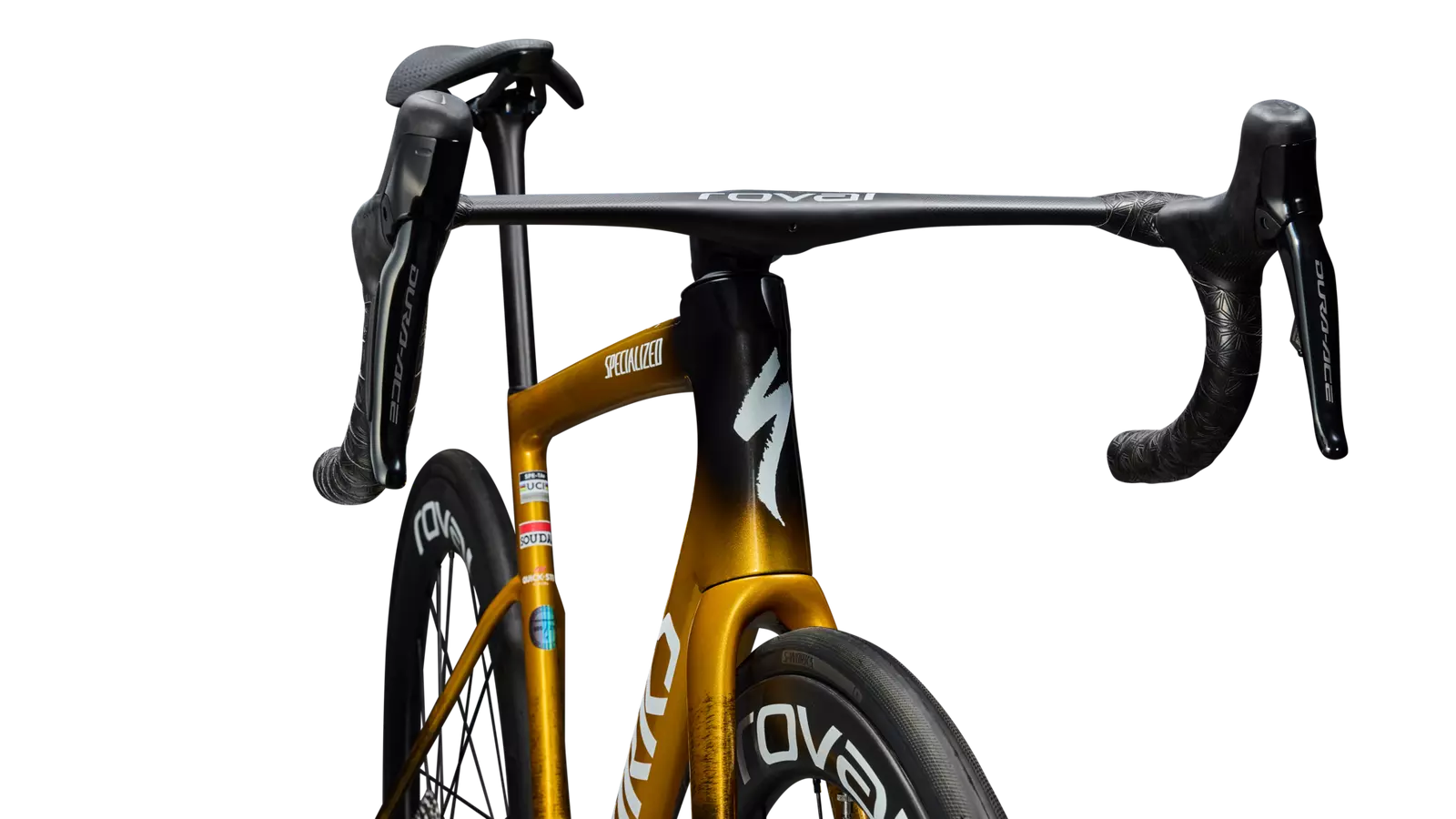

Handlebars
Roval Rapide Cockpit, Integrated Bar/Stem
Bar Tape
Supacaz Super Sticky Kush
