Bike Info
Worldwide Shipping: Yes
Delivery across the globe!
Warranty: 2 Years
Limited warranty website average: 3.12 years
Released: 2025
The bike was released 1 years ago
Bike Type: Road
The style of riding intended for this bike
Bike Spec
Weight: 10.9 kg
The website average for Road bikes is 8.56 kg. This bike is 2.33 kg over the average. Total bike weight may vary depending on frame size.
Groupset
Shimano Cues ST-U6030
Wheelset
Cube GR 2.5 Disc
Brake Type: Disc Brake
Welcome to the future!
Frameset Material
Aluminium
Max Tire Size: 45 mm
This is the max tire size you can use
UCI Approved: No
You can't use for official races
Sizing & Geometry
Frame Sizes
XXS XS S M L XLThis frame comes in 6 sizes, this is 0.44 more sizes than the website average.

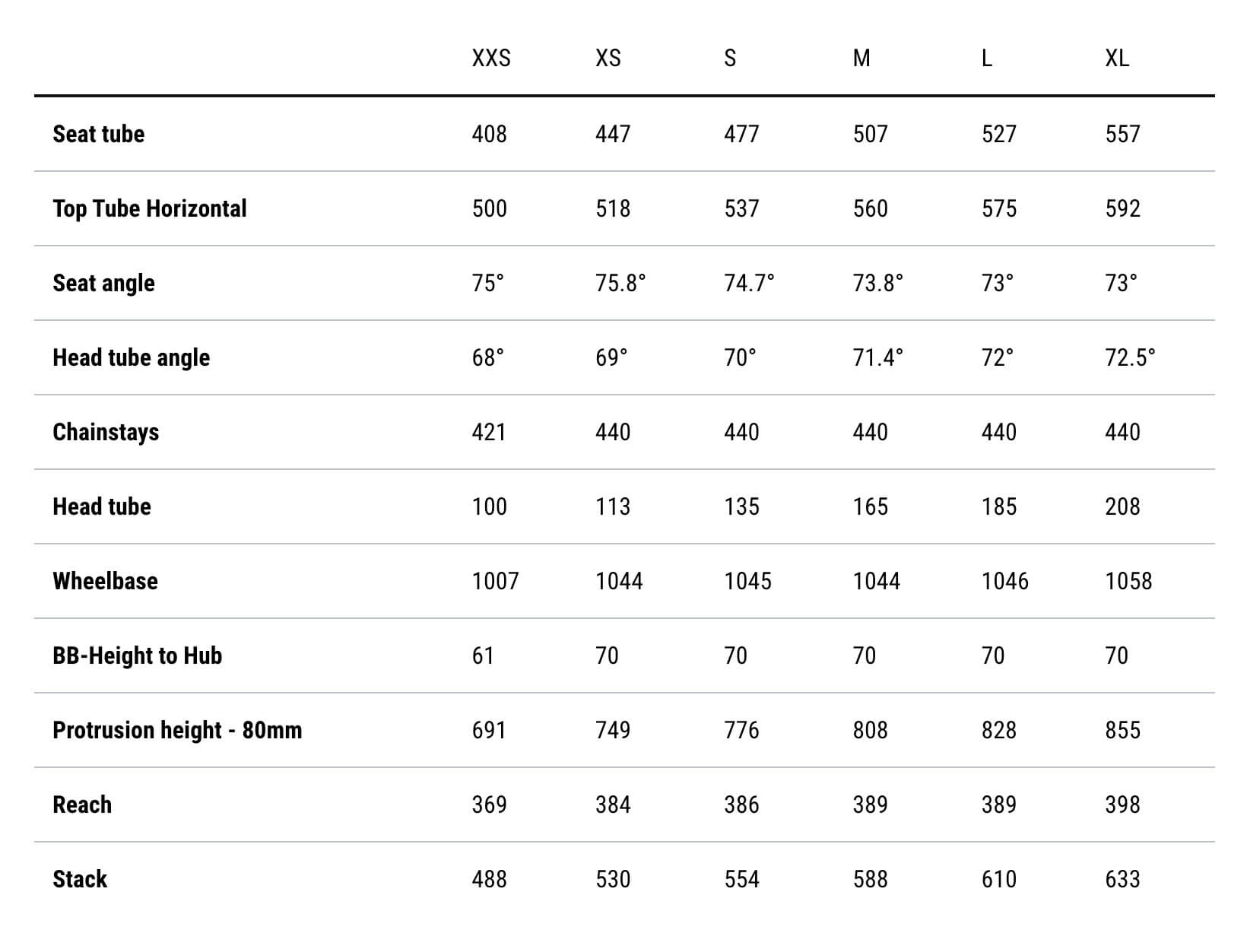

Sizing & Geometry
Frame measurements and sizing vary by bike size. Measurements are shown for each available frame size.
Swipe across to view all sizes.
| Geometry | XXS | XS | S | M | L | XL |
|---|---|---|---|---|---|---|
| Sizing | ||||||
| Wheel size | 700c | 700c | 650b | 700c | 700c | 700c |
| Frame geometry | ||||||
| Stack (mm) | 488 | 530 | 554 | 588 | 610 | 633 |
| Reach (mm) | 369 | 384 | 386 | 389 | 389 | 398 |
| Effective top tube (mm) | 500 | 518 | 537 | 560 | 575 | 592 |
| Seat tube (mm) | 408 | 447 | 477 | 507 | 527 | 557 |
| Head tube (mm) | 99 | 113 | 135 | 165 | 185 | 208 |
| Standover (mm) | 691 | 749 | 776 | 808 | 828 | 855 |
| Handling | ||||||
| Head angle (°) | 68 | 69 | 70 | 71.40 | 72 | 72.50 |
| Seat angle (°) | 75.80 | 75.80 | 74.70 | 73.80 | 73 | 73 |
| Chainstay (mm) | 440 | 440 | 440 | 440 | 440 | 440 |
| Wheelbase (mm) | 1,043 | 1,044 | 1,045 | 1,044 | 1,046 | 1,058 |
| Fork offset (mm) | — | 45.8 | 45.8 | 45.8 | 45.9 | 45.9 |
| Trail (mm) | — | 87.6 | — | — | — | 64.2 |

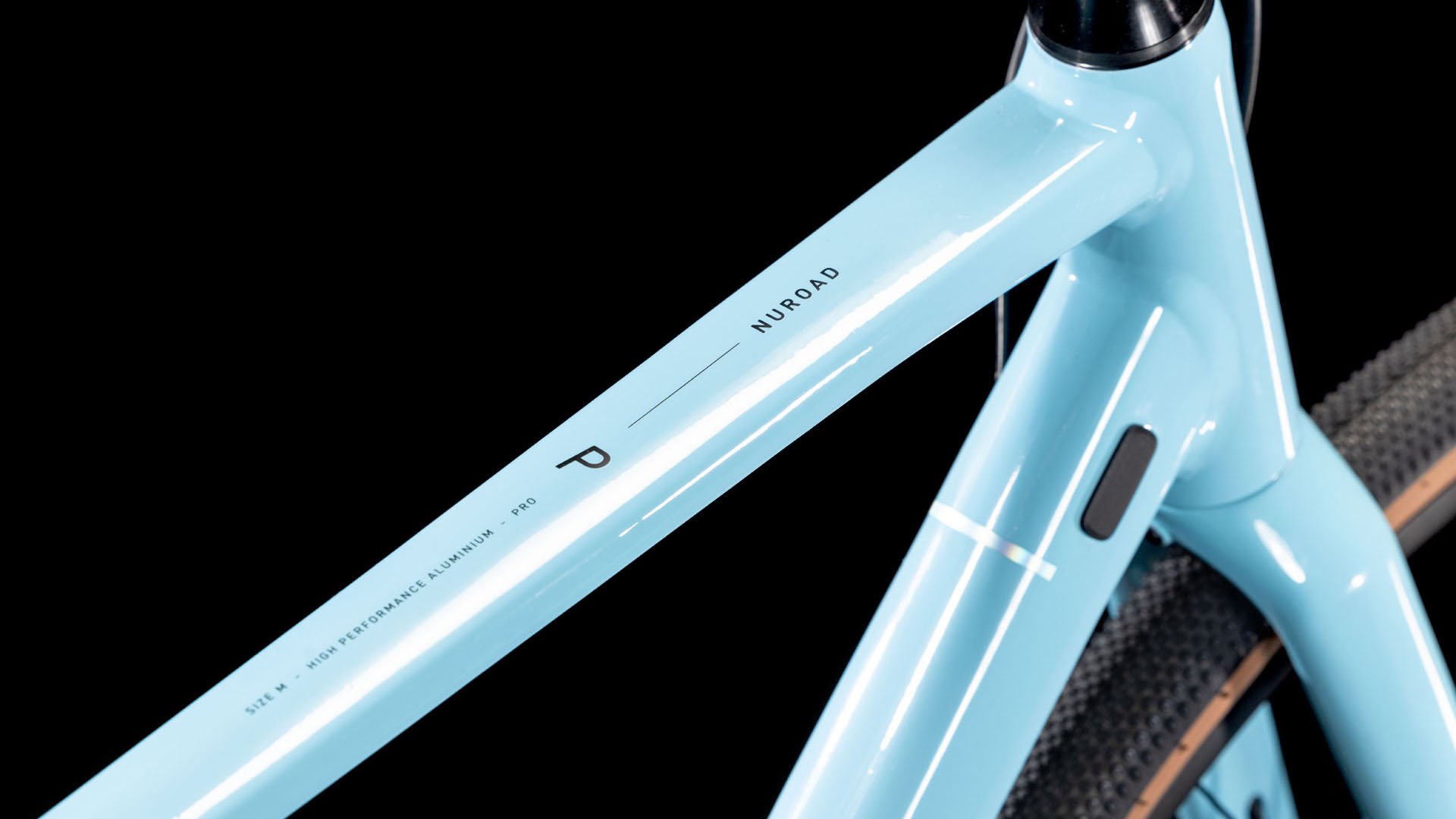

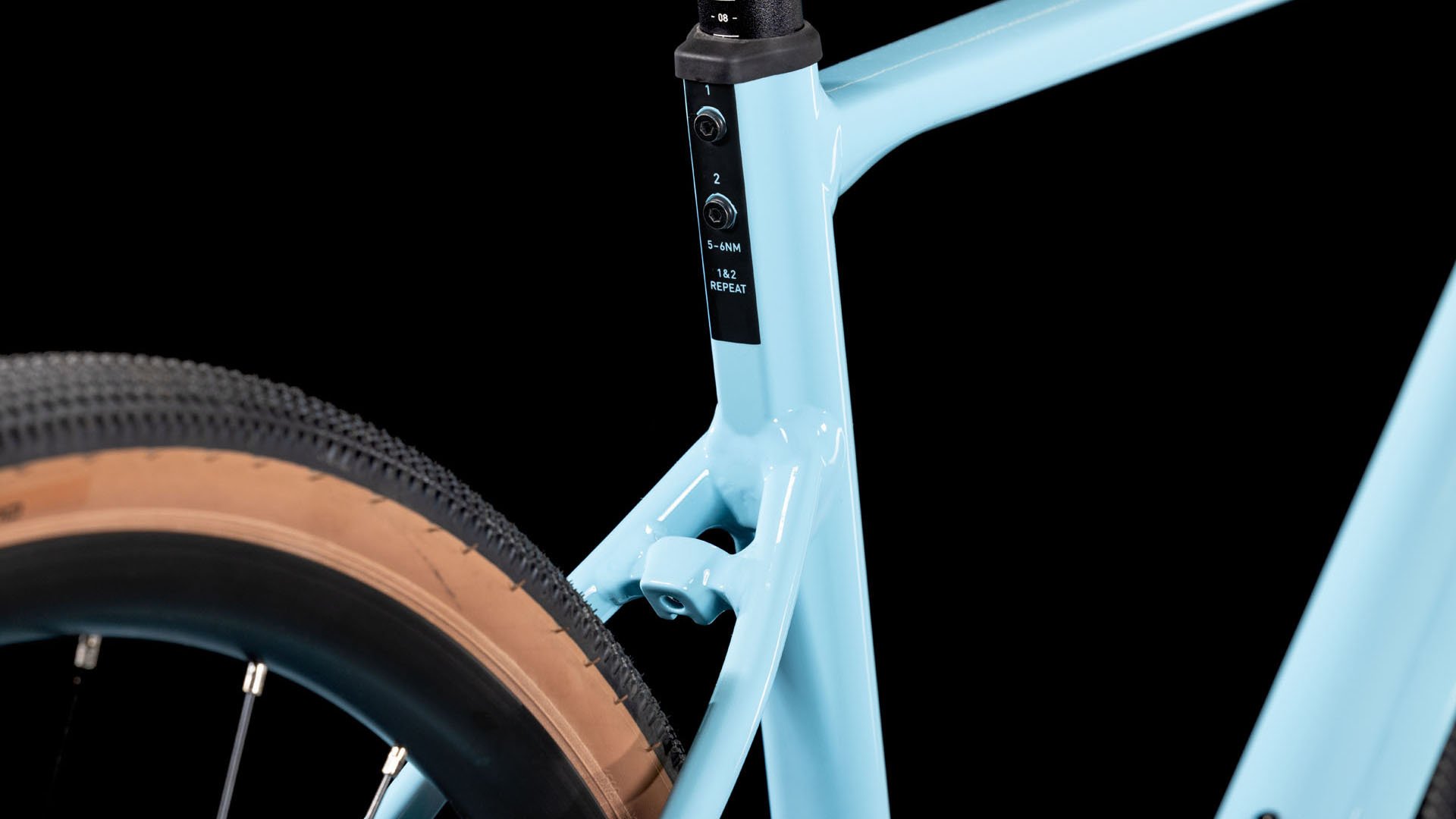

Frame Details
Frame Weight
This frame weighs 1150g
Frame Material
Aluminium

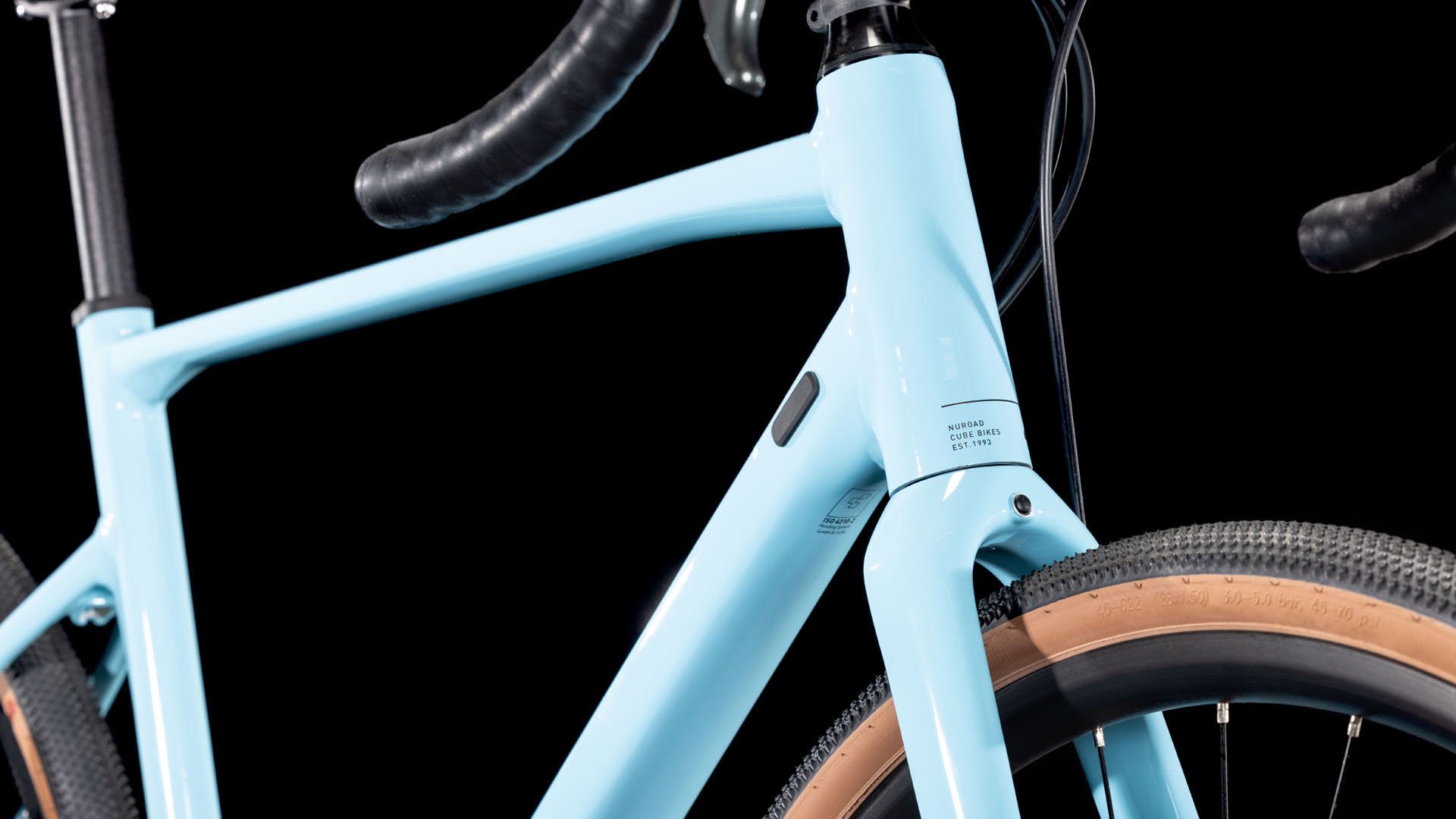

Forks
Aluminium 6061 T6 Superlite, Gravel Comfort Geometry, Flat Mount Disc, Fender & Rack Option, 12x142mm, AXH
Fork Material
The forks are made from Carbon Fiber
Cables: Internally Routed
Routed through bars, stem and frame
Axel Type: Thru-axle
How the wheels are secured to the frame
Brake Type: Disc Brake
Welcome to the future!
Brake Mount: Flat Mount
How the calipers are mounted
Integrated bar and stem: No
You can use any bar and stem
Drivechain Details
Groupset name
Shimano Cues ST-U6030
Electric Groupset: No
This bike doesn't have electric gears
Shifters
Shimano Cues ST-U6030
Front Derailleur
None
Rear Derailleur
Shimano Cues RD-U6000-GS, 11-Speed
Cassette
Shimano Cues CS-LG400, 11-50T

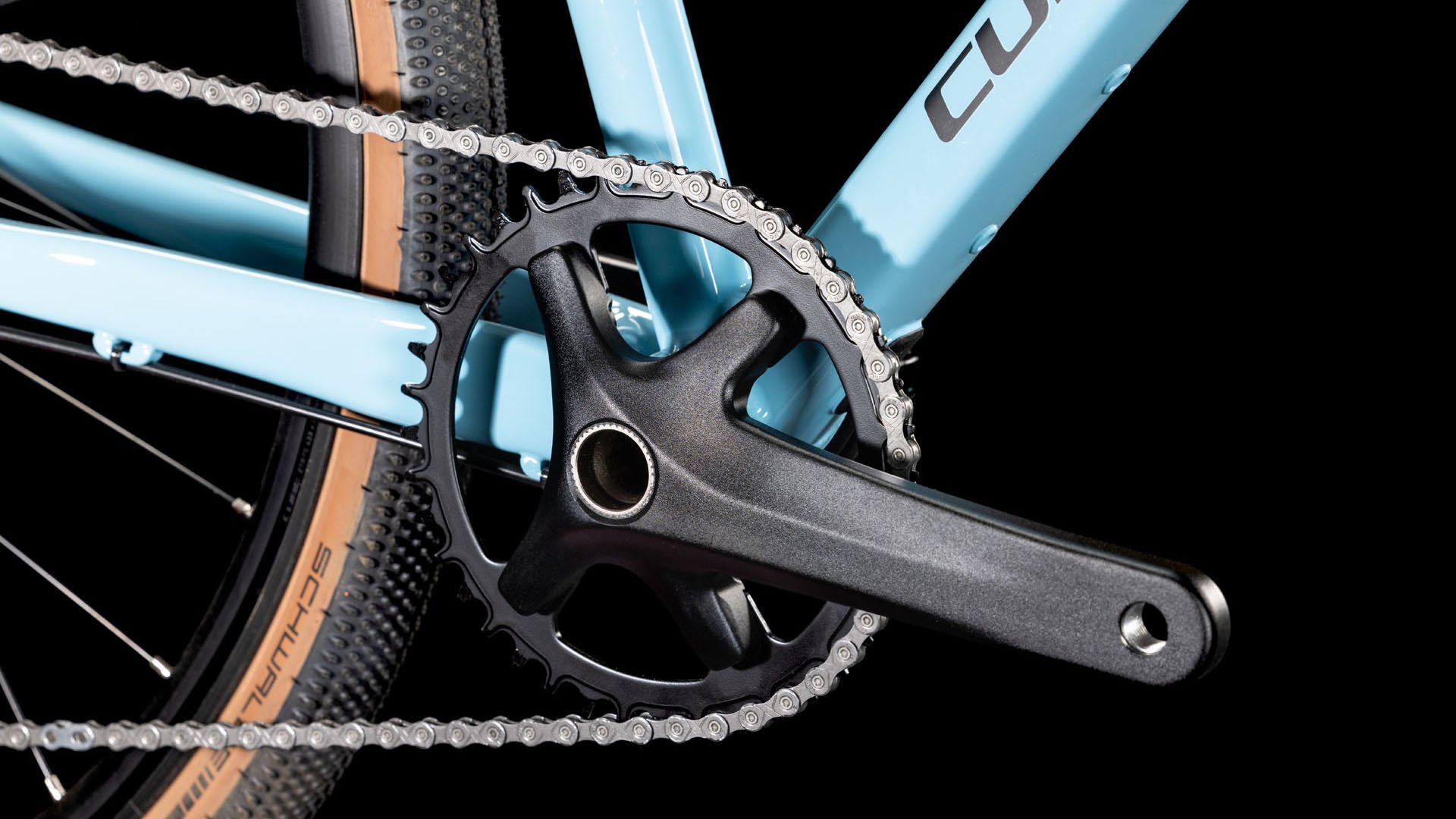

Cranks
ACID Gravel Pro (Size-scaled 170mm to 175mm)
Power Meter: No
This bike doesn't have a power meter
Bottom Bracket
Shimano BB-RS500PB, Pressfit
Chain
KMC xGlide
Wheel & Tire Details
Wheelset Name
CUBE GR 2.5 Disc, Tubeless Ready
Front Wheel Depth
Unknown
Rear Wheel Depth
Unknown
Tires
Schwalbe G-One Allround, 40-584 / 40-622
Tire Type
Clincher
Max Tire Size: 45 mm
This is the max tire size you can use
Brakes
Brake Type: Disc Brake
Welcome to the future!
Brake Mount: Flat Mount
How these disc brakes are mounted
Brakes
Shimano Cues BR-U6030, Hydr. Disc Brake, Flat Mount (180/180)
Brake Rotors
180mm Front / 160mm Rear (Listed in primary manufacturer documents). Contextual Note: Specific retail production runs and video tear-downs note some territories shipping with dual 180mm Flat-Mount configurations (180/180) to maximize stopping power under heavy touring loads
Other Components
Saddle
Natural Fit Venec Lite
Seatpost
CUBE Performance Post
Handlebars
CUBE Gravel Race Bar
Bar Tape
ACID Bartape CX
