Bike Info
Worldwide Shipping: Yes
Delivery across the globe!
Warranty: 2 Years
Limited warranty website average: 3.12 years
Released: 2025
The bike was released 1 years ago
Bike Type: Road
The style of riding intended for this bike
Bike Spec
Weight: 10.2 kg
The website average for Road bikes is 8.56 kg. This bike is 1.63 kg over the average. Total bike weight may vary depending on frame size.
Groupset
Shimano Tiagra FD-4700, 31.8mm Clamp
Wheelset
Cube RA 2.3 Aero Disc
Brake Type: Disc Brake
Welcome to the future!
Frameset Material
Aluminium
Max Tire Size: 32 mm
This is the max tire size you can use
UCI Approved: No
You can't use for official races
Sizing & Geometry
Frame Sizes
47 50 53 56 58 60 62This frame comes in 7 sizes, this is 1.44 more sizes than the website average.

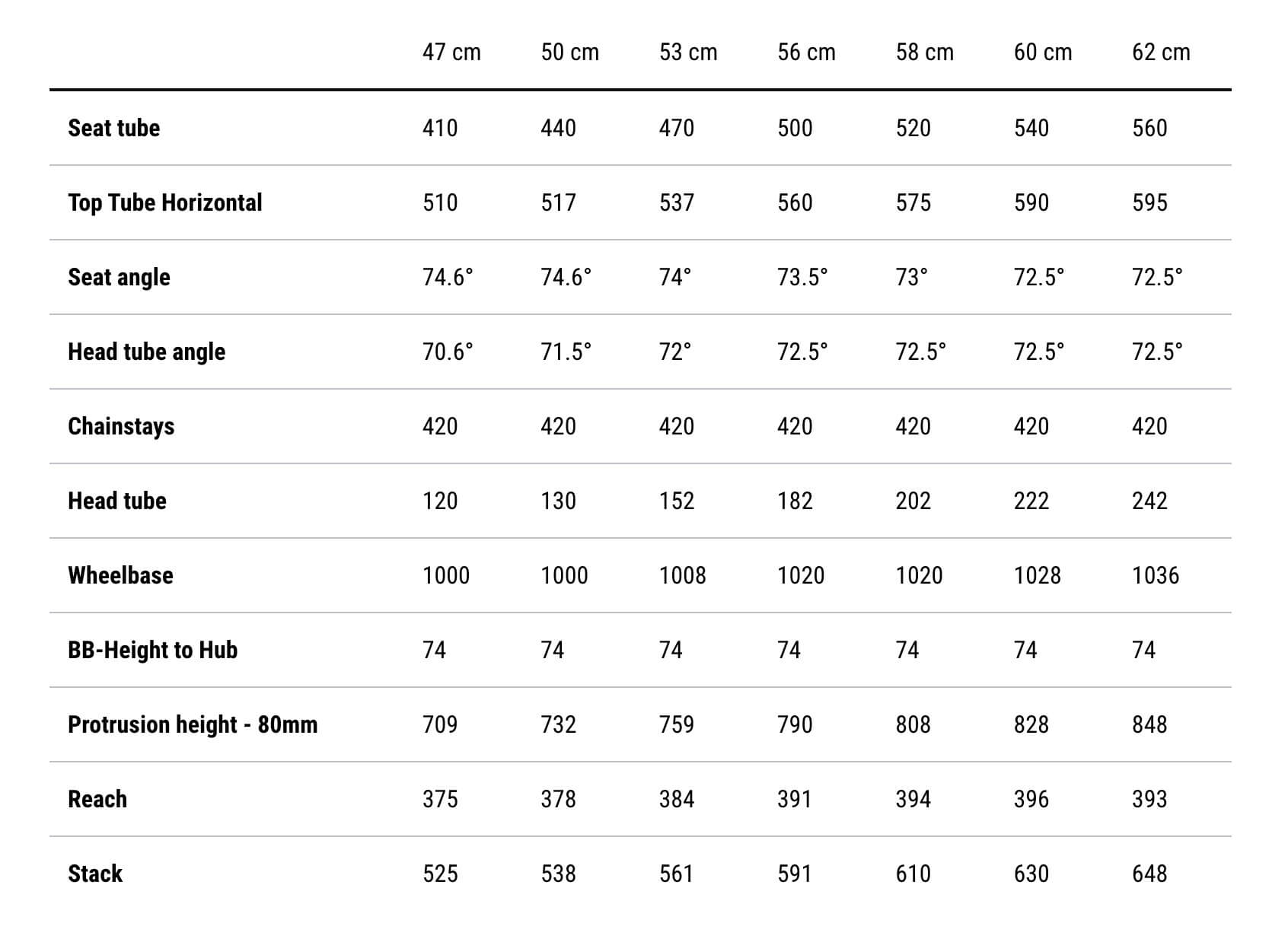

Sizing & Geometry
Frame measurements and sizing vary by bike size. Measurements are shown for each available frame size.
Swipe across to view all sizes.
| Geometry | 47 | 50 | 53 | 56 | 58 | 60 | 62 |
|---|---|---|---|---|---|---|---|
| Sizing | |||||||
| Wheel size | 700c | 700c | 700c | 700c | 700c | 700c | 700c |
| Frame geometry | |||||||
| Stack (mm) | 525 | 538 | 561 | 591 | 610 | 629 | 648 |
| Reach (mm) | 365 | 369 | 376 | 385 | 388 | 392 | 391 |
| Effective top tube (mm) | 511 | 521 | 537 | 559 | 572 | 586 | 595 |
| Seat tube (mm) | 410 | 440 | 470 | 500 | 520 | 540 | 560 |
| Head tube (mm) | 102 | 115 | 138 | 168 | 188 | 208 | 228 |
| Handling | |||||||
| Head angle (°) | 70.50 | 71 | 71.70 | 72.50 | 72.50 | 72.50 | 73 |
| Seat angle (°) | 74.50 | 74.30 | 74 | 73.50 | 73.20 | 73 | 73 |
| Chainstay (mm) | 415 | 415 | 415 | 415 | 415 | 415 | 415 |
| Wheelbase (mm) | 983 | 991 | 998 | 1,007 | 1,017 | 1,027 | 1,032 |
Frame Details
Frame Weight
Unknown
Frame Material
Aluminium
Forks
Aluminium 6061 T4/T6 Superlite, Road Comfort Geometry, Integrated Cable Routing, Flat Mount Disc, Integrated Seatpost Clamp, 12x142mm, AXH
Fork Material
The forks are made from Carbon Fiber
Cables: Internally Routed
Routed through bars, stem and frame
Axel Type: Thru-axle
How the wheels are secured to the frame
Brake Type: Disc Brake
Welcome to the future!
Brake Mount: Flat Mount
How the calipers are mounted
Integrated bar and stem: No
You can use any bar and stem
Drivechain Details
Groupset name
Shimano Tiagra FD-4700, 31.8mm Clamp
Electric Groupset: No
This bike doesn't have electric gears
Shifters
Shimano Tiagra ST-4720
Front Derailleur
Shimano Tiagra FD-4700 with a 31.8mm frame clamp.
Rear Derailleur
Shimano Tiagra RD-4700GS, 10-Speed
Cassette
Shimano CS-HG500, 11-34T

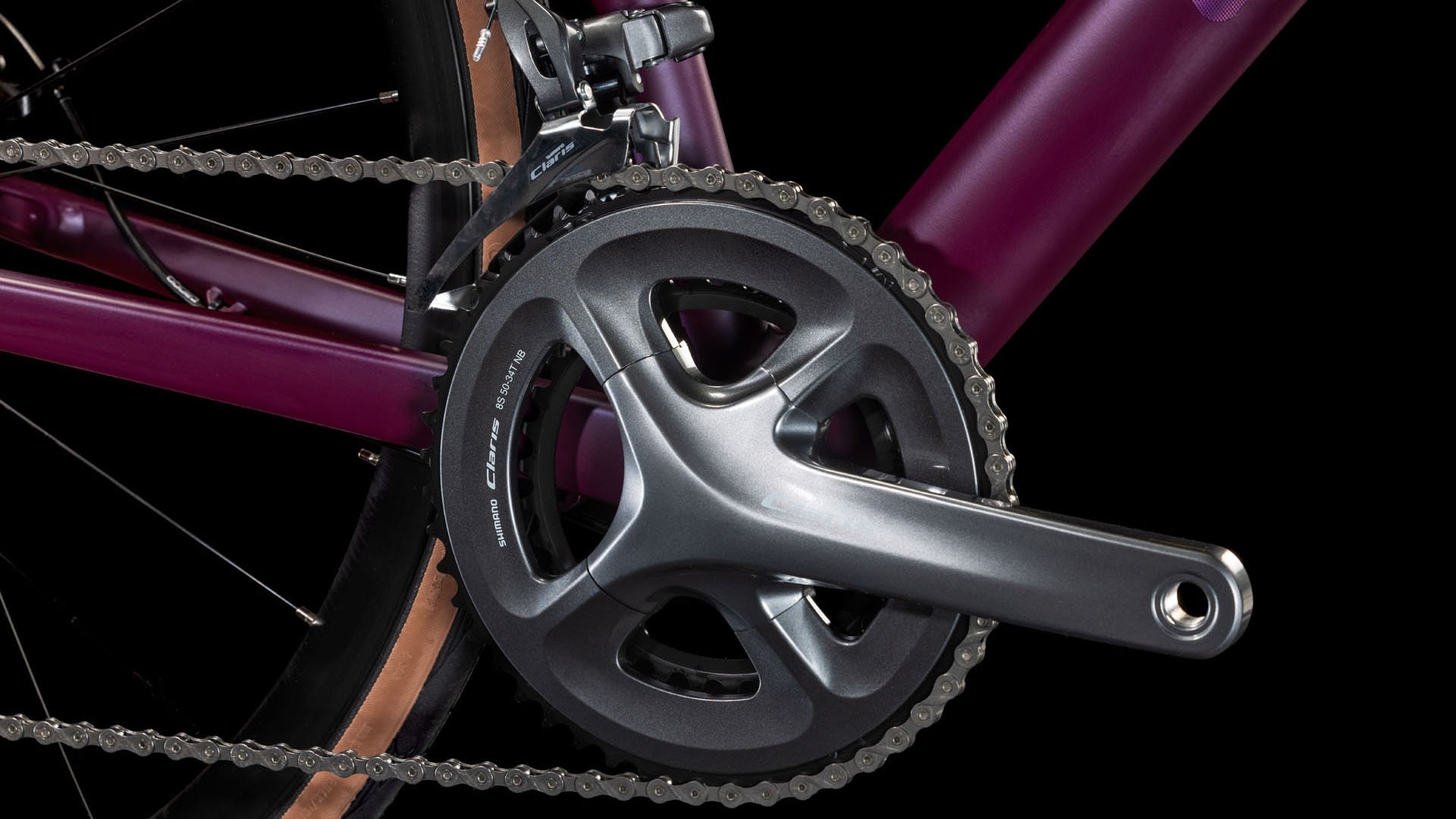

Cranks
Shimano Tiagra FC-RS400
Power Meter: No
This bike doesn't have a power meter
Bottom Bracket
Shimano BB-RS500PB, Pressfit
Chain
KMC X10.
Wheel & Tire Details
Wheelset Name
CUBE RA 2.3 Aero Disc
Front Wheel Depth
23mm
Rear Wheel Depth
23mm
Tires
Conti Grand Prix, Kevlar, 30-622
Tire Type
Clincher
Max Tire Size: 32 mm
This is the max tire size you can use
Brakes
Brake Type: Disc Brake
Welcome to the future!
Brake Mount: Flat Mount
How these disc brakes are mounted
Brakes
Shimano Tiagra BR-R4770, Hydr. Disc Brake, Flat Mount (160/160)
Brake Rotors
160mm front and 160mm rear diameters, using the Shimano Centerlock mounting interface
Other Components
Saddle
ACID Nuance Lite
Seatpost
CUBE Performance Post, 27.2mm
Handlebars
CUBE Compact Race Bar
Bar Tape
ACID Bartape RC 3.0
