Bike Info
Worldwide Shipping: No
Only delivered to specific countries
Warranty: 5 Years
Limited warranty website average: 3.12 years
Released: 2025
The bike was released 1 years ago
Bike Type: Road
The style of riding intended for this bike
Bike Spec
Weight: 7.6 kg
The website average for Road bikes is 8.56 kg. This bike is 0.96 kg under the average. Total bike weight may vary depending on frame size.
Groupset
SRAM Red XPLR AXS
Wheelset
Rose GC50
Brake Type: Disc Brake
Welcome to the future!
Frameset Material
Carbon Fiber
Max Tire Size: 45 mm
This is the max tire size you can use
UCI Approved: Yes
You can use for official races
Sizing & Geometry
Frame Sizes
XS S M L XLThis frame comes in 5 sizes, this is 0.56 less sizes than the website average.
Sizing & Geometry
Frame measurements and sizing vary by bike size. Measurements are shown for each available frame size.
Swipe across to view all sizes.
| Geometry | XS | S | M | M/L | L | XL |
|---|---|---|---|---|---|---|
| Sizing | ||||||
| Rider height | 157–169 cm | 167–176 cm | 174–181 cm | 179–186 cm | 184–193 cm | 191–200 cm |
| Wheel size | 700c | 700c | 700c | 700c | 700c | 700c |
| Frame geometry | ||||||
| Stack (mm) | — | 550 | 571 | 586 | 592 | — |
| Reach (mm) | — | 385 | 393 | 401 | 418 | — |
| Effective top tube (mm) | — | 530 | 545 | 565 | 582 | — |
| Seat tube (mm) | — | 480 | 510 | 527 | 550 | — |
| Head tube (mm) | — | 115 | 136 | 155 | 171 | — |
| Handling | ||||||
| Head angle (°) | — | 71.50 | 72 | 72.20 | 72.50 | — |
| Seat angle (°) | — | 74.50 | 74.50 | 74.50 | 74.50 | — |
| Chainstay (mm) | 420 | 420 | 420 | 420 | 420 | 420 |
| Wheelbase (mm) | — | 1,005 | 1,015 | 1,030 | 1,046 | — |
| Fork offset (mm) | 48 | 48 | 48 | 48 | 48 | 48 |
Frame Details
Frame Weight
This frame weighs 1070g
Frame Material
Carbon Fiber
Forks
ROSE Backroad FF, high modulus carbon, 12x142, Pressfit BB86, Frameweight at size M ca. 1070g Supersonic Grey XS
Fork Material
The forks are made from Carbon Fiber
Cables: Internally Routed
Routed through bars, stem and frame
Axel Type: Thru-axle
How the wheels are secured to the frame
Brake Type: Disc Brake
Welcome to the future!
Brake Mount:
How the calipers are mounted
Integrated bar and stem: Yes
The bar and stem are integrated
Drivechain Details
Groupset name
SRAM Red XPLR AXS
Electric Groupset: Yes
This bike has electric gears
Shifters
Shimano GRX ST-RX825(R) BR-RX820(R) black 1000mm
Front Derailleur
None
Rear Derailleur
SRAM RED XPLR AXS E1, black/silver
Cassette
SRAM XG-1391 XPLR E1.

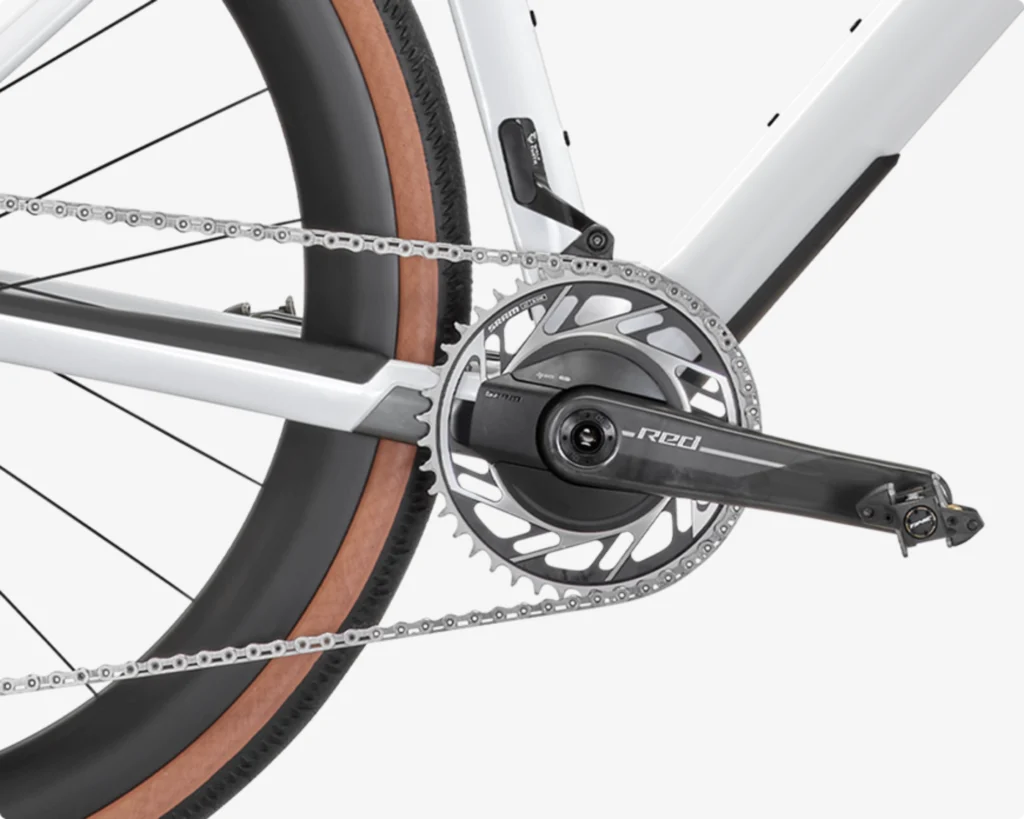

Cranks
SRAM RED XPLR E1 Carbon
Power Meter: Yes
This bike comes with a power meter
Bottom Bracket
BB86/BB92, press-fit
Chain
SRAM RED E1 Flattop (118 links).
Battery
Unknown
Wheel & Tire Details
Wheelset Name
ROSE GC50, 28"
Front Wheel Depth
50mm
Rear Wheel Depth
50mm
Tires
Schwalbe G-One RS Evo, black 40-622
Tire Type
Tubeless
Max Tire Size: 45 mm
This is the max tire size you can use
Brakes
Brake Type: Disc Brake
Welcome to the future!
Brake Mount:
How these disc brakes are mounted
Brakes
Front Wheel: SRAM Red AXS, Rear Wheel: SRAM Red AXS, SRAM Paceline X, Ø160mm
Brake Rotors
160 mm front / 160 mm rear utilizing SRAM Paceline X Centerlock disc rotors
Other Components
Saddle
Selle Italia Flite Boost S1 Carbon, black
Seatpost
Handlebars
ROSE one piece cockpit Gravel, 90mm/38cm
