Bike Info
Worldwide Shipping: No
Only delivered to specific countries
Warranty: 5 Years
Limited warranty website average: 3.12 years
Released: 2025
The bike was released 1 years ago
Bike Type: Road
The style of riding intended for this bike
Bike Spec
Weight: 8.2 kg
The website average for Road bikes is 8.56 kg. This bike is 0.36 kg under the average. Total bike weight may vary depending on frame size.
Groupset
SRAm Force AXS XPLR
Wheelset
Rose GC Forty Disc
Brake Type: Disc Brake
Welcome to the future!
Frameset Material
Carbon Fiber
Max Tire Size: 53 mm
This is the max tire size you can use
UCI Approved: Yes
You can use for official races
Sizing & Geometry
Frame Sizes
47 50 53 55 57 59 62This frame comes in 7 sizes, this is 1.44 more sizes than the website average.

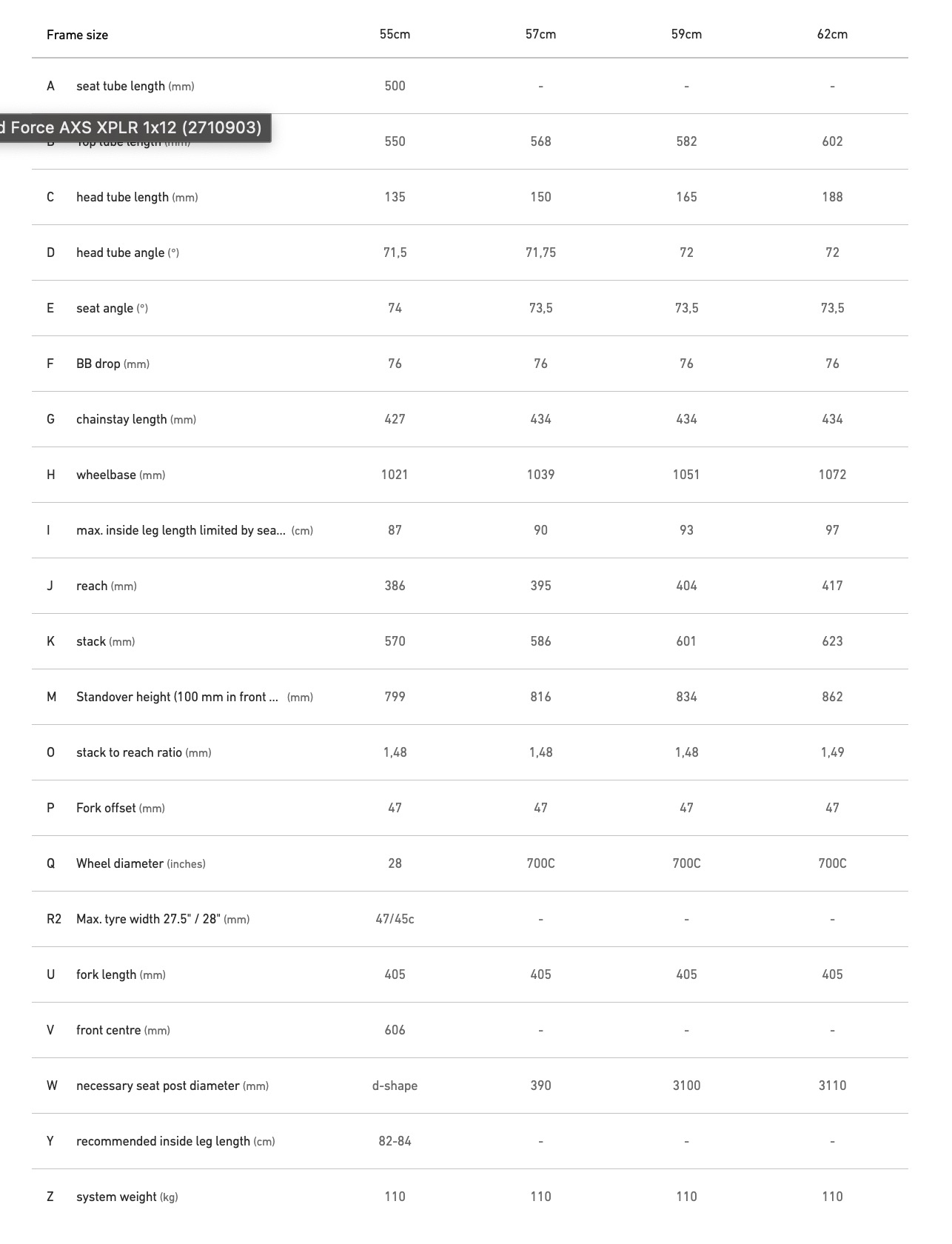

Sizing & Geometry
Frame measurements and sizing vary by bike size. Measurements are shown for each available frame size.
Swipe across to view all sizes.
| Geometry | 47 | 50 | 53 | 55 | 57 | 59 | 62 |
|---|---|---|---|---|---|---|---|
| Sizing | |||||||
| Rider height | Up to 165 cm | 165–172 cm | 173–179 cm | 180–184 cm | 185–189 cm | 190–194 cm | 195+ cm |
| Wheel size | 700c | 700c | 700c | 700c | 700c | 700c | 700c |
| Frame geometry | |||||||
| Stack (mm) | 531 | 545 | 565 | 581 | 600 | 610 | 624 |
| Reach (mm) | 370 | 384 | 388 | 396 | 403 | 412 | 430 |
| Effective top tube (mm) | 510 | 525 | 543 | 557 | 574 | 589 | 605 |
| Seat tube (mm) | 430 | 455 | 485 | 510 | 535 | 560 | 590 |
| Head tube (mm) | 100 | 115 | 134 | 151 | 170 | 181 | 196 |
| Standover (mm) | 720 | 745 | 772 | 794 | 816 | 838 | 863 |
| Handling | |||||||
| Head angle (°) | 71 | 71 | 71.50 | 72 | 72 | 72.50 | 72.50 |
| Seat angle (°) | 74.50 | 74.50 | 74 | 73.50 | 73.50 | 73 | 73 |
| Chainstay (mm) | 425 | 425 | 425 | 425 | 427 | 427 | 427 |
| Wheelbase (mm) | 1,002 | 1,018 | 1,025 | 1,031 | 1,050 | 1,060 | 1,079 |
| Fork offset (mm) | 47 | 47 | 47 | 47 | 47 | 47 | 47 |
Frame Details
Frame Weight
This frame weighs 1020g
Frame Material
Carbon Fiber
Forks
ROSE BACKROAD, Carbon dusty purple 50cm
Fork Material
The forks are made from Carbon Fiber
Cables: Internally Routed
Routed through bars, stem and frame
Axel Type: Thru-axle
How the wheels are secured to the frame
Brake Type: Disc Brake
Welcome to the future!
Brake Mount:
How the calipers are mounted
Integrated bar and stem: Yes
The bar and stem are integrated
Drivechain Details
Groupset name
SRAm Force AXS XPLR
Electric Groupset: Yes
This bike has electric gears
Shifters
SRAM Force AXS D2, black
Front Derailleur
None
Rear Derailleur
SRAM Force XPLR AXS D2, black
Cassette
SRAM XG-1271 XPLR (Official).

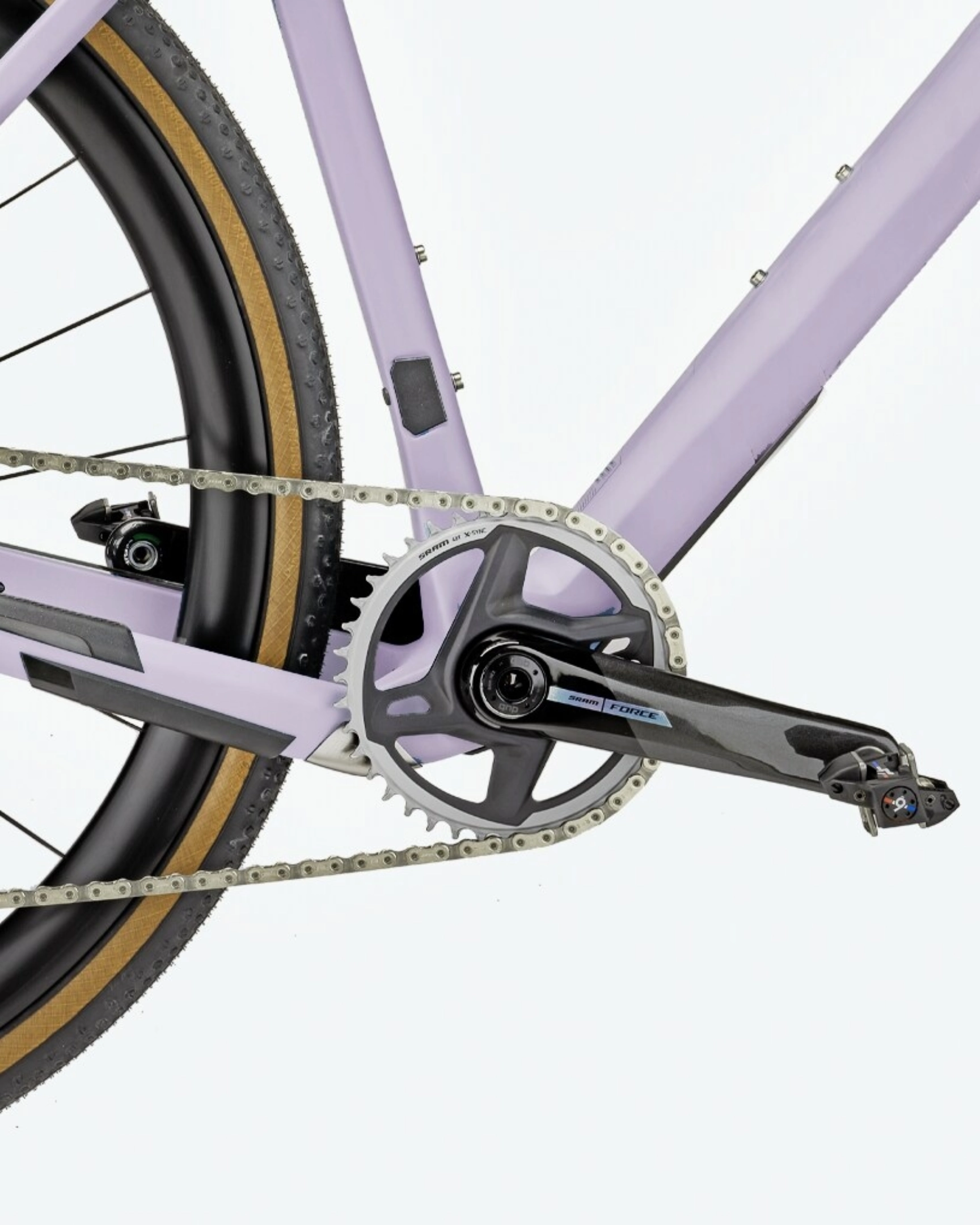

Cranks
SRAM Force 1x D2 Wide (170/172.5/175mm by size)
Power Meter: No
This bike doesn't have a power meter
Bottom Bracket
BB86/BB92, press-fit
Chain
SRAM Force 12-speed Flattop (Inferred from matching Force AXS family).
Battery
Unknown
Wheel & Tire Details
Wheelset Name
ROSE GC FORTY DISC, carbon, 28"
Front Wheel Depth
40mm
Rear Wheel Depth
40mm
Tires
Continental Terra Speed ProTection, schwarz/transparent (dunkelbraun) 40-622
Tire Type
Clincher
Max Tire Size: 53 mm
This is the max tire size you can use
Brakes
Brake Type: Disc Brake
Welcome to the future!
Brake Mount:
How these disc brakes are mounted
Brakes
SRAM Force AXS D2, black
Brake Rotors
160 mm Front / 160 mm Rear
Other Components
Saddle
Fizik Vento Argo X3, 140 mm
Seatpost
ROSE D-Shape Carbon Seat Post I 25 mm Setback I 490 mm Length 490mm
Handlebars
ROSE Endurance One-Piece Carbon-Cockpit, 90mm/40cm
Bar Tape
ROSE Gel-Comfort, black
