Bike Info
Worldwide Shipping: Yes
Delivery across the globe!
Warranty: Lifetime
Limited warranty website average: 3.12 years
Released: 2025
The bike was released 1 years ago
Bike Type: Road
The style of riding intended for this bike
Bike Spec
Groupset
Shimano Cues
Wheelset
Alloy Tubeless 700c
Brake Type: Disc Brake
Welcome to the future!
Frameset Material
Aluminium
Max Tire Size: 45 mm
This is the max tire size you can use
UCI Approved: Unknown
You can't use for official races
Sizing & Geometry
Frame Sizes
XS S M L XL XXLThis frame comes in 6 sizes, this is 0.44 more sizes than the website average.
Sizing & Geometry
Frame measurements and sizing vary by bike size. Measurements are shown for each available frame size.
Swipe across to view all sizes.

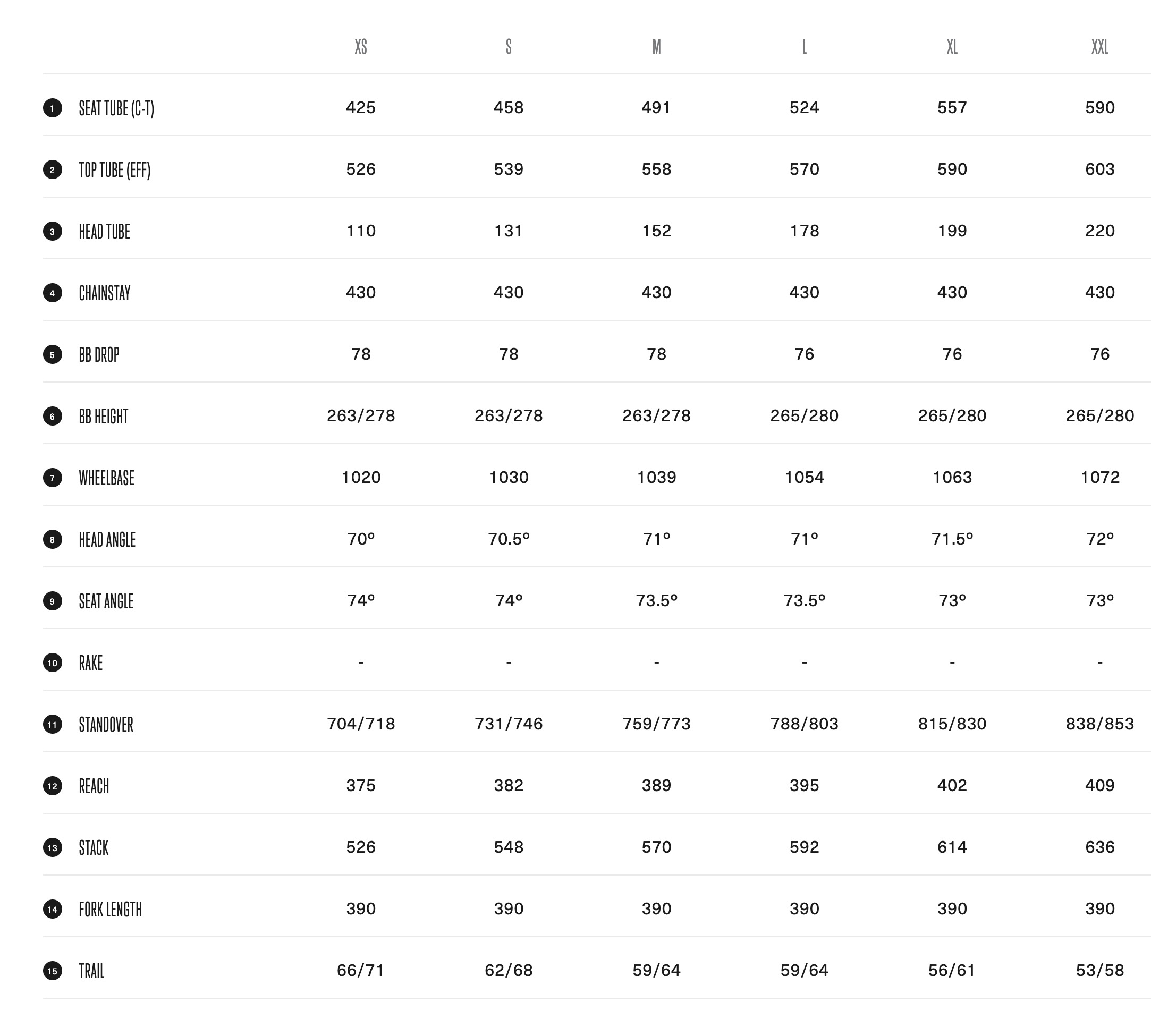

| Geometry | XS | S | M | L | XL | XXL |
|---|---|---|---|---|---|---|
| Sizing | ||||||
| Rider height | 155–166 cm | 167–172 cm | 173–179 cm | 180–185 cm | 186–191 cm | 192–207 cm |
| Wheel size | 700c | 650b | 700c | 700c | 700c | 700c |
| Frame geometry | ||||||
| Stack (mm) | 535 | 553 | 572 | 591 | 612 | 631 |
| Reach (mm) | 375 | 382 | 389 | 395 | 402 | 409 |
| Effective top tube (mm) | 522 | 539 | 557 | 573 | 592 | 610 |
| Seat tube (mm) | 425 | 455 | 485 | 515 | 545 | 575 |
| Head tube (mm) | 100 | 118 | 137 | 156 | 178 | 198 |
| Standover (mm) | 732 | 759 | 785 | 812 | 839 | 866 |
| Handling | ||||||
| Head angle (°) | 70 | 70.50 | 71 | 71.50 | 71.50 | 72 |
| Seat angle (°) | 74.50 | 74 | 73.50 | 73.50 | 73 | 73 |
| Chainstay (mm) | 430 | 430 | 430 | 430 | 430 | 430 |
| Wheelbase (mm) | 1,014 | 1,022 | 1,031 | 1,042 | 1,061 | 1,074 |
| Fork offset (mm) | 55 | 55 | 47 | 47 | 47 | 47 |
Frame Details
Frame Weight
Unknown
Frame Material
Aluminium
Forks

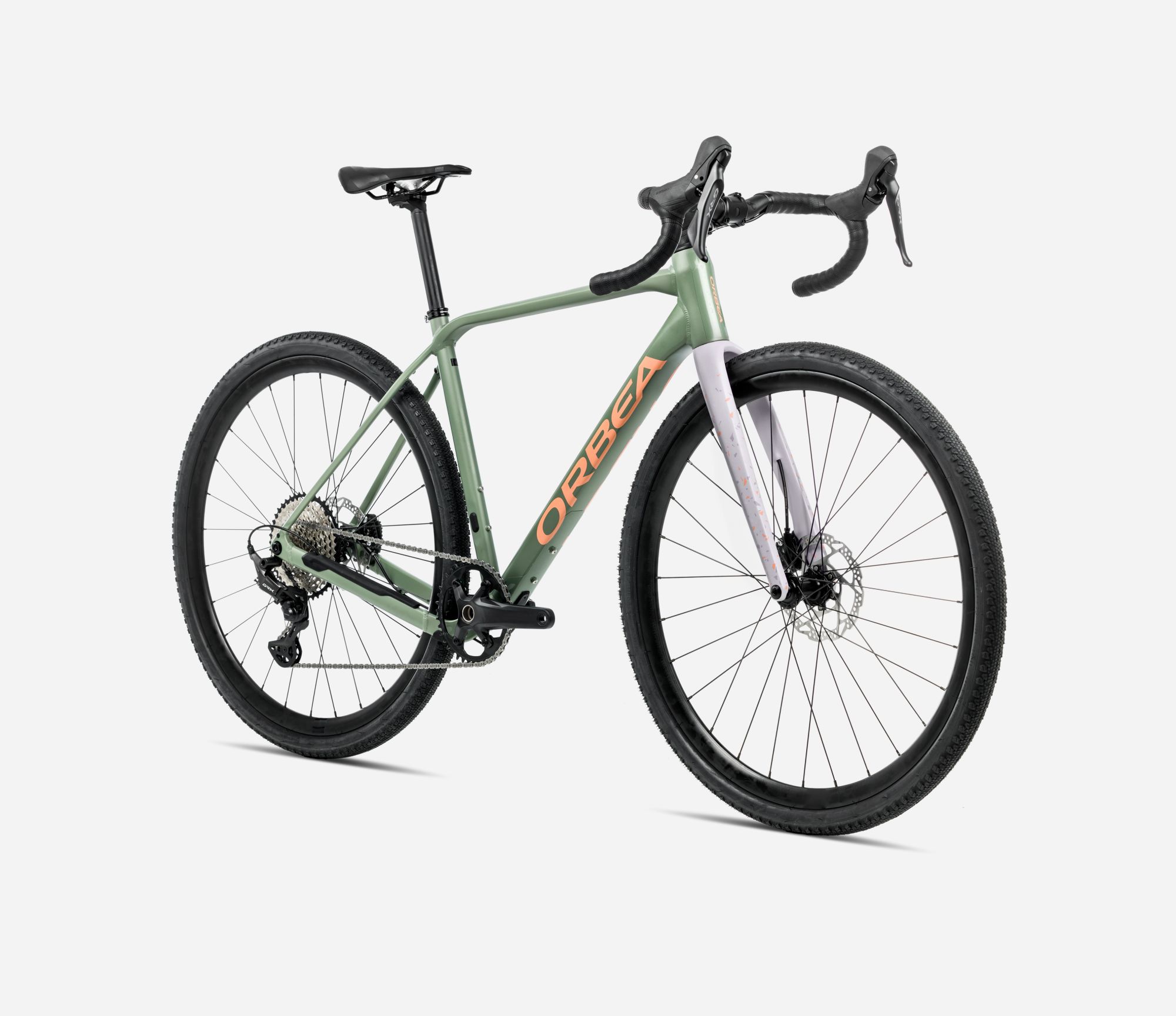

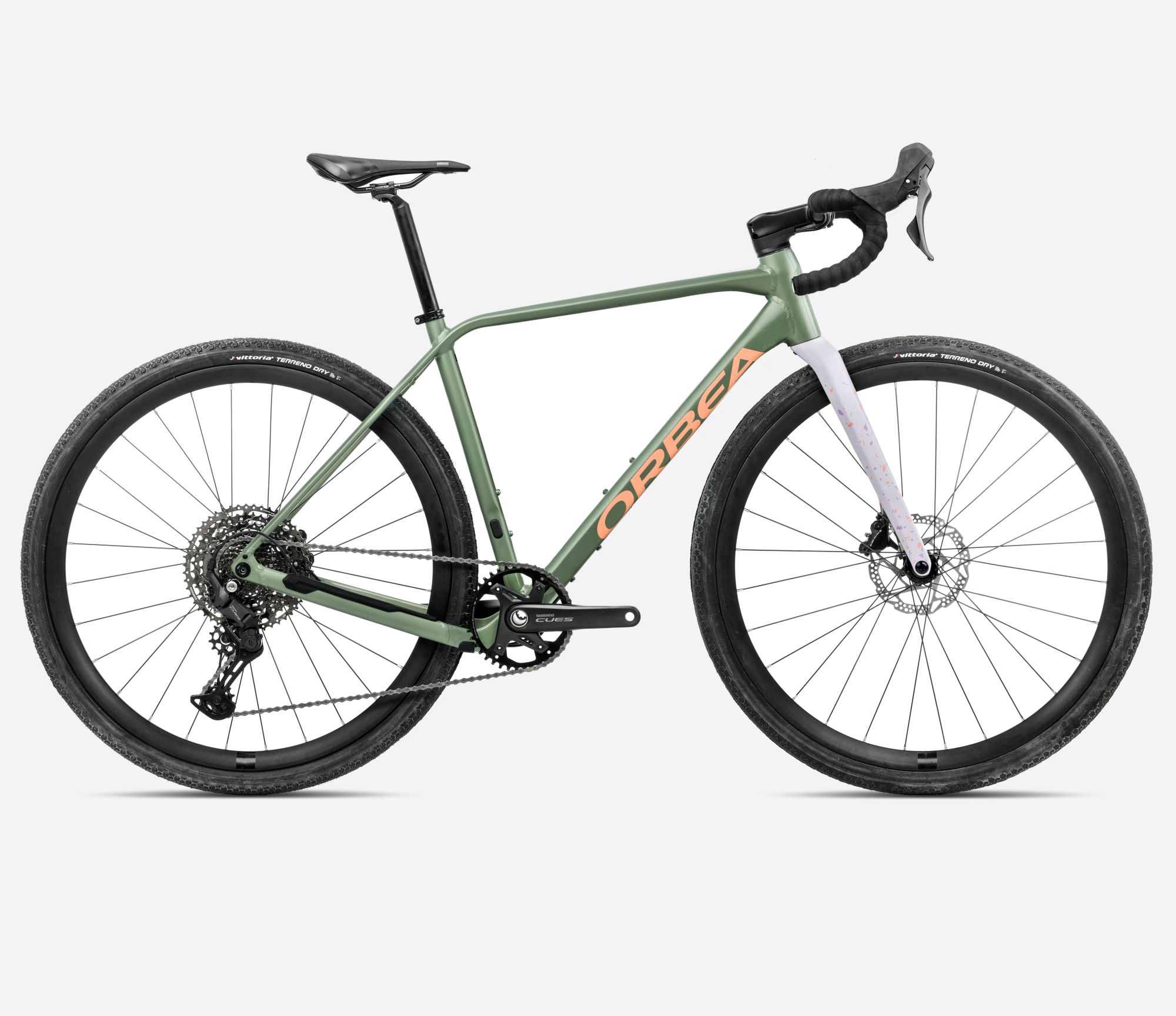

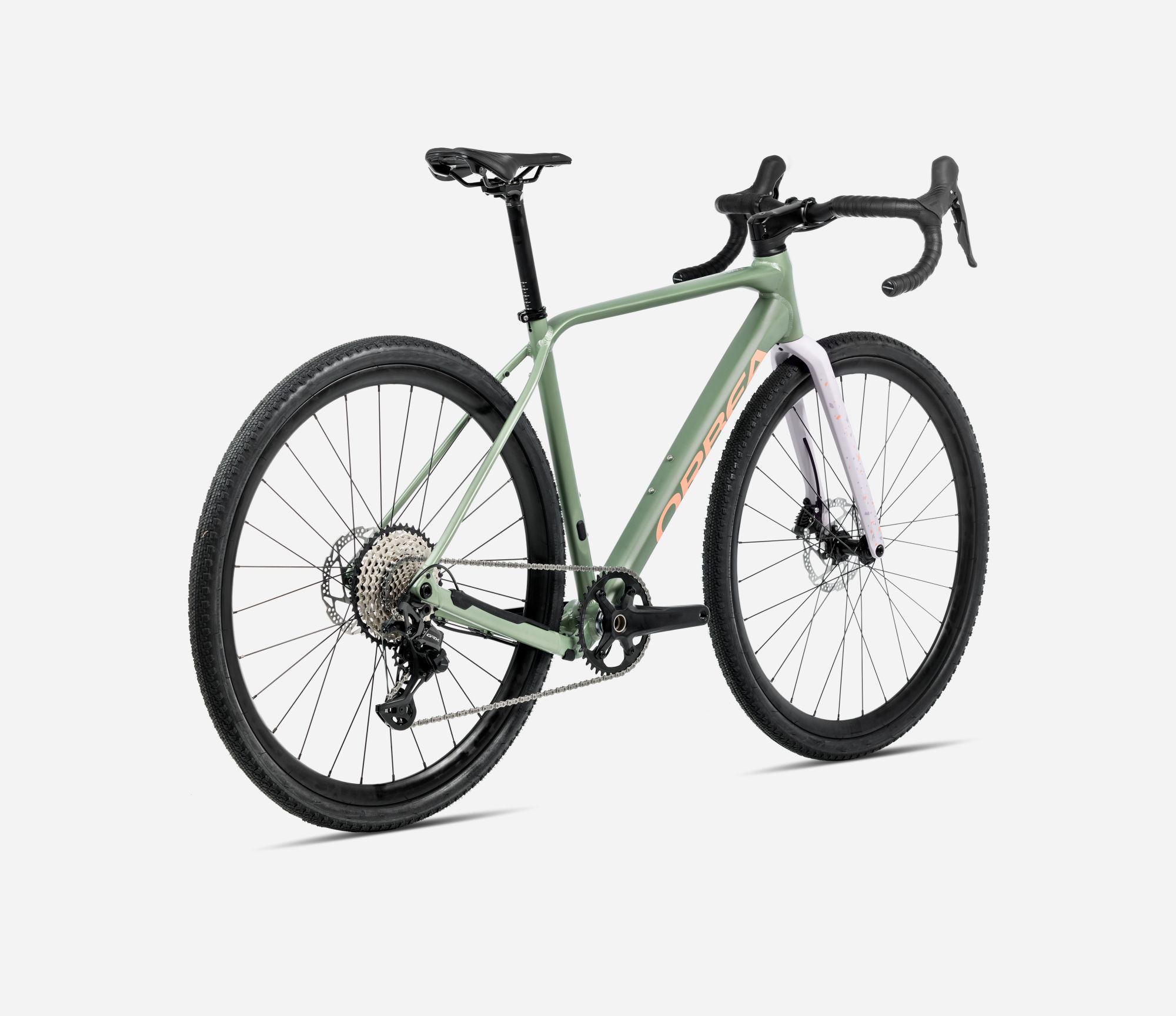

Orbea Terra Hydro disc, hydroformed triple butted aluminium, HS 1,5", PF, Thru Axle 12mm x 142mm rear, thread M12x2 P1, DT internal cable routing, 27,2mm seat tube, MMS system
Fork Material
The forks are made from Carbon Fiber
Cables: Internally Routed
Routed through bars, stem and frame
Axel Type: Thru-axle
How the wheels are secured to the frame
Brake Type: Disc Brake
Welcome to the future!
Brake Mount: Flat Mount
How the calipers are mounted
Integrated bar and stem: No
You can use any bar and stem
Drivechain Details
Groupset name
Shimano Cues
Electric Groupset: No
This bike doesn't have electric gears
Shifters
Shimano U6030
Front Derailleur
None
Rear Derailleur
Shimano Cues U6000 GS Shadow
Cassette
Shimano CS-LG400.
Cranks
Shimano Cues U6040 (Official)
Power Meter: No
This bike doesn't have a power meter
Bottom Bracket
PF30 Press Fit
Chain
Shimano LG500 Linkglide chain.
Wheel & Tire Details
Wheelset Name
Alloy, Tubeless, 700c, 21c
Front Wheel Depth
Unknown
Rear Wheel Depth
Unknown
Tires
Vittoria Terreno Dry Gravel 700x38c
Tire Type
Clincher
Max Tire Size: 45 mm
This is the max tire size you can use
Brakes
Brake Type: Disc Brake
Welcome to the future!
Brake Mount: Flat Mount
How these disc brakes are mounted
Brakes
Shimano U6030 Hydraulic Disc
Brake Rotors
160mm front / 160mm rear standard configuration
Other Components
Saddle
Prologo Akero AGX black rails size 155mm
Seatpost
Handlebars
OC Gravel GR31-R, Rise 15, Reach 70, Drop 110
Bar Tape
Orbea Eva
