Bike Info
Worldwide Shipping: Yes
Delivery across the globe!
Warranty: Lifetime
Limited warranty website average: 3.12 years
Released: 2025
The bike was released 1 years ago
Bike Type: Road
The style of riding intended for this bike
Bike Spec
Groupset
Shimano GRX RX610
Wheelset
Alloy Tubeless 700c
Brake Type: Disc Brake
Welcome to the future!
Frameset Material
Aluminium

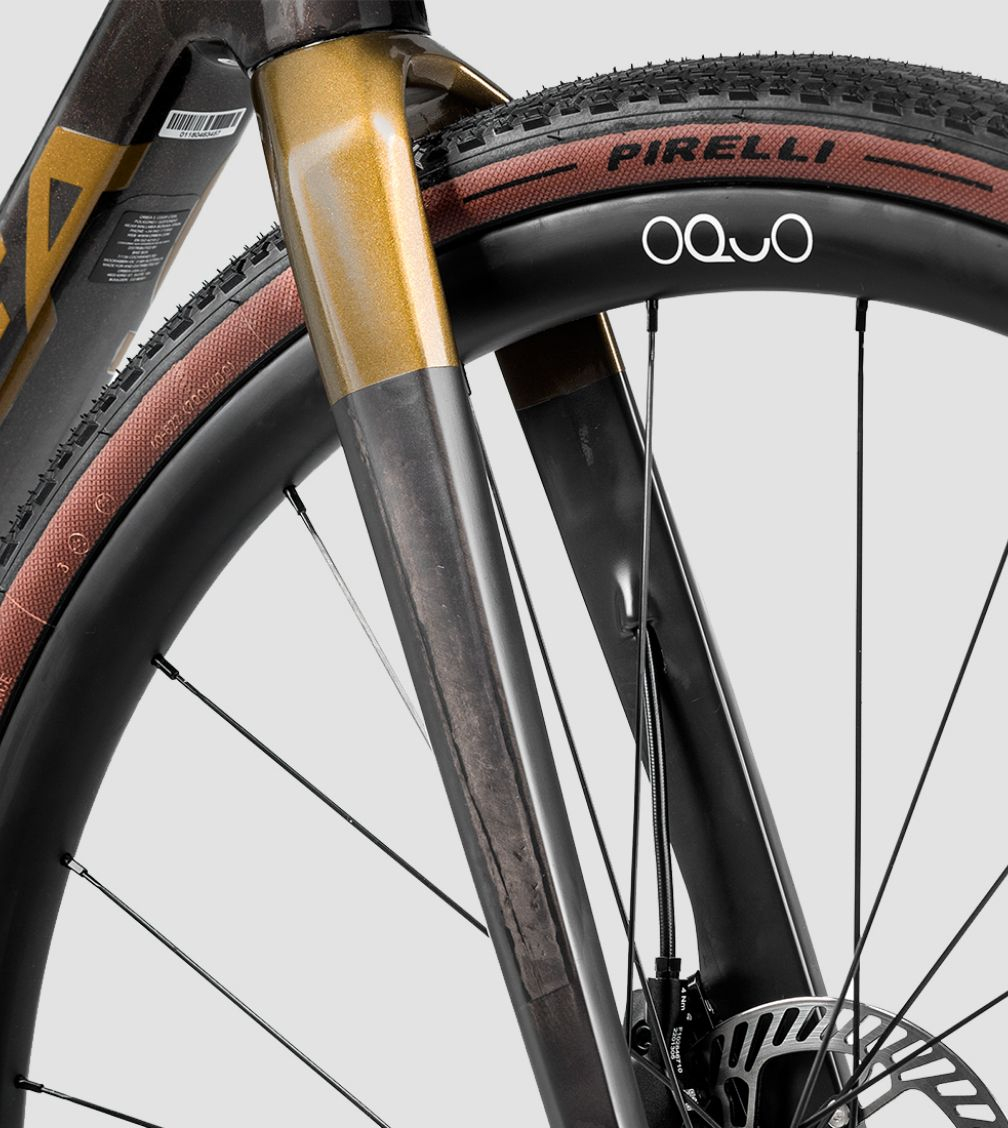

Max Tire Size: 45 mm
This is the max tire size you can use
UCI Approved: Yes
You can use for official races
Sizing & Geometry
Frame Sizes
XS S M L XL XXLThis frame comes in 6 sizes, this is 0.44 more sizes than the website average.
Sizing & Geometry
Frame measurements and sizing vary by bike size. Measurements are shown for each available frame size.
Swipe across to view all sizes.
| Geometry | XS | S | M | L | XL | XXL |
|---|---|---|---|---|---|---|
| Sizing | ||||||
| Rider height | 155–166 cm | 167–172 cm | 173–179 cm | 180–185 cm | 186–191 cm | 192–207 cm |
| Wheel size | — | 650b | — | — | — | — |
| Frame geometry | ||||||
| Stack (mm) | 540 | 563 | 584 | 606 | 629 | 649 |
| Reach (mm) | 373 | 380 | 389 | 397 | 405 | 412 |
| Effective top tube (mm) | 535 | 547 | 561 | 573 | 585 | 596 |
| Seat tube (mm) | 410 | 440 | 470 | 505 | 540 | 575 |
| Head tube (mm) | 110 | 132.5 | 153.5 | 175 | 198 | 218 |
| Standover (mm) | 734 | 760 | 785 | 814 | 845 | 875 |
| Handling | ||||||
| Head angle (°) | 70 | 70.50 | 71 | 71.50 | 72 | 72 |
| Seat angle (°) | 74 | 74 | 73.50 | 73.50 | 73.50 | 73.50 |
| Chainstay (mm) | 430 | 430 | 430 | 430 | 430 | 430 |
| Wheelbase (mm) | 1,021 | 1,029 | 1,037 | 1,045 | 1,054 | 1,066 |
| Fork offset (mm) | 55 | 55 | 55 | 47 | 47 | 47 |
| Trail (mm) | 71 | 68 | 65 | 67 | 64 | 64 |
Frame Details
Frame Weight
This frame weighs 1650g
Frame Material
Aluminium
Forks
Orbea Terra Hydro disc, hydroformed triple butted aluminium, HS 1,5", PF, Thru Axle 12mm x 142mm rear, thread M12x2 P1, DT internal cable routing, 27,2mm seat tube, MMS system
Fork Material
The forks are made from Carbon Fiber
Cables: Internally Routed
Routed through bars, stem and frame
Axel Type: Thru-axle
How the wheels are secured to the frame
Brake Type: Disc Brake
Welcome to the future!
Brake Mount: Flat Mount
How the calipers are mounted
Integrated bar and stem: No
You can use any bar and stem

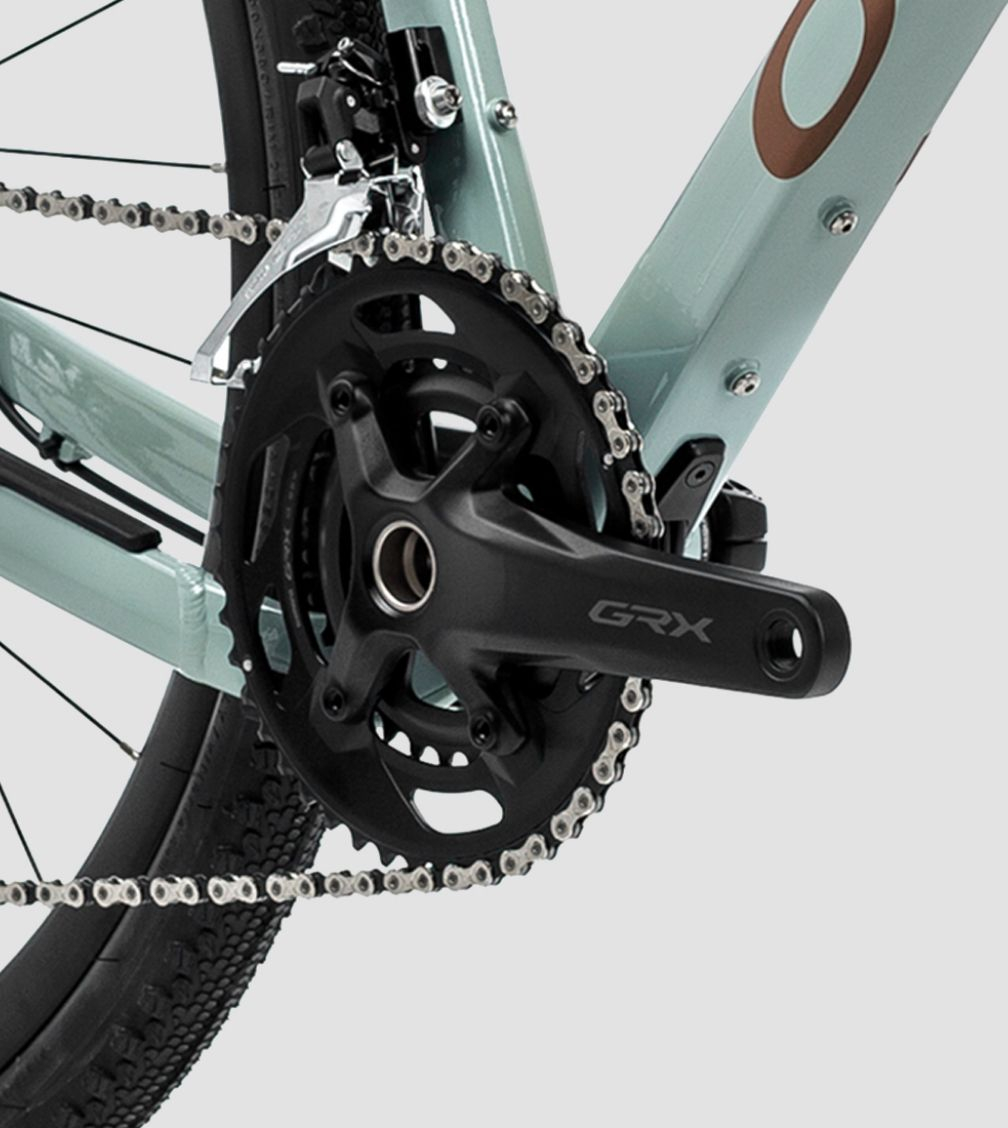

Drivechain Details
Groupset name
Shimano GRX RX610
Electric Groupset: No
This bike doesn't have electric gears
Shifters
Shimano GRX RX610
Front Derailleur
None
Rear Derailleur
Shimano GRX RX822 GS
Cassette
Shimano CS-M7200 / CS-M7100 Series (Official / Retailer-listed)
Cranks
Shimano GRX RX610
Power Meter: No
This bike doesn't have a power meter
Bottom Bracket
PF30 Press Fit
Chain
Shimano M6100 12-speed chain (Official)
Wheel & Tire Details
Wheelset Name
Alloy, Tubeless, 700c, 21c
Front Wheel Depth
22mm
Rear Wheel Depth
22mm
Tires
Vittoria Terreno Dry Gravel 700x38c
Tire Type
Tubeless
Max Tire Size: 45 mm
This is the max tire size you can use
Brakes
Brake Type: Disc Brake
Welcome to the future!
Brake Mount: Flat Mount
How these disc brakes are mounted
Brakes
Shimano RX400 Hydraulic disc
Brake Rotors
160mm front / 160mm rear (Retailer-listed / Platform standard). The frame uses the flat-mount disc standard
Other Components
Saddle
Prologo Akero AGX black rails size 155mm
Seatpost
Handlebars
OC Gravel GR31-R, Rise 15, Reach 70, Drop 110
Bar Tape
Orbea Eva
