Bike Info
Worldwide Shipping: Yes
Delivery across the globe!
Warranty: Lifetime
Limited warranty website average: 3.12 years
Released: 2025
The bike was released 1 years ago
Bike Type: Road
The style of riding intended for this bike
Bike Spec
Weight: 8.6 kg
The website average for Road bikes is 8.56 kg. This bike is 0.03 kg over the average. Total bike weight may vary depending on frame size.
Groupset
SRAM Force AXS
Wheelset
Merida Team GR30
Brake Type: Disc Brake
Welcome to the future!
Frameset Material
Carbon Fiber
Max Tire Size: 35 mm
This is the max tire size you can use
UCI Approved: Yes
You can use for official races
Sizing & Geometry
Frame Sizes
XXS XS S M L XLThis frame comes in 6 sizes, this is 0.44 more sizes than the website average.

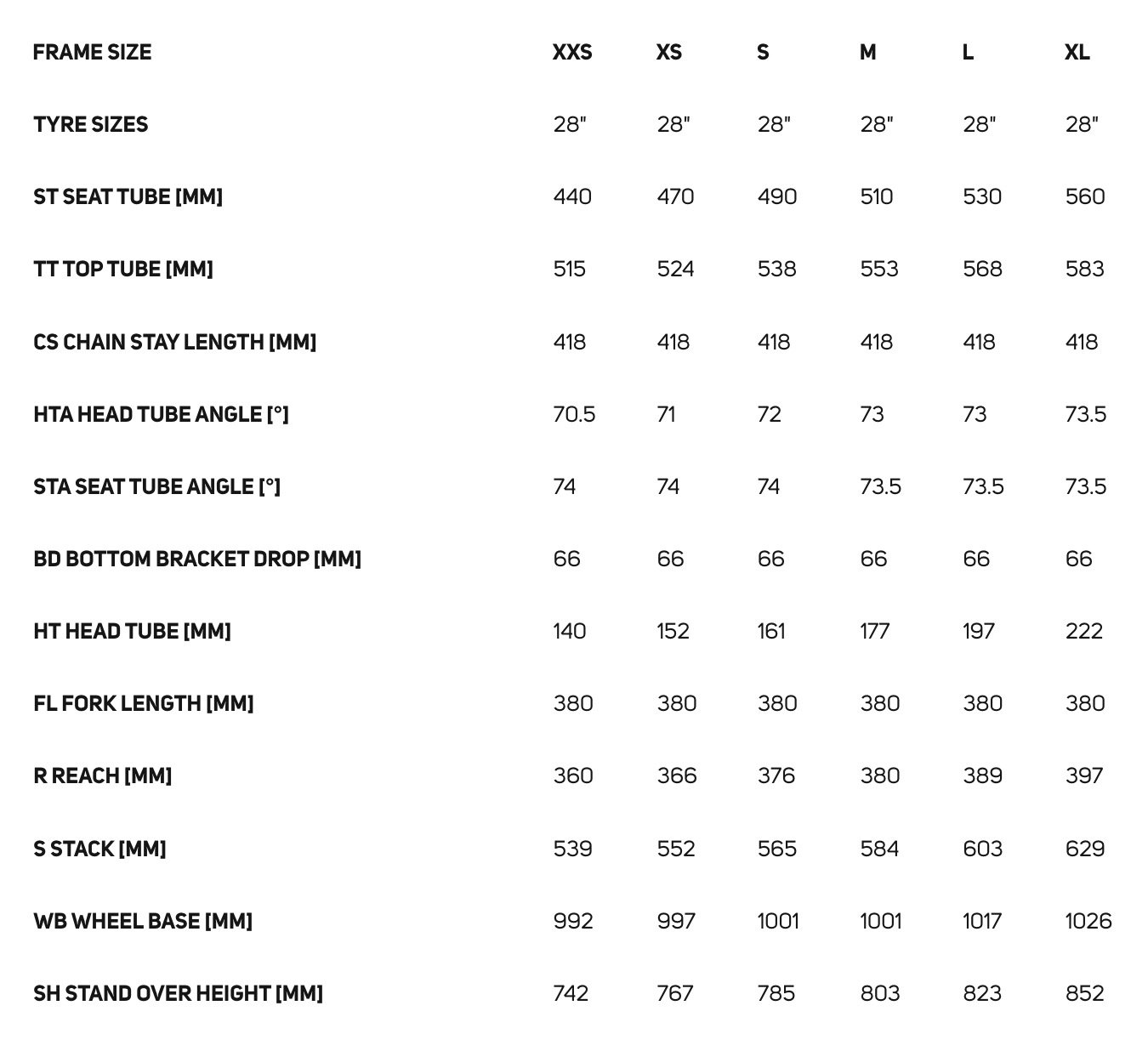

Sizing & Geometry
Frame measurements and sizing vary by bike size. Measurements are shown for each available frame size.
Swipe across to view all sizes.
| Geometry | XXS | XS | S | M | L | XL |
|---|---|---|---|---|---|---|
| Sizing | ||||||
| Rider height | Up to 160 cm | 160–167 cm | 167–173 cm | 173–180 cm | 180–188 cm | 188+ cm |
| Wheel size | 700c | 700c | 700c | 700c | 700c | 700c |
| Frame geometry | ||||||
| Stack (mm) | 528 | 539 | 552 | 565 | 584 | 603 |
| Reach (mm) | 360 | 366 | 376 | 380 | 389 | 397 |
| Effective top tube (mm) | 514 | 526 | 541 | 553 | 569 | 587 |
| Seat tube (mm) | 440 | 470 | 490 | 510 | 530 | 560 |
| Head tube (mm) | 125 | 137 | 151 | 165 | 185 | 205 |
| Standover (mm) | 716 | 743 | 761 | 779 | 798 | 825 |
| Handling | ||||||
| Head angle (°) | 70.50 | 71 | 72 | 72.50 | 73 | 73.50 |
| Seat angle (°) | 74.50 | 74.50 | 74 | 74 | 73.50 | 73.50 |
| Chainstay (mm) | 418 | 418 | 418 | 418 | 418 | 418 |
| Wheelbase (mm) | 1,000 | 1,007 | 1,011 | 1,018 | 1,029 | 1,042 |
| Fork offset (mm) | 49 | 49 | 49 | 49 | 49 | 49 |
Frame Details
Frame Weight
This frame weighs 1124g
Frame Material
Carbon Fiber
Forks
SCULTURA ENDURANCE CF3 II, material: carbon, 700x35C max./ 700x32C (with fender) max. wheelsize, 100x12/ 142x12mm axle standard, BB86 bottom bracket standard
Fork Material
The forks are made from Carbon Fiber
Cables: Internally Routed
Routed through bars, stem and frame
Axel Type: Thru-axle
How the wheels are secured to the frame
Brake Type: Disc Brake
Welcome to the future!
Brake Mount: Flat Mount
How the calipers are mounted
Integrated bar and stem: No
You can use any bar and stem
Drivechain Details
Groupset name
SRAM Force AXS
Electric Groupset: Yes
This bike has electric gears
Shifters
SRAM Force AXS
Front Derailleur
SRAM Force AXS.
Rear Derailleur
SRAM Force AXS
Cassette
SRAM XG-1270 D1 (10-36T)
Cranks
SRAM Force AXS (Size Proportional)
Power Meter: No
This bike doesn't have a power meter
Bottom Bracket
SRAM Pressfit Dub, Pressfit 86.5
Chain
SRAM Force D1 12-speed.
Battery
Unknown
Wheel & Tire Details
Wheelset Name
MERIDA TEAM GR30, 100x12mm width front hub, 142x12mm width rear hub, 25mm inner width, 30mm height, Centerlock, material: carbon
Front Wheel Depth
30mm
Rear Wheel Depth
30mm
Tires
Continental Terra Speed ProTection, 700x35C, fold
Tire Type
Tubeless
Max Tire Size: 35 mm
This is the max tire size you can use
Brakes
Brake Type: Disc Brake
Welcome to the future!
Brake Mount: Flat Mount
How these disc brakes are mounted
Brakes
SRAM Force AXS, Hydraulic disc
Brake Rotors
160 mm both front and rear. It features SRAM Centerlock Paceline rotors paired with Merida's proprietary CNC-machined aluminium Disc Cooler fins to enhance thermal dissipation
Other Components
Saddle
Prologo Scratch M5 AGX, V-mount adapter, incl. MERIDA minitool
Seatpost
MERIDA TEAM SL 27.2mm diameter 15mm setback Carbon S-Flex
Handlebars
MERIDA EXPERT GRII, material: aluminium, 380mm (XXS-XS) 400mm (S-M), 420mm (L-XL)
Bar Tape
MERIDA ROAD EXPERT
