Bike Info
Worldwide Shipping: Yes
Delivery across the globe!
Warranty: Lifetime
Limited warranty website average: 3.12 years
Released: 2025
The bike was released 1 years ago
Bike Type: Road
The style of riding intended for this bike
Bike Spec
Weight: 7.6 kg
The website average for Road bikes is 8.56 kg. This bike is 0.96 kg under the average. Total bike weight may vary depending on frame size.
Groupset
Shimano Ultegra Di2
Wheelset
Reynolds AR46 DB
Brake Type: Disc Brake
Welcome to the future!
Frameset Material
Carbon Fiber
Max Tire Size: 30 mm
This is the max tire size you can use
UCI Approved: Yes
You can use for official races

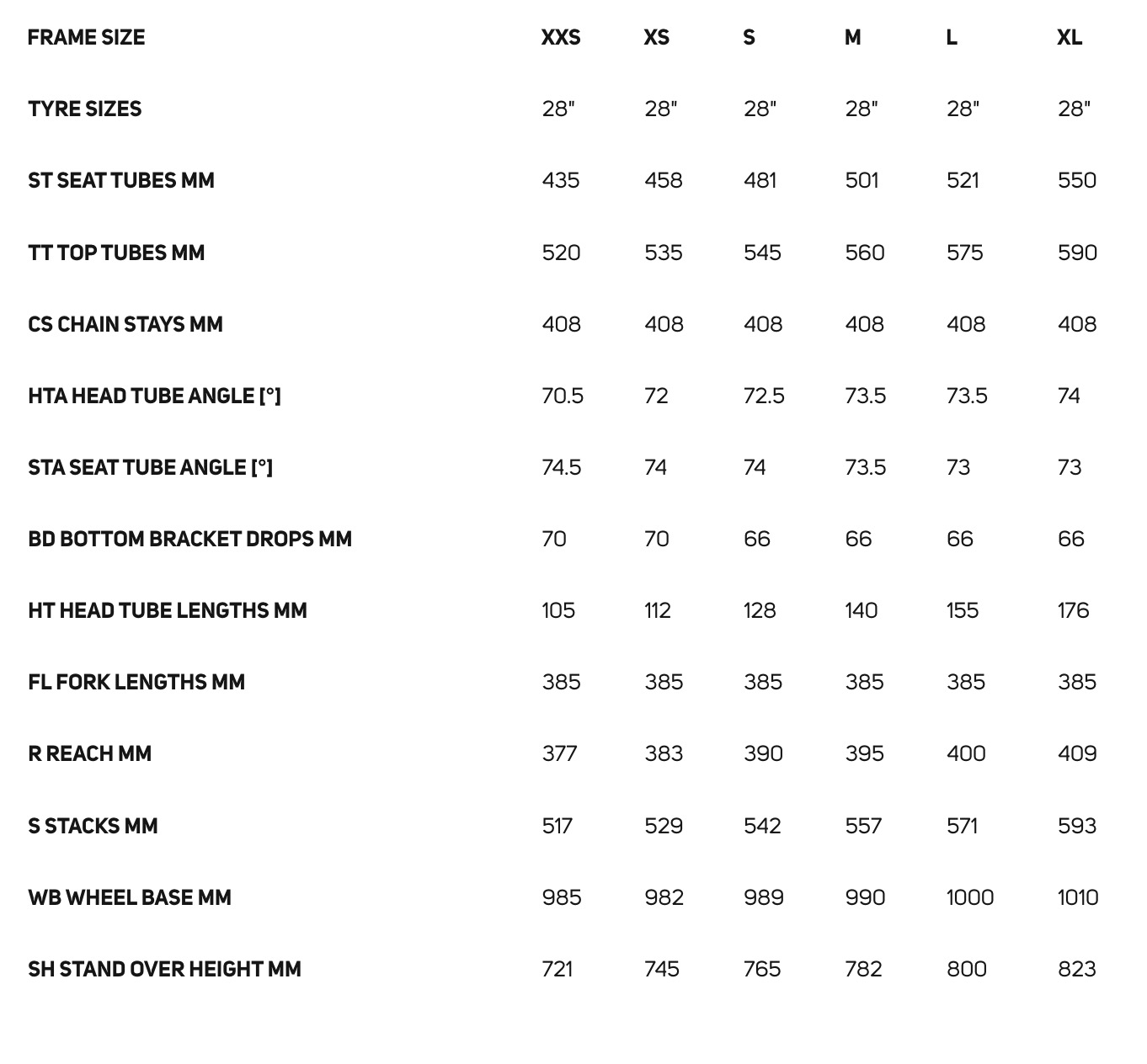

Sizing & Geometry
Frame Sizes
3XS XXS XS S M L XLThis frame comes in 7 sizes, this is 1.44 more sizes than the website average.
Frame Details
Frame Weight
Unknown
Frame Material
Carbon Fiber
Forks
SCULTURA CF3 V, material: carbon, 700x30C max. wheelsize, 100x12/ 142x12mm axle standard, Pressfit 86,5
Fork Material
The forks are made from Carbon Fiber
Cables: Internally Routed
Routed through bars, stem and frame
Axel Type: Thru-axle
How the wheels are secured to the frame
Brake Type: Disc Brake
Welcome to the future!
Brake Mount: Flat Mount
How the calipers are mounted
Integrated bar and stem: Yes
The bar and stem are integrated
Drivechain Details
Groupset name
Shimano Ultegra Di2
Electric Groupset: Yes
This bike has electric gears
Shifters
Shimano Ultegra disc Di2
Front Derailleur
Shimano Ultegra Di2 braze-on (FD-R8150).
Rear Derailleur
Shimano Ultegra Di2
Cassette
Shimano Ultegra R8100/R8101.
Cranks
Shimano Ultegra (165/170/172.5/175 mm by size)
Power Meter: No
This bike doesn't have a power meter
Bottom Bracket
Shimano SM-BB72-41B, Pressfit 86.5
Chain
Shimano M6100-12 (12-speed chain shared across Shimano cross-compatibility matrices).
Battery
Unknown
Wheel & Tire Details
Wheelset Name
Reynolds AR 46 DB, 100x12mm width front hub, 142x12mm width rear hub, 21mm inner width, 46mm height, Centerlock, shimano HG, material: carbon, Tubeless ready (tubeless tape and valves included)
Front Wheel Depth
46mm
Rear Wheel Depth
46mm
Tires
Front: Continental Grand Prix 5000S TR, 700x28C, fold, tubeless ready, Rear: Continental Grand Prix 5000S TR, 700x28C, fold, tubeless ready
Tire Type
Tubeless
Max Tire Size: 30 mm
This is the max tire size you can use
Brakes
Brake Type: Disc Brake
Welcome to the future!
Brake Mount: Flat Mount
How these disc brakes are mounted
Brakes
Shimano Ultegra, Hydraulic disc
Brake Rotors
Shimano RT-CL800 Centerlock rotors | 160 mm front and 160 mm rear
Other Components
Saddle
Prologo Scratch M5, V-mount adapter, incl. MERIDA minitool
Seatpost
MERIDA TEAM SL 27.2mm diameter 15mm setback Carbon S-Flex
Handlebars
MERIDA TEAM SL 1P INTEGRATED, material: carbon, 380mm (3XS-XXS-XS-S), 400mm (M-L-XL)
Bar Tape
MERIDA ROAD Expert
