Bike Info
Worldwide Shipping: Yes
Delivery across the globe!
Warranty: Lifetime
Limited warranty website average: 3.12 years
Released: 2025
The bike was released 1 years ago
Bike Type: Road
The style of riding intended for this bike
Bike Spec
Weight: 8.4 kg
The website average for Road bikes is 8.56 kg. This bike is 0.16 kg under the average. Total bike weight may vary depending on frame size.
Groupset
Shimano Ultegra Di2
Wheelset
Vision SC30 DB
Brake Type: Disc Brake
Welcome to the future!
Frameset Material
Carbon Fiber
Max Tire Size: 35 mm
This is the max tire size you can use
UCI Approved: Yes
You can use for official races
Sizing & Geometry
Frame Sizes
XXS XS S M L XLThis frame comes in 6 sizes, this is 0.44 more sizes than the website average.

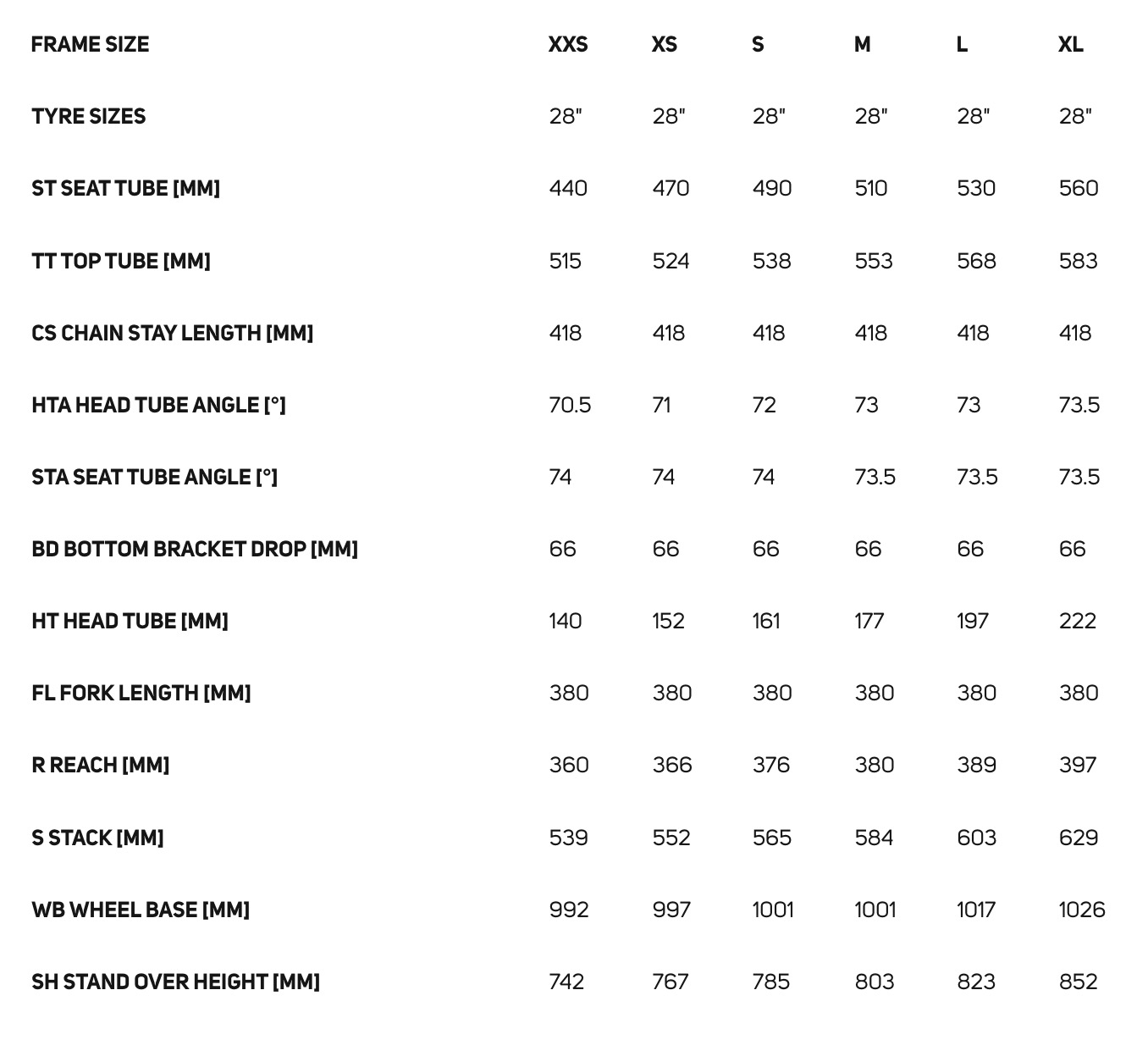

Sizing & Geometry
Frame measurements and sizing vary by bike size. Measurements are shown for each available frame size.
Swipe across to view all sizes.
| Geometry | XXS | XS | S | M | L | XL |
|---|---|---|---|---|---|---|
| Sizing | ||||||
| Wheel size | 700c | 700c | 700c | 700c | 700c | 700c |
| Frame geometry | ||||||
| Stack (mm) | 539 | 552 | 565 | 584 | 603 | 629 |
| Reach (mm) | 360 | 366 | 376 | 380 | 389 | 397 |
| Handling | ||||||
| Head angle (°) | 70.50 | 71 | 72 | 73 | 73 | 73.50 |
| Seat angle (°) | 74 | 74 | 74 | 73.50 | 73.50 | 73.50 |
| Wheelbase (mm) | 992 | 997 | 1,001 | 1,009 | 1,024 | 1,034 |
Frame Details
Frame Weight
This frame weighs 997g
Frame Material
Carbon Fiber
Forks
SCULTURA ENDURANCE CF3 II, material: carbon, 700x35C max./ 700x32C (with fender) max. wheelsize, 100x12/ 142x12mm axle standard, BB86 bottom bracket standard
Fork Material
The forks are made from Carbon Fiber
Cables: Internally Routed
Routed through bars, stem and frame
Axel Type: Thru-axle
How the wheels are secured to the frame
Brake Type: Disc Brake
Welcome to the future!
Brake Mount: Flat Mount
How the calipers are mounted
Integrated bar and stem: No
You can use any bar and stem
Drivechain Details
Groupset name
Shimano Ultegra Di2
Electric Groupset: Yes
This bike has electric gears
Shifters
Shimano Ultegra disc Di2
Front Derailleur
Shimano Ultegra Di2 braze-on electronic front derailleur (FD-R8150) (Inferred from standard groupset build).
Rear Derailleur
Shimano Ultegra Di2
Cassette
Shimano Ultegra CS-R8101 (Inferred).
Cranks
Shimano Ultegra FC-R8100
Power Meter: No
This bike doesn't have a power meter
Bottom Bracket
Shimano SM-BB72-41B, Pressfit 86.5
Chain
Shimano M8100 12-Speed / Ultegra level (Inferred from groupset specification).
Battery
Unknown
Wheel & Tire Details
Wheelset Name
Vision SC30 DB, 100x12mm width front hub, 142x12mm width rear hub, 19mm inner width, 30mm height, Centerlock, material: carbon
Front Wheel Depth
45mm
Rear Wheel Depth
45mm
Tires
Continental GP5000 AllSeason TR, 700x32C, fold
Tire Type
Tubeless
Max Tire Size: 35 mm
This is the max tire size you can use
Brakes
Brake Type: Disc Brake
Welcome to the future!
Brake Mount: Flat Mount
How these disc brakes are mounted
Brakes
Shimano Ultegra, Hydraulic disc
Brake Rotors
160 mm front and 160 mm rear Shimano RT-CL800 Centerlock rotors
Other Components
Saddle
Prologo Scratch M5, V-mount adapter, incl. MERIDA minitool
Seatpost
MERIDA TEAM SL 27.2mm diameter 15mm setback Carbon S-Flex
Handlebars
MERIDA EXPERT SLII, material: aluminium, 380mm (XXS-XS-S), 400mm (M-L), 420mm (XL)
Bar Tape
MERIDA ROAD Expert
